C0507 on 2017-2018 Jeep Compass: Right Front Wheel Speed Rationality Explained

What's Unique About the 2017-2018 Jeep COMPASS

For the 2017-2018 Jeep Compass (MP generation), this code is a known issue documented in multiple Technical Service Bulletins (TSBs). The 2017 model year is a crossover point between the older 'MK' generation and the new 'MP' generation; this code and the associated TSBs specifically relate to the newer MP platform. The problem is common enough that a sudden cascade of ABS, ESC, and Hill Holder warnings is one of the most frequently reported issues on owner forums 🎬 Watch: Diagnosing the common ABS and 4WD warning light cascade. for this vehicle.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: The 2017 model year included both the first generation (MK) and the second generation (MP) of the Jeep Compass. The 2018 model is exclusively the second generation (MP). The provided TSBs and most common part numbers are specific to the second-generation (MP) platform, which began in 2017.

Symptoms You May Notice

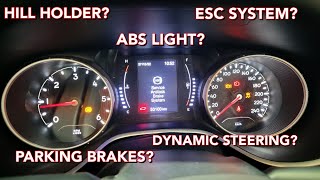

• ABS warning light is on
• Traction Control (ESC/ESP) warning light is on

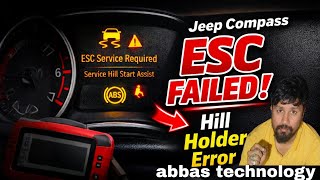

• "Service Electronic Stability Control" message on the dash
• "Service Hill Holder" message on the dash
• "Dynamic Steering Torque Service Required" message on the dash
• Cruise control is disabled or turns off unexpectedly
• In some cases, the transmission may enter a limp mode, preventing shifting, or the "Service Transmission" light may appear.
• If equipped with 4WD, a "Service 4WD System" message may appear.

Most Likely Causes

1. Faulty Right Front Wheel Speed Sensor 🔴 High Probability Sensors are exposed to harsh conditions (heat, water, debris) and are a very common failure point on the MP Compass and its platform mates. Internal failure of the sensor is the most frequent cause for this code.
   How to confirm: Use an OBD-II scanner capable of reading ABS live data. Monitor the speed of all four wheels while driving. The right front sensor will likely show a speed of zero, or a reading that is erratic and different from the other three. This is the definitive way to confirm the sensor has failed. 🎬 See how to verify a faulty sensor using live data.
   Typical fix: Replace the right front ABS wheel speed sensor. After replacement, the codes may need to be cleared with a scan tool, but often the lights will go out on their own after driving a short distance.
   Est. part cost: $25-$80
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness leading to the wheel hub is exposed and can be damaged by road debris, corrosion, or chafing against suspension components or the plastic wheel well liner. The connector itself can also suffer from water intrusion, leading to corroded pins.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to its connection point in the fender well for any cuts, chafing, or corrosion at the connector pins. Use a multimeter to check for continuity and proper voltage at the sensor connector.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail. Pigtail kits are available from Mopar and aftermarket suppliers.
   Est. part cost: $15-$50
3. Damaged or Debris-Covered Tone Ring ⚪ Low Probability On this vehicle, the magnetic tone ring that the sensor reads is integrated into the wheel bearing/hub assembly. While protected, severe impacts or advanced corrosion can damage it. A Reddit user reported their mechanic found the sensor's mounting point on the bearing had broken off, leaving the sensor dangling.
   How to confirm: After removing the wheel speed sensor, visually inspect the tone ring inside the hub for cracks, rust buildup, or metallic debris. This may require removing the brake rotor for a clear view. If the bearing is noisy or has play, it is also suspect.
   Typical fix: If the tone ring is damaged, the entire front wheel bearing and hub assembly must be replaced.
   Est. part cost: $100-$250

Rare But Worth Checking

• Failing ABS Control Module: This is the least likely cause. The module is the computer that processes all the sensor inputs. It should only be considered after definitively ruling out the sensor, wiring, and tone ring. A Reddit user with multiple sensor codes (U140B, U140C) and a brake module code (U0418) suspected a module failure, but replacing the sensors first resolved the issue. Replacement often requires programming by a dealer or specialized shop.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS codes to confirm C0507 is present and active.
2. Access the live data stream for the ABS module.
3. Safely drive the vehicle at a low speed (5-15 mph) while an assistant monitors the wheel speed sensor data. Observe if the Right Front (RF) sensor reading is 0, erratic, or significantly different from the other three sensors.
4. If the RF sensor reading is faulty, raise and secure the vehicle on jack stands and remove the right front wheel.
5. Visually inspect the RF wheel speed sensor and its wiring harness for any obvious signs of damage, corrosion, or loose connections. The harness runs up into the fender liner.
6. If no visual damage is found, disconnect the sensor and use a multimeter to test the sensor's internal resistance (if specifications are available) and check for proper voltage and ground from the vehicle-side connector.
7. If the sensor and wiring test good, remove the sensor (typically held by a single Allen or Torx bolt 🎬 Watch this quick walkthrough for replacing the wheel speed sensor.) and inspect the magnetic tone ring on the wheel hub for damage, cracks, or excessive rust/debris. The sensor can sometimes break upon removal if it is seized in the knuckle.
8. If the sensor fails testing, replace it. If the wiring is faulty, repair it. If the tone ring is damaged, replace the wheel bearing/hub assembly.
9. After the repair, clear the codes using the scan tool. The warning lights may also go out on their own after driving a short distance (over 10-20 mph) as the system re-verifies the sensor signal.

Parts You'll Likely Need

• Front Right ABS Wheel Speed Sensor (OEM #68280914AA) — This is the most common failure part for code C0507. It is a sensor that reads the wheel's rotational speed and is prone to failure from exposure to the elements. This part has been superseded by Mopar part number 68563836AA.
  Trusted brands: Mopar, Duralast, SKP, Standard Motor Products (SMP), NTK
  OEM price range: $50-$80
  Aftermarket price range: $25-$60

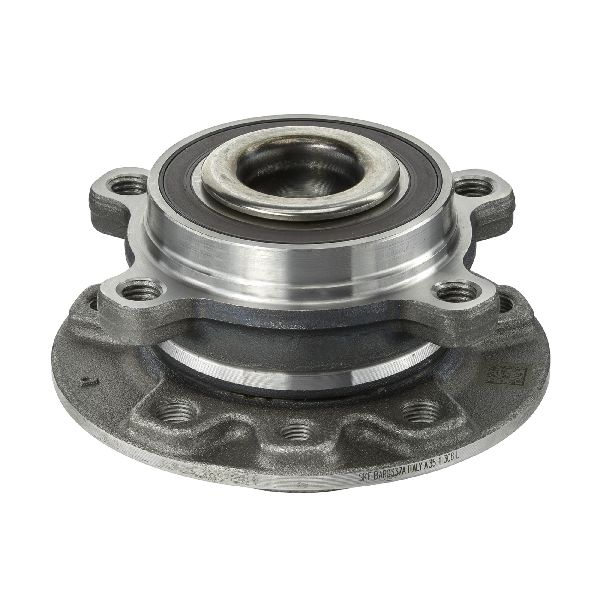

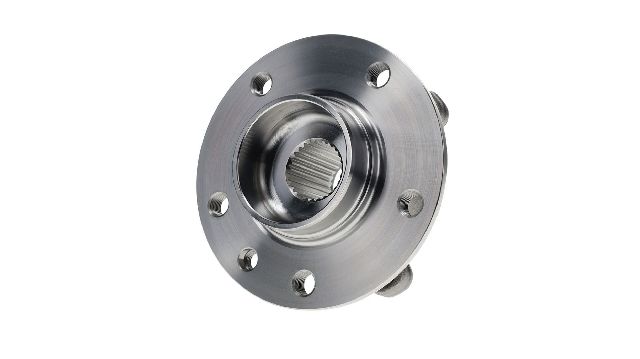

• Front Wheel Bearing and Hub Assembly (OEM #68339336AA) — This part is only needed if the magnetic tone ring, which is integrated into the hub, is found to be damaged, or if the bearing itself has failed (causing noise or play). This is a much less common cause of the C0507 code.
  Trusted brands: Mopar, Timken, SKF, Duralast, MOOG
  OEM price range: $180-$250
  Aftermarket price range: $100-$170

Related Codes That Often Appear With This One

• C0501 — This is the 'Wheel Speed Signal Left Front Rationality' code. Seeing it with C0507 could indicate a common issue affecting both front sensors, like a wiring harness problem or a software issue addressed by a TSB.
• U0415 — This code means 'Invalid Data Received From Anti-Lock Brake System Control Module'. It is often a secondary code set in other modules (like the ECU or TCM) because they are not receiving valid speed data from the ABS module due to the primary C0507 fault.
• U140B / U140C — These are codes for the rear left and rear right wheel speed sensors, respectively. A Reddit user reported seeing these codes along with a U0418 (brake module) code, which all appeared after the typical dash warnings. Replacing the rear sensors resolved the issue.

Technical Service Bulletins (TSBs) & Recalls

• 1808222: Mentions C0507 - Wheel Speed Signal Right Front Rationality in a list of DTCs related to vehicle speed control.
• 18-077-20: Lists C0507 as a possible code when addressing customer complaints of MIL illumination, poor shift quality, or engine noises on 2017 models with the 2.4L engine. The fix is a PCM software update, but this does not repair the sensor itself.

Platform-Specific Known Issues

• Multiple Technical Service Bulletins (TSBs) list C0507 as a potential DTC found during diagnosis for other issues. These TSBs (e.g., 18-077-20) are primarily for Powertrain Control Module (PCM) software updates to address issues like poor shift quality or engine noises. The presence of C0507 would be noted by the technician, but the flash update itself does not fix the root cause of the sensor fault. The sensor or wiring would still need to be repaired separately.

Mechanic-Grade Diagnostic Values

• Signal wire voltage at sensor connector (KOEO, sensor unplugged) — expected: ~11-12V (Battery Voltage). Failure: A low reading, such as 2-6V, indicates an open or high resistance in the wiring harness.
• Signal wire voltage at sensor connector (KOEO, sensor plugged in) — expected: ~10V. Failure: A significant drop or unstable voltage can indicate a faulty sensor or wiring issue.
• Sensor internal resistance (Ohms) — expected: No specific Ohm value is published, but the reading should be nearly identical (within ~1%) to the sensor on the opposite side of the vehicle.. Failure: A reading of OL (Open Loop) indicates a failed sensor. A reading that is significantly different from the known-good sensor on the other wheel also indicates failure.

Hidden / Shadow Codes Worth Checking

• C0040 06: Right Front Wheel Speed Sensor Circuit Low Voltage/Open. This is a more specific fault pointing towards a wiring issue or internal sensor open circuit. (see via Dealer-level scan tool (like wiTECH) or advanced aftermarket scanner capable of reading manufacturer-specific ABS codes.)
• C0040 0F: Right Front Wheel Speed Sensor Circuit Signal Erratic. This suggests the sensor is producing a signal, but it's noisy or inconsistent, often due to a damaged tone ring or internal sensor fault. (see via Dealer-level scan tool (like wiTECH) or advanced aftermarket scanner.)
• C0040 5A: Right Front Wheel Speed Sensor Circuit Not Plausible. This is the manufacturer-specific equivalent of the generic C0507 rationality code. (see via Dealer-level scan tool (like wiTECH) or advanced aftermarket scanner.)

Scan Tool Commands That Help

• wiTECH (FCA Dealer Tool): Reprogram ABS Module — This function is used to update the ABS control module's software to the latest version, which can resolve issues related to how the module interprets sensor data. This is often performed after confirming the hardware (sensor, wiring) is good.
• wiTECH (FCA Dealer Tool): Clear All DTCs — After a repair or software flash, some hard-set codes may not clear with a generic scanner or by disconnecting the battery. A dealer-level tool may be required to fully clear the fault from the ABS module's memory.

Wiring & Ground Locations

• Right Front WSS Harness — The sensor wiring is a twisted pair that runs from the wheel hub, up the steering knuckle, and connects to the main harness behind the plastic fender liner/splash guard.. This harness is a common point of failure due to chafing against the fender liner or suspension components, or damage from road debris.
• WSS Wire Colors — On some Jeep models, the twisted pair consists of a Yellow/Green stripe wire (Ground) and a Dark Green/Light Blue stripe wire (Signal).. Knowing the wire colors and functions is essential for performing accurate voltage and continuity tests at the connector.

Real Owner Repair Stories

• YouTube video from South Main Auto LLC (2018 Jeep Compass) — ABS, Traction Control, and Brake warning lights came on after driving for a short time. Code C0507 was active.
  ❌ Tried (didn't work) Another shop had already replaced the right front wheel speed sensor, but the problem remained.
  ✅ What actually fixed it The diagnosis pointed towards an intermittent wiring or connector issue, as replacing the sensor did not solve the problem. The video emphasizes testing the circuit rather than continuing to replace parts.
• YouTube video (Jeep Compass (MP generation)) — Multiple warning lights on the dash, including ABS and ESC, after replacing two ABS sensors.
  ❌ Tried (didn't work) Replacing two ABS wheel speed sensors.
  ✅ What actually fixed it The problem was not fully resolved until the codes were cleared using a professional scan tool with an active online subscription. This suggests some faults cannot be cleared with basic tools after a part replacement.
• Reddit user in r/JeepCompass (2018 Jeep Compass) — Service Hill Start, Service ABS System, Check Engine lights. Code U0418 (Brake Module) was present.
  ❌ Tried (didn't work) One shop diagnosed bad wheel bearings, which the owner disputed as there was no noise.
  ✅ What actually fixed it The owner had a different shop replace the rear ABS speed sensors, which resolved all the warning lights.

"I Checked Everything" — The Actual Cause

• In one documented case on a 2018 Compass, the C0507 code persisted after a shop replaced the sensor. A deeper diagnosis revealed the issue was likely intermittent and located in the wiring harness or connector, not the sensor itself. This highlights that when a new part doesn't fix the issue, the circuit itself is the next logical suspect.
• In another case, new ABS sensors were installed, but the warning lights would not go out. The actual issue was that the fault codes were 'hard set' and required an online-capable professional scan tool (like wiTECH) to perform the final clear procedure; a basic scanner was insufficient.

When the Usual Fixes Don't Work

• While C0507 points specifically to the right front sensor, it's important to consider system-wide issues. One owner with multiple ABS/ESC warnings and a U0418 (Brake Module) code ultimately fixed their issue by replacing the REAR ABS sensors, not the front ones. This suggests that in some cases, a fault in another part of the ABS system can lead to misleading codes. Additionally, a failing auxiliary battery has been shown to cause a cascade of electronic errors, including the 'Service ESC System' light, which could be misdiagnosed as a sensor failure.

OEM Part Supersession History

• 68280914AA, 68430134AA → 68563836AA — Part has been updated by the manufacturer for improved reliability or sourcing.
