OBD-II Code C0280: Stability System Active Too Long

What Does C0280 Mean?

Code C0280 means the Electronic Brake Control Module (EBCM) detected the Electronic Stability Control (ESC) system running too long. ESC is designed for brief corrections; extended use overheats the ABS pump and solenoids. After about 15 seconds of cumulative activation, the EBCM sets this code and disables stability and traction control to prevent component damage.

Technical definition: The official SAE/ISO definition for C0280 is "Stability System Active Too Long". General Motors adds a suffix like '5A' or '54' for "Stability System Active Too Long High Temperature", indicating the EBCM disabled the system because continuous operation exceeded time limits and risked overheating.

Can I Drive With C0280?

Yes, But With Caution. Yes, but with caution. Standard braking functions, but Anti-lock Brakes (ABS) and Electronic Stability Control (ESC) are disabled. In an emergency, wheels lock up, increasing stopping distances by 15-30% on dry pavement and significantly more on wet surfaces. A locked wheel causes complete loss of steering control. This fault rarely causes mechanical damage, but crash risk increases significantly.

Common Causes

• Mismatched or Improperly Inflated Tires (Very Common) — Tires with different sizes, brands, or inflation pressures rotate at different speeds. The stability system misinterprets this as wheel slip and activates unnecessarily, eventually triggering C0280.
• Faulty Wheel Speed Sensor or Wiring (Very Common) — A dirty, damaged, or failing wheel speed sensor sends incorrect speed data to the EBCM. Damaged or corroded wiring to the sensor is a frequent culprit, especially in regions using road salt.
• Poor Wheel Alignment (Common) — If wheel alignment is off, the steering angle sensor does not read 0 degrees when traveling straight. This conflict between steering and wheel speed sensors causes false stability activation.
• Faulty Yaw Rate or Steering Angle Sensor (Common) — The system uses the yaw rate sensor for rotational speed and the steering angle sensor for driver intent. Bad data from either confuses the system into activating improperly.
• Incorrect Sensor Calibration (Common) — After replacing a steering angle sensor, yaw rate sensor, or EBCM, you must perform a calibration with a professional scan tool. Uncalibrated parts send incorrect data, causing false activations.
• Failing ABS/EBCM Module (Less Common) — Internal electronic failures, such as a faulty processor or broken solder joint, cause the ABS module to misinterpret sensor data. This usually triggers alongside other ABS-related codes.
• Poor Electrical Grounds or Connections (Less Common) — A corroded main ground wire for the EBCM introduces voltage drops and erratic signals, tricking the system into activating.
• Extreme Driving Conditions (Rare) — Driving for extended periods with wheels spinning (e.g., stuck in deep snow or mud) keeps the stability system active long enough to trigger the code as a self-preservation measure.

Symptoms

• Traction Control (TCS) or Stability Control (ESC) Light is On — The most common symptom. The light, often showing a car with squiggly lines, illuminates and stays on.
• ABS Light is On — Because the systems are integrated, a stability system fault almost always disables the Anti-lock Braking System (ABS), turning on its warning light.
• Unwanted ABS or Traction Control Activation — You feel the brakes apply automatically, hear the ABS pump motor running, or feel the brake pedal pulse during normal driving.
• Loss of Power on Acceleration — If the system falsely detects wheel spin, it cuts engine power to regain traction, making the car feel sluggish.
• Spongy or Unresponsive Brake Pedal — If the failure is within the ABS hydraulic unit, the brake pedal feels soft or travels further than usual before engaging.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Correcting Tire Pressure or Replacing Mismatched Tires — Parts: $0-$1200, Labor: $0, ~0.1 hr book time (DIY)
• Replacing a Faulty Wheel Speed Sensor — Parts: $25-$120, Labor: $100-$200, ~1.2 hr book time (DIY)
  Chevrolet HHR (2006-2011): OEM GM 88893292 (Alt: Duralast SU9837, AC Delco 213-3674 ($25-$60))
  Ford Fusion (2013-2020): OEM Ford DG9Z-2C204-B (Front) (Alt: Bosch 0986594611, Standard Motor Products ALS2591 ($30-$70))
  Volkswagen Jetta (2009-2014): OEM VW WHT003857 (Front) (Alt: Bosch 0986594520, Denso 5S10471 ($20-$50))
• Replacing and Calibrating a Steering Angle or Yaw Sensor — Parts: $150-$800, Labor: $150-$300, ~1.8 hr book time (Intermediate)
  Chevrolet HHR (2006-2011): OEM GM 22733617 (Yaw Rate Sensor) (Alt: Dorman 599-216, AC Delco 13589584 ($150-$300))
  Toyota Sienna (2011-2020): OEM Toyota 89183-08020 (Yaw Rate Sensor) (Alt: Limited availability, OEM is recommended ($600+))

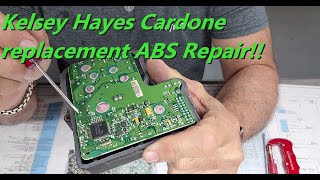

• Repairing a Damaged ABS/EBCM Module — Parts: $150-$400, Labor: $150-$300, ~2 hr book time (Intermediate)
• Replacing the ABS/EBCM Module — Parts: $500-$1200, Labor: $200-$550, ~2.5 hr book time (Professional)
  Chevrolet Colorado / GMC Canyon (2004-2012): OEM GM 84356647 (Alt: Cardone 12-2101 (Remanufactured, $200-$400))
  Ford Fusion (2013-2020): OEM Ford DG9Z-2C405-M (Alt: Cardone 12-4411 (Remanufactured, $300-$550))
  Volkswagen Jetta (2009-2014): OEM VW 1K0-907-379-AE (Alt: Bosch and ATE are OEM suppliers. ($150-$400 for repair))

DIY vs Professional

• Correcting Tire Pressure or Replacing Mismatched Tires — Beginner:
  Tools: Tire pressure gauge, air compressor.
• Replacing a Faulty Wheel Speed Sensor — Beginner:
  Tools: Jack, jack stands, socket set, wrenches, torque wrench, trim removal tool.
• Replacing and Calibrating a Steering Angle or Yaw Sensor — Beginner:
  Tools: Socket set, trim removal tools, professional-grade bidirectional scan tool for calibration.
• Repairing a Damaged ABS/EBCM Module (Mail-in service) — Beginner:
  Tools: Socket set, flare nut wrenches, brake fluid, brake bleeding equipment.
• Replacing the ABS/EBCM Module — Beginner:
  Tools: Flare nut wrenches, socket set, professional-grade scan tool capable of VIN programming and ABS bleed function.

Used vs. New Parts: Buying Guide

When a used part is worth it: For the ABS/EBCM module, a 'used' part in the form of having your original module repaired by a mail-in service is the best value, avoiding VIN programming issues. Buying a used module from a junkyard is very risky.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• For used modules, match the part number exactly.
• Verify the seller has a good reputation and offers a warranty.
• Confirm the donor vehicle was not scrapped due to flood or fire damage.

Decision logic:

• If The part is a sensor (wheel speed, yaw, steering angle) → Buy new. Used sensors have an unknown history and are prone to signal drift with age.
• If The part is the ABS/EBCM module and a repair service is available → Use a mail-in repair service for your original module. This is the most reliable and cost-effective option.
• If The part is a discontinued ABS module with no repair service available → A used module from a low-mileage donor is a viable last resort, but budget for professional programming.

Warranty tradeoff: Used parts from junkyards typically have a 30-90 day warranty. Mail-in repair services often offer a 1-year or lifetime warranty. New aftermarket parts usually come with a 1-3 year warranty.

Worst-case if a used part fails: 600-1500. If a used ABS module is faulty or cannot be programmed, you pay for the part, repeat the labor, and purchase another unit.

What Happens If You Wait — Timeline

1. Immediate: ABS and Stability Control warning lights are on. The safety systems are disabled. (MPG impact: 0%% · Added cost: $0)
2. 1-3 months: If the cause is a bad alignment, uneven tire wear begins, scrubbing off miles from tire life. A misalignment of just 1/8th of an inch increases tire wear by 20%. (MPG impact: 0-1%% · Added cost: $100-$250 (in lost tire value))
3. 3-6 months: If the cause is a faulty sensor causing constant, unwanted ABS pump activation, the pump motor is at high risk of overheating and burning out. (MPG impact: 0-1%% · Added cost: $700-$1750 (Cost to replace the entire ABS module/pump assembly if the motor fails))
4. 6+ months: Continued driving with a severe misalignment ruins a set of tires completely, forcing premature replacement. (MPG impact: 1-3%% · Added cost: $600-$1200+ (Cost of a new set of tires + the original repair that was needed))

Cost of Not Fixing It

• Immediate: ABS and Stability/Traction Control systems are disabled. Increased risk of losing control or having a collision in an emergency maneuver. (Added cost: 0)
• 1-6 months: If the fault causes constant, unwanted ABS pump activation, the pump motor overheats and burns out, requiring a much more expensive repair. (Added cost: 700-1750)
• 6+ months: Continued risk of a collision. Severe uneven tire wear if the fault is caused by a bad alignment that is never corrected. (Added cost: 600-1200)

Diagnosis Steps

1. Check Tires, Alignment, and Recent Events
   Confirm all four tires are the correct, matching size and inflated to the door jamb sticker specification. Check for uneven tire wear indicating an alignment issue. Note if the light appeared after hitting a pothole or driving in extreme conditions.
   Tools: Tire pressure gauge (Beginner)
2. Read All Trouble Codes from All Modules
   Use an advanced OBD-II scanner capable of reading ABS/Chassis (C-codes). C0280 rarely appears alone. Look for codes related to specific wheel speed sensors (C0035-C0050), steering angle sensor (C0196), yaw rate sensor (C0186), or EBCM internal faults (C0550).
   Tools: Advanced OBD-II Scanner (Beginner)
3. Analyze Live Sensor Data
   View the live data stream. While driving slowly in a straight line, all four wheel speed sensors must read identically. The steering angle sensor should read 0° (+/- 5°), and the yaw rate sensor should read 0 deg/sec.
   Tools: Advanced OBD-II Scanner (Intermediate)
4. Visually Inspect Wheel Speed Sensors and Wiring
   Safely raise the vehicle and inspect the wiring leading to the sensor at each wheel hub. Look for chafed, broken, or corroded wires. Check the sensor for heavy contamination or physical damage.
   Tools: Jack, jack stands, flashlight (Intermediate)
5. Test Active Wheel Speed Sensor (Digital)
   Most modern cars use active sensors. With the key on and sensor connected, backprobe the connector. One wire has reference voltage (5V or 12V), one is ground (0V), and the signal wire produces a square wave when the wheel turns.
   Tools: Multimeter, backprobe pins, vehicle-specific wiring diagram (Advanced)
6. Test Passive Wheel Speed Sensor (Analog)
   For older 2-wire passive sensors, disconnect the sensor and measure resistance between the pins (typically 800-1,700 Ohms). Check AC voltage output by spinning the wheel by hand; it should generate a minimum of 0.1 VAC (100mV).
   Tools: Multimeter (Advanced)
7. Analyze Wheel Speed Sensor Waveform (Pro Tip)
   Use an oscilloscope to graph the sensor's output while spinning the wheel. Gaps, noise, or a distorted pattern indicate a failing sensor or a damaged tone ring.
   Tools: Oscilloscope, backprobe pins (Advanced)
8. Perform EBCM Ground Circuit Voltage Drop Test (Pro Tip)
   Locate the main ground point for the EBCM. With the ignition on, set a multimeter to a low DC volts scale. Place the positive lead on the negative battery terminal and the negative lead on the EBCM ground bolt. A reading above 0.1 volts indicates excessive resistance.
   Tools: Multimeter, vehicle-specific wiring diagram (Advanced)
9. Test the ABS Module
   If all sensors, wiring, grounds, and calibrations are good, the fault lies within the ABS module. Codes like C0550, B1342, 01130, or 16352 strongly point to module failure.
   Tools: Advanced diagnostic tools (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 25-55 mph (Steady cruise or light acceleration/deceleration, often during a slight turn.)
• Steering Angle: Variable (often non-zero when driving straight) (A key indicator. A non-zero angle while wheel speed sensors show straight travel is a primary trigger.)
• Brake Pedal Status: Off (The code usually sets from false stability activation, not during a braking event.)
• Engine RPM: 1200-2500 RPM (Typical range for normal city or highway driving when the fault occurs.)

Related Codes

• C0035 - C0050 — These codes pinpoint a fault in a specific wheel speed sensor circuit. C0280 is the effect, logged because faulty sensor data caused the stability system to run too long. Diagnose the specific sensor code first.
• C0196 / C0186 — These indicate a fault in the Yaw Rate (C0186) or Steering Angle Sensor (C0196) circuits. A fault here provides bad information, causing improper stability activation and logging C0280.
• C0280 5A / C0280 54 — A GM-specific variation. The suffix means "High Temperature". It confirms the EBCM shut down the stability system because prolonged activation caused the unit to overheat.
• C0550 / B1342 / 01130 / 16352 — These indicate an internal failure within the EBCM/ABS module itself. If you have one of these alongside C0280, the ABS module is the culprit.

Climate & Environmental Factors

• Road Salt / Saline Climates: Salt spray is highly corrosive to exposed wheel speed sensor wiring, connectors, and metallic tone rings. Corrosion causes open circuits or distorted sensor signals that trick the stability system into activating.
• Extreme Cold: Ice and snow lead to legitimate, prolonged wheel spin. This causes the stability system to run long enough to set a C0280 code as a self-preservation measure.
• High Humidity: Persistent high humidity accelerates corrosion at electrical connection points and on the EBCM ground. Moisture penetrates cracked sensor housings, leading to intermittent signal problems.

How to Talk to a Mechanic About This Code

Say this: "I have an ABS and stability control light on, and my scanner shows code C0280. Please check all four wheel speed sensor live data, the steering angle sensor reading, and wheel alignment before quoting a new ABS module."

This signals you know that C0280 is a secondary code and the root cause is likely a cheaper component. It directs the mechanic to perform a logical, cost-effective diagnosis instead of jumping to the most expensive conclusion.

Avoid saying:

• 'My ABS light is on, can you fix it?'
• 'I think I need a new ABS computer.'
• 'Just do whatever it takes to turn the light off.'

Questions to ask before authorizing the repair:

• Can you show me the live data from the wheel speed sensors while spinning the wheels?
• What did the steering angle sensor read when the wheels were straight?
• If you are recommending an ABS module, can you confirm you've performed a ground circuit voltage drop test and checked for other related codes?
• Will the replacement part be new, used, or remanufactured, and what is the warranty?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if the diagnosis points to a faulty ABS module or a sensor that requires proprietary calibration tools. For simpler causes like a wheel speed sensor, they are likely overkill.
  Best for: Vehicles under warranty, Complex electronic issues on newer cars, especially German brands, Repairs that require manufacturer-specific software for programming or calibration (like a new ABS module)
  Downsides: Highest labor rates, May default to replacing an entire module when a repair or cleaning of a component would suffice (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for initial diagnosis and common repairs. A good independent shop diagnoses and replaces a wheel speed sensor or corrects an alignment issue for significantly less than a dealer.
  Best for: Out-of-warranty vehicles where cost is a major factor, Common repairs like wheel speed sensors, alignment, and wiring issues
  Downsides: Quality and diagnostic capabilities vary widely; look for ASE certification and good reviews, May not have the expensive, specialized tools to program a new ABS module (Typical cost: +0% vs. baseline)
• Chain Shop: Acceptable for checking tires and alignment. Be cautious if they recommend more complex electrical diagnosis or module replacement; get a second opinion from a dealer or trusted independent shop.
  Best for: Tire-related issues and wheel alignments, which are common causes of C0280
  Downsides: Technician skill varies greatly, May lack the advanced diagnostic tools to read ABS codes or analyze live sensor data accurately, High pressure to upsell services (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of your car's private-party value, pause and consider your options.

• Car worth $4000, fix is $2100: Walk away. The repair cost is over 50% of the car's value. It's not a sound financial decision.
• Car worth $12000, fix is $1500: Fix it. The repair cost is well under the 50% threshold and restores a critical safety feature.
• Car worth $3000, fix is $1800: Walk away. At 60% of the vehicle's value, this repair is too expensive for an older, lower-value car.

What Scan Tool You Need for This Code

Minimum: An OBD-II scanner that reads and clears Anti-lock Brake System (ABS) codes, often called 'C' codes.

A standard $20 engine code reader will not communicate with the ABS module. It cannot see the C0280 code or any related sensor codes, leaving you completely blind to the problem.

Budget: Autel AutoLink AL619 (~$80) — Reads and clears engine, ABS, and SRS codes. It views live data from wheel speed sensors, allowing you to see if one is reading differently from the others.

Mid-range: Foxwell NT630 Plus (~$120) — Provides robust ABS/SRS diagnostics, including live data graphing. Crucially, it offers bidirectional control to perform an 'automated bleed' of the ABS pump after replacement.

Professional: Autel MaxiCOM MK808 / MK906BT (~$500-1200) — Offers full, dealer-level diagnostics. It performs advanced functions like reading manufacturer-specific codes, VIN programming for a new ABS module, and calibrating the steering angle sensor.

Rent vs buy: Many auto parts stores scan codes for free, but their scanners may not read ABS codes. Given that even the cheapest fix for C0280 costs more than a budget ABS scanner, buying a tool like the Autel AL619 is a smart investment.

How to Clear the Code After You Fix It

1. Fix the underlying mechanical or electrical fault.
2. Use an OBD-II scan tool capable of accessing the ABS module to clear the C-code.
3. Perform the specific drive cycle required by the manufacturer to allow the system to self-test and confirm the repair.

Drive cycle (~15 minutes): After clearing the code, start the vehicle. Drive for 10-15 minutes at moderate speeds (above 20 mph), including several gentle left and right turns. This allows the EBCM to verify that all wheel speed sensors, the steering angle sensor, and the yaw rate sensor provide synchronized data.

Readiness monitors affected: This is a Chassis (C) code and does not directly affect engine emissions readiness monitors.

Watch out for:

• Disconnecting the battery will not reliably clear ABS codes and requires a steering angle sensor recalibration.
• The code returns immediately if the root cause (e.g., bad wheel speed sensor, poor alignment) is not corrected.
• Using a basic engine-only code reader that cannot communicate with the ABS module.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: An illuminated ABS warning light is cause for a safety inspection failure. A vehicle cannot be certified as safe with it on.
• New York: The NYS safety inspection explicitly checks for the proper operation of the brake system and its warning lights. An illuminated ABS light is an automatic failure.
• Texas: An amber ABS warning light will NOT cause a failure in a Texas state safety inspection. However, if the red 'BRAKE' warning light is also on, it will fail.

Most Commonly Affected Vehicles

• Chevrolet HHR (2006-2011) — Prone to this code, often related to faulty yaw rate sensors or chafed wheel speed sensor wiring in the front wheel wells.
• Chevrolet Colorado / GMC Canyon (2004-2012) — Often experiences ABS module internal failures that trigger C0280 along with other codes. The module is a known failure point.
• Ford Fusion (2006-2010 & 2013-2020) — Known for ABS Hydraulic Control Unit (HCU) issues. For 2006-2010 models, check recall 19S54 regarding internal valve failure from aged brake fluid.
• Toyota Sienna (2011-2020) — Faults often stem from expensive yaw rate sensors or damage to wheel speed sensor wiring. A genuine yaw rate sensor costs over $600.
• Hyundai Santa Fe (2013-2018) — Check for major safety recalls (e.g., NHTSA 20V520000) on the ABS module, which shorts circuit and causes fires even when the car is off.
• Buick LaCrosse (2010-2016) — Shares the same EBCM and sensor architecture as other GM models. Diagnosis often points towards sensor inputs or an internal EBCM fault.
• Cadillac SRX (2010-2016) — GM service literature outlines that if DTC C0280 54 is present and other diagnostics pass, the EBCM requires replacement.
• Volkswagen Jetta / Golf (2009-2014) — Widely known for ABS module failures. Safety recall 16V-913 was issued for 2009-2010 models. An insufficient internal ground connection is a common cause.

Manufacturer-Specific Notes

• General Motors (Chevrolet, Buick, Cadillac, GMC): Replacing a yaw rate or steering angle sensor requires a calibration procedure using a dealer-level scan tool. Skipping this step causes the code to return immediately.
• Ford: For 2006-2010 Fusion/Milan/MKZ, check for Safety Recall 19S54 addressing a faulty Hydraulic Control Unit (HCU) valve caused by aged DOT 3 brake fluid.
• Volkswagen: ABS module failure is common on 2009-2014 models. Any replacement module MUST be coded to the car using a specialized tool like VCDS; it is not plug-and-play.
• Hyundai: It is critical to check for the ABS module fire risk recall (e.g., NHTSA 20V520000) on affected models like the Santa Fe before performing other repairs.

Real Owner Stories

2009 VW Jetta with multiple warning lights

ABS, traction control, flashing brake light, EPC, and check engine light all came on at once. Speedometer and fuel gauge went dead.

Outcome: The issue was the used ABS module failing again. The initial replacement was the correct diagnostic path, but using a non-warrantied used part led to a repeat failure.

Lesson: For known high-failure parts like the VW ABS module, a professional repair service with a lifetime warranty on your original module is more reliable than a used part from a junkyard.

2007 Chevy Colorado with ABS light

ABS and brake warning lights were on. The ABS pump ran continuously, even with the key out of the ignition, draining the battery.

Outcome: The owner sent their original module to a mail-in repair service for $150. The service fixed the internal relay fault. After reinstalling, the codes cleared and the system functioned normally.

Lesson: If the ABS pump runs constantly, it points directly to an EBCM internal fault. A mail-in repair is the most cost-effective solution, saving hundreds over a new module.

2014 Ford Fusion, ABS/TCS lights on after tire service

Shortly after getting new tires installed, the ABS and Traction Control lights came on. The owner felt a slight grinding from the brakes at low speeds.

Outcome: The technician repaired the chafed section of the wire and secured the harness. The code was cleared and did not return.

Lesson: If a fault appears immediately after a repair, suspect an installation error. Visually inspect the work area for disconnected sensors or damaged wiring before starting a complex diagnosis.

How to Prevent This Code From Triggering

• Flush brake fluid every 2-3 years (Every 2-3 years) — Brake fluid absorbs moisture from the air. This moisture corrodes the delicate internal valves and electronic components of the ABS module, leading to expensive failure.
• Perform an annual wheel alignment check (Every 12 months or 12,000 miles) — Prevents the steering angle sensor from conflicting with wheel speed sensors, which causes false stability system activation and triggers C0280. It also prevents costly premature tire wear.
• Apply dielectric grease to wheel speed sensor connectors (When replacing brakes or sensors) — Moisture penetrates wheel speed sensor connectors, causing corrosion and faulty signals. Dielectric grease seals the connection from moisture.
• Clean and inspect wheel speed sensors during brake service (Every brake job) — The magnetic tip of the sensor becomes coated with metallic brake dust, weakening the signal it reads from the tone ring. Wiping the sensor clean is a simple preventative step.
• Check for vehicle-specific recalls (Annually) — Manufacturers like VW and Hyundai have issued major recalls for ABS module failures that cause C0280 or fire risks. Checking for open recalls results in a free repair at the dealership.

Frequently Asked Questions

I hit a curb or big pothole and now my stability light is on with code C0280. What happened?

A sharp impact damages wheel speed sensors or knocks your wheel alignment out of specification. Misalignment causes the steering angle sensor to send data conflicting with wheel speed sensors. The system interprets this as a skid, activates unnecessarily, and triggers C0280.

What are the most common misdiagnosis mistakes for C0280?

The biggest mistake is replacing the expensive ABS module before testing tire pressures, wheel alignment, and wheel speed sensors. Another pitfall is replacing a yaw or steering angle sensor without performing the mandatory electronic calibration, causing the code to return immediately.

Can a bad wheel alignment by itself cause code C0280?

Yes. If the alignment is off, the driver must counter-steer to drive straight. The steering angle sensor reports this turn to the computer, conflicting with wheel speed sensors reporting straight travel, which triggers false stability activation.

Can I just clear the code and see if it comes back?

Yes, clearing the code is a valid first step after checking tire pressures. If extreme driving (like deep snow) triggered it, the code will not return. If a hardware fault exists, the warning light returns during the next drive cycle.

Can a bad battery cause a C0280 code?

Highly unlikely. While low voltage causes random startup codes, C0280 specifically flags the stability system running too long during active driving. This points to faulty sensor inputs, not a general battery issue.

Will a C0280 code fail a vehicle inspection?

Yes. In regions with safety inspections, an illuminated ABS or Stability Control warning light results in an automatic failure.

Why is replacing the ABS module so expensive?

The module is a complex electro-hydraulic unit costing $500-$1200+. Labor is intensive because it requires opening brake lines and performing a full hydraulic bleed. Finally, the new module requires specialized scan tools for VIN programming.

What does the suffix on a GM code like C0280 5A mean?

On GM vehicles, the '5A' or '54' suffix means 'Stability System Active Too Long High Temperature'. This confirms the system ran long enough to reach a critical temperature, triggering a protective shutdown.

Key Takeaways

• Code C0280 triggers when the Electronic Stability Control (ESC) runs continuously for over 15 seconds, forcing the computer to disable the system to prevent the ABS pump from overheating.
• Do not replace the $500+ ABS module first; over 80% of C0280 codes stem from mismatched tire pressures, poor wheel alignment, or a faulty $50 wheel speed sensor.
• Driving with C0280 is safe for short trips, but your ABS and stability control are disabled, increasing emergency stopping distances by 15-30% on dry pavement.
• If you recently hit a pothole or replaced your tires, visually inspect the wheel speed sensor wiring for chafing and check your wheel alignment before buying any parts.
