C0196 on 2013-2015 Chevrolet Malibu: Airbag Light and Yaw Rate Sensor Issues

What's Unique About the 2013-2015 Chevrolet MALIBU

The 2013-2015 Malibu, part of GM's Epsilon II platform, has a well-documented history of setting C0196 not as an isolated sensor failure, but as part of a larger system fault. Owner complaints and Technical Service Bulletins (TSBs) show this code frequently appears with B101D, C0186, and C0287. This specific combination often leads technicians to diagnose a failed Sensing and Diagnostic Module (SDM), the central airbag computer, rather than just the yaw rate sensor itself. TSB PI1525A even suggests a software update for the SDM could resolve this intermittent issue on some 2015 models. This issue is also seen on platform mates like the Buick LaCrosse and Regal.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Service Airbag warning light on the dashboard
• Service StabiliTrak warning light on the dashboard
• Traction control and/or ABS lights may be illuminated
• Stability control system is disabled
• Cruise control may be inoperative

Most Likely Causes

1. Faulty Sensing and Diagnostic Module (SDM) 🔴 High Probability Multiple owner complaints and TSBs for this specific vehicle and code cluster point to the SDM as the common failure point. The SDM processes the yaw rate signal, and an internal fault can trigger C0196 along with other codes. This is the most cited cause in owner forums when the full B101D, C0186, C0196, C0287 code set is present.
   How to confirm: A professional-grade scan tool is needed to read codes from the SDM. If codes B101D, C0186, C0196, and C0287 are all present, especially as history codes, suspicion falls heavily on the SDM. Diagnosis involves checking powers, grounds, and communication lines to the SDM before condemning the module. The SDM is located under the center console, between the shifter and the center armrest storage bin. 🎬 See how to access and remove the airbag control module.
   Typical fix: Replacement of the SDM, followed by mandatory programming and setup procedures using a GM-specific scan tool. Some services offer to reset/repair the original module, which can be a more affordable plug-and-play option. 🎬 Learn how professional services reset crash data on these modules.
   Est. part cost: $250-$500
2. Faulty Yaw Rate Sensor (Multi-Axis Sensor) 🟡 Medium Probability The yaw rate sensor is often combined with the lateral and longitudinal accelerometers in a single 'multi-axis sensor'. These electronic sensors can fail internally over time, sending erratic or no signal. This is a more likely cause if C0196 appears without the B101D code.
   How to confirm: Using a scan tool, a technician can monitor the live data from the yaw rate sensor. If the voltage is stuck, erratic, or doesn't change as the vehicle is turned, the sensor is likely bad. This must be done after verifying the wiring is intact. The sensor is typically located under the center console, often near the SDM.
   Typical fix: Replace the yaw rate sensor. The sensor is typically located under the center console. A calibration procedure is required after replacement using a capable scan tool.
   Est. part cost: $200-$400
3. Wiring or Connector Issue ⚪ Low Probability The sensor and SDM are located under the center console, an area that can be subject to moisture from spills or damage during interior repairs. TSB PIT5076E points to diagnosing the 'Chassis bus,' which implies communication wiring can be a cause. A poor connection at the SDM or sensor connector can mimic a failed component. A poor ground at G303 can also cause this issue.
   How to confirm: Visually inspect the wiring harness and connectors for the yaw rate sensor and SDM for damage, corrosion, or loose pins. A multimeter can be used to check for continuity, shorts to power, or shorts to ground in the sensor's circuit. Check the integrity of ground G303, located under the left front seat on the floor.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the affected connector.
   Est. part cost: $10-$100
4. Outdated SDM Software ⚪ Low Probability TSB PI1525A specifically addresses an issue on the 2015 Malibu (built after June 30, 2014) where an intermittent airbag light with this group of codes can be fixed with a software update. Additionally, a recall (GM #12102) was issued for some 2013 Malibu eAssist models for an SDM reset issue that required reprogramming. This should be the first check on applicable vehicles.
   How to confirm: A GM dealer or a shop with a subscription to the Service Programming System (SPS) can check the current software version in the SDM and update it if a newer version is available.
   Typical fix: Reprogram the SDM with the latest software.
   Est. part cost: $0 (if under warranty) or typically one hour of labor cost.

Rare But Worth Checking

• External Vibration/Impact:

Diagnosis Steps

1. Connect a professional scan tool capable of reading codes from the Chassis (C) and Body (B) modules.
2. Check for all present and history DTCs. Note if C0196 is accompanied by B101D, C0186, and/or C0287, as this strongly suggests an SDM fault.
3. If the vehicle is a 2015 Malibu built after June 30, 2014, consult TSB PI1525A. Check the SDM software version and update if necessary before proceeding.
4. If the vehicle is a 2013 Malibu with eAssist, check against recall #12102 for a required SDM reprogram.
5. Using the scan tool, access the live data stream for the yaw rate sensor. The voltage should be stable around 2.5V when stationary and change smoothly when the vehicle is turned. If the data is erratic, stuck, or absent, this points toward the sensor or its wiring.

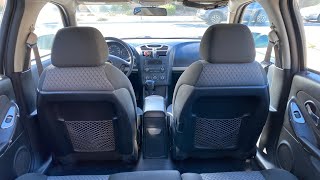

6. Gain access to the SDM and Yaw Rate Sensor. They are located under the center console, between the shifter and storage bin. Disconnecting the battery is a critical first step.
7. Inspect the wiring and connectors at the yaw rate sensor and the SDM for any signs of damage, corrosion, or loose connections. Pay attention to any signs of liquid spills.
8. If wiring appears intact, use a multimeter to test the sensor's power, ground, and signal circuits. Specifically check the integrity of ground G303, located on the floor under the left front seat.
9. If wiring is confirmed good and sensor data is bad (especially if C0196 is the primary code), the yaw rate sensor is likely faulty and needs replacement.
10. If the full code cluster (B101D, etc.) is present and sensor/wiring checks are inconclusive, the fault is highly likely with the Sensing and Diagnostic Module (SDM).
11. After any repair (sensor or module replacement), clear all codes and perform the mandatory calibration or setup procedures with a GM-compatible scan tool.

Parts You'll Likely Need

• Sensing and Diagnostic Module (SDM) (OEM #13594221) — This is the most common point of failure when C0196 is found with codes B101D, C0186, and C0287, as documented in numerous owner complaints and TSBs. Replacement requires programming.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $300-$500
  Aftermarket price range: $150-$400 (Remanufactured/Reset)
• Yaw Rate Sensor (Multi-Axis Sensor) (OEM #13581120) — This is the likely cause if C0196 appears alone or without B101D. It contains the yaw, lateral, and longitudinal sensors. Replacement requires calibration.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $200-$400
  Aftermarket price range: $100-$250

Related Codes That Often Appear With This One

• B101D — This code indicates an electronic control unit hardware failure, often pointing directly at the SDM itself. It is the cornerstone code in the common fault pattern for this vehicle.
• C0186 — This code is for the Lateral Accelerometer Circuit. The lateral accelerometer is typically housed in the same physical sensor as the yaw rate sensor, so they often fail and set codes together when the SDM or sensor fails.
• C0287 — This code is for the Longitudinal Accelerometer Circuit. Like the lateral accelerometer, this sensor is often part of the same multi-axis sensor unit, leading to simultaneous codes when the unit fails.

Technical Service Bulletins (TSBs) & Recalls

• PI1525A: Diagnostic Tips for Airbag Readiness Light On, DTC B101D SYM 00 and C0186, C0196 and/or C0287 Set. Specifically for 2015 Malibu and other models, suggesting a software update or standard diagnostics.
• PIT5076E: Diagnostic aid for multiple chassis communication codes, including C0196, C0186, and C0287, instructing technicians to diagnose the chassis bus before replacing modules.
• 15-05-25-001: TSB for GM trucks/SUVs describing how stone impacts under the vehicle can cause vibration-induced C0196-5A faults, with the fix being sound-deadening material. While not for the Malibu, it provides useful context on sensor sensitivity.

Platform-Specific Known Issues

• A recurring issue on 2015 Malibus involves the 'Service Airbag' light appearing with a cluster of codes: C0196, C0186, C0287, and B101D. TSB PI1525A addresses this for models built after June 30, 2014, suggesting a potential software fix.

Mechanic-Grade Diagnostic Values

• Yaw Rate Sensor Signal Voltage (at rest, level surface) — expected: 2.5V. Failure: Voltage is stuck, erratic, or significantly different from 2.5V.
• Yaw Rate Sensor Signal Voltage (operating range) — expected: 0.15V to 4.85V. Failure: Voltage is less than 0.15V or greater than 4.85V for more than a second.
• Multi-Axis Sensor Power Supply Voltage — expected: Greater than 10V. Failure: Less than 10V indicates a potential short to ground or open in the reference circuit.

Hidden / Shadow Codes Worth Checking

• C0196 5A: Yaw Rate Plausibility Failure. The sensor's reading is illogical compared to data from steering angle and wheel speed sensors. This is a very common symptom byte for this fault. (see via Professional scan tool (like GM GDS2) capable of reading manufacturer-specific symptom bytes.)
• C0196 71: Invalid Data Received From Multi-Axis Sensor / Sensor Offset Failure. The data is nonsensical or the sensor's zero point is out of range. (see via Professional scan tool (like GM GDS2) capable of reading manufacturer-specific symptom bytes.)
• C0196 00: General Yaw Rate Circuit Malfunction. Often indicates an out-of-range voltage or internal sensor failure. (see via Professional scan tool (like GM GDS2) capable of reading manufacturer-specific symptom bytes.)
• C056D 39: Internal Electronic Failure within the Multi-Axis Sensor module. This is a direct confirmation that the sensor module itself has failed and needs replacement. (see via Professional scan tool (like GM GDS2) capable of reading manufacturer-specific symptom bytes.)

Scan Tool Commands That Help

• GM GDS2 / Techline Connect (SPS): SDM Inflatable Restraint Sensing and Diagnostic Module – Programming — This is the first step when replacing an SDM. It uses the Service Programming System (SPS) to load the correct, VIN-specific software into the new module.
• GM GDS2: SDM Inflatable Restraint Sensing and Diagnostic Module – Setup — This is the mandatory second step after programming a new SDM. It configures the module to the specific vehicle, sets up the primary key with the BCM, and allows the system to become operational. Failure to run this will result in a flashing airbag light.
• GM GDS2: Multi-Axis Sensor Learn / Yaw Rate Sensor Reset — This calibration is required after replacing the yaw rate sensor. It is also a valuable first step in diagnosis, as sometimes a reset can resolve a temporary glitch, especially if the code was set after towing or transport.

Wiring & Ground Locations

• G303 — Below the left front seat, on the floor.. This is a ground point for the Inflatable Restraint Sensing & Diagnostic Module (SDM). A poor or corroded connection at this specific point can cause erratic behavior or a complete loss of communication with the SDM, triggering C0196 and other related airbag codes.
• SDM Connector — Under the center console, forward of the transmission shifter on the floor.. This is the main electrical connection to the airbag control module. It's in an area susceptible to liquid spills. Corrosion or loose pins here can directly cause SDM-related faults, including C0196.

Real Owner Repair Stories

• CarComplaints.com Owner Complaint (2013 Chevrolet Malibu, 108,232 miles) — Vehicle died while running, required a jump start. After the jump start, the airbag light came on and would not turn off.
  ❌ Tried (didn't work) The owner did not report trying any fixes before seeking professional diagnosis.
  ✅ What actually fixed it A Chevrolet dealer diagnosed a failed SDM (airbag module) and quoted $1100 for replacement. This highlights how a voltage event (dead battery/jump start) can precede the failure of the SDM, leading to the airbag light and associated codes.

Model Year Variations Within This Range

• 2013 (with eAssist): A specific recall (GM #12102, NHTSA #12V224000) was issued for 2013 Malibu eAssist models where the SDM could reset itself after a hard braking event, causing the airbag light to illuminate temporarily. The fix was a mandatory SDM reprogram.
• 2015 (built after June 30, 2014): TSB #PI1525A provides diagnostic tips for these specific vehicles where the C0196 code appears with the B101D cluster. It suggests that a software update for the SDM may be the correct fix, rather than component replacement.
