C0186 on 2013-2015 Chevrolet Malibu: Service Airbag Light Causes and Fixes

What's Unique About the 2013-2015 Chevrolet MALIBU

The 8th generation Malibu, built on the GM Epsilon II platform, is particularly known for a specific failure pattern where the main Airbag Control Module (SDM) fails internally. This failure simultaneously sets C0186 and other related chassis codes like C0196 (Yaw Rate) and C0287 (Longitudinal Acceleration), along with the module-specific code B101D (Electronic Control Unit Hardware). While the C-codes point to individual sensors often housed in the same unit, the presence of B101D is the key indicator that the central SDM itself is the root cause. This pattern is well-documented by GM TSB #PI1525A and numerous NHTSA owner complaints for this vehicle.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Airbag" message on the driver information center (DIC)
• Airbag warning light is illuminated
• Stability control ("Service StabiliTrak") warning light may also be on

Most Likely Causes

1. Faulty Sensing and Diagnostic Module (SDM / Airbag Control Module) 🔴 High Probability This is a documented pattern failure on this platform, confirmed by TSB #PI1525A. The presence of code B101D (ECU Hardware Malfunction) alongside C0186, C0196, and C0287 is the classic signature of this internal SDM failure.
   How to confirm: Use a professional scan tool to check for codes in all modules. If B101D is present along with the C-codes, the SDM is the most likely failure point. The SDM is located under the center console, forward of the shifter assembly. 🎬 Watch: How to access and replace the Malibu SDM module Diagnosis should follow TSB #PI1525A.
   Typical fix: Replace the Sensing and Diagnostic Module and have the new unit professionally programmed to the vehicle's VIN. This is not a simple swap; it requires specific software and procedures.
   Est. part cost: $500-$700
2. Wiring or Connector Issue 🟡 Medium Probability GM TSB #PIT5076E points to potential issues on the 'Chassis bus' which connects various control modules. While less common than outright SDM failure for this code cluster, corrosion or loose pins at the SDM connector under the center console can cause intermittent communication faults.
   How to confirm: Visually inspect the wiring harness and connectors leading to the SDM under the center console. Check for any signs of liquid intrusion, corrosion, or loose pins. Check for continuity and resistance on the chassis bus wires per the service manual.
   Typical fix: Repair the damaged wiring or clean/replace the faulty connector. In some cases, simply reseating the connector may temporarily resolve the issue.
   Est. part cost: $10-$100
3. Faulty Yaw/Lateral Accelerometer Sensor ⚪ Low Probability While the code directly names this sensor's circuit, it is far more common for the control module (SDM) to fail than the sensor itself on this particular vehicle, especially when other codes are present. This sensor is often integrated into a single 'Multi-Axis Acceleration Sensor' unit.
   How to confirm: If only C0186 is present (without B101D, C0196, etc.) and wiring is confirmed to be good, the sensor itself may be faulty. A scan tool can be used to monitor the sensor's live data for erratic or out-of-spec readings. A healthy sensor should read around 2.5 volts when at rest on a level surface.
   Typical fix: Replace the yaw/lateral accelerometer sensor. This also requires calibration with a scan tool.
   Est. part cost: $50-$150

Rare But Worth Checking

• SDM Software Glitch:

Diagnosis Steps

1. Perform a full vehicle scan with a professional diagnostic tool capable of reading Body (B) and Chassis (C) codes from all modules.
2. Document all present codes. Specifically look for the combination of C0186, C0196, C0287, and B101D.
3. If code B101D is present with the others, the primary suspect is the Sensing and Diagnostic Module (SDM) per TSB #PI1525A.
4. Before condemning the module, check for software updates. A dealer or equipped independent shop can check the SDM software version against the latest releases in the GM Service Programming System (SPS).
5. If only C-codes are present, or as a secondary check, inspect the wiring and connectors for the SDM. The module is located under the center console, ahead of the gear shifter. Check for moisture, corrosion, or backed-out pins.
6. If wiring is intact and only C0186 is present, use the scan tool to monitor live data from the yaw/lateral accelerometer sensor. The voltage should be stable and near 2.5V on level ground. Rocking the vehicle side-to-side should produce a corresponding change in voltage.

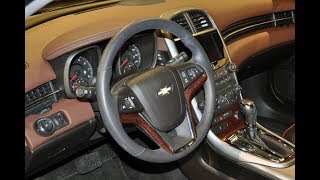

7. If the SDM is determined to be the cause, it must be replaced. Disconnect the negative battery terminal and wait at least 2 minutes before 🎬 Watch this walkthrough of the 2013 Malibu airbag module removal disconnecting the module.
8. After installation, the new SDM must be programmed to the vehicle's VIN and a setup procedure must be run using dealer-level software (like TIS2WEB) to ensure it functions correctly.

Parts You'll Likely Need

• Sensing and Diagnostic Module (SDM) (OEM #13598485) — This is the Airbag Control Module. It is the most common point of failure on this vehicle when codes C0186, C0196, C0287, and B101D are present together. This part number supersedes several previous versions including 13581598, 13583427, 13586522, 13587998, 13588103, 13589836, and 13592409.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $515 - $700
  Aftermarket price range: $150-$350 (Used/Remanufactured/Reset Service). Note: Used modules still require professional programming. Reset services require sending your original module for repair.

Related Codes That Often Appear With This One

• B101D — This code indicates an internal electronic hardware failure within a control module. When seen with C0186, C0196, and C0287, TSB PI1525A confirms it points to the SDM as the culprit. Note that B101D can also be set falsely in other modules (like the BCM) after a dead battery event, but in this context with the C-codes, it is significant.
• C0196 — This code is for the Yaw Rate Sensor circuit. The yaw and lateral accelerometer sensors are often housed in the same physical 'multi-axis' sensor unit and communicate on the same bus, so a module or bus failure often triggers codes for both.
• C0287 — This code is for the Longitudinal Acceleration Sensor circuit. Like the other sensors, it's part of the same stability and safety system, and a central module (SDM) failure will often set this code as well.

Technical Service Bulletins (TSBs) & Recalls

• PI1525A: Confirms that DTCs B101D, C0186, C0196, and/or C0287 are related to an Airbag Readiness Light concern and advises technicians to follow published diagnostics. This bulletin supersedes PI1525.
• PIT5076E: Advises diagnosing the 'Chassis bus' if C0186 and other communication codes are present and will not clear, pointing to wiring as a possible, though less common, cause.
• PI1525 (Superseded): The original bulletin which first documented the issue.

Platform-Specific Known Issues

• A well-documented issue exists where an internal failure of the Sensing and Diagnostic Module (SDM) causes the 'Service Airbag' light and sets a specific cluster of codes: B101D, C0186, C0196, and C0287. This is confirmed by GM Technical Service Bulletin #PI1525A and numerous owner complaints filed with the NHTSA.
• The SDM is located under the center console, which requires significant interior trim disassembly to access for replacement or inspection.

Mechanic-Grade Diagnostic Values

• Lateral Accelerometer Signal Voltage at Rest — expected: ~2.5 Volts on a level surface.. Failure: Voltage is less than 1.17V or greater than 3.83V for more than 2 minutes.
• Multi-Axis Sensor Ground Circuit Resistance — expected: Less than 10 Ohms.. Failure: A reading of 10 Ohms or greater indicates high resistance or an open in the ground circuit (Pin 6 of the B119 connector to chassis ground).
• Multi-Axis Sensor 12V Reference Circuit — expected: Greater than 11 Volts with Ignition ON.. Failure: Less than 11V indicates a short to ground or an open/high resistance in the reference circuit (Pin 5 of the B119 connector).
• Chassis Bus Resistance at DLC — expected: ~60 Ohms between pins 12 and 13.. Failure: A reading significantly different from 60 Ohms can indicate a communication bus issue.

Hidden / Shadow Codes Worth Checking

• C0186 5A: Lateral Accelerometer Circuit Not Plausible. This means the signal from the sensor does not make sense when compared to other vehicle data, like the yaw rate sensor signal. (see via A professional scan tool like the GM GDS2 is required to view symptom bytes.)
• C0186 71: Lateral Accelerometer Circuit Invalid Data. This means the SDM has received invalid serial data from the sensor, often pointing to an internal sensor or communication fault. (see via A professional scan tool like the GM GDS2 is required to view symptom bytes.)
• C0186 4B: Lateral Accelerometer Circuit Calibration Not Learned. This indicates the sensor has been replaced or disturbed, but the mandatory calibration procedure has not been performed. (see via A professional scan tool like the GM GDS2 is required to view symptom bytes.)

Scan Tool Commands That Help

• GM GDS2 / TIS2WEB: Inflatable Restraint Sensing and Diagnostic Module Programming — This function must be run first when a new SDM is installed. It loads the correct, VIN-specific software and calibrations into the new module.
• GM GDS2 / TIS2WEB: Inflatable Restraint Sensing and Diagnostic Module Setup — This function is performed after programming a new SDM. It configures the module for the specific vehicle options and enables the deployment loops.
• GM GDS2 / Autel: Setup SDM Primary Key in BCM — This procedure 'marries' the new SDM to the Body Control Module (BCM), allowing them to communicate securely. This is a critical part of the setup process.

Wiring & Ground Locations

• B119 Multi-Axis Acceleration Sensor — Under the center console, often integrated with the yaw rate sensor.. This is the sensor assembly that generates the lateral acceleration signal. All circuit tests (power, ground, signal) are performed at its electrical connector.
• B119 Connector Pin 6 — At the connector for the Multi-Axis Acceleration Sensor.. This is the ground circuit for the sensor. High resistance on this pin is a common cause for sensor codes.
• B119 Connector Pin 5 — At the connector for the Multi-Axis Acceleration Sensor.. This is the 12-volt reference power supply from the control module to the sensor. Loss of voltage here will cause the sensor to stop communicating.
• DLC Pins 12 & 13 — The Data Link Connector (OBD-II port) under the driver's side dashboard.. These are the pins for the Chassis CAN bus. TSB PIT5076E recommends checking resistance between these pins (~60 ohms) if communication codes are present with C0186.

Real Owner Repair Stories

• Reddit user with an Opel Corsa E (GM Platform) (2015 Opel Corsa E (GM global platform vehicle)) — Constant 'Check Airbag' warning light.
  ❌ Tried (didn't work) The user had the codes read but had not yet attempted a repair.
  ✅ What actually fixed it The user's research led them to the correct conclusion based on the specific code combination. The codes present were B101D (ECU Hardware Failure), C0186 (Lateral Acceleration), C0196 (Yaw Rate), and C0287 (Longitudinal Acceleration). They correctly deduced that this pattern points to an internal failure of the Airbag Control Unit (SDM) itself, rather than the individual sensors, which is the exact failure pattern seen on the Malibu.

OEM Part Supersession History

• 13581598, 13583427, 13586522, 13587998, 13588103, 13589836, 13592409 → 13598485 — Standard part evolution, likely for improved reliability and to consolidate inventory.
  Heads up: Using a used module, even a correct part number, is not plug-and-play. It must be professionally programmed to the vehicle's VIN and set up using GM-specific software to function.

Model Year Variations Within This Range

• 2013 (early production): A recall (GM #12102) was issued for Malibus built from Oct 2011 to Mar 2012. The original SDM software could cause the module to reset after a hard braking event. This could lead to unintended roof rail airbag deployment or failure of airbags to deploy in a crash. The fix was to reprogram or replace the SDM.
