C0040 on 2014-2018 Chevrolet Silverado: Right Front Wheel Speed Sensor Fixes

What's Unique About the 2014-2018 Chevrolet Silverado

On the 2014-2018 (K2XX generation) Silverado, the front wheel speed sensor is integrated into the wheel bearing and hub assembly; it is not typically sold as a separate component. The wiring harness leading from the hub is a known weak point, often susceptible to damage from suspension movement, road debris, or chafing against the fender liner or even the rim itself, especially if an aftermarket leveling kit has been installed. Owners often find that replacing the entire hub assembly is the most direct and durable repair, as this replaces both the sensor and the internal magnetic encoder ring it reads.

Symptoms You May Notice

• ABS warning light is on.
• StabiliTrak or Traction Control warning light is on, often with a 'Service StabiliTrak' message.
• Cruise control is disabled.
• A grinding or pulsing sensation from the brakes at low speeds if the sensor signal is erratic.
• The ABS system will not activate during hard braking.
• In some cases, a scan tool may show an 'Incorrect Component Installed' status for the C0040 code if a non-compatible aftermarket hub is used.

Most Likely Causes

1. Failed Wheel Bearing / Hub Assembly 🔴 High Probability The wheel speed sensor is integrated into the hub assembly. Wear and tear on the bearing can create wobble, which damages the internal magnetic encoder ring or the sensor itself. This assembly is exposed to harsh conditions, and internal failure of the sensor electronics is common over time.
   How to confirm: With the vehicle raised, check for any play in the right front wheel by trying to wiggle it from the top and bottom. A scan tool showing erratic or no speed reading from the right front wheel while driving is the primary confirmation.
   Typical fix: Replace the entire front wheel bearing and hub assembly. 🎬 Watch this step-by-step front hub bearing replacement video This is the most common and comprehensive repair, as it includes a new sensor, bearing, and magnetic reluctor.
   Est. part cost: $150-$250
2. Damaged Wheel Speed Sensor Wiring Harness 🟡 Medium Probability The wiring harness that runs from the wheel hub to the frame connector is a common failure point. It can be damaged by chafing, stretching during turns, or impacts from road debris. This issue is sometimes made worse by the installation of suspension leveling kits, which can increase the stress on the harness or cause it to rub against the tire/wheel.
   How to confirm: Visually inspect the entire length of the wire from the back of the wheel hub up into the engine bay. Look for breaks, chafing, or corrosion, especially where it flexes or passes through brackets. TSB PIC-5992A notes that simply checking with an ohmmeter may not find an intermittent break; physically manipulating the wire while checking continuity is more effective. 🎬 Watch: ABS wheel speed sensor testing and wiring repair guide
   Typical fix: Repair the damaged section of the wire or replace the short pigtail harness if available.
   Est. part cost: $20-$50
3. Corrosion or Water in Connectors ⚪ Low Probability As noted in TSB #PIT5499B, water intrusion can occur in the main Electronic Brake Control Module (EBCM) connector, causing various ABS codes. The individual sensor connector near the wheel is also susceptible to moisture and corrosion.
   How to confirm: Disconnect the harness at the wheel well and at the EBCM. Inspect the pins for any green or white corrosion, moisture, or bent pins.
   Typical fix: Clean the connector pins with an electrical contact cleaner. If corrosion is severe, the connector or terminal may need to be replaced.
   Est. part cost: $5-$30

Rare But Worth Checking

• Failed Electronic Brake Control Module (EBCM): This is the least likely cause. Before suspecting the EBCM, all other possibilities (hub, wiring, connectors) must be thoroughly ruled out. An EBCM failure will often trigger multiple wheel speed sensor codes (e.g., C0035, C0040) or communication codes, not just C0040 alone.

Diagnosis Steps

1. Connect an ABS-capable scan tool and confirm C0040 is present. Note any other codes and the DTC status (e.g., 'Signal Erratic').
2. Use the scan tool to monitor live data from all four wheel speed sensors while driving in a straight line. Confirm that the Right Front (RF) sensor reads 0 mph or shows an erratic signal compared to the others.
3. Raise and safely support the front of the vehicle. Visually inspect the wheel speed sensor wire from the hub to the first connector in the fender well. Look for any signs of chafing, pinching, or breaks, paying close attention to the area where it might rub the inner wheel rim.
4. Check for excessive play in the right front wheel bearing by grabbing the tire at 12 and 6 o'clock and attempting to rock it. Any significant movement indicates a bad wheel bearing.
5. Disconnect the sensor harness and inspect the connector pins for corrosion or damage.
6. If wiring appears damaged, test for continuity and shorts using a multimeter. Wiggle the harness during testing to expose intermittent breaks.
7. If wiring and the bearing seem okay, the most likely cause is a failure within the integrated sensor/hub assembly. Replacing the hub is the next logical step.
🎬 See how to diagnose and fix C0035/C0040 ABS codes
8. If a new hub assembly does not resolve the issue, re-inspect the wiring harness all the way to the EBCM and check the EBCM connector itself for issues as described in TSB #PIT5499B.

Parts You'll Likely Need

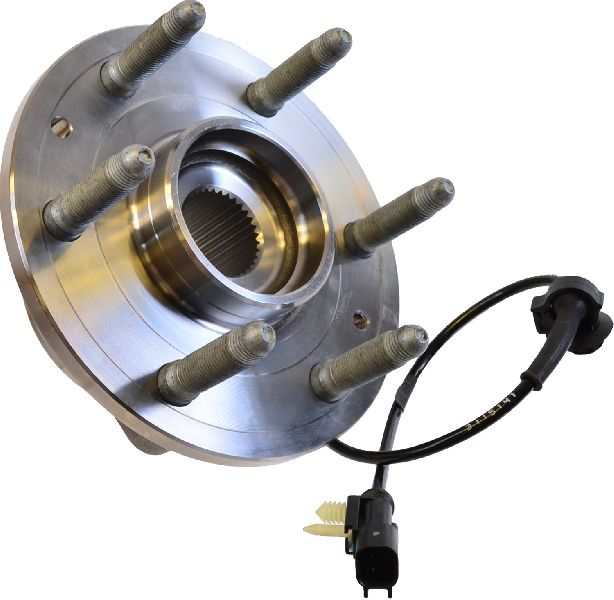

• Front Wheel Bearing and Hub Assembly (OEM #84459709) — This is the primary fix, as it contains the integrated wheel speed sensor and the magnetic reluctor ring it reads. Replacing the whole unit resolves internal sensor failures and bearing play issues. Torque specs for the three mounting bolts are typically 133 lb-ft.
  Trusted brands: ACDelco (OEM), Timken (HA590495), SKF (BR930895), MOOG
  OEM price range: $200-$300
  Aftermarket price range: $120-$220
• Front Wheel Speed Sensor Harness (OEM #23131931 (ACDelco)) — Replaced if a visual inspection reveals a clear break, chafe, or damage to the wiring between the hub and the main vehicle harness.
  Trusted brands: ACDelco, Dorman (970-003)
  OEM price range: $40-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• C0035 — This is the code for the Left Front Wheel Speed Sensor Circuit. Seeing both C0035 and C0040 could indicate a systemic issue, like a problem at the EBCM, its connector as mentioned in TSB #PIT5499B, or a common wiring harness problem.
• U0121 — This code indicates a loss of communication with the ABS control module. It can appear alongside C0040 if there's a major electrical issue, such as water intrusion in the EBCM connector per TSB #PIT5499B.

Technical Service Bulletins (TSBs) & Recalls

• PIC-5992-A: Notes that an ABS lamp with C0040 can be caused by a damaged wheel speed sensor harness, which may be broken inside the insulation.
• PIT5499B: Suggests inspecting the Electronic Brake Control Module (EBCM) connector for water intrusion as a possible cause for C0040 and other ABS codes.
• PIE0533A: A general engineering information bulletin mentioning C0040 related to wheel speed sensor issues, indicating it's a known issue to GM engineering.

Platform-Specific Known Issues

• A real-world owner complaint for a similar GM vehicle with code C0040 resulted in replacing the right front hub assembly to fix a dropping signal. [ODI #10629708]
• GM Technical Service Bulletin #PIC-5992-A points directly to inspecting and repairing the wheel speed sensor harness for damage when code C0040 is present, noting the wire can break internally without visible damage.
• GM Technical Service Bulletin #PIT5499B warns that water intrusion into the Electronic Brake Control Module (EBCM) connector can cause code C0040, among others, on related GM trucks.

Mechanic-Grade Diagnostic Values

• Wheel Speed Sensor Resistance — expected: 1200 - 2700 Ohms. Failure: A reading less than 1200 Ohms or more than 2700 Ohms indicates a faulty sensor.
• Wheel Speed Sensor AC Voltage Output — expected: Minimum of 0.25 Volts AC. Failure: Less than 0.25V AC when rotating the wheel by hand at about half a revolution per second. This indicates a weak or failed sensor/reluctor.

Hidden / Shadow Codes Worth Checking

• C0040 0F: Indicates the EBCM has detected an erratic signal from the right front wheel speed sensor. This often points to a damaged reluctor ring, debris on the sensor, or an intermittent wiring fault. (see via GM-specific scan tool (GDS2, Tech 2) capable of reading symptom bytes/sub-codes.)
• C0040 18: Indicates the signal amplitude from the right front wheel speed sensor is below the minimum threshold, suggesting a complete loss of signal. This is typically caused by a broken wire, unplugged connector, or a completely failed sensor. (see via GM-specific scan tool (GDS2, Tech 2) capable of reading symptom bytes/sub-codes.)
• C0040 5A: Indicates the signal from the sensor is implausible when compared to other vehicle sensors (like the other wheel speeds). This can be caused by an incorrect part being installed or a fault within the hub's magnetic encoder ring. (see via GM-specific scan tool (GDS2, Tech 2) capable of reading symptom bytes/sub-codes.)

Scan Tool Commands That Help

• GDS2 / High-End Scan Tool: Live Data > Wheel Speed Sensors — This is the primary diagnostic step. While driving straight, the right front sensor's reading should match the other three. If it reads zero, is erratic, or differs significantly, it confirms the fault location without any disassembly.
• GDS2 / High-End Scan Tool: Clear DTCs — After a repair is performed, the codes must be cleared from the EBCM. The ABS light will not turn off on its own immediately. A test drive is required to confirm the fix and ensure the code does not return.

Wiring & Ground Locations

• EBCM Connector X1 — The Electronic Brake Control Module (EBCM) is typically located on the driver's side frame rail, below the driver's door.. The right front wheel speed sensor harness connects here. Per wiring diagrams, the sensor signal is on Pin 16 (Yellow wire) and the low reference (ground) is on Pin 18 (Light Green/Violet wire). TSB #PIT5499B also warns of water intrusion at this connector.
• Frame Ground (Battery) — On the driver's side frame rail, below the radiator. The main negative battery cable connects here.. A poor main ground can cause floating voltages and unpredictable behavior in sensitive modules like the EBCM. This ground should be disassembled, cleaned of paint and corrosion, and re-secured.
• Engine Block to Firewall Ground Strap — A braided strap running from the rear of the engine block on the driver's side to the firewall, near the brake booster.. This ground is critical for filtering electrical noise. A loose or corroded strap can cause sensor data to be misinterpreted by the control modules.

Real Owner Repair Stories

• YouTube channel 'Chris Fix It' (Chevrolet Impala (similar GM platform and wiring design)) — ABS and Traction Control lights were on with codes C0035 and C0040.
  ❌ Tried (didn't work) A visual inspection of the harness did not reveal any obvious external damage.
  ✅ What actually fixed it The wire was broken internally inside the insulation at the flex point near the lower control arm. Stretching the individual wires by hand revealed the hidden break. The problem was solved by splicing in a new pigtail harness.
• Car Talk Community Forum (General GM vehicle with C0040) — ABS light on, code C0040.
  ❌ Tried (didn't work) Initial focus was on the sensor in the wheel hub.
  ✅ What actually fixed it The user was advised that the issue is commonly the short 18-inch pigtail harness from the wheel bearing to the connector in the fender liner, not the sensor integrated into the hub. The fix involves testing continuity on this harness while flexing it to find the internal break.

When the Usual Fixes Don't Work

• In one documented case on a similar GM vehicle, a shop replaced the entire wheel hub assembly hoping to fix a C0040 code, but the repair failed. The actual cause was an internal break in the wiring harness leading to the hub, which was missed during the initial diagnosis.

Model Year Variations Within This Range

• 2014-2018: 4WD models require significantly more labor for hub replacement compared to 2WD models. On a 4WD truck, the steering knuckle must be removed to access the hub assembly, which involves separating ball joints and the CV axle.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 8-Speed Transmission Shudder (Chevy Shake) 🔴 High — Widespread on 2015-2019 models with 8L90/8L45 transmissions. Often feels like driving over rumble strips between 25-80 mph. (Ref: TSB 18-NA-355 recommends a specific transmission fluid flush with Mobil 1 Synthetic LV ATF HP.)
• Active Fuel Management (AFM) Lifter Failure 🔴 High — Common on EcoTec3 V8 engines, particularly with higher mileage or inconsistent oil changes. Can lead to misfires, ticking noises, and eventual engine damage.
• Leaking A/C Condenser 🟠 Medium — Very common on 2014-2017 models. A crack develops where the condenser is welded, causing refrigerant to leak out and the A/C to blow warm air. (Ref: GM Special Coverage Adjustment 17336 extended the warranty for this specific failure to 5 years / 60,000 miles.)
• Premature Water Pump Failure 🟡 Low — These water pumps are known to wear out, sometimes earlier than expected, leading to coolant leaks or engine temperature issues.
• Transfer Case Shifting to Neutral 🔴 High — A recall was issued for some 2014-2015 models where a software issue could cause the transfer case to shift into neutral on its own, creating a rollaway risk. (Ref: NHTSA Recall 14V793000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a junkyard is a viable option if the donor vehicle has no front-end damage and the harness is visually inspected to be in excellent condition with no cuts or corrosion. This can be a cost-effective alternative to a new OEM harness.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring harness, ensure the locking tabs on the connector are intact.
• Check for any signs of green or white powder (corrosion) inside the connector.
• Gently pull on each wire near the connector to ensure they are not broken internally.
• Avoid parts from vehicles located in the salt belt, as corrosion is more likely.

OEM-only on this vehicle (don't cheap out):

• While many aftermarket hubs work, using a quality OEM (ACDelco) or reputable OEM-equivalent (Timken, SKF, MOOG) wheel bearing hub assembly is strongly recommended. Low-quality aftermarket hubs are a common source of premature failure or 'Incorrect Component Installed' codes due to incompatible sensor electronics.

Aftermarket brands forum-validated for this vehicle:

• Timken
• SKF
• MOOG
• Kryptonite (Heavy Duty)

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost hub assemblies from online marketplaces are frequently reported by owners to fail quickly or cause persistent ABS communication issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• C0035 — The left front equivalent to C0040; often triggered by the same wiring harness rubbing issues on the opposite side of the vehicle.
• C0045 — Rear wheel speed sensor code; may appear alongside C0040 if there is widespread water intrusion in the EBCM connector as described in TSB #PIT5499B.
• C0050 — Rear wheel speed sensor code; shares the same diagnostic path and potential for EBCM connector corrosion issues.
