C0035 GMC Canyon (2009-2012): Left Front Wheel Speed Sensor Fault Causes and Fixes

What's Unique About the 2009-2012 Gmc CANYON

For this generation of GMC Canyon and its platform mates (Chevy Colorado, Hummer H3), the magnetic encoder ring (or reluctor ring) that the wheel speed sensor reads is integrated into the wheel hub and bearing assembly's seal. This design is highly susceptible to rust and road debris, which can cause the ring to crack, swell, or delaminate. This damage disrupts the sensor's signal, triggering code C0035. 🎬 Watch: Understanding C0035 causes and the reluctor ring fix. As a result, the most common and durable fix is to replace the entire wheel hub assembly, 🎬 See this step-by-step wheel hub and bearing replacement walkthrough. a fact supported by manufacturer TSB PIC5428G, which covers this exact issue. Many owners mistakenly replace the sensor first, only to find the problem persists.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• StabiliTrak or Traction Control (TC) warning light is on
• "Service StabiliTrak" or "Service Brake System" message on the driver information center
• ABS may activate incorrectly at very low speeds (under 10 mph), causing a grinding or pulsing sensation in the brake pedal
• Brakes may lock up during hard braking
• Cruise control is disabled

Most Likely Causes

1. Failed Front Wheel Hub and Bearing Assembly 🔴 High Probability The magnetic encoder ring is integrated into the hub's seal, making it vulnerable to rust and road debris, especially in regions that use road salt. TSB PIC5428G specifically addresses this failure mode, where debris or rust causes the ring to crack or swell, disrupting the sensor signal.
   How to confirm: Use a scan tool to watch live data from the left front wheel speed sensor while spinning the wheel. If the signal is erratic, drops to zero, or is jumpy compared to the other wheels, the hub is the likely cause. A visual inspection after removing the sensor may reveal visible rust, swelling, or cracks on the magnetic ring. A Reddit user confirmed their C0035 was fixed by replacing the hub after finding the reluctor ring was 'rusted out'.
   Typical fix: Replace the entire left front wheel hub and bearing assembly. The magnetic ring is not serviced as a separate part.
   Est. part cost: $110-$310
2. Damaged or Corroded Wheel Speed Sensor Wiring 🟡 Medium Probability The wiring harness is exposed to the elements, road debris, and constant suspension movement, which can lead to chafing, breaks, or corrosion in the connector pins. Chafe points can occur where the harness is clipped to the frame or suspension components.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to where it enters the main harness. Check the connector for green corrosion or bent/broken pins. Use a multimeter to test for continuity and shorts in the circuit from the sensor connector to the EBCM connector.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. In some cases, the entire sensor and harness assembly is replaced.
   Est. part cost: $20-$60
3. Failed Wheel Speed Sensor ⚪ Low Probability While the sensor itself can fail, it is far less common than the hub's magnetic ring or wiring issues on this platform. The sensor is often replaced needlessly when the hub is the actual point of failure.
   How to confirm: After confirming the wiring and hub ring are good, the sensor is the remaining possibility. Swapping the sensor with the one from the right side (if possible) and seeing if the code changes to C0040 is a valid diagnostic step. A scan tool may show an erratic signal that isn't explained by a visual issue with the hub ring.
   Typical fix: Replace the left front wheel speed sensor.
   Est. part cost: $30-$80

Rare But Worth Checking

• Faulty Electronic Brake Control Module (EBCM): This is very rare and should only be considered after all other possibilities (hub, sensor, and wiring) have been exhaustively ruled out. An EBCM failure typically triggers multiple, often communication-related, codes, not just a single wheel speed sensor fault.
• Poor Ground Connection at Splice Pack or EBCM: The EBCM relies on clean ground connections to function properly. On first-generation Colorados and Canyons, ground splice packs (like SP-105 and SP-106) located in the engine bay are known to corrode, causing a host of strange electrical issues, including ABS faults. A bad ground can introduce electrical noise or voltage drops that the EBCM interprets as a sensor fault.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS/Chassis codes and confirm C0035 is present. Note any symptom bytes (e.g., 18, 5A, 0F) as mentioned in TSB PIC5428G, as they provide critical diagnostic clues.
2. Use the scanner's live data function to monitor the speed of all four wheels while driving slowly or spinning the wheels with the vehicle raised.
3. Observe the reading for the Left Front wheel. If it is zero, erratic, jumpy, or significantly different from the other three, a problem is confirmed at that corner.
4. Raise and secure the vehicle. Remove the left front wheel. Perform a thorough visual inspection of the wheel speed sensor's wiring harness and connector for any signs of damage, chafing, or corrosion.
5. Remove the wheel speed sensor (usually held by a single 10mm or T30 bolt). Use a small mirror and flashlight to inspect the magnetic encoder ring on the wheel hub. Look for rust buildup ('rust jacking'), cracks, splits, or missing sections of the ring.
6. If the ring is visibly damaged or heavily corroded, the wheel hub assembly must be replaced. This is the most likely outcome.
7. If the ring appears intact, TSB PIC5428G suggests cleaning any accumulated metallic debris from the magnetic ring and re-testing, though replacement is often still required.
8. If the ring and wiring are confirmed to be good, the sensor itself is the likely suspect. Test its resistance with a multimeter if specifications are available, or swap it with the opposite side to see if the fault follows.

Parts You'll Likely Need

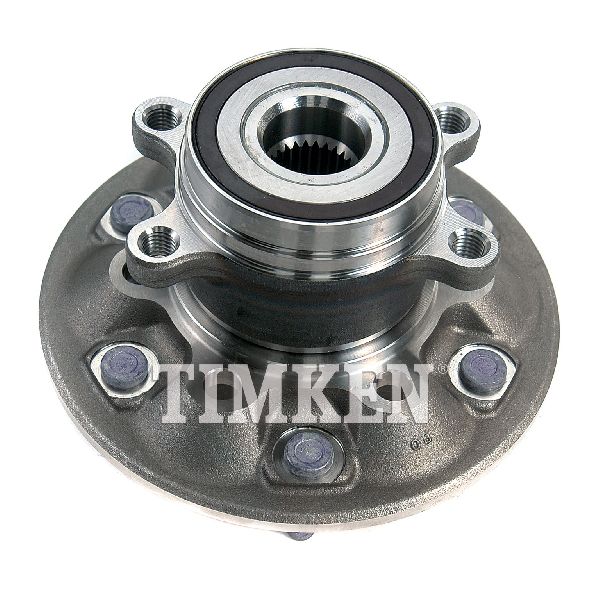

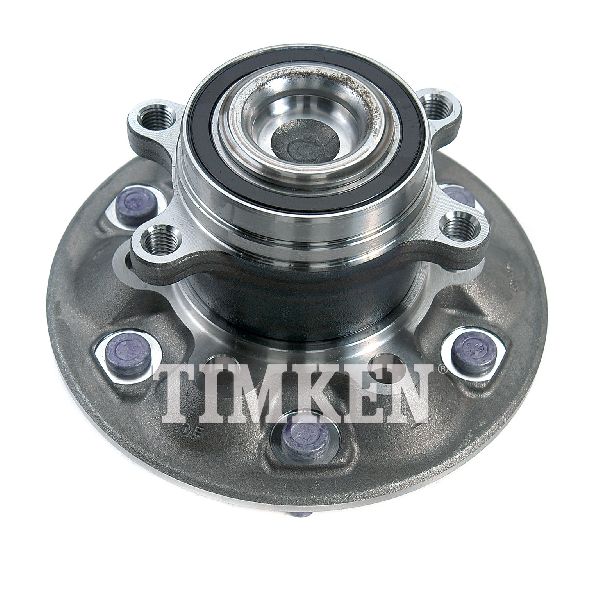

• Front Wheel Hub and Bearing Assembly (OEM #25832144) — This is the most common failure point. The integrated magnetic encoder ring for the ABS sensor rusts or gets damaged, requiring the replacement of the entire assembly.
  Trusted brands: ACDelco (GM Original Equipment), Timken, MOOG, SKF
  OEM price range: $200-$300
  Aftermarket price range: $110-$180
• Axle Spindle Nut — This is a one-time use, torque-to-yield nut that must be replaced any time it is removed during the hub replacement procedure.
  Trusted brands: Dorman, ACDelco
  OEM price range: $10-$20
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• C0040 — This is the code for the Right Front Wheel Speed Sensor. It may appear if both front hubs are failing simultaneously, which is common due to shared mileage and exposure to the elements.
• C0035 0F — The '0F' is a symptom byte indicating an 'Erratic Signal'. This strongly points to a physically damaged or debris-covered magnetic ring on the hub assembly.
• C0035 18 — The '18' symptom byte means 'Signal Amplitude Less Than Minimum'. This can be caused by an excessive air gap between the sensor and ring (due to rust buildup) or a failing sensor.
• C0035 5A — The '5A' symptom byte indicates a 'Signal Rationality Failure / Not Plausible'. The EBCM sees a signal that is illogical compared to the other wheels, often caused by a broken or severely damaged encoder ring.
• C0035 06 — The '06' symptom byte indicates 'Low Voltage/Open' in the sensor circuit. This points more directly towards a wiring issue, such as a broken wire or corroded connector, or a complete internal failure of the sensor.

Technical Service Bulletins (TSBs) & Recalls

• PIC5428G: Addresses Service StabiliTrak lights with DTCs C0035-C0050. It points towards issues with the wheel bearing's magnetic encoder ring being contaminated with debris or damaged. It suggests inspection and cleaning, but replacement is often the true fix.
• 17-NA-047: This bulletin supersedes PIC5428G, updating the model list and providing similar diagnostic advice.

Platform-Specific Known Issues

• Per TSB PIC5428G, a common issue is the accumulation of ferrous metallic debris on the bearing's magnetic encoder ring, which increases the air gap or disrupts the magnetic field, causing a loss of signal. This specifically leads to codes C0035 through C0050 with symptom bytes 18, 5A, or 0F.
• Owners on forums frequently report that replacing only the sensor does not fix the issue, and that the problem returned until the entire hub assembly was replaced due to a 'rusted out' reluctor ring.

Mechanic-Grade Diagnostic Values

• Left Front Wheel Speed Sensor Resistance — expected: 800-2,000 Ω (general estimate for this type of sensor). Failure: A reading of open-loop (infinite resistance) or short-to-ground (near zero resistance) indicates a failed sensor.
• Continuity check at EBCM connector — expected: Test for continuity between the sensor connector and the corresponding pins at the EBCM.. Failure: Infinite resistance indicates a broken wire in the harness. For the LF sensor, test between Pin 21 (Light Blue wire, Signal) and Pin 20 (Orange wire, Low Reference).

Wiring & Ground Locations

• EBCM Connector — On the inner left frame rail, beside the transmission.. This is the termination point for the wheel speed sensor harness. Testing for signal, power, and ground at this connector can determine if the fault is in the wiring, the sensor, or the module itself. The LF wheel speed sensor signal is on Pin 21 (LT BLU wire) and the low reference is on Pin 20 (ORN wire).
• G105 — On the left side of the engine compartment, near the EBCM.. This is a primary ground point for components in the front-left of the engine bay. A corroded or loose G105 ground can cause intermittent issues with the EBCM, potentially triggering false sensor codes.
• Splice Pack SP105 — In the engine bay, on the driver's side near the battery and behind the ABS module.. This ground splice pack is a known failure point on 1st Gen Colorado/Canyon trucks. It provides ground for the EBCM. Corrosion inside this pack can cause a poor ground connection, leading to various electrical faults, including C0035.

Real Owner Repair Stories

• YouTube user Chris Fixes (Chevrolet Impala (similar GM W-body platform with similar wiring design)) — ABS and Traction Control lights on, code C0035 present.
  ❌ Tried (didn't work) Initial diagnosis pointed towards the hub or sensor.
  ✅ What actually fixed it The final fix was repairing a broken wire inside the wheel speed sensor pigtail harness. The break occurred at a sharp bend where the harness flexes with suspension travel. The fix involved splicing in a new pigtail harness connector.

OEM Part Supersession History

• 15100274, 15100275 → 25832144 — Part consolidation and potential design update.
  Heads up: The part 25832144 has been discontinued by GM, but is still available as original equipment from various parts suppliers.

Model Year Variations Within This Range

• 2004-2008 vs 2009-2012: While the hub design is similar, earlier models (2004-2008) had the ABS sensor as an integral, but sometimes separately serviceable, part of the hub assembly. For the 2009-2012 models, the sensor and wiring are more distinctly separate from the hub, but the magnetic encoder ring remains integrated into the hub's seal, making hub replacement the common fix for encoder-related faults.
