C0034 on 2015-2016 Ram 1500: Right Front Wheel Speed Sensor Causes and Fixes

What's Unique About the 2015-2016 Ram 1500

On this generation of Ram 1500, the wheel speed sensor is a common failure point. The wiring harness leading to the sensor is also particularly susceptible to damage from road debris, stretching during suspension movement, or corrosion at the connectors. Forum users frequently report that the wiring can chafe or break, sometimes near where it joins a larger harness behind the fender liner, leading to intermittent faults that can be difficult to trace. This often fools owners into replacing the sensor or even the entire hub assembly when the wiring is the true culprit.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• Traction Control or Electronic Stability Control (ESC/ESP) warning light is on
• Cruise control may be disabled
• 4WD system may show a fault or be disabled
• Unwanted ABS activation (pulsing brake pedal) at low speeds before the warning lights illuminate

Most Likely Causes

1. Failed Right Front Wheel Speed Sensor 🔴 High Probability The sensor is exposed to harsh conditions (water, salt, debris, heat) which can lead to internal electronic failure or corrosion over time. The sensor body is plastic and can become brittle, and the internal magnetic components can fail.
   How to confirm: Use a scan tool to monitor live data from all four wheel speed sensors while driving. If the right front sensor reads 0 MPH or shows erratic values compared to the others, the sensor is likely bad. An oscilloscope can also be used to check for a clean AC voltage signal from the sensor as the wheel is spun; a dead sensor will produce no signal.
   Typical fix: Replace the right front wheel speed sensor. This involves removing the wheel, brake caliper, and rotor to access the sensor, which is held in by a single bolt. 🎬 Watch: Step-by-step guide to replacing the front ABS sensor. The mounting hole should be cleaned of rust and debris before installing the new sensor.
   Est. part cost: $30-$100
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness can be damaged by road debris, improper routing, or simply from the stress of suspension and steering movement. Owners on forums specifically mention that wires can chafe and short together anywhere along the path from the wheel well to the ABS module. A common diagnostic test is to wiggle the harness while monitoring live data to see if the signal cuts out.
   How to confirm: Visually inspect the entire length of the wiring from the sensor to the main harness for any signs of chafing, breaks, or corrosion. Pay close attention to where the harness is clipped to the frame or suspension components. A continuity test with a multimeter between the sensor connector and the ABS module connector can confirm a broken wire.
   Typical fix: Repair the damaged section of wire or replace the pigtail connector. In many cases, owners find a break and can splice the wire. 🎬 See how to find and repair common wiring harness breaks. If the damage is extensive, a new harness section may be needed.
   Est. part cost: $15-$50 for a pigtail, or less for a simple wire repair.
3. Damaged Tone Ring / Wheel Hub Assembly ⚪ Low Probability The tone ring, which the sensor reads, is integrated into the wheel hub bearing assembly. Severe corrosion can cause the ring to swell or break, and debris can get lodged in the teeth. A failing wheel bearing can also introduce excessive play, altering the air gap between the ring and the sensor, causing an erratic signal.
   How to confirm: After removing the wheel speed sensor, visually inspect the tone ring through the sensor mounting hole for heavy rust, debris, or missing/damaged teeth. Check the wheel bearing for any play or roughness when spun by hand.
   Typical fix: If the tone ring is damaged or the bearing is bad, the entire wheel hub bearing assembly must be replaced.
   Est. part cost: $150-$350

Rare But Worth Checking

• Failed ABS Control Module: This is the least likely cause and should only be considered after the sensor, wiring, and hub assembly have been thoroughly checked. However, for 2015-2018 models, there have been widespread reports of ABS module failures and a national backorder on replacement parts, making it a significant issue if it does occur. TSBs #68196033A$ and #68292756A$ specifically advise technicians to call a support line before replacing the module, suggesting it is often misdiagnosed.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS codes to confirm C0034 is present and check for any other codes.
2. Use the scanner's live data function to monitor the speed of all four wheels while driving above 10-15 mph. Confirm that the Right Front sensor reads differently (e.g., 0 mph, erratic) than the other three.
3. Raise and secure the front of the vehicle. Remove the right front wheel.
4. Visually inspect the wheel speed sensor and its wiring harness. Look for obvious damage, chafing, or corrosion. Wiggle the harness while a helper monitors live data to check for intermittent dropouts.
5. Disconnect the sensor and inspect the connector pins for corrosion or damage. Clean with electrical contact cleaner if necessary.
6. With the sensor disconnected, use a multimeter on AC voltage setting to test the sensor. Connect the leads to the two pins on the sensor and spin the hub. A good sensor should generate a small, increasing AC voltage. No voltage indicates a failed sensor.
7. If the sensor tests bad, replace it. Ensure the mounting surface in the knuckle is clean.
8. If the sensor tests good, perform a continuity test on the wiring between the sensor connector and the ABS module connector to check for breaks or shorts.
9. Inspect the tone ring on the wheel hub for damage, heavy rust, or debris. Check the wheel bearing for excessive play.
10. If the sensor, wiring, and hub are all confirmed to be good, the final step is to diagnose the ABS control module itself, which may require a professional.
🎬 Watch: How to replace the ABS control module yourself.

Parts You'll Likely Need

• Front Wheel Speed Sensor (OEM #68170065AE (Supersedes 68170065AB, 68170065AC, 68170065AD, 68267297AA)) — This is the most frequent point of failure for code C0034 due to its exposed location and electronic nature.
  Trusted brands: Mopar, Dorman (970-056), Standard Motor Products (ALS2587), NTK (AB1197)
  OEM price range: $70-$120
  Aftermarket price range: $30-$80

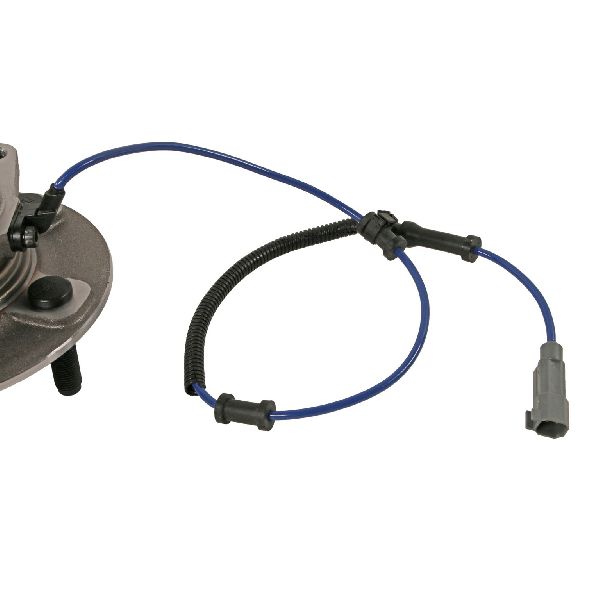

• Front Wheel Hub and Bearing Assembly — This part is needed if the integrated magnetic tone ring is damaged or if the wheel bearing has failed, causing excessive play that affects the sensor reading.
  Trusted brands: Mopar, Timken, MOOG, SKF
  OEM price range: $250-$400
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• C0031 — This is the corresponding code for the Left Front Wheel Speed Sensor. If wiring is damaged in an area that affects both sides, or if there's a systemic issue, you might see codes for multiple sensors.
• C0037 — This is the code for the Left Rear Wheel Speed Sensor. Seeing multiple wheel speed sensor codes can point towards a more central issue like the ABS module or a widespread wiring problem.
• C003A — This is the code for the Right Rear Wheel Speed Sensor. As with other sensor codes, its presence alongside C0034 suggests a problem potentially larger than a single sensor.

Technical Service Bulletins (TSBs) & Recalls

• 68292756A$: Mentions C0034-1D (Circuit Current Out of Range) and C0034-2F (Signal Erratic) for the 2016 Ram 1500, confirming the code's meaning.
• 68196033A$ / 68193650A$: For 2015-2016 Ram 1500 (DS), instructs technicians to call a dedicated support line before replacing the ABS module for wheel speed sensor faults, highlighting that the module is often not the root c

Platform-Specific Known Issues

• The wiring harness for the front wheel speed sensors can become brittle or get pinched, leading to intermittent signal loss that is sometimes hard to diagnose. Some owners have found the wires chafed all the way back to the main harness near the ABS module.
• Corrosion can build up in the sensor mounting hole, making the old sensor difficult to remove and potentially damaging the new sensor if not cleaned out properly. It's critical to clean the bore with a wire brush or sandpaper before installing the new part.
• A failing wheel bearing can cause the tone ring to make contact with the tip of the sensor, causing physical wear on the sensor and indicating a bad hub assembly.

Mechanic-Grade Diagnostic Values

• Sensor Supply Voltage — expected: > 10 Volts. Failure: Voltage below 10V indicates a problem with the supply circuit from the ABS module.
• Sensor Signal Circuit to Ground Resistance — expected: Infinite resistance (Open Line). Failure: Resistance below 5.0 Ohms indicates a short to ground in the signal wire.
• Sensor Supply Circuit to Ground Resistance — expected: Infinite resistance (Open Line). Failure: Resistance below 5.0 Ohms indicates a short to ground in the supply wire.
• Sensor Signal Output (Oscilloscope) — expected: A regular square-wave pulse from 0.5V to 5V, with frequency increasing with wheel speed.. Failure: A missing, erratic, or distorted waveform.

Hidden / Shadow Codes Worth Checking

• C0034-1D: Right Front Wheel Speed Sensor - Circuit Current Out of Range. This indicates the ABS module has detected a current level in the sensor circuit that is outside the expected range, often pointing to an open or shorted wire. (see via A professional scan tool capable of reading manufacturer-specific ABS codes, such as wiTECH.)
• C0034-2F: Right Front Wheel Speed Sensor - Signal Erratic. This indicates the ABS module is receiving a signal, but it's implausible or has drastic, sudden changes, often caused by a damaged tone ring, failing wheel bearing, or intermittent wiring issue. (see via A professional scan tool capable of reading manufacturer-specific ABS codes, such as wiTECH.)

Scan Tool Commands That Help

• wiTECH: ABS Verification Test — This function is used after a repair (like replacing a sensor or fixing a wire) to confirm the fault is gone. The vehicle must be driven over 25 mph (40 km/h) for the test to complete.
• wiTECH: ABS Initialization — This procedure may be required after replacing or reprogramming the ABS module to ensure it communicates correctly with the vehicle's other systems.
• wiTECH or equivalent: View DTCs / Live Data — Used as the primary diagnostic step to read the specific C0034 sub-code and to monitor the live wheel speed signals from all four wheels while driving to identify the faulty sensor.

Wiring & Ground Locations

• ABS Module Connector — Under the hood, on the driver's side, below the main fuse box (Totally Integrated Power Module). Access often requires removing the driver's side front wheel and fender liner.. This is the termination point for the wheel speed sensor harness. Testing for continuity and voltage must be done between this connector and the sensor connector at the wheel.
• ABS Fuses (F6, F26, F76) — In the main fuse box (Totally Integrated Power Module) under the hood, next to the battery.. Fuse F6 (40A) powers the ABS pump, F26 (30A) powers the ABS valves, and F76 (10A) powers the ABS/ESC control circuits. While a blown fuse is not a common cause for a single sensor code, it's a basic check for overall system health.
• Harness Chafe Point — The wiring harness running through the driver's side wheel well can chafe against the shock tower, upper control arm, or brackets for the ECM/TCM.. Although some service bulletins reference GM vehicles, the principle of harness chafe in the wheel well area due to suspension movement is a common issue across brands and a known problem spot for Ram trucks leading to wiring damage.

Real Owner Repair Stories

• RamForum.com user 'Biwel' (Unknown year Ram 1500) — ABS, traction control, and 4-wheel drive issue lights. Codes C0034-1D and C0034-2F present.
  ❌ Tried (didn't work) Replaced the right front wheel speed sensor., Replaced the right front wheel hub bearing.
  ✅ What actually fixed it A shop diagnosed and repaired a corroded wire in the harness. The final repair cost was $240.
• irate4x4 Forums user 'Johann' (2013 Ram 1500 with 155k miles) — ABS light, traction control off, cruise control disabled. Pulsing from ABS module on brake pedal. Code C0034-2F.
  ❌ Tried (didn't work) Replaced the right front wheel speed sensor (fix only lasted 16 miles).
  ✅ What actually fixed it The user suspected a bad unit bearing/hub assembly was the root cause due to visible wear on the tip of the original sensor, indicating an incorrect air gap. Another user confirmed this is a classic symptom of a bad unit bearing causing low amplitude from the sensor.

OEM Part Supersession History

• 68170065AB, 68170065AC, 68170065AD, 68170065AE, 68170065AF → 68170065AG — Standard part evolution for design improvements, material changes, or supplier changes.
  Heads up: The listed part numbers are generally interchangeable for the specified model years, but it is always best to use the latest revision (68170065AG) to ensure you have the most updated design.
