B3935 on 2019-2025 Cadillac XT4: No Start, Security Light Causes and Fixes

What's Unique About the 2019-2025 Cadillac XT4

The 2019-2025 Cadillac XT4, built on the GM C1XX platform, has a highly sensitive keyless entry and immobilizer system that operates at 125 kHz. General Motors has issued multiple Technical Service Bulletins (TSBs), including the PIC5650 series (L, M, etc.), specifically warning technicians that intermittent no-start conditions with code B3935 are frequently caused by external Radio Frequency Interference (RFI). The official guidance explicitly states *not* to replace expensive modules until all sources of RFI—such as aftermarket chargers, non-OEM LED lights, and other RFID cards—have been ruled out, as this is the most common cause of the problem.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Intermittent no-crank or no-start condition. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• Engine starts and then immediately stalls. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• Security indicator light is illuminated or flashing on the dashboard. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• "No Fob Detected" or similar message on the Driver Information Center.
• Poor or no Remote Keyless Entry (RKE) range. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M

Most Likely Causes

1. Radio Frequency Interference (RFI) 🔴 High Probability The vehicle's security system is sensitive to external signals. GM TSBs PIC5650L and PIC5650M directly name RFI as the primary cause to investigate before any parts are replaced. Common sources include aftermarket phone chargers (especially low-quality USB types), other key fobs, building access cards, toll passes, or even non-OEM LED interior lights that can generate electrical noise.
   How to confirm: Remove all other keys, fobs, and RFID cards from the keychain. Unplug any aftermarket devices from the 12V power outlets (phone chargers, dash cams). Try to start the vehicle with only the single XT4 key fob present. If the vehicle starts, you have identified RFI as the cause.
   Typical fix: Isolate the vehicle's key fob from the source of interference. Keep the fob on its own ring or in a pocket away from other electronic devices. Replace low-quality aftermarket chargers with OEM or high-quality alternatives.
   Est. part cost: $0
2. Weak or Dead Key Fob Battery 🟡 Medium Probability
   How to confirm: Try starting the vehicle with your spare key fob. If the spare key works reliably, the battery in the primary fob is the likely issue. You can also try placing the non-working fob in the designated transmitter pocket (in the front cup holder or center console storage area for the XT4) which is designed to work with a weak battery.

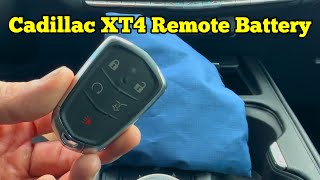

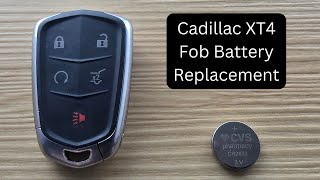

   Typical fix: Replace the CR2032 battery inside the key fob. 🎬 See this quick walkthrough to replace your key fob battery.
   Est. part cost: $2-$10

Rare But Worth Checking

• Faulty Key Fob: If a new battery and removing RFI sources doesn't help, and the spare key works perfectly, the internal transponder of the primary key fob may have failed. The fob itself would need to be replaced and programmed by a dealer or locksmith.
• Body Control Module (BCM) or Wiring Issue: While rare, a faulty BCM or a poor ground connection for the module can cause a variety of electrical issues, including this code. This should only be considered after all other possibilities are exhausted, as per GM's TSBs.
• BCM Software Glitch: On related GM platforms, TSB PI1180A was issued for a condition where B3935 and B2955 appear together due to a software anomaly. The fix is a BCM reprogram. While not issued specifically for the XT4, it shows a precedent for software issues causing this code. This requires dealer diagnosis.

Diagnosis Steps

1. Check the dashboard for a security light and a 'No Fob Detected' message.
2. Remove the Cadillac XT4 key fob from your keychain. Ensure it is isolated from all other keys, fobs, RFID-enabled work/gas cards, and wallets.
3. Unplug all aftermarket devices from the vehicle's power outlets (e.g., phone chargers, dash cams, non-OEM LED lights).
4. Attempt to start the vehicle with the isolated key fob.
5. If the vehicle still doesn't start, place the key fob into the designated transmitter pocket located in the front cup holder or center console storage area and try again. This is the backup method for a weak fob battery.
🎬 Watch: How to start your XT4 with a dead key fob.
6. If the vehicle starts with the fob in the pocket, replace the CR2032 battery in the key fob.
7. If the issue persists, try starting the vehicle with your spare key fob to rule out a faulty primary key.
8. If none of the above steps resolve the issue, the vehicle requires professional diagnosis with a GM-specific scan tool to check for other codes and analyze BCM data. Mention TSBs PIC5650L and PIC5650M to the service advisor to ensure they investigate RFI before replacing parts.

Parts You'll Likely Need

• Key Fob Battery (OEM #CR2032) — A weak key fob battery is a common cause for authentication failure. Replacing it is a simple and inexpensive troubleshooting step.
  Trusted brands: Energizer, Duracell, Panasonic
  OEM price range: $5-$10
  Aftermarket price range: $2-$8
• Smart Key Fob (OEM #13591382, 13522872 (2019-2021); 13522879, 13544052 (2023+); FCC ID: HYQ2EB) — If the key fob itself is faulty (damaged transponder), it will need to be replaced. Part numbers can vary by year and specific features.
  Trusted brands: Genuine GM
  OEM price range: $100-$150
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Modulation' and often appears with B3935 when RF interference is strong enough to block the key's signal entirely. It is cited in the same TSBs. [1, 8, ⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• B3060 — This code for 'Unprogrammed Transponder' can be triggered by signal corruption from interference, making the BCM think a new, unprogrammed key is being used. It is also cited in the same TSBs. [1, 8, ⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• C0750, C0755, C0760, C0765, C0775 — These codes relate to the Tire Pressure Monitoring System (TPMS), which also uses RF signals. Severe RFI can disrupt multiple vehicle systems simultaneously, causing these codes to appear alongside B3935. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: Cites B3935 with intermittent no crank, no start, or start/stall issues and a security light, often due to RFI from aftermarket accessories. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• PIC5650L: Explicitly states not to replace any parts for this concern and to first investigate Radio Frequency Identification interference from items on the owner's keychain or in the vehicle. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650L
• PI1180A: While for other GM trucks and SUVs, this TSB is notable as it identifies a BCM software glitch as the cause for B3935 when it appears with B2955, establishing a precedent for software-related fixes.

Platform-Specific Known Issues

• A known issue documented in TSB #PIC5650L explicitly warns against replacing parts for this code. It states that technicians should first investigate Radio Frequency Interference from devices on the owner's keychain or inside the vehicle. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650L
• TSB #PIC5650M expands on this, linking intermittent no-start or start-stall conditions with code B3935 to RFI from aftermarket equipment like phone chargers and LED lights. [⭐ MANUFACTURER TSB — highest authority] Bulletin #PIC5650M
• A Reddit user with a 2024 XT4 described recurring electrical problems including a dead car and critical battery alerts, which led to multiple tow-ins and dealer visits. While B3935 was not explicitly named, the symptoms align with severe electrical/BCM issues that can underpin security system faults.

Hidden / Shadow Codes Worth Checking

• B3935 57: This symptom byte specifies 'Transponder Authentication Error'. It confirms the BCM recognized the key but the cryptographic challenge/response calculation failed. This points more specifically to a faulty transponder chip in the key or strong RFI corrupting the handshake, rather than an unknown or unprogrammed key. (see via A professional GM-specific scan tool (GDS2/Tech2) is required to view symptom bytes.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Diagnostics > BCM > Data Display > 'Immobilizer Key Status', 'Transponder Key Present' — Use this to get live data on what the BCM is seeing. It helps determine if the module sees the key at all, which can differentiate between RFI (intermittent signal), a dead key fob (no signal), or an internal BCM fault.
• GDS2 (GM Global Diagnostic System 2): Immobilizer Learn — This function is required after replacing a key, the Body Control Module (BCM), or the Engine Control Module (ECM) to program the new component's security information into the vehicle.

Wiring & Ground Locations

• Body Control Module (BCM) — For the Cadillac XT4, the BCM is located on the passenger's side. Access involves moving the passenger seat back and removing the right side of the front floor console extension panel.. The BCM is the central computer for the anti-theft system. All key fob authentication signals are processed here. A poor connection at one of its connectors, as identified in GM Service Update N222390510, can directly cause B3935 and other electrical faults.
• BCM Ground Path — While the exact ground point for the XT4's BCM isn't specified, GM bulletin 07-08-47-004D warns technicians that removing a BCM ground while battery power is supplied can damage the module.. A loose or corroded ground connection for the BCM can cause intermittent and unpredictable behavior, including setting false security codes like B3935. It is critical to disconnect the negative battery cable before servicing any BCM-related grounds.

Model Year Variations Within This Range

• 2023: Certain 2023 Cadillac XT4 vehicles were subject to GM Service Update N222390510 for a condition where one or more Body Control Module (BCM) connectors may not have been fully seated at the factory. The fix is to access the BCM and ensure all connectors are secure.
