B3935 on 2010-2016 Cadillac SRX: No-Start Causes and Fixes

What's Unique About the 2010-2016 Cadillac SRX

The 2010-2016 Cadillac SRX, along with many other GM vehicles from this era, is particularly sensitive to Radio Frequency Interference (RFI). Multiple Technical Service Bulletins (TSBs) have been issued by GM specifically addressing this issue. The problem is often not a faulty component on the vehicle itself, but rather external signals from other key fobs, building access cards, or even aftermarket electronics that 'jam' the signal between the SRX key and the car's security module. The immobilizer system operates at 125 kHz, which can be easily interfered with by other devices.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Vehicle will not crank or start
• Engine starts and then immediately stalls
• Security indicator light is illuminated or flashing on the dashboard
• "Service Theft Deterrent System" message on the driver information center
• "No Remote Detected" message on the driver information center, even with the key inside the car.

Most Likely Causes

1. Radio Frequency Interference (RFI) 🔴 High Probability As documented in GM TSBs PIC5650L and PIC5650M, the theft deterrent system on these vehicles is sensitive to external radio signals. The immobilizer operates at 125 kHz, and other devices operating in a similar range can corrupt the signal. TSBs list specific culprits like other vehicle key fobs, toll passes, gate/door access cards, fuel station speed passes, and even aftermarket electronics like USB chargers and LED lights.
   How to confirm: Remove all other key fobs, access cards (for gates, offices, gyms), and gas station speed passes from the same keychain as the SRX key. Try starting the vehicle with only the SRX key present. If the issue is resolved, RFI is the cause.
   Typical fix: Keep the SRX key isolated from other radio-frequency emitting devices. This fix is free.
   Est. part cost: $0
2. Weak Battery in Key Fob 🟡 Medium Probability
   How to confirm: If isolating the key doesn't work, try using the vehicle's spare key fob. If the spare key works reliably, the battery in the primary key is the likely culprit. Another test is to place the fob in the transmitter pocket in the center console 🎬 Watch: How to start your SRX with a dead remote battery and try to start the car; if it starts, the battery is almost certainly weak.

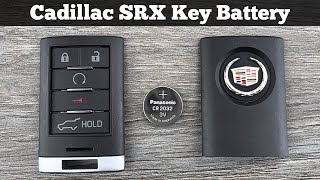

   Typical fix: Replace the CR2032 battery inside the key fob. 🎬 See this quick DIY guide for replacing your key fob battery
   Est. part cost: $1-$5
3. Defective Ignition Key Transponder ⚪ Low Probability
   How to confirm: If both isolating the key and replacing the battery fail, and the spare key works, the transponder chip in the original key has likely failed. A dealership or automotive locksmith can test the key's signal.
   Typical fix: Replace the faulty key fob and have the new one programmed to the vehicle.
   Est. part cost: $150-$400
4. Body Control Module (BCM) Software Glitch ⚪ Low Probability GM issued a service bulletin (PI1180A) for some models indicating that a BCM software issue could cause a no-start with B3935 and B2955 codes. While the SRX is not explicitly listed, the bulletin applies to 2014-2015 GM trucks and full-size SUVs with similar electrical architecture. This should only be considered if both codes are present simultaneously.
   How to confirm: This requires a professional diagnosis with a scan tool to check for both codes (B3935 and B2955) and to see if a software update is available.
   Typical fix: Reprogram the Body Control Module (BCM) with the latest software calibration using the GM Service Programming System (SPS). This must be done at a dealership or a qualified independent shop.
   Est. part cost: $0 (software only)

Rare But Worth Checking

• Faulty Theft Deterrent Module (TDM) or Antenna: If a brand new, properly programmed key still fails to start the vehicle and sets B3935, the module in the car that reads the key (TDM) or its antenna may be faulty. This is a rare failure and should only be considered after all other causes are eliminated.
• Faulty Fuse Box / Mega Fuse Connection: A real-world owner repair story documented a 2016 SRX with intermittent no-start and 'no remote' messages. The issue was traced to a poor connection at the 250 amp mega fuse in the under-hood fuse box. 🎬 Watch: How to fix the 'No Remote Detected' fuse box issue Jiggling the main power wire to this fuse would allow the car to start. The fix was to replace the entire fuse box assembly, as the fuse itself was failing internally. This can happen after a battery replacement if the cover puts pressure on the connection.

Diagnosis Steps

1. Verify that the security light is illuminated on the dashboard during the no-start condition.
2. Remove the Cadillac SRX key from your keychain. Ensure no other keys, fobs, or RFID cards are nearby. Pay special attention to toll passes, work ID badges, and aftermarket USB chargers.
3. Attempt to start the vehicle with the isolated SRX key. If it starts, the problem is RFI.
4. If the problem persists, try starting the vehicle with your spare SRX key. If the spare key works, the issue is with your primary key.
5. Replace the CR2032 battery in the non-working key fob and test again.
6. If the vehicle has a push-button start, place the problematic fob in the dedicated transmitter pocket and try to start the engine. The pocket is located at the bottom of the center console storage area, possibly under a removable tray. If it starts this way, it strongly points to a weak fob battery or RFI.
7. Inspect the under-hood fuse box. Check the main power wire connection to the large 250 amp mega fuse for any looseness or signs of corrosion. Gently wiggling this wire while an assistant tries to start the car can help identify a bad connection, as seen in some owner reports.
8. If none of the above steps resolve the issue, the vehicle should be scanned for codes. If B3935 is present with B2955, a BCM software update may be required, though this is more common on GM trucks.
9. If a new key fails to resolve the issue, a professional diagnosis of the Theft Deterrent Module (TDM) and its antenna is necessary.

Parts You'll Likely Need

• Key Fob Battery (OEM #CR2032) — A weak battery can cause an inconsistent signal, leading to authentication failure. It's the cheapest and easiest part to replace.
  Trusted brands: Energizer, Duracell, Panasonic
  OEM price range: $5-$10
  Aftermarket price range: $1-$5
• Keyless Entry Remote / Key Fob (OEM #ACDelco 13598528 (for 2015-16), 22865378 / 20984232 (for 2010-15)) — If the internal transponder chip in the key fails, the entire key fob must be replaced and programmed to the vehicle. Part numbers can vary by year and specific options (e.g., number of buttons).
  Trusted brands: ACDelco (OEM), Car Keys Express (Aftermarket), Dorman (Aftermarket)
  OEM price range: $150-$250
  Aftermarket price range: $50-$120

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Modulation or No Secret Key' and is often set alongside B3935. It indicates a more fundamental failure to read the key's transponder, which can be caused by severe RFI, a dead key fob battery, or a faulty key.
• B3060 — This code indicates an 'Un-Programmed Transponder' or an issue with the transponder antenna circuit (the ring around the ignition). It can be triggered by the same RFI that causes B3935, as noted in TSB PIC5650M.

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: Mentions B3935 with no-crank/no-start/stall and security light symptoms. Lists numerous sources of RFI including aftermarket LEDs and USB chargers.
• PIC5650L: Explicitly links B3935 to RFI and advises against replacing parts as a first step.
• PIC5650B/F/K: Broader bulletins covering many GM models, including the SRX, for RFI from various sources causing security system issues and setting codes like B3935.
• PI1180A: Discusses a BCM software update to fix a no-start condition with DTCs B3935 and B2955 on similar GM platforms (trucks/SUVs), but does not explicitly list the SRX.

Platform-Specific Known Issues

• Per TSB #PIC5650L, technicians are explicitly advised *not* to replace any parts for this concern initially, but to first investigate the use of Radio Frequency Identification (RFID) devices by the customer.
• Per TSB #PIC5650M, this code is part of a known pattern of intermittent no-crank, no-start, or start/stall conditions related to the security system.
• The transmitter pocket for emergency starts is located inside the center console storage area, under the lift-out tray. The fob should be placed in the pocket with the buttons facing up.

Hidden / Shadow Codes Worth Checking

• B3935 57: Transponder Authentication Error. This specific symptom byte indicates the TDM read a valid key transponder value, but the cryptographic challenge between the key and the TDM failed. (see via A professional scan tool capable of reading GM-specific body codes and their symptom bytes, such as a GM Tech2 or GDS2.)
• Symptom Byte 71: Invalid Data Received. While not a code itself, if seen with a U-code alongside B3935, it indicates that a module is receiving invalid data from another module on the network. The root cause is the source of the invalid data, not the module setting the code with the '71' byte. (see via A professional scan tool capable of reading GM-specific communication codes (U-codes) and their symptom bytes.)

Scan Tool Commands That Help

• Manual Procedure: Security Relearn Procedure (30-Minute Method) — Required after replacing the BCM or TDM to make the vehicle learn the existing key transponders. It involves cycling the ignition to 'ON' for three 10-minute intervals. A fully charged battery and a battery charger are critical for this procedure to succeed.
• GM SPS (Service Programming System): BCM Programming and Setup — Used to update the BCM software to the latest calibration. Specifically noted in TSB PI1180A for fixing a no-start with codes B3935 and B2955 on similar platforms. This should be considered if both codes are present.

Wiring & Ground Locations

• K9 — Body Control Module (BCM), located behind the driver's side of the instrument panel, near the steering column.. The BCM is a central hub for the vehicle's electronics and communicates with the Theft Deterrent Module (TDM). A BCM software glitch or failure can cause this code.
• Theft Deterrent Module (TDM) / Antenna — The TDM's antenna is a ring located around the ignition lock cylinder. The module itself is often integrated with this antenna.. This component is responsible for energizing the key's transponder and reading its signal. A failure here is a direct cause of codes B3055, B3060, and B3935.
• G201 / G301 — Ground points located in the left kick panel area.. The BCM and other related modules rely on clean ground connections. A loose or corroded ground at these locations can cause intermittent and difficult-to-diagnose electrical issues, including security system faults.
• Engine Block to Frame Ground — A large, heavy-gauge strap connecting the engine block to the vehicle's frame.. While not a direct part of the security system, a failed or missing engine block ground can cause a no-crank condition. The starter motor current will try to find another path to ground, potentially through smaller wires, causing massive voltage drops that disrupt module communication and can mimic a security lockout.

Real Owner Repair Stories

• ScannerDanner YouTube Channel (Cadillac CTS (similar platform with battery in rear)) — Intermittent no-crank, no-start. Low voltage readings at the underhood fuse box during crank attempt.
  ❌ Tried (didn't work) Initially diagnosing a bad positive battery cable due to voltage drop.
  ✅ What actually fixed it The main engine block ground strap was completely broken off from its mounting point on the block. The starter current had no proper path back to the battery, causing a massive voltage drop across the entire vehicle's electrical system when the starter tried to engage. Re-establishing this ground connection resolved the no-crank condition.
• Chevy HHR Network Forum (Chevy HHR (similar GM electrical architecture)) — Intermittent no-crank, no-start, especially when the engine bay is hot.
  ❌ Tried (didn't work) Replacing the battery., Replacing the starter.
  ✅ What actually fixed it The user was advised to check all primary power and ground connections, including the main lug on the underhood fuse block and to tighten the bolts that hold the two halves of the fuse block together. These connections can loosen over time, creating high resistance, especially when hot.

Model Year Variations Within This Range

• 2013-2016: Vehicles from 2013 onward feature the Cadillac CUE system, which represents a significant change in the vehicle's electrical and network architecture compared to the 2010-2012 models. While the fundamental Passkey III+ immobilizer strategy remains similar, the BCM and other modules are different and not interchangeable with earlier years. Diagnostics involving the BCM must account for this change.
