B3060 on 2007-2010 Saturn SKY: Unprogrammed Key & No-Start Fixes

What's Unique About the 2007-2010 Saturn SKY

The Saturn SKY uses GM's Passkey III+ (PK3+) immobilizer system, which is common across many GM vehicles of the era. However, the Kappa platform (shared with the Pontiac Solstice) can be particularly sensitive to issues with key transponders and ignition cylinder reader coils. A GM Technical Service Bulletin (TSB) acknowledges that these vehicles can suffer from intermittent no-crank or no-start conditions related to the security system, which can trigger code B3060. Forum discussions among owners confirm that low battery voltage can also cause a variety of strange electrical issues on this platform, including security system faults.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine will not crank or refuses to start
• Engine starts briefly and then immediately stalls
• The 'Security' indicator light is illuminated or flashing on the dashboard

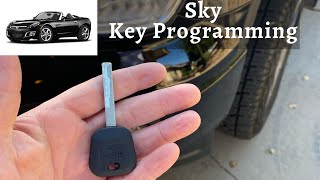

🎬 See how to troubleshoot a no-crank with the security light on.

Most Likely Causes

1. Using an Unprogrammed or Incorrect Key 🔴 High Probability This is the direct trigger for the code by design; it often happens after getting a new key cut that hasn't been electronically programmed to the car, or using a non-transponder key.
   How to confirm: Try starting the vehicle with all available keys. If one key works and another doesn't, the non-working key is the issue. A key with a 'PK3+' stamp on the blade is required.
   Typical fix: The key needs to be programmed to the vehicle using a specific 'key relearn' procedure or with a professional scan tool.
   Est. part cost: $0-$150
2. Damaged Ignition Key Transponder 🟡 Medium Probability The transponder chip embedded in the plastic head of the key is small and can be damaged if the key is dropped, exposed to moisture, or simply fails over time.
   How to confirm: The key will consistently fail to start the car, while a spare key works perfectly. The plastic part of the key may show signs of damage.
   Typical fix: Replace the faulty key with a new one from the dealer or a qualified automotive locksmith and have it programmed. OEM part numbers for the key include 15824471 and 89024363.
   Est. part cost: $70-$200
3. Faulty Ignition Lock Cylinder / Reader Coil 🟡 Medium Probability The reader coil (exciter coil) that surrounds the ignition lock is responsible for communicating with the key chip. This component or its wiring can fail, preventing a known-good key from being read. This is a frequently discussed failure point on Kappa platform forums.
   How to confirm: No keys will start the vehicle, and the key relearn procedure fails. A mechanic can use a scan tool to see if the TDM/BCM is receiving any signal from the key.
   Typical fix: The ignition lock cylinder assembly, which includes the reader coil, must be replaced. An ACDelco replacement part number is 20869121. Aftermarket options like the Dorman 924-718 are also available.
   Est. part cost: $150-$350
4. Radio Frequency (RF) Interference ⚪ Low Probability This is not specific to the vehicle but a general vulnerability of immobilizer systems operating on the 125 kHz frequency. TSB PIC5650M specifically calls out aftermarket devices like cell phone chargers, USB power banks, and even some LED interior lights as potential sources of RFI that can jam the key's signal.
   How to confirm: Remove all other keys, fobs, and RFID cards from the keychain. Unplug any aftermarket chargers or devices from the car's power outlets. Try starting the car with the Saturn key by itself. If it starts, interference was the issue.
   Typical fix: Keep other electronic devices separate from the ignition key when starting the vehicle. Remove any low-quality aftermarket electronics.
   Est. part cost: $0

Rare But Worth Checking

• Faulty Body Control Module (BCM) or Theft Deterrent Module (TDM): While rare, the module responsible for storing key data can fail. This is usually the last thing to suspect after all other causes have been ruled out, as it is the most expensive to replace. Water intrusion into the passenger footwell area can damage the BCM on the Kappa platform.
• Low Vehicle Battery Voltage: Insufficient voltage during the startup sequence can sometimes cause communication errors between the key, TDM/BCM, and ECM. Kappa platform vehicles are known to be very sensitive to battery condition. If you have other electrical issues or a slow crank, check the battery first.
• Faulty Ignition Switch: Separate from the lock cylinder and reader coil, the electrical ignition switch itself can fail. A failing switch can cause intermittent power loss to the security modules during the crank cycle, leading to authentication failure. An example part is the ACDelco D1499C.

Diagnosis Steps

1. Verify the complaint: Confirm the engine won't start and the security light is on.
2. Isolate the key: Remove all other keys, fobs, and access cards from the keychain to eliminate RF interference. Also unplug any aftermarket phone chargers or accessories.
3. Test all keys: Attempt to start the vehicle with every available key to determine if the issue is with a single key or all of them.
4. Check battery health: Test the vehicle's battery to ensure it has at least 12.4 volts and is healthy. Low voltage can cause various electronic module errors on the Sky and Solstice.
5. Attempt Key Relearn Procedure: Perform the 30-minute vehicle key relearn procedure. Turn the key to 'ON' (run position) and wait approximately 10-11 minutes until the security light turns off. Turn the key off for 5-10 seconds. Repeat this process two more times for a total of 3 cycles and about 30 minutes. On the fourth attempt, the vehicle should start.
6. Scan for codes: Use a professional scan tool to read codes from the BCM/TDM and monitor data to see if the module is recognizing the key's presence.
7. Inspect wiring: If no signal is detected, inspect the wiring and connector between the ignition lock cylinder and the BCM/TDM for damage or corrosion.
8. Diagnose components: If wiring is good but no key is ever recognized (and the relearn fails), the ignition lock cylinder/reader coil is the likely suspect. If only one key fails, the key is bad. If all else fails, the BCM/TDM may be faulty.

Parts You'll Likely Need

• Ignition Key with Transponder (PK3+) (OEM #15824471 / 89024363) — This is the most common failure point, either because the internal chip is damaged or because an unprogrammed key is being used.
  Trusted brands: ACDelco, Strattec
  OEM price range: $70-$150
  Aftermarket price range: $40-$80
• Ignition Lock Cylinder with Immobilizer Coil (OEM #20869121) — If the reader coil that communicates with the key fails, no key will be able to start the car. This part contains the coil.
  Trusted brands: ACDelco, Dorman
  OEM price range: $200-$350
  Aftermarket price range: $100-$200

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Modulation or No Transponder,' indicating the security module received no signal at all, often pointing to a bad key or reader coil. It is frequently seen with B3060 as noted in TSB PIC5650M.
• B3935 — This code for 'Transponder Authentication Error' can also appear alongside B3060, indicating a failure in the security handshake process.

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: Notes that some vehicles may have an intermittent no crank, no start, or start stall concern with the security light coming on, and may find DTC B3060 set. It emphasizes diagnosing Radio Frequency Interference (RFI) from aftermarket accessories as a primary step.

Platform-Specific Known Issues

• A known issue documented in TSB #PIC5650M describes an intermittent no-crank, no-start, or start/stall condition with the security light on, which directly relates to code B3060. The TSB strongly advises checking for aftermarket radio frequency interference (RFI) from devices like cell phone chargers, USB power banks, and even aftermarket LED dome lights before replacing any parts.
• The Body Control Module (BCM) is located in the passenger footwell and can be susceptible to damage from water leaks, a known issue on the Kappa platform. A corroded BCM can cause a host of electrical problems, including immobilizer faults.
