B3060 on 2008-2012 Chevrolet Captiva: No-Start Causes and Fixes

What's Unique About the 2008-2012 Chevrolet CAPTIVA

The first-generation Chevrolet Captiva (2006-2018) shares its GM Theta platform and many components with the Opel/Vauxhall Antara 🎬 Watch: Troubleshooting a no-start condition on the Antara platform. and the second-generation Saturn Vue. This entire family of vehicles uses a sensitive GM Pass-Key III+ (PK3+) immobilizer system. A key factor, highlighted in GM Technical Service Bulletin (TSB) PIC5650M, is the system's high susceptibility to Radio Frequency Interference (RFI) from common aftermarket devices like phone chargers, LED lights, or even other key fobs. This can cause a frustrating, hard-to-duplicate no-start condition where the B3060 code appears without any actual component failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine will not crank
• Engine starts and immediately stalls
• Security light is on or flashing on the dashboard
• Key may get stuck in the ignition
• Message on dash like 'Service Theft Deterrent System'

Most Likely Causes

1. Radio Frequency Interference (RFI) 🔴 High Probability As documented in TSB PIC5650M, the GM immobilizer system of this era is highly sensitive to external radio signals from devices operating near the 125 kHz frequency. This includes other car keys, building access cards, aftermarket LED lights, and USB phone chargers.
   How to confirm: Remove all other keys, fobs, access cards, and unplug all aftermarket electronic devices (like phone chargers) from the vehicle and keychain. Attempt to start the vehicle with only the single Captiva key present. If the vehicle starts consistently, RFI was the cause.
   Typical fix: Keep the vehicle key on its own ring or ensure no RFI-emitting devices are near the ignition when starting the car. Remove problematic aftermarket accessories.
   Est. part cost: $0
2. Faulty or Unprogrammed Ignition Key 🟡 Medium Probability The transponder chip inside the key can fail over time or lose its programming, especially if the key is dropped or damaged. A weak internal battery in the key fob can also contribute to intermittent signal issues.
   How to confirm: Try starting the vehicle with a spare key. If the spare key works reliably, the primary key is faulty. A locksmith or dealer can also test the transponder chip directly.
   Typical fix: The faulty key needs to be replaced and the new key must be programmed to the vehicle. This can be done via the 30-minute relearn procedure or by a dealership/automotive locksmith with a scan tool.
   Est. part cost: $75-$200
3. Faulty Ignition Lock Cylinder / Reader Coil 🟡 Medium Probability The reader coil (or exciter coil) is a fine wire winding around the ignition cylinder that communicates with the key's transponder. This coil or its connecting wires can fail from wear and tear, causing an intermittent or complete loss of signal.
   How to confirm: If both the primary and spare keys fail to start the vehicle, and RFI has been ruled out, the reader coil is a likely suspect. A technician can test the circuit for proper signal with an oscilloscope or advanced scan tool by monitoring the 'Valid Key' parameter in the BCM/TDM data.
   Typical fix: Replace the ignition lock cylinder assembly, which includes the reader coil. An ACDelco D1462G is a common replacement part for similar GM platforms. A key relearn procedure is required after replacement.
   Est. part cost: $100-$250
4. Low Vehicle Battery Voltage / Loss of Synchronization ⚪ Low Probability The security modules are sensitive to voltage drops. A weak battery, a recent jump-start, or disconnecting the battery can cause communication glitches during startup, leading the BCM to lose synchronization with the key and incorrectly set a B3060 code.
   How to confirm: Test the battery voltage; a reading below 12.4 volts at rest indicates a weak battery. The issue often appears immediately after the battery was disconnected or jumped.
   Typical fix: Charge or replace the vehicle's 12V battery. A 30-minute key relearn procedure is often necessary after restoring proper voltage to re-sync the key with the security module.
   Est. part cost: $150-$300

Rare But Worth Checking

• Faulty Body Control Module (BCM): While rare, the BCM itself can fail, sometimes due to internal corrosion or electrical faults. This should only be considered after all other possibilities have been exhausted. A failing BCM will typically cause other strange, unrelated electrical issues, such as problems with lights, wipers, or communication codes with other modules (e.g., U0100).
• Wiring Harness Damage: Damage to the wiring between the ignition lock cylinder's reader coil and the BCM can cause a loss of signal. This can be due to chafing in the steering column, previous improper repairs, or rodent damage. A user on a forum with a platform-mate Opel Antara traced a no-start to a corroded ground wire in the fuse box.

Diagnosis Steps

1. Check for other Diagnostic Trouble Codes (DTCs), especially B3055 and B3935.
2. Remove ALL items from the keychain except for the single vehicle key. Also remove any aftermarket phone chargers or devices plugged into the power outlets. Attempt to start the vehicle.
3. If the problem persists, try starting the vehicle with a known-good spare key. If the spare key works, the original key is faulty.
4. Check the vehicle's battery. Ensure it is fully charged (above 12.4V) and the terminals are clean and tight.
5. Attempt the 30-Minute Key Relearn Procedure: 1. Turn the key to 'ON' (engine off). 2. Wait approximately 10-11 minutes until the security light turns off. 3. Turn the key 'OFF' for 10 seconds. 4. Repeat steps 1-3 two more times for a total of three 10-minute cycles. 5. After the third cycle, turn the key off, then attempt to start the engine.
6. If available, use a scan tool (like a GM Tech2 or GDS2) to monitor the immobilizer data in the BCM/TDM to see if the 'Valid Key' parameter reads 'Yes'.
7. Inspect the wiring and connector at the ignition lock cylinder for any visible damage or looseness.
8. If all other steps fail, the ignition lock cylinder/reader coil is the most likely failed component and should be tested or replaced.

Parts You'll Likely Need

• Ignition Key with Transponder — The internal transponder chip can fail, causing the BCM to no longer recognize it. This is a common point of failure.
  Trusted brands: ACDelco, Strattec
  OEM price range: $120-$200
  Aftermarket price range: $75-$120
• Ignition Lock Cylinder Housing (OEM #19178590) — This component contains the reader coil (antenna) that communicates with the key. The coil or its wiring can fail, preventing the key's signal from being read. It is often replaced as a complete assembly. Part number 19178590 is listed for the platform-mate Captiva Sport and Vue.
  Trusted brands: ACDelco, Dorman, Standard Motor Products
  OEM price range: $150-$250
  Aftermarket price range: $100-$180

Related Codes That Often Appear With This One

• B3055 — This code means 'No Transponder Modulation,' indicating the system received no signal from the key at all. It often appears with B3060 when the key is completely dead, the reader coil has failed, or interference is very strong, as both are mentioned in TSB PIC5650M.
• B3935 — This code means 'Transponder Authentication Failed' and points to a failure in the security handshake process. It is part of the same family of security faults and is often triggered by the same causes as B3060.

Technical Service Bulletins (TSBs) & Recalls

• PIC5650M: Addresses an intermittent no crank, no start, or start/stall with the security light on. It strongly advises checking for Radio Frequency Interference (RFI) from aftermarket devices (USB chargers, LED lights, other fobs) before replacing any parts. This TSB is directly related to B3060 and lists it specifically.

Platform-Specific Known Issues

• The platform is known to be sensitive to low battery voltage, which can cause the security system to lose key programming and trigger a B3060 code, requiring a key relearn procedure.
• Owners have reported various intermittent electrical issues, including problems with the ignition switch where the key can become stuck, which may be related to the same underlying electrical or security system faults. A thread on ChevroletForum.com details a 2012 Captiva with repeated no-start issues,

Mechanic-Grade Diagnostic Values

• Immobilizer System Operating Frequency — expected: 125 kHz. Failure: Interference from other devices operating in the 120-135 kHz range can disrupt communication and set DTCs B3055, B3060, or B3935.

Hidden / Shadow Codes Worth Checking

• B3060 00: No Sub Type Information. This is the most common variant and simply means the BCM received a signal from a key transponder that is not programmed to the vehicle. (see via GM GDS2 or other professional scan tools capable of reading manufacturer-specific symptom bytes.)
• B3060 5A: Incorrect Transponder Identification Code Received. This variant is more specific, confirming the BCM received a complete code from the key, but the code does not match any of the authorized keys stored in memory. This helps differentiate from a no-signal error (B3055). (see via GM GDS2 (Global Diagnostic System 2) software.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Immobilizer Learn / Add or Replace Key Fobs — This function is required after replacing a key, the Body Control Module (BCM), or the Theft Deterrent Module (TDM) to program the new components to the vehicle.
• GDS2 (GM Global Diagnostic System 2): Data Display > TDM Valid Key — Use this function to monitor the live data parameter and verify if the Theft Deterrent Module (TDM) is recognizing the key being used as valid or invalid. This helps confirm if the system is correctly reading the key's transponder.

Wiring & Ground Locations

• Body Control Module (BCM) — Located in the center of the dashboard, typically behind the radio or a storage pocket in the center console area.. The BCM is the central module that manages the theft deterrent system. All communication from the key's transponder, via the reader coil, is processed here. A bad connection or fault at the BCM is a primary cause of security codes.
• BCM Connector X5, Pin 2 — On the Body Control Module (BCM). This is a White/Black wire.. This pin is for the 'Ignition Key Resister Signal' according to a wiring diagram for the Captiva. This is the input from the ignition lock cylinder's reader coil. Testing for a signal here can confirm if the reader coil is functioning.
• Ground G201 — Located in the right front kick panel area on the Captiva Sport.. This is a major body ground point. A loose or corroded ground here can cause intermittent electrical issues for multiple systems, including the Body Control Module, leading to unpredictable security faults.

Real Owner Repair Stories

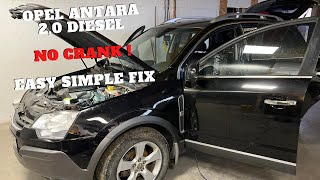

• YouTube video by user 'Opel Antara No Crank/Start' (Opel Antara (platform-mate)) — No crank, no start. Owner smelled something burning before the failure.
  ❌ Tried (didn't work) Initial visual inspection of the BCM motherboard did not show obvious burn marks.
  ✅ What actually fixed it Replaced the Body Control Module (BCM) and the passenger side fuse box with used parts, and cleaned ground wires. The car started immediately after plugging in the replacement components with no additional programming needed.
• Reddit user on r/MechanicAdvice (2006 Saturn Vue (platform-mate)) — Start-and-stall (starts for 2 seconds then dies), flashing security light on the dash.
  ❌ Tried (didn't work) Replaced the ignition cylinder and the housing., Attempting the key relearn procedure while the battery was low.
  ✅ What actually fixed it The car started and ran perfectly after the vehicle's main 12V battery was fully charged overnight. The low battery state itself had triggered the Passlock anti-theft system, and a simple recharge resolved the condition without needing a relearn procedure.

OEM Part Supersession History

• 96623971 → 19178590 — Standard part revision and improvement by the manufacturer.
  Heads up: The new part number (19178590) is the correct replacement for the original. Using the old number may lead to sourcing old stock. This part fits the Captiva Sport and Saturn Vue.

Model Year Variations Within This Range

• 2012-2015: In the North American market, the 'Chevrolet Captiva Sport' was a rebadged second-generation Saturn Vue, primarily sold to fleet customers. It is mechanically very similar to the 2008-2010 Saturn Vue and shares many parts, including the BCM and ignition components related to this code.
