OBD-II Code B2834: Climate Control Blend Door Actuator Fault

What Does B2834 Mean?

B2834 is a manufacturer-specific Body ('B') code, meaning its definition changes depending on the car brand. On Jaguar and Lincoln vehicles, it signals a failure in a climate control air mix servo (blend door actuator). The small electric motor controlling the air temperature for a specific zone is malfunctioning, and the climate control module detects the door is not in the commanded position. Conversely, on 2021 and newer Jeep models, B2834 indicates a right headlamp assembly fault, completely unrelated to the HVAC system.

Technical definition: For Jaguar and Lincoln vehicles, B2834 is defined as a fault with the Right Hand (RH) or Left Hand (LH) Air Mix Servo Motor circuit or mechanical operation. For 2021+ Jeep models, it is defined as 'Right Headlamp Assembly Performance', indicating a software or hardware fault in the lighting system. A numerically identical P-series code (P2834) refers to a completely different 'Shift Fork Position Circuit' issue in the transmission.

Can I Drive With B2834?

Yes, But With Caution. Driving with this code is mechanically safe for the engine and transmission. However, your ability to control cabin temperature is limited or non-existent. This creates a severe safety hazard in cold or humid weather when you cannot direct hot air to the windshield to defrost it, impairing visibility. Do not drive if the fault prevents effective windshield clearing.

Common Causes

• Worn or stripped internal plastic gears (Very Common) — The small plastic gears inside the actuator wear down or break from constant use and temperature extremes. This is the most frequent cause of failure and produces a distinct clicking noise from the dashboard as the motor turns against stripped teeth.
• Faulty actuator motor or internal electronics (Common) — The electric motor inside the actuator burns out, or the internal position sensor circuit board fails. This prevents the actuator from moving the blend door or reporting its position to the climate module.
• Faulty HVAC (Climate Control) Module (Less Common) — The main climate control unit that sends commands to the actuator fails. On Jaguar S-Type and Lincoln LS models, a shorted Dual Climate Control Valve (DCCV) routinely destroys the HVAC module, leading directly to actuator codes.
🎬 Watch this Lincoln LS climate control diagnostic walkthrough
• Software or Calibration Glitch (Less Common) — The HVAC control module loses its calibration and 'forgets' the actuator's physical end-stops, causing it to stop responding. A system reset or dealer software update resolves this communication issue.
🎬 See how to reset a blend door actuator yourself
• Wiring, connector, or ground issues (Rare) — Corroded connector pins, a broken wire, or a loose ground between the HVAC module and the actuator prevents the transfer of power or position signals.
• Mechanical obstruction or binding blend door (Rare) — A foreign object falls into the vents and jams the blend door, or the door warps and binds inside the HVAC case. This puts excessive stress on the actuator, causing it to fail.

Symptoms

• Air blows hot on one side and cold on the other — The classic symptom of a failed blend door actuator in a dual-zone system. One side is stuck on heat while the other responds correctly.
• Clicking, ticking, or popping noise from the dashboard — A repetitive clicking sound after starting the car or changing the temperature confirms the actuator's internal gears are broken and slipping.
• Inability to change air temperature — The temperature is stuck on full hot, full cold, or lukewarm, and does not change when you adjust the climate controls.
• HVAC system unresponsive or slow to react — Adjusting the temperature controls results in a long delay or no change in the cabin environment because the actuator ignores commands from the control module.
• Inconsistent airflow between vents (also visible on scanner) — Airflow is weak from certain vents while strong from others because the blend door is stuck in a position that partially blocks an airway.
🎬 Watch: Top symptoms of a bad blend door actuator

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

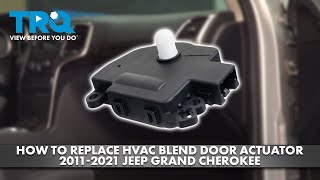

• Replace the Blend Door Actuator — Parts: $20-$160, Labor: $200-$1200, ~2.5 hr book time (Professional)
  Jaguar S-Type (2003-2008): OEM
  Jaguar X-Type (2002-2008): OEM
• Reset/Recalibrate the HVAC System — Parts: $0, Labor: $0-$150, ~0.2 hr book time (DIY)
• Replace the HVAC Control Module — Parts: $150-$500, Labor: $100-$200, ~1.0 hr book time (Intermediate)
  Jaguar S-Type (2005-2008, w/o Nav): OEM
• Repair/Resolder HVAC Control Module — Parts: $50-$250, Labor: $100-$200, ~1.5 hr book time (Advanced)
  Jaguar S-Type / X-Type (2002-2008): OEM
• Repair Damaged Wiring or Connector — Parts: $5-$20, Labor: $100-$300, ~2.0 hr book time (Intermediate)

Used vs. New Parts: Buying Guide

When a used part is worth it: Buying a used blend door actuator is never recommended. They are high-wear items with internal plastic gears that degrade over time. A used part will likely fail shortly after installation, forcing you to pay the massive labor charge twice.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Match the part number exactly; visually identical actuators have different internal logic.
• Avoid parts from vehicles in extremely hot climates, which accelerates plastic aging.

Decision logic:

• If Labor requires dashboard removal → Always buy a new OEM part to avoid repeat labor costs.
• If Vehicle is a Jaguar S-Type or Lincoln LS → Buy a new actuator, a new DCCV, and have your HVAC module professionally tested. Used parts guarantee immediate repeat failure.

Warranty tradeoff: Used parts typically have a 30-day warranty that does not cover labor. New OEM parts provide the best assurance of fit and function.

Worst-case if a used part fails: $1500 if a used part fails after professional installation, requiring a second full labor charge.

What Happens If You Wait — Timeline

1. Immediate: Code B2834 sets. Symptoms appear, such as clicking from the dash or incorrect temperature. No secondary damage occurs yet. (MPG impact: 0%% · Added cost: $0)
2. 1-6 Months (Jaguar S-Type / Lincoln LS): The root cause, a failing DCCV, begins to short-circuit internally, causing intermittent blown fuses. (MPG impact: 0%% · Added cost: $5)
3. 6+ Months (Jaguar S-Type / Lincoln LS): The failing DCCV permanently shorts, drawing excessive current and burning out the driver circuits inside the HVAC Control Module. (MPG impact: 0%% · Added cost: $400-$1000)

Cost of Not Fixing It

• Immediate: Loss of cabin temperature control and inability to defrost the windshield, creating a severe visibility hazard. (Added cost: $0)
• 1-6 months: On Jaguar S-Type/Lincoln LS, a failing DCCV begins to short-circuit internally, causing intermittent blown fuses. (Added cost: $5)
• 6+ months: On Jaguar S-Type/Lincoln LS, the DCCV permanently shorts, destroying the driver circuits inside the HVAC Control Module. (Added cost: $400-$1000)

Diagnosis Steps

1. Listen for Noises
   Start the car and turn the climate control on. Change the temperature setting from the coldest to the hottest setting. A repetitive clicking or tapping noise from behind the dashboard confirms an actuator with stripped internal gears.
   Tools: None (Beginner)
2. Attempt an HVAC System Reset/Recalibration
   Disconnect the car's negative battery terminal for 15 minutes to force a module reset. Reconnect it, turn the ignition on, and wait 60 seconds without touching the controls. This forces the system to relearn the actuator end-stops and fixes software glitches.
   Tools: Wrench (10mm or 8mm) (Beginner)
3. Verify Temperature Split
   With the engine warm, set a dual-zone system to full hot on one side and full cold on the other. Feel the vents. If one side fails to match the setting, you have isolated which specific actuator (Left or Right) has failed.
   Tools: None (Beginner)
4. Scan for Codes and Live Data
   Use an OBD-II scanner capable of reading Body (B) codes. Navigate to the HVAC module live data. Monitor 'Commanded Position' and 'Actual Position'. Command the temperature from LO to HI. If the 'Actual' value does not change or jumps erratically while 'Commanded' changes, the actuator or its wiring is faulty.
   Tools: Advanced OBD-II Scanner (Intermediate)
5. Inspect the Actuator and Connector
   Locate the suspected blend door actuator. Unplug the electrical connector and inspect for corrosion or melted pins. Watch the actuator shaft while an assistant changes the temperature to see if the motor attempts to move.
   Tools: Trim removal tools, Screwdrivers, Flashlight (Intermediate)
6. Test Actuator Circuit with a Multimeter
   Unplug the actuator. Turn the key ON. Use a multimeter to verify a 5V reference pin and a ground pin (continuity to chassis ground). As you change the temperature on the dash, the signal pin voltage must sweep smoothly between 0.5V and 4.5V. Missing voltage points to a bad HVAC module or wiring.
   Tools: Multimeter, Vehicle-specific wiring diagram (Advanced)
7. Test the Actuator Motor Directly
   Identify the two motor pins on the actuator connector using a wiring diagram. Briefly apply 9V power to these pins. The motor must turn. Reverse the polarity; it must turn the opposite way. If it doesn't move, the motor is dead.
   Tools: 9V battery with test leads, Wiring diagram (Advanced)
8. Analyze Actuator Signal with an Oscilloscope
   Back-probe the actuator's signal wire. Command the actuator from full hot to full cold. You must see a clean, linear voltage ramp. A noisy, erratic, or flat-lined signal confirms a faulty internal position sensor.
   Tools: Oscilloscope, Back-probe pins (Professional)

When This Code Triggers (Freeze-Frame Conditions)

• Ignition Status: ON (The HVAC module must be powered on to run diagnostics.)
• System Voltage: 11.5V - 14.5V (Sufficient voltage is required to power the actuator motor and control module.)
• HVAC Command Change: Temp Change > 5°F (The fault logs immediately after the driver or auto-climate requests a temperature change.)
• Actuator Position Feedback: Mismatch (The code sets when the 'Commanded Position' from the module does not match the 'Actual Position' read from the actuator's sensor.)

Related Codes

• B1249 — A generic 'Blend Door Failure' code. B2834 is more specific, identifying the exact side (e.g., Right Hand Air Mix Servo) that has failed.
• B1081 — Indicates a fault specifically with the actuator's internal 'Position Sensor' circuit. If you get both codes, it confirms the entire actuator assembly requires replacement.
• B1265 / B1266 — Jaguar-specific codes for the 'Cool Air Bypass Door Motor'. A fault here primarily affects maximum A/C cooling efficiency rather than causing a side-to-side temperature split.
• U0164 — Lost Communication With HVAC Control Module. Seeing this alongside B2834 suggests the HVAC module itself has failed or lost power, rather than a localized actuator issue.
• P2834 — A Powertrain code for 'Shift Fork Position Circuit High'. It is numerically identical but completely unrelated to the climate control system.

Climate & Environmental Factors

• Extreme Heat: Prolonged exposure to interior temperatures exceeding 150°F evaporates plasticizers, making the actuator's internal gears brittle and prone to stripping under normal stress.
• Extreme Cold: Plastic components contract and lose flexibility in sub-zero temperatures, increasing mechanical stress on aged gear teeth when the actuator first moves.
• High Humidity: Moisture promotes corrosion on electrical connector pins, increasing resistance and causing the module to receive incorrect position readings.

How to Talk to a Mechanic About This Code

Say this: "I have a B2834 code and symptoms of a bad blend door actuator, like clicking from the dash and uneven temperatures. I need a diagnostic to confirm if the actuator, the control module, or the door itself is the problem. If it's a Jaguar or Lincoln, please also inspect the DCCV."

This directs the mechanic to perform a proper diagnosis rather than guessing, and specifically mentions the critical DCCV issue on relevant models to prevent a costly repeat failure.

Avoid saying:

• 'My AC is broken, fix it.'
• 'Just replace the blend door actuator.'
• 'Whatever you think is best.'

Questions to ask before authorizing the repair:

• Did you confirm the actuator is the problem by checking live data?
• If the labor requires dashboard removal, what is your shop's warranty on the labor?
• For a Jaguar/Lincoln, did you test the DCCV and the HVAC module to ensure they won't damage the new actuator?
• For a newer Jeep, have you checked for TSBs related to software updates?

Where to Take It: Dealer vs Independent vs Chain

• Dealer:
  Best for: Vehicles under warranty., Newer Jeep models where B2834 is a headlamp issue requiring a software update (TSB 08-069-22)., Complex Jaguar electrical issues requiring specific diagnostic tools.
  Downsides: Highest labor rates, typically 1.5-2x more than independent shops., Prefers replacing entire assemblies rather than smaller components. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for actuator failure on out-of-warranty cars. Vet the shop to ensure they are comfortable with dashboard removal. Use a dealer for the Jeep headlamp software issue.
  Best for: Out-of-warranty vehicles with common HVAC faults., Cost-conscious owners needing labor-intensive dashboard removal.
  Downsides: Quality varies; must find a shop experienced in electrical/HVAC diagnostics., May lack the latest software for TSB updates on very new vehicles. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. This repair requires specialized diagnostic skill and significant interior tear-down, which is not the strength of chain shops.
  Best for: Simple maintenance like oil changes or tires.
  Downsides: Technicians lack the specific diagnostic experience for complex, labor-intensive dashboard removal., High risk of misdiagnosis or broken interior trim. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40% of the car's current private-party value, seriously consider selling the car as-is.

• Car worth $2500, fix is $1500: Walk away. The repair cost is 60% of the car's value. Sell as a 'mechanic's special'.
• Car worth $8000, fix is $900: Fix it. The repair is 11% of the car's value and restores a critical safety feature.
• Car worth $4000, fix is $1800: Borderline. The repair is 45% of the car's value. Get a second opinion.

What Scan Tool You Need for This Code

Minimum: A scanner that reads Body ('B') codes and displays live data streams for the HVAC module.

A basic $20 engine code reader cannot read 'B' codes. It will show 'No Codes Found' even when the HVAC module has stored B2834. You also need live data to compare commanded vs. actual door position.

Budget: BlueDriver Pro (~$100) — Connects to your smartphone, reads manufacturer-specific Body codes, and displays live HVAC data to confirm the actuator's position sensor readings.

Mid-range: Foxwell NT510 Elite (~$180) — Provides bidirectional control, allowing you to command the actuator to move directly from the scanner to test its function without touching the car's climate controls.

Professional: Autel MaxiCOM MK808BT (~$500) — A professional tablet scanner with full bidirectional controls and the ability to perform system-level initializations required after replacing a module.

Rent vs buy: Buy. Auto parts store loaner tools are basic engine readers that cannot read the 'B' codes needed for this diagnosis.

How to Clear the Code After You Fix It

1. Reconnect the battery if it was disconnected for the repair.
2. Use an OBD-II scan tool capable of reading 'B' codes to clear the fault from the HVAC module.
3. Turn ignition ON (engine off) and wait 60 seconds without touching controls to allow the system to self-calibrate.
4. Cycle the HVAC system through all modes: full hot, full cold, and all vent positions.

Drive cycle (~15 minutes): A 15-minute drive while operating the climate controls confirms the fix. If the battery was disconnected, a full OBD-II drive cycle (cold start, mixed city/highway driving) is needed to reset emissions readiness monitors.

Readiness monitors affected: Catalyst monitor, Evaporative System monitor, O2 sensor monitor, EGR System monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Using a basic $20 code reader that cannot access or clear Body (B) codes.
• Forgetting to perform the 60-second HVAC recalibration sequence after replacing the part.
• Taking the car for an emissions test immediately after disconnecting the battery, resulting in a 'Not Ready' failure.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: B2834 does not illuminate the Check Engine Light and will not cause a smog failure. However, disconnecting the battery for repair clears readiness monitors, requiring a full drive cycle before testing.
• New York: NYS inspection checks for codes that command the MIL on; B2834 does not. A failure only occurs if readiness monitors are incomplete due to a recent battery disconnect.
• Texas: B2834 will not cause an emissions failure. The test will only be rejected if readiness monitors are incomplete.

Most Commonly Affected Vehicles

• Jaguar XJ (X350, X358) (2003-2009) — Quad-zone climate systems have up to five blend door actuators, making precise diagnosis of the specific failed unit critical.
• Jaguar S-Type (2003-2008) — Actuator failures are frequently caused by a shorted Dual Climate Control Valve (DCCV, part XR840091) destroying the Climate Control Module.
• Jaguar X-Type (2002-2008) — Prone to loose air inlet blend doors causing poor cooling, addressed in TSB XT412-02.
• Jaguar XF (2009-2015) — Actuator failures frequently cause a total loss of communication with the HVAC module.
• Lincoln LS (2000-2006) — Shares the Jaguar S-Type platform and suffers the exact same catastrophic DCCV/module/actuator chain-reaction failure.
• Jeep Grand Cherokee (WK/WK2) (2005-2021) — Notoriously prone to blend door actuator failures. Repair costs vary wildly; some require $200 in labor, others require $800+ for full dashboard removal.
• Jeep Grand Cherokee (WL) (2021-Present) — IMPORTANT: On this model, B2834 means 'Right Headlamp Assembly Performance'. It is fixed by a dealer software update per TSB 08-069-22. Do not replace HVAC parts.

Manufacturer-Specific Notes

• Jaguar / Lincoln: On 2000-2008 S-Type and LS models, a failed Dual Climate Control Valve (DCCV) shorts out and sends excessive voltage to the HVAC module, burning out the actuator driver circuit. Replacing the actuator without replacing the DCCV guarantees immediate repeat failure.
• Jaguar: Many models feature a manual HVAC recalibration sequence. Turn the ignition on, cycle the temperature from 'Lo' to 'Hi' and back, then cycle through all vent modes to force the system to relearn actuator positions.
• Jaguar: A software error in the HVAC Control Module on 2017-2018 F-PACE models causes temperature distribution faults, resolved by updating the module software per TSB JTB00617NAS2.
• Chrysler/Dodge/Jeep: These vehicles often have a built-in self-diagnostic function initiated by pressing a specific button combination on the climate panel, which recalibrates actuators without a scan tool.
• Jeep: For the 2021+ Grand Cherokee (WL), B2834 flags a headlamp fault. TSB 08-069-22 resolves this via a software update to the Smart Lighting Modules, avoiding expensive headlamp replacement.

Real Owner Stories

2006 Lincoln LS V8 with uneven heating

Hot air blew from the passenger side vents while the driver's side was cold. The owner replaced the DCCV, but the problem returned.

What they tried:

1. Replaced the DCCV with a new aftermarket part.
2. Wiggled the electrical connector to the DCCV.
3. Polished the contacts on the DCCV connector.

Outcome: Cleaning the DCCV's electrical connector restored normal operation. The problem was a poor connection, not a faulty actuator or DCCV.

Lesson: Thoroughly inspect and clean electrical connectors before replacing expensive parts. Corrosion perfectly mimics a failed component.

2004 Jaguar S-Type with no heat on driver's side

The driver's side vents blew air 20°F cooler than the passenger side. There were no fault codes.

What they tried:

1. Checked all HVAC-related fuses.
2. Unplugged the DCCV, which should default to a full-heat position. The problem persisted.
3. Replaced the DCCV.

Outcome: Replacing the DCCV resolved the issue. Dissection of the old valve confirmed a mechanical failure preventing it from opening.

Lesson: A blend door issue isn't always electronic. On Jaguar/Lincoln models, the DCCV fails mechanically without throwing a code; unplugging it is a key diagnostic step.

2021 Jeep Grand Cherokee L with headlamp warning

The owner experienced a 'Service Headlamp' message and a dim right headlight. The vehicle stored a B2834 fault code.

What they tried:

1. Took the vehicle to a Jeep dealership for diagnosis.

Outcome: The dealership reprogrammed the Smart Lighting Modules with updated software per TSB 08-069-22, fixing the problem without replacing hardware.

Lesson: Always verify the code definition for your exact model. On 2021+ Jeeps, B2834 is a headlamp fault, not an HVAC fault.

How to Prevent This Code From Triggering

• Replace the cabin air filter annually (Every 12 months or 15,000 miles) — A clogged filter restricts airflow, causing moisture buildup in the HVAC case that corrodes actuator connectors.
• Cycle temperature and mode settings regularly (Once a month) — Moving the actuators through their full range prevents internal gears from seizing and stops the position sensor from developing a 'dead spot'.
• Proactively replace the DCCV on Jaguar S-Type / Lincoln LS (Every 80,000 miles) — The DCCV is a known high-failure part that destroys the expensive HVAC control module when it shorts out. Proactive replacement prevents this costly chain reaction.
• Keep the windshield cowl area clear of debris (Seasonally) — Leaves and dirt clog the fresh air intake, introducing moisture and organic material that promotes mold and electrical corrosion.

Frequently Asked Questions

I replaced the actuator and it failed again almost immediately. What happened?

On a Jaguar S-Type or Lincoln LS, a short-circuited Dual Climate Control Valve (DCCV) destroyed the driver in your HVAC control module. When you installed the new actuator, the faulty module burned it out instantly. You must replace the DCCV, the module, and the actuator together.

My mechanic wants to replace multiple blend door actuators at once. Is this an upsell?

No. The labor to remove the dashboard is the most expensive part of the job. If one actuator has failed from age, the others will follow shortly; replacing them all saves you a second $800+ labor charge.

Can a software update or recalibration fix my blend door problem?

Yes. Disconnecting the battery forces the system to recalibrate, which resolves position-related faults caused by software glitches. Always try this free step before buying parts.

Can I just leave the blend door actuator broken?

Yes, but you lose cabin temperature control. This becomes a severe safety issue in winter if you cannot direct warm air to the windshield to defrost it.

Why is the labor cost so high to replace a cheap plastic part?

Actuators are often buried deep behind the dashboard. Mechanics must remove the radio, center console, and sometimes the entire dashboard assembly to access them, requiring 4 to 8 hours of labor.

I hear a clicking noise. Does that always mean the blend door actuator is bad?

A repetitive clicking noise from the dash confirms stripped actuator gears in over 90% of cases. It is the definitive symptom of mechanical failure.

Can I replace the blend door actuator myself?

It depends entirely on the vehicle. Some actuators are easily accessible behind the glove box, while others require complete dashboard removal. Search for a repair video for your specific year and model before starting.

My A/C blows cold on one side and hot on the other. Could it just be low on refrigerant?

While low refrigerant causes minor temperature differences, a stark hot/cold split in a dual-zone system almost always points to a failed blend door actuator.

What's the difference between a blend door and a mode door actuator?

A 'blend door' actuator controls temperature by mixing hot and cold air. A 'mode door' actuator controls the direction of the air (e.g., face, floor, or defrost). They look identical but perform different functions.

Is there a temporary fix for a broken blend door actuator?

If accessible, you can manually turn the blend door to a fixed position (e.g., full heat for winter) and unplug the actuator. This is an emergency workaround, not a permanent fix.

Key Takeaways

• Code B2834 is manufacturer-specific: on 2002-2009 Jaguars it flags a failed blend door actuator, while on 2021+ Jeeps it indicates a right headlamp fault requiring a software update.
• A repetitive clicking noise from the dashboard combined with a 20°F+ temperature split between driver and passenger vents confirms stripped actuator gears 90% of the time.
• Internal plastic gear failure causes over 80% of B2834 actuator codes, requiring a $20-$160 replacement part and potentially $800+ in labor if dashboard removal is necessary.
• On 2000-2008 Jaguar S-Type and Lincoln LS models, a shorted Dual Climate Control Valve (DCCV) will instantly destroy the HVAC module and any newly installed actuators if not replaced simultaneously.
• Attempt an HVAC system recalibration by disconnecting the battery for 15 minutes before buying parts; this free step resolves temporary position sensor glitches in roughly 15% of cases.
