B2430 on 2007-2014 Chevrolet Tahoe: Heated Seat Not Working Causes and Fixes

What's Unique About the 2007-2014 Chevrolet TAHOE

The GMT900 platform, which includes the Tahoe, is known for two very common failure points that cause this code. First, the thin wires in the seat cushion heating element are prone to breaking from the stress of passengers getting in and out. Second, the main electrical connector for the heated seat module under the passenger seat is known to overheat and melt because the high current draw was routed through undersized, single power and ground pins, leading to a poor connection and high resistance. This connector melting issue is so prevalent that a common permanent fix involves modifying the replacement pigtail to use two sets of power and ground pins, distributing the load across available empty slots in the module.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Heated seat indicator light on the door switch turns on, but the passenger seat does not get warm.
• Heated seat indicator light turns on for a short period (e.g., 30-60 seconds) and then shuts off automatically.
• Heated and Cooled seat functions for both driver and passenger seats may be disabled, as the single module controls both.

Most Likely Causes

1. Overheated or Melted Heated Seat Module Connector 🔴 High Probability The design routes high current through single power (Red/White wire) and ground (Black wire) pins in the main 12-pin connector, causing them to overheat, melt the plastic housing, and lose connection. This is a widely documented failure.
   How to confirm: Visually inspect the largest connector (X1) plugged into the silver control module under the passenger seat. 🎬 Watch this video to see how to access the module. Look for any signs of burnt plastic, discoloration (especially around the heavier gauge red/white and black wires), or a melted appearance. The connector may be physically stuck to the module due to melted plastic.
   Typical fix: Replace the burnt connector with a new pigtail harness (e.g., ACDelco PT2388). This involves cutting the old connector off and splicing the new one in, wire by wire. A common permanent fix, documented in multiple YouTube videos, involves modifying the new pigtail to use the two empty power and ground slots on the module to better distribute the electrical load.
   Est. part cost: $25-$50
2. Broken Heating Element in Seat Cushion 🔴 High Probability The thin wires embedded in the heating element pad are susceptible to breaking from the repeated stress and flexing of a person sitting in the seat, creating an open circuit.
   How to confirm: Disconnect the element's electrical connector under the seat and measure the resistance across its two pins with a multimeter. A reading of 'OL' (Open Loop) or infinite resistance confirms a broken element. A good element should read between 2.5 and 8.5 ohms for the seat cushion, or 3.5 and 11.5 ohms for the seat back. Some owners report needing to have someone sit and move in the seat during testing to expose an intermittent break.
   Typical fix: Replace the seat cushion heating element pad. This requires removing the seat's lower upholstery to access and swap the pad. Some owners have successfully located the small break in the wire and soldered it as a temporary fix. 🎬 See this walkthrough on how to diagnose and repair elements.
   Est. part cost: $50-$180
3. Reversed Seat Heater Element Connectors ⚪ Low Probability This applies specifically to vehicles where a 'GM Accessory Heated Seat Kit' was installed. The connectors for the seat back and seat bottom elements are identical and can be easily swapped during installation, which triggers this code as noted in TSB PIT5215A.
   How to confirm: Inspect the two identical connectors from the accessory harness under the seat. Per the TSB, the longer wire lead (covered in convoluted tubing) should go to the seat back element, and the shorter lead goes to the seat bottom element.
   Typical fix: Correctly plug the connectors into their proper elements.
   Est. part cost: $0

Rare But Worth Checking

• Failed Heated Seat Control Module: The module itself can fail, but this is far less common than the wiring, connector, or element issues. This should only be considered after all other causes have been ruled out or if the module's pins are physically damaged from a melted connector.

Diagnosis Steps

1. Tilt the passenger seat all the way up and back to gain access underneath.
2. Locate the silver Heated Seat Control Module. It is held in by two 10mm nuts.
3. Visually inspect the large 12-pin connector for any signs of melting, charring, or burnt plastic, paying close attention to the power (Red/White) and ground (Black) wires at the corners of the connector.
4. If the connector is damaged, it must be replaced. The pins on the module itself should be cleaned of any melted plastic or corrosion before plugging in a new connector.
5. If the connector looks pristine, proceed to the next step.
6. If you know a GM Accessory heated seat kit was installed, verify the seat back and cushion element connectors are not reversed, per TSB PIT5215A.
7. Disconnect the connector for the seat cushion heating element. Using a multimeter set to Ohms (Ω), measure the resistance across the two terminals on the element side.
8. A reading of infinite resistance (OL) means the element is broken and must be replaced.
9. A reading between approximately 2.5 and 8.5 ohms indicates the cushion element is likely good. If the reading is outside this range, the element is faulty.
10. If the element and connector are good, check the 'HTD SEAT' fuse, often a 30A fuse in the underhood fuse block. A blown fuse may indicate a short circuit that needs to be traced.

Parts You'll Likely Need

• Seat Heater Element Pad (Bottom) (OEM #23168136) — This is a very common failure point. The internal wires break from normal use, creating an open circuit that triggers code B2430. This part number fits the front lower seat for either driver or passenger side.
  Trusted brands: ACDelco, Dorman (641-105)
  OEM price range: $100-$150
  Aftermarket price range: $50-$90
• Heated Seat Module Connector Pigtail (OEM #ACDelco PT2388 / Dorman 926-007) — Used to repair the commonly melted main connector at the control module. This part allows you to splice in a new, undamaged connector. Some owners also use the Ford part WPT-928, which is reportedly identical.
  Trusted brands: ACDelco, Dorman, Motorcraft (Ford)
  OEM price range: $40-$75
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• B2425 — This is the equivalent code for the Driver's Seat Heater Circuit. It is common for both front seat heating elements to fail around the same time due to similar age and wear, or for the single melted connector to disable both seats.
• B1935 — This is another heated seat system code mentioned alongside B2430 in TSB PIT5215A, indicating a related system fault.

Technical Service Bulletins (TSBs) & Recalls

• PIT5215A: Addresses inoperative GM Accessory Heated Seats and DTC B2430 due to reversed heater element connectors after installation.
• 10-08-50-008B: Addresses driver or passenger heated seat being inoperative and potentially setting B2430 0D, caused by loose terminal tension in the harness connector to the memory seat module, leading to high resistance.

Platform-Specific Known Issues

• A widely documented issue on this platform is the overheating and melting of the main electrical connector at the heated seat module under the passenger seat due to undersized power/ground pins.
• TSB 10-08-50-008B addresses inoperative heated seats with code B2430 0D, pointing to loose terminal tension in the main module harness connector as a cause of high resistance.
• A popular permanent repair for the melted connector, detailed on YouTube and forums, is to splice the new pigtail's power and ground wires to feed two pins each, distributing the load across the module's available terminals.

Mechanic-Grade Diagnostic Values

• Seat Cushion Heater Element Resistance — expected: 2.5 - 8.5 Ohms (at room temperature). Failure: A reading of 'OL' (infinite resistance) or a value significantly outside the expected range.
• Seat Back Heater Element Resistance — expected: 3.5 - 11.5 Ohms (at room temperature). Failure: A reading of 'OL' (infinite resistance) or a value significantly outside the expected range.
• Heated Seat Temperature Sensor Signal Voltage — expected: 4.8 - 5.2 Volts. Failure: Voltage outside this range suggests a short or open in the sensor circuit.
• Heated Seat PWM Ground Duty Cycle (Scan Tool, High Setting) — expected: 90%. Failure: A significantly lower reading indicates a problem in the control module or circuit.

Hidden / Shadow Codes Worth Checking

• B2430 04: Right Seat Heater Cushion Circuit Open (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)
• B2430 0A: Right Seat Heater Cushion Circuit Rate of Change Below Threshold (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)
• B2430 0B: Right Seat Heater Cushion Circuit Current Above Threshold (indicates a short) (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)
• B2430 0C: Right Seat Heater Cushion Circuit Current Below Threshold (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)
• B2430 0D: Right Seat Heater Cushion Circuit Resistance Above Threshold (most common, indicates open/high resistance) (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)
• B2430 0E: Right Seat Heater Cushion Circuit Resistance Below Threshold (indicates a short) (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)
• B2430 1F: Right Seat Heater Cushion Circuit Intermittent (see via Requires a GM-specific scan tool like a Tech2 or GDS2.)

Scan Tool Commands That Help

• GM Tech2: Heated Seat Test — To command the heated seat module to run a self-test and activate outputs, verifying the functionality of the control module and switches independently of the heating elements. The path is typically: Body > Door Module(s) > Passenger Door Module > Special Functions > Output Control > Heated Seat Test.

Wiring & Ground Locations

• G304 — Located at the base of the right 'B' pillar, inside the passenger cabin.. This is the primary ground point for the Rear Heated Seat Module. A corroded or loose connection at G304 can cause intermittent or total failure of the passenger heated seat and set codes like B2430.
• G303 — Located at the base of the left 'B' pillar, inside the passenger cabin.. This is the ground point for the driver's side memory seat module and related functions. While not the primary ground for the passenger seat, a poor ground here can sometimes cause strange electrical behavior across shared systems.
• Connector X1 — The main 12-pin harness connector at the Heated Seat Control Module under the passenger seat.. This is the connector that is prone to melting. The power and ground pins are located at the corners of this connector.

Real Owner Repair Stories

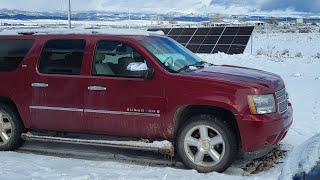

• YouTube - 'FTP Speed Shop' (2011 Chevrolet Suburban (GMT900 platform)) — Heated and cooled seats were inoperative. The indicator lights on the door panel would turn on, but the seats would not heat or cool.
  ❌ Tried (didn't work) Initially, after replacing the melted connector pigtail and performing the 'double-wire' modification, the seats still did not work.
  ✅ What actually fixed it The high resistance from the failing connector had caused the main 'HTD SEAT' 30A fuse to blow. The final fix was replacing the melted connector pigtail AND replacing the blown fuse. After replacing the fuse, the module received 12V power and functioned correctly.

OEM Part Supersession History

• 23153789, 23192138 → 23470863 — Standard part revision and consolidation by the manufacturer.
  Heads up: The new part number (23470863) is the direct replacement for the older numbers for the Rear Heated Seat Control Module.

Model Year Variations Within This Range

• 2007-2010: Models with the heated/cooled seat option used a thermoelectric heat/cool unit connected to the BCM. Swapping these seats can be difficult to get working correctly.
• 2011-2014: Models with the heated/cooled (ventilated) seat option used a simpler system with a fan and standard resistance heating elements, making them more compatible for swaps and repairs.
