OBD-II Code B2172: Inertia Switch Circuit Open

What Does B2172 Mean?

Code B2172 signifies the Body Control Module (BCM) detects an open circuit at the inertia switch. This switch automatically shuts off the fuel pump during a collision to prevent fires. An open circuit interrupts the electrical signal, forcing the control module to assume the switch is tripped or failed.

Technical definition: The official SAE/ISO definition is "Inertia Switch Input Circuit Open." The control module monitoring the switch detects a total loss of electrical continuity. This results from a tripped switch, severed wiring, a blown fuse, or internal switch failure.

Can I Drive With B2172?

No — Do Not Drive. Your vehicle will not start because the inertia switch has cut power to the fuel pump. Driving is impossible until you diagnose and repair the fault. Never bypass the switch, as this creates a severe fire hazard.

Common Causes

• Tripped Inertia Switch (Very Common) — This is the most frequent cause. The switch is highly sensitive and trips from sudden jolts, such as hitting a large pothole, a curb, or a minor parking lot bump.
• Faulty Inertia Switch (Common) — The switch fails internally over time. Contacts burn out, the internal magnetic mechanism weakens causing unexpected trips, or it develops high internal resistance that creates a permanent open circuit.
• Damaged Wiring, Connectors, or Corrosion (Common) — An open or short in the wiring harness is frequent. Chafing, rodent damage, or water intrusion (especially on older Fords via bad windshield seals) corrodes the connector pins. A melted connector indicates excessive current draw from a failing fuel pump.
• Blown Fuse (Less Common) — A dedicated fuse protects the inertia switch circuit. If this fuse blows due to a short circuit or overload, it cuts power to the entire circuit and triggers the B2172 code.
• Faulty Fuel Pump Driver Module (FPDM) (Less Common) — On Ford vehicles, a failing FPDM mimics B2172 symptoms. While the inertia switch cuts power to the FPDM, a faulty module results in a no-start condition even if the inertia switch circuit is intact.
• Low Battery Voltage (Rare) — Ford TSB SSM 47923 notes that very low battery voltage during engine cranking erroneously triggers a B2172 code. The module misinterprets the voltage drop as a circuit fault.
• Faulty Body Control Module (BCM) (Very Rare) — The Body Control Module monitoring the circuit fails internally. Consider this the absolute last resort after exhaustively testing the switch, wiring, and fuses.

Symptoms

• Engine cranks but will not start — The starter motor turns the engine over at normal speed, but the engine refuses to fire because it receives zero fuel.

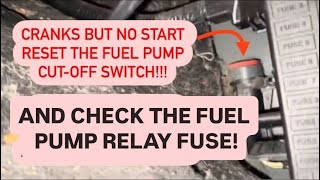

🎬 See how to reset the fuel pump cut-off switch easily.
• No fuel pump noise at startup — Turning the key to 'ON' normally produces a 2-second hum from the rear fuel pump. Total silence indicates the pump is receiving no power.
• Check Engine Light or warning lamps — The BCM illuminates the Check Engine Light. Some vehicles display a 'Fuel Cutoff' message or a power reset indicator on the dash.
• Vehicle stalls unexpectedly — An intermittent open circuit while driving (due to a loose wire or failing switch) instantly cuts fuel pump power, stalling the engine without warning.
• Doors unlock automatically (Jaguar/Land Rover) — Jaguar and Land Rover tie the inertia switch into the central locking system. A tripped switch automatically unlocks all doors as a post-collision safety measure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Resetting the Inertia Switch — Parts: $0, Labor: $0, ~0.1 hr book time (DIY)
• Replacing a Blown Fuse — Parts: $1-$5, Labor: $0, ~0.1 hr book time (DIY)
• Replacing the Inertia Switch — Parts: $40-$100, Labor: $75-$150, ~0.8 hr book time (DIY)
• Repairing Damaged Wiring or Connector — Parts: $10-$50, Labor: $150-$600+, ~2.5 hr book time (Professional)
• Replacing the Body Control Module (BCM) — Parts: $300-$800+, Labor: $150-$300, ~1.5 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: A used OEM inertia switch from a reputable salvage yard is sensible for older vehicles. These are low-wear items unless subjected to moisture or physical damage.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Ensure the donor vehicle was not involved in a flood or front-end collision.
• Inspect the plastic housing for cracks and terminals for corrosion.
• Always take the matching pigtail connector.

Decision logic:

• If A new OEM or quality aftermarket switch is under $75 → Buy new for peace of mind and a warranty.
• If The vehicle is over 15 years old and the used part is less than half the price of new → A used part is a budget-friendly option.
• If The original failure was caused by water damage or a melted connector → Buy a new switch and pigtail to ensure a clean connection.

Warranty tradeoff: Used parts carry a 30-90 day warranty, sufficient to identify a faulty switch. New aftermarket parts offer 1-year to lifetime warranties.

Worst-case if a used part fails: $150-$300 if a used part fails, requiring repeat labor and a new part.

What Happens If You Wait — Timeline

1. Immediate: Code B2172 sets. The fuel pump is disabled. The vehicle cranks but will not start, leaving you stranded. (MPG impact: N/A% · Added cost: $75-$250 for a tow truck.)
2. Hours to Days (Misdiagnosis): A shop incorrectly assumes a bad fuel pump and replaces it. The vehicle still won't start because the fault is upstream at the switch. (MPG impact: N/A% · Added cost: $400-$1000+ in unnecessary parts and labor.)
3. Ongoing (Intermittent Fault): A failing switch or loose wire causes the engine to stall unexpectedly while driving, leading to a sudden loss of power steering and brakes. (MPG impact: 0-2%% · Added cost: Potentially infinite due to accident risk.)
4. Ongoing (Dangerous Bypass): An owner permanently bypasses the switch with a wire to keep the car running, disabling the collision fuel cutoff. (MPG impact: 0%% · Added cost: Total vehicle loss and severe injury in a subsequent accident due to fire.)

Cost of Not Fixing It

• Immediate: Vehicle will not start, leaving the driver stranded. (Added cost: $75-$250 for a tow truck.)
• Hours to Days: Attempting a dangerous bypass of the inertia switch creates a massive fire hazard in a collision. (Added cost: Total vehicle loss and severe injury.)
• Ongoing: Repeated misdiagnosis leads to replacing a perfectly good fuel pump. (Added cost: $400-$1000+ in unnecessary parts and labor.)

Diagnosis Steps

1. Visual Inspection and Switch Reset
   Locate the inertia switch (passenger kick panel, trunk, or under dash). Check if the top reset button is popped up. Smell for fuel. If safe, press the button down firmly until it clicks. Attempt to start the vehicle. If it starts, the switch was simply tripped.
   Tools: Flashlight (Beginner)
2. Check the Relevant Fuse
   Locate the fuel pump or inertia switch fuse in the fuse box. Pull the fuse and visually inspect for a broken wire. Use a multimeter set to continuity to confirm it is blown. Replace with the exact same amperage rating.
   Tools: Fuse puller, Multimeter (Beginner)
3. Inspect Connector and Wiring
   Unplug the inertia switch connector. Inspect pins for green/white corrosion, moisture, or pushed-out pins. A melted connector points to a failing fuel pump. Tug gently on wires to ensure security. Trace visible wiring for chafing or breaks.
   Tools: Flashlight (Intermediate)
4. Test for Power at the Switch (Input)
   With the switch unplugged, turn the ignition to 'ON'. Use a multimeter set to DC volts to test the input wire. One pin must show battery voltage (12.0V - 12.6V) for the first 2 seconds. Zero voltage means the fault is upstream between the fuse box and switch.
   Tools: Multimeter (Intermediate)
5. Test the Switch's Continuity
   With the connector unplugged, set the multimeter to Ohms (Ω). Probe the two main terminals on the switch itself. A good switch shows under 1.0 ohm. A reading of 'OL' (Open Loop) means the switch is internally broken and requires replacement.
   Tools: Multimeter (Intermediate)
6. Check for Ground at the Switch (3-Wire Switches)
   Some switches use a third wire for a BCM ground signal. With the key on, check for continuity to ground on the harness connector's ground pin. A missing ground triggers B2172. If power and ground are good, the signal wire to the BCM is open.
   Tools: Multimeter (Intermediate)

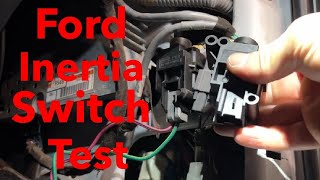

7. [PRO TIP] Perform a Voltage Drop Test
   Reconnect the switch and back-probe the input and output wires. With the engine cranking, voltage between these points must be very low. **SPEC: A reading above 0.1 volts (100mV) indicates high internal resistance.** Replace the switch if the drop is significant.
   Tools: Multimeter with back-probe pins (Advanced)
8. [PRO TIP] Wiggle Test for Intermittent Faults
   With the key on and a multimeter monitoring voltage at the fuel pump, wiggle the wiring harness starting at the inertia switch connector. If voltage fluctuates when wiggling a specific spot, you have located the intermittent open circuit.
   Tools: Multimeter (Advanced)
9. [ADVANCED] Check Fuel Pressure
   If the circuit functions but the no-start persists, connect a fuel pressure gauge to the fuel rail schrader valve. **SPEC: Key On, Engine Off (KOEO) pressure should be 35-60 PSI.** Low or zero pressure confirms a faulty fuel pump or FPDM.
   Tools: Fuel Pressure Gauge (Advanced)
10. [ADVANCED] Scan Tool Live Data Analysis
    Use a bi-directional scan tool to monitor 'FP' (Fuel Pump Command) and 'FPM' (Fuel Pump Monitor) PIDs. 'FP' must show ON or 100% duty cycle for 2 seconds at key-on. If commanded but B2172 is present, the fault is strictly in the power delivery circuit.
    Tools: Bi-directional Scan Tool (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 0 mph (The fault is detected during the key-on pre-start check or during engine cranking.)
• Engine RPM: 0 or <200 RPM (The code sets when the control module performs a circuit check before the engine fires.)
• Control Module Voltage: 11.5 - 12.6 V (The fault registers with normal battery voltage present during the key-on sequence.)
• Fault Priority: 1 to 3 (Given high priority as it represents a critical safety-related primary system failure.)

Related Codes

• P0231 — "Fuel Pump Secondary Circuit Low." The inertia switch sits on the primary control side. If the switch opens, it cuts power, causing the PCM to log this secondary fault. Fix B2172 first.
• U0109 — "Lost Communication With Fuel Pump Control Module." Appearing with B2172, this points to a damaged wiring harness affecting both circuits, or a total loss of FPDM power caused by the tripped switch.
• B1342 — "ECU is Defective." Appears if the BCM itself fails. If the entire external inertia switch circuit tests perfectly but B2172 persists, the BCM requires replacement.
• P1233 — "Fuel Pump Driver Module Offline" (Ford specific). The inertia switch powers the FPDM. If the switch trips (B2172), the FPDM goes offline, triggering P1233. Fix the inertia switch circuit to resolve both.

Climate & Environmental Factors

• High Humidity and Cabin Water Leaks: Water leaking from a bad windshield seal directly onto the kick panel saturates the switch. This accelerates terminal corrosion, guaranteeing an open circuit and a B2172 code.
• Road Salt (Rust Belt): Moisture combined with road salt creates a highly corrosive electrolyte. Exposure rapidly degrades under-dash wiring and connectors.
• Extreme Cold: Extreme cold makes old plastic connectors and wire insulation brittle, causing them to crack or break when disturbed.

How to Talk to a Mechanic About This Code

Say this: "My car cranks but won't start and shows a B2172 code, pointing to the inertia switch circuit. Please verify power at the inertia switch and check if it is tripped or faulty before diagnosing the fuel pump."

This directs the technician to the cheapest fixes first and prevents a common misdiagnosis where a shop immediately replaces an expensive fuel pump.

Avoid saying:

• "My car won't start, I think it's the fuel pump."
• "Just fix whatever is wrong, I need it back ASAP."
• "The car just died, do whatever you think is best."

Questions to ask before authorizing the repair:

• Did you find the inertia switch was tripped, or is it faulty?
• If the switch is bad, can you show me the failed part after removal?
• If the switch and fuse are good, what was the voltage reading at the switch's connector?
• Can you provide a written estimate breaking down parts and labor before you begin?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only for complex cases, hybrids, or in-warranty repairs. Unnecessary for a typical Ford/Jaguar.
  Best for: Vehicles under warranty., Hybrid models where B2172 ties into the high-voltage system., GM or SAAB vehicles where B2172 is a non-fuel-related code., Modern vehicles (2015+) requiring proprietary software to clear the code.
  Downsides: Significantly higher diagnostic and labor rates., May quickly replace a module rather than diagnose a simple wiring fault. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for the majority of B2172 faults. A competent mechanic easily diagnoses a tripped switch or wiring issue at a reasonable cost.
  Best for: Most common B2172 scenarios on out-of-warranty Ford, Jaguar, and Land Rover vehicles., Basic electrical circuit diagnosis and repair.
  Downsides: Quality varies; choose a shop with strong electrical diagnostic reviews., May lack specific software for very new models. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. The risk of being sold an expensive, incorrect repair is too high for a problem that is often simple.
  Best for: If the only problem is a simple, easily accessible inertia switch reset.
  Downsides: High potential for misdiagnosis and upselling to an unnecessary fuel pump replacement., Technicians may lack experience with electrical diagnostics beyond reading a code. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost for the B2172 fault exceeds 40-50% of your car's private-party value, pause and consider your options.

• Car worth $3000, fix is $1500: Walk away. A $1500 quote indicates a suspected BCM failure or massive wiring issue. The repair is 50% of the car's value.
• Car worth $10000, fix is $450: Fix it. This covers a new inertia switch and diagnostic labor, well below the walk-away threshold.
• Car worth $2000, fix is $100: Fix it. This represents a simple fix, like replacing a blown fuse or accessible switch.

What Scan Tool You Need for This Code

Minimum: A basic OBD-II reader that reads 'B' (Body) codes. A multimeter is more critical than a scanner for diagnosing the circuit.

Sub-$20 readers only show 'P' (Powertrain) codes and miss B-codes entirely. You need a tool that accesses the Body Control Module.

Professional: Autel MaxiCOM MK808 / Launch X431 CRP919 (~$450-600) — Provides full bidirectional control and access to manufacturer-specific PIDs. Necessary if diagnosing a rare BCM failure.

Rent vs buy: The first steps (checking the reset button, fuse) require no scanner. If those fail, renting a basic scanner confirms the code. Owning a tool like BlueDriver Pro is a wise investment.

How to Clear the Code After You Fix It

1. Physically reset the inertia switch or replace the faulty component.
2. Use an OBD-II scan tool to clear the B2172 code from the BCM.
3. Turn the key to 'ON' (without starting) and listen for the fuel pump to prime for 2 seconds to confirm the repair.
4. Start the vehicle and let it idle.

Drive cycle (~25 minutes): A complex drive cycle is unnecessary. After clearing the code, a simple start-up confirms success. To reset emissions monitors, drive 5 minutes in city traffic followed by 10 minutes at a steady 55-65 mph.

Readiness monitors affected: This 'B' code does not directly affect emissions readiness monitors. However, clearing all codes resets emissions monitors to 'Not Ready'.

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code with a scanner without resetting the physical switch causes the code to return instantly.
• Forgetting to clear related codes like P1233 (FPDM Offline) on Ford vehicles.
• Searching for a physical button on modern Fords (2009+) when the code must be cleared via scan tool.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light results in an automatic failure. Resolve B2172 and set readiness monitors to 'Ready' before testing.
• New York: An active B2172 code with the Check Engine Light on causes an immediate failure during the OBD-II check.
• Texas: In emissions-testing counties, an illuminated check engine light is an automatic failure. The vehicle cannot be inspected until repaired.

Most Commonly Affected Vehicles

• Ford Escape Hybrid (2005-2012) — The inertia switch integrates into the high-voltage interlock system. A trip cuts fuel and opens the high-voltage battery contactors. You must reset both the front kick panel switch and the rear high-voltage cutoff switch.
• Ford F-150 (2009-2014) — Prone to tripping from road shocks. Always inspect Fuse 27 in the engine bay. This fuse notoriously melts its housing, creating identical crank-no-start symptoms requiring a relocation kit (TSB 15-0137).
• Ford Econoline (1997-2014) — The switch develops high internal resistance over time, causing a voltage drop that starves the fuel pump without physically tripping the button. A voltage drop test is mandatory.

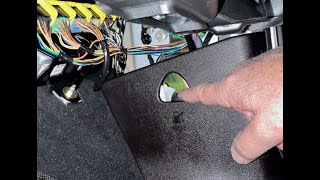

• Jaguar S-Type, X-Type, XK (1999-2008) — Triggered by a faulty switch or an open circuit to the Rear Electronic Control Module (RECM). The switch sits in the driver's or passenger's A-pillar kick panel.
• Land Rover Discovery, Range Rover (2005-2013) — A common culprit for no-start issues mistaken for complex electronic failures. An intermittent switch fault also causes erratic central locking behavior.
• Ford Mustang (1999-2004) — Located in the trunk on the driver's side. Frequently trips accidentally when loading heavy items into the trunk.
• Chevrolet Corvette (C5) (1997-2004) — CRITICAL: On C5 Corvettes, B2172 means "Seat Front Up Switch Shorted to Ground." It is completely unrelated to the fuel system and indicates a power seat fault.
• Chevrolet/GMC Silverado, Sierra (2015-2018) — CRITICAL: On these trucks, B2172 refers to "Driver Seat Leftward Haptic Movement Motor Control Circuit Short to Ground." It relates to the safety alert seat, not the fuel system.
• SAAB 9-5 (2006-2010) — CRITICAL: Indicates a fault with the power mirror motors, such as "Right Horizontal Motor Short to B+." It has zero connection to the fuel system.

Manufacturer-Specific Notes

• Chevrolet/GM: B2172 is NOT a fuel system code on GM vehicles. It designates a power seat switch short on C5 Corvettes and a haptic seat motor fault on 2015+ trucks.
• Ford: On hybrids, the switch disables both the fuel pump and high-voltage battery contactors. Additionally, TSB 15-0137 addresses a melting Fuse 27 on 2009-2014 F-150s that perfectly mimics a B2172 fault.
• Jaguar/Land Rover: Tripping the inertia switch signals the BCM to unlock all doors as a post-collision safety feature. Intermittent switch failures cause perplexing central locking issues.
• BMW: BMW uses a pyrotechnic Battery Safety Terminal (BST) instead of a mechanical inertia switch. A collision severs the main power cable entirely.
• Ford: While no active recalls exist for B2172 specifically, related fuel system recalls (like NHTSA 24V-187 for injector leaks) present similar symptoms. Always check your VIN.

How to Prevent This Code From Triggering

• Apply Dielectric Grease to Connectors (Whenever disconnected, or every 3-5 years.) — Dielectric grease blocks moisture and oxygen from the metal pins, preventing the corrosion that causes open circuits.
• Perform Fuse 27 Relocation (2009-2014 Ford F-150) (Once, as a preventative upgrade.) — The original micro-fuse overheats and melts its socket, creating a crank-no-start identical to B2172. The TSB 15-0137 relocation kit permanently prevents this.
• Address Water Leaks into the Cabin (Immediately upon detection.) — Water leaking from a bad windshield seal drips onto the kick panel, saturating the switch and guaranteeing severe corrosion.
• Regularly Clean and Inspect Electrical System (Annually, especially in rust-belt regions.) — Inspecting harnesses for chafing and washing the undercarriage removes road salt, preventing general electrical degradation.

Frequently Asked Questions

Can I just bypass the inertia switch to get my car started?

While technically possible by connecting the input and output wires, it is extremely dangerous and strongly discouraged. The inertia switch is a vital safety feature that prevents fuel from pumping during a crash, preventing catastrophic fires. Bypassing it puts you at serious risk of injury or death.

I hit a pothole and now my car won't start. Is it the inertia switch?

Yes, this is a classic scenario. A sharp jolt from a pothole, curb, or speed bump frequently trips the inertia switch. Always locate and attempt to reset the switch before assuming a major failure.

Why does my inertia switch keep tripping for no reason?

If the switch trips repeatedly from normal driving vibrations, the switch itself is faulty. The internal spring and magnet mechanism weakens over time and becomes overly sensitive. You must replace the switch.

I replaced my fuel pump, but the car still has a B2172 code and won't start. What now?

This is a frequent misdiagnosis because the symptoms are identical. Code B2172 points specifically to a problem in the inertia switch circuit, which sits upstream of the fuel pump. The fault lies with the switch, wiring, or fuse, not the pump itself.

My car has a B2172 code but I can't find an inertia switch. Why?

Your specific vehicle manufacturer likely uses a different system, like BMW's Battery Safety Terminal (BST). Alternatively, the B2172 code on your specific make and model means something completely different. For example, on a C5 Corvette or a newer Chevy Silverado, it relates to the power seats, not the fuel system.

Where is the inertia switch on my Ford F-150?

On most modern Ford F-150s (2009+), the mechanical inertia switch is replaced by a logic-based system within the Restraints Control Module (RCM). The RCM detects an impact and signals the PCM to shut down the fuel pump. There is no physical button; you must clear the code with a scan tool.

Is B2172 a serious code?

Yes, because it indicates a condition that renders your vehicle completely inoperable. It leaves you stranded and cuts off fuel delivery, requiring immediate attention to restore vehicle function.

How do I reset the inertia switch?

Locate the switch and ensure there are no fuel leaks or smells. Press the button on the top or side of the switch firmly until it clicks into place. The click confirms successful reset.

Key Takeaways

• Code B2172 indicates an open inertia switch circuit, which instantly cuts power to the fuel pump and prevents the engine from starting.
• The definitive symptom is an engine that cranks at normal speed but refuses to start, accompanied by total silence from the fuel pump at key-on.
• Press the inertia switch reset button before attempting any other repairs, as a simple physical trip causes over 50% of B2172 codes.
• Verify the code definition for your specific vehicle, because B2172 means 'Power Seat Switch Short' on C5 Corvettes and 2015+ GM trucks, not a fuel system fault.
• Never permanently bypass the inertia switch with a jumper wire, as this disables a critical safety cutoff and creates a severe fire hazard in a collision.
