OBD-II Code B1801: Driver-Side Airbag Circuit Fault

What Does B1801 Mean?

Code B1801 indicates the Airbag Control Module (SRS) detects an open circuit in the driver's airbag wiring. An 'open circuit' means a physical break or disconnection prevents electricity from reaching the airbag's igniter (squib). The computer disables the airbag as a failsafe to prevent accidental deployment.

Technical definition: SAE defines B1801 as 'Open in Driver Side Squib Circuit'. 🎬 Vea este video para una explicación detallada del código B1801. The SRS module constantly monitors the squib (the pyrotechnic igniter) for a specific resistance, typically 2.0 to 3.0 ohms. If resistance exceeds 6.0 ohms, the module registers a broken circuit, triggers B1801, and illuminates the airbag light.

Can I Drive With B1801?

no_recommended. Do not drive the vehicle. Code B1801 completely disables the driver's airbag, guaranteeing it will not deploy in an accident. Driving with a disabled primary safety system significantly increases the risk of fatal injury in a frontal collision and causes automatic failure of state safety inspections.

Common Causes

• Faulty Clock Spring (Spiral Cable) (Very Common) — The clock spring is a coiled ribbon of wires in the steering column. Constant flexing from turning the wheel causes this ribbon to fatigue and snap, making it the number one cause of a B1801 code.
• Disconnected or Damaged SRS Connectors (Common) — The bright yellow airbag connectors under the driver's seat or at the steering column base become loose or corroded. Micro-vibrations cause oxidation on the pins, increasing resistance and triggering the open circuit code.
• Incorrect Clock Spring Installation (Less Common) — If the clock spring was recently replaced, failing to center it perfectly before installing the steering wheel causes the internal ribbon to snap the first time the wheel turns to full lock.
• Faulty Driver's Airbag Module (Squib) (Less Common) — The internal igniter (squib) inside the steering wheel airbag module develops high resistance or an open circuit, requiring replacement of the entire airbag.
• Stored Crash Data in SRS Module (Rare) — If the vehicle was in a minor accident, the Airbag Control Module stores 'crash data' that disables the system and throws persistent codes until professionally reset.
• Faulty Airbag Control Module (SRS/ECU) (Rare) — The main computer controlling the airbag system malfunctions and incorrectly reports an open circuit. Suspect this only after testing the clock spring and wiring.

Symptoms

• Airbag Warning Light On — The airbag warning light stays illuminated permanently after the initial startup check.
• Dead Steering Wheel Controls — Buttons for the radio, cruise control, or phone stop working simultaneously with the airbag light, confirming a broken clock spring.
• Non-Functioning Horn — The horn fails to sound because its electrical connection routes through the same broken clock spring.
• Grinding Noise When Turning — A rubbing, clicking, or scraping sound from the steering column indicates the broken internal ribbon of the clock spring is scraping against its housing.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Clock Spring (Spiral Cable) — Parts: $50-$450, Labor: $150-$250, ~1.5 hr book time (Intermediate)
  Toyota Tacoma (2005-2015): OEM 84306-04080, 84306-0E010
  Toyota Prius (2004-2009): OEM 84306-48030
• Clean and Re-seat Connectors — Parts: $10, Labor: $0-$100, ~0.5 hr book time (DIY)
• Repair Damaged Wiring — Parts: $10-$30, Labor: $100-$250, ~2.0 hr book time (Advanced)
• Replace Driver's Airbag Module — Parts: $400-$1200, Labor: $50-$100, ~0.8 hr book time (Professional)
• Replace/Reset Airbag Control Module — Parts: $200-$800, Labor: $150-$300, ~2.0 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Never buy a used clock spring. It is a mechanical wear-and-tear part with a finite lifespan. The $40 savings does not justify the 90% risk of premature failure and paying for labor twice.

Donor quality checklist:

• Do not buy used clock springs.
• If buying a replacement SRS module, ensure it is from a vehicle that never deployed its airbags.
• Match the OEM part number exactly.

Decision logic:

• If The part is a clock spring (spiral cable) → Buy a new OEM part. Reliability is significantly higher than aftermarket or used options.
• If Budget is the absolute primary concern → Buy a new part from a top-tier aftermarket brand (Dorman, SMP) rather than a used part.
• If The part is an airbag module → Buy new OEM. Never buy a used, deployed, or 'repacked' airbag.

Warranty tradeoff: Used parts offer 30 days. Aftermarket new parts offer 1 year. New OEM parts carry the manufacturer's 1-year warranty and guarantee correct fitment.

Worst-case if a used part fails: $300. The cost of repeat labor to replace a faulty used part, plus buying the correct OEM part the second time.

What Happens If You Wait — Timeline

1. Immediate (0 seconds): The SRS module detects the open circuit. The airbag warning light illuminates, and the driver's airbag is immediately disabled as a failsafe. (MPG impact: 0%% · Added cost: $0)
2. First Drive: You are driving with a non-functional primary airbag, dramatically increasing the risk of fatal injury in a frontal collision. (MPG impact: 0%% · Added cost: $0)
3. At State Safety Inspection: The vehicle automatically fails safety inspections in states that check dashboard warning lights (e.g., NY, CA, TX, VA). (MPG impact: 0%% · Added cost: $50 - $150 in failed inspection fees.)
4. In Case of an Accident: The driver's airbag will not deploy. Insurance companies investigate active faults; driving with a known safety failure constitutes negligence and jeopardizes injury claims. (MPG impact: 0%% · Added cost: $10,000+ in potential uncovered medical bills and liability.)

Cost of Not Fixing It

• Immediate: The driver's airbag is disabled and will NOT deploy in an accident, creating a critical safety risk. (Added cost: N/A)
• Next Inspection: The vehicle automatically fails state safety inspections, preventing legal registration renewal. (Added cost: $50 - $150)
• In Case of Accident: Insurance companies deny personal injury claims due to negligence for driving with a known safety system fault. (Added cost: $10,000+)

Diagnosis Steps

1. Confirm Code & Check for B1811
   Use an SRS-capable OBD-II scanner to confirm B1801. If B1811 (Stage 2 Open Circuit) is also present, you have definitively diagnosed a failed clock spring.
   Tools: SRS-Compatible OBD-II Scanner (Beginner)
2. Test Steering Wheel Functions
   Press the horn and test all steering wheel audio/cruise buttons. If any fail alongside the airbag light, the clock spring is the culprit.
   Tools: None (Beginner)
3. SAFETY FIRST: Disconnect Battery
   Disconnect the negative battery terminal and wait exactly 15 minutes. This discharges the backup capacitors, preventing accidental and fatal airbag deployment during repairs.
   Tools: 10mm Wrench (Beginner)
4. Inspect and Reseat Connectors
   Locate the bright yellow SRS connectors under the driver's seat and at the base of the steering column. Unplug them, check for bent pins, and reconnect them firmly until they click.
   Tools: Flashlight (Beginner)
5. Access the Clock Spring
   Remove the driver's airbag module and steering wheel to access the clock spring. Look for obvious damage, such as a torn ribbon cable visible through the plastic housing.
   Tools: Socket set, Torx bits, Steering wheel puller, Trim tools (Advanced)
6. Pro Tip: Test Circuit with Resistor
   Disconnect the vehicle-side connector from the clock spring. Insert a 2.2-ohm airbag test resistor into the two driver-side squib pins. Reconnect the battery and scan. If B1801 clears, the wiring is good, and the clock spring is definitively bad.
   Tools: 2.2 Ohm Airbag Resistor, OBD-II Scanner (Professional)
7. Test Clock Spring Continuity
   With the clock spring removed, use a multimeter to test continuity between the input and output pins for the squib circuit. Rotate the clock spring slowly. If the reading jumps to 'OL' (infinite resistance), the internal cable is broken.
   Tools: Multimeter, Wiring Diagram (Advanced)
8. Measure Circuit Resistance at SRS Module
   With the battery disconnected and SRS module unplugged, measure resistance across the squib circuit pins (D+ and D-). Normal resistance is 2.0 to 3.0 ohms. A reading of 'OL' confirms the open circuit.
   Tools: Multimeter, Wiring Diagram (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• SRS Module Status: Self-Test Active (Triggers the moment you turn the key to the 'ON' position during the electrical self-test.)
• Fault Type: Current / Active (B1801 is a continuous monitor code. It remains active and cannot be cleared until the physical break in the wire is repaired.)
• Steering Angle: Variable (Intermittent faults trigger when turning the steering wheel, which flexes the broken internal cable of a failing clock spring.)

Related Codes

• B1811 — Means 'Open in D Squib Circuit - Stage 2'. Seeing B1801 and B1811 together guarantees the clock spring is the fault, as it contains the wiring for both stages.
• B1800 — Indicates a 'Short in Driver Side Squib Circuit'. The two wires in the circuit are touching each other, often due to frayed wires inside a broken clock spring.
• B1802 — Means 'Short to Ground'. Diagnosed when a multimeter shows continuity between a squib wire and the vehicle's metal chassis.
• B1803 — Means 'Short to B+'. Diagnosed when a multimeter shows 12V+ on the squib circuit wiring, indicating it is touching a power source.

Climate & Environmental Factors

• High Humidity / Moisture: Prolonged exposure to high humidity or water leaks causes corrosion on the delicate pins inside the yellow SRS connectors, increasing electrical resistance and triggering B1801.
• Extreme Temperature Fluctuations: Swings between hot and cold cause metal pins and plastic housings to expand and contract at different rates, leading to micro-fractures in solder joints (fretting) and intermittent open circuits.
• Vibration and Age: The plastic ribbon inside the clock spring becomes brittle over time. Constant steering wheel rotation combined with cold weather causes the aged ribbon to snap.

How to Talk to a Mechanic About This Code

Say this: "I have an airbag warning light on and my scanner shows a B1801 code, which is an open circuit for the driver's airbag. My horn and steering wheel controls have also stopped working. I'd like to schedule a diagnostic to confirm if the clock spring has failed."

This directs the technician to the most likely cause, preventing a costly diagnostic hunt. Mentioning the horn failure reinforces the clock spring diagnosis.

Avoid saying:

• 'My airbag light is on, can you just reset it?'
• 'Just fix whatever's wrong with the airbag system.'
• 'I need the B1801 code fixed.'

Questions to ask before authorizing the repair:

• Based on the B1801 code and symptoms, do you agree the clock spring is the most likely failure?
• Will you use an OEM or aftermarket clock spring, and what is the warranty?
• Does the estimate include scanning and clearing the SRS module after the repair?
• If it's not the clock spring, what is your diagnostic plan to test the rest of the circuit?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: A safe but expensive choice. Best if you want the highest guarantee of a correct diagnosis and OEM parts.
  Best for: Vehicles under warranty., Complex cases where the clock spring is not the issue., GM vehicles where B1801 points to the headrest.
  Downsides: Highest labor rates, often 1.5-2x an independent shop., Defaults to replacing entire assemblies. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most B1801 scenarios. An experienced independent shop replaces a clock spring correctly for significantly less than a dealer.
  Best for: Out-of-warranty vehicles with straightforward symptoms (B1801 + horn failure)., Cost-conscious owners.
  Downsides: Shop experience with SRS systems varies greatly. Vet shops carefully. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. Airbag system repair is a safety-critical task requiring specialized knowledge.
  Best for: Routine maintenance like oil changes or tires.
  Downsides: Technicians lack specialized training for complex safety system diagnostics., Not equipped for in-depth SRS repairs. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost for the B1801 fault exceeds 50% of your car's current private-party market value, pause and consider your options.

• Car worth $4000, fix is $600: Fix it. This repair is well below the threshold and restores a critical safety feature.
• Car worth $3000, fix is $2200: Walk away. The repair cost is a huge percentage of the car's value.
• Car worth $15000, fix is $800: Fix it. This is a reasonable cost to maintain the safety and value of the vehicle.

What Scan Tool You Need for This Code

Minimum: A scanner that specifically reads and clears Supplemental Restraint System (SRS) codes. A basic engine-only code reader will NOT work.

Standard $20 OBD-II readers only see 'P' (Powertrain) codes. B1801 is a 'B' (Body) code stored in the separate SRS computer.

Budget: BlueDriver Pro (~$100) — Connects to your smartphone via Bluetooth to read and clear SRS codes for most major brands.

Mid-range: Autel MaxiCOM MK808 / Foxwell NT510 Elite (~$150) — Offers robust SRS diagnostic capabilities, reads/clears codes, and views live data from SRS sensors.

Professional: Autel MaxiSys MS906 (~$500-1200) — Professional-grade tool offering full-system diagnostics, bidirectional control, and programming functions.

Rent vs buy: Auto parts stores do NOT rent SRS-capable scanners due to liability. Buying a budget SRS scanner is mandatory for DIY diagnostics.

How to Clear the Code After You Fix It

1. Ensure the physical fault (e.g., broken clock spring) is repaired.
2. Reconnect the vehicle's battery.
3. Connect an SRS-compatible OBD-II scan tool to the vehicle.
4. Select 'Clear DTCs' in the SRS menu. The airbag light will turn off.
5. Cycle the ignition off, then back on. The airbag light will illuminate for 5 seconds and turn off, confirming a successful repair.

Drive cycle: The SRS system does not require a drive cycle. It resets instantly with a scan tool after the repair. If the battery was disconnected, you must complete a standard 30-minute drive cycle to reset engine emissions monitors.

Readiness monitors affected: Catalyst (CAT) Monitor, Evaporative System (EVAP) Monitor, Oxygen (O2) Sensor Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Using a basic $20 code reader. You must use an advanced scanner capable of accessing the SRS module.
• Disconnecting the battery to clear the code. This never works for hard SRS faults.
• Attempting to clear the code without fixing the open circuit. The code returns instantly.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: An illuminated airbag light is an automatic failure of the state safety inspection.
• New York: The NYS vehicle safety inspection explicitly checks for an illuminated SRS warning light. B1801 results in an automatic failure.
• Texas: In counties requiring safety inspections, an illuminated airbag warning light causes an automatic failure.

Most Commonly Affected Vehicles

• Toyota Tacoma (2005-2015) — Extremely common failure. Often throws B1801 and B1811 together. OEM replacement part (84306-04080) is highly recommended.
• Toyota Prius (2004-2009) — The 2nd generation Prius is notorious for clock spring failures. Symptoms almost always include dead steering wheel buttons.
• Toyota Camry (2007-2011) — Highly susceptible to broken spiral cables, leading to an open circuit in the driver's airbag.
• Lexus IS, ES, RX (2006-2013) — Shares steering column components with Toyota and suffers from identical premature clock spring failures.
• Ford F-150 (2004-2008) — A corroded front impact sensor located behind the grille causes airbag lights more frequently than the clock spring on these specific trucks.
• Chevrolet / GM Equinox, Cruze, Malibu (2010-2015) — CRITICAL: On these vehicles, B1801 refers to a fault in the 'Driver Head Restraint Motor Circuit' (active headrest), NOT the airbag.
• Subaru Ascent, Outback, Forester (2018-2022) — Newer Subarus show increasing cases of B1801 pointing to faulty clock springs after minor accidents or normal wear.

Manufacturer-Specific Notes

• Toyota / Lexus: Exceptionally prone to clock spring failures. Toyota issued multiple safety recalls (E0M, C0B, 23TA08). Always use OEM replacement parts; aftermarket units fail rapidly.
• General Motors (Chevy, GMC, Buick): On 2010-2015 models, B1801 means 'Driver Head Restraint Motor Circuit Malfunction'. It is an active headrest system fault, not an airbag fault. Diagnosing this as a clock spring is a costly mistake.
• Ford: On 2004-2008 F-150s, inspect the front crash sensor on the radiator support for corrosion before suspecting the clock spring.

Real Owner Stories

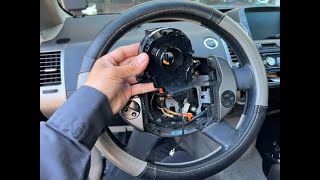

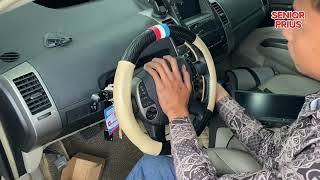

2008 Toyota Prius at 145K miles - The Classic Clock Spring Failure

The airbag light came on intermittently when turning the steering wheel. Weeks later, the horn and steering wheel radio controls died, and the airbag light stayed on permanently.

What they tried:

1. Checked the yellow connector under the driver's seat.
2. Scanned the SRS module, confirming active codes B1801 and B1811.

Outcome: Replaced the clock spring with an OEM part (84306-48030). The 1.5-hour repair restored the horn, steering controls, and cleared the airbag light permanently.

Lesson: When the airbag light pairs with a dead horn or steering wheel buttons, the clock spring is the culprit 95% of the time.

2012 Toyota Tacoma at 110K miles - The Aftermarket Parts Trap

A local shop diagnosed a bad clock spring and installed a cheap aftermarket part to save $150.

What they tried:

1. The light stayed off for 11 months, then returned intermittently.
2. A scan showed the exact same B1801 code.

Outcome: The owner replaced the failed aftermarket clock spring with a genuine Toyota OEM part. The light stayed off permanently.

Lesson: Never use cheap aftermarket parts for critical safety components like a clock spring. They fail prematurely, forcing you to pay for labor twice.

2013 Chevrolet Equinox at 85K miles - The GM-Specific Misdiagnosis

The airbag warning light illuminated with code B1801. The owner assumed a standard clock spring fault.

What they tried:

1. Prepared to order a new clock spring.
2. Noticed the driver's headrest was loose and wouldn't adjust.

Outcome: Discovered that on GM vehicles, B1801 indicates a fault in the 'Driver Head Restraint Motor Circuit' (the anti-whiplash system). Replacing the broken plastic headrest mechanism fixed the code.

Lesson: Always verify the manufacturer-specific definition of a code. Generic definitions lead to costly misdiagnoses.

How to Prevent This Code From Triggering

• Secure the Clock Spring During Steering Repairs (Any time the steering wheel or column is disconnected.) — If the steering wheel is removed, the clock spring spins freely. Over-rotating it snaps the internal ribbon cable. Tape it in the centered position during repairs.
• Protect Under-Seat Connectors (Ongoing habit.) — Shoving items under the front seats snags and damages the yellow SRS connectors for the seat airbags, causing open circuit faults.
• Apply Dielectric Grease to Connector Seals (When an SRS connector is disconnected for service.) — Applying dielectric grease to the rubber seals (not the pins) creates a moisture barrier, preventing the pin corrosion that causes high resistance.

Frequently Asked Questions

Is it safe to drive with a B1801 code?

No. The B1801 code guarantees your driver's airbag will not deploy in a crash. Repair this critical safety failure immediately.

Will my airbag deploy unexpectedly if I have this code?

No. An open circuit means the electrical signal cannot reach the airbag. The system disables the circuit to fail safely.

My horn works fine. Can it still be the clock spring?

Yes. The clock spring contains multiple separate electrical ribbons. The airbag circuit ribbon frequently breaks while the horn circuit remains intact.

I replaced the clock spring and the code remains. What now?

You likely installed a faulty aftermarket part or snapped the internal cable by failing to center it during installation. Alternatively, the fault lies in the wiring harness or SRS module.

Can I fix this myself?

Advanced DIYers can replace a clock spring. You must disconnect the battery and wait 15 minutes before starting to prevent accidental airbag deployment.

Will clearing the code fix the problem?

No. B1801 indicates a hard physical break in the wiring. The code returns instantly the next time you start the car.

What is the yellow connector under my seat?

It connects the Supplemental Restraint System (SRS) to the seat belt pretensioner and side airbags. A loose connection here triggers an airbag light, though usually with a different code.

What is an airbag squib?

A squib is the small pyrotechnic device inside the airbag module. When triggered by the SRS computer, it ignites the propellant to inflate the airbag.

Key Takeaways

• Code B1801 disables your driver's airbag entirely, guaranteeing it will not deploy in a crash.
• A broken clock spring causes over 90% of B1801 codes, confirmed if your horn or steering wheel buttons are also dead.
• On 2010-2015 GM vehicles, B1801 indicates a broken active headrest motor, not an airbag or clock spring failure.
• Never probe an airbag module with a multimeter; always disconnect the battery for 15 minutes before starting repairs to prevent accidental deployment.
