B1771 Subaru Forester Code (2014-2018): Passenger Airbag System Faults and Fixes

What's Unique About the 2014-2018 Subaru FORESTER

The 2014-2018 Forester is known for issues with its sensitive Occupant Detection System (ODS). Subaru issued a recall (WUM-98) for 2015-2018 models specifically for a faulty ODS sensor mat harness where the electrical terminals can loosen over time, causing a poor connection. Additionally, a Technical Service Bulletin (TSB #07-108-16R) was released to guide technicians on proper diagnosis for a suite of ODS codes, aiming to prevent the unnecessary and costly replacement of the entire seat cushion assembly when a simpler wiring or sensor issue is the root cause. The system is also highly sensitive to moisture from spills or high humidity, which can trigger faults.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light is illuminated on the dashboard.
• "PASSENGER AIR BAG OFF" indicator is lit even when an adult is in the seat.
• Intermittent airbag warning messages, sometimes temporarily fixed by wiggling wires under the seat.

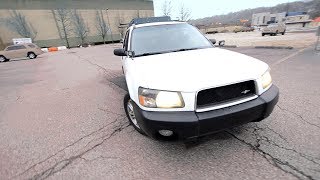

🎬 Watch this DIY diagnostic and troubleshooting guide for ODS harness issues.
• Passenger seatbelt light indicates an occupant even when the seat is empty.

Most Likely Causes

1. Faulty Occupant Detection System (ODS) Sensor Mat Harness 🔴 High Probability Subaru issued recall WUM-98 for 2015-2018 models because the terminals in the harness can experience a decrease in contact pressure, causing an unstable electrical connection.
   How to confirm: A dealer can check the vehicle's VIN against the recall. Diagnosis involves inspecting the harness connectors (AB59 and AB53) under the passenger seat for looseness or damage. The recall procedure involves replacing this harness.
   Typical fix: Replacement of the ODS sensor mat harness. 🎬 See a walkthrough of the passenger seat occupancy sensor repair. This repair is covered under recall WUM-98 for affected vehicles.
   Est. part cost: $0 (if covered by recall)
2. Faulty Passenger Seat Belt Buckle Switch 🟡 Medium Probability The code definition directly points to a malfunction in this circuit. The switch is part of the seat belt assembly and can fail internally or have its wiring damaged. Foreign objects like coins can also get jammed in the buckle and cause a malfunction.
   How to confirm: A technician can use a diagnostic scan tool to monitor the switch's status (buckled/unbuckled) and perform continuity and resistance checks on the switch and its wiring as outlined in service manuals. A specific test involves checking for resistance below 1 Ω between terminals BSW and BGND on the ODS ECU connector (d11-8 and d11-5).
   Typical fix: Replacement of the front passenger seat belt buckle assembly (which includes the switch).
   Est. part cost: $60-$150
3. Damaged Wiring or Connectors 🟡 Medium Probability Wiring under the seat is susceptible to damage from items stored under the seat, from passengers' feet, or from the seat being moved back and forth. Spilled liquids can also cause corrosion in the connectors.
   How to confirm: A thorough visual inspection of the wiring harness and connectors under the passenger seat for any signs of damage, corrosion, or disconnection. Wiggling the harness may cause the light to turn on or off, indicating a loose connection.
   Typical fix: Repairing the damaged section of the wire or cleaning/replacing the affected connector.
   Est. part cost: $10-$50
4. Faulty ODS Sensor Mat (in Seat Cushion) ⚪ Low Probability The sensor mat is sensitive and can be damaged by liquid spills or excessive pressure/impact. TSB 07-108-16R was issued to prevent this from being the first diagnosis, instructing technicians to rule out other causes first.
   How to confirm: This is typically diagnosed after all other possibilities (wiring, buckle switch) have been ruled out. A Subaru-specific scan tool can read live data from the sensor to check for proper operation. The TSB specifically warns against using a heat gun to dry a wet seat, recommending A/C and fans instead.
   Typical fix: Replacement of the entire passenger seat bottom cushion assembly, which contains the integrated sensor mat.
   Est. part cost: $800-$2000

Rare But Worth Checking

• Faulty Occupant Detection System (ODS) Control Module: This is an uncommon failure. The module, located under the passenger seat, should only be suspected after the sensor mat, buckle switch, and all related wiring have been thoroughly tested and confirmed to be in good working order.

Diagnosis Steps

1. Check if the vehicle's VIN is covered by Subaru recall WUM-98 for the ODS harness. If so, have the recall service performed by a Subaru dealer.
2. Perform a thorough visual inspection of the area under the passenger seat. Look for disconnected connectors, damaged/pinched wires, or any foreign objects that could interfere with the wiring.
3. Inspect the seat cushion for signs of significant liquid spills, which can damage the sensor mat. TSB 07-108-16R notes this as a potential cause.
4. Using a Subaru-compatible scan tool (like the SSMIII), read all current and stored codes from the SRS and ODS control modules.
5. Follow the diagnostic procedure for B1771, which involves testing the passenger seat belt buckle switch circuit for proper electrical continuity and resistance. Specifically, check for resistance below 1 Ω between terminals d11-8 (BSW) and d11-5 (BGND) at the Occupant Detection ECU.
6. Inspect the wiring harness between the buckle switch, ODS sensor mat, and the ODS control module. Check for opens, shorts to power, and shorts to ground.
7. If wiring and the buckle switch test good, use the scan tool to monitor live data from the ODS sensor mat to check its response to weight.
8. If the sensor mat is unresponsive or provides erratic readings and all wiring is confirmed good, it is likely faulty and the seat cushion needs replacement.

Parts You'll Likely Need

• Occupant Detection System (ODS) Sensor Harness — This is the subject of recall WUM-98 and a known failure point due to loosening terminal connections.
  Trusted brands: Subaru (OEM)
  OEM price range: $50-$100
  Aftermarket price range: N/A
• Passenger Seat Belt Buckle Assembly (OEM #64631SG000VH) — The code B1771 directly indicates a fault in this component's circuit. This part number fits the 2014-2018 Forester.
  Trusted brands: Subaru (OEM)
  OEM price range: $60-$80
  Aftermarket price range: $50-$100
• Passenger Seat Cushion Assembly (OEM #64139SG140VH (Example for 2017-2018 Premium trims)) — This part contains the integrated ODS sensor mat and is replaced if the sensor itself has failed, often due to liquid damage or internal fault. Part number varies by trim and year.
  Trusted brands: Subaru (OEM)
  OEM price range: $650-$1300
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• B1650 — This is a general 'Occupant Classification System Malfunction' code. TSB 07-108-16R explicitly states that B1771 may be found alongside B1650.
• B1760 — Relates to a 'Sensor Mat Abnormal' fault. It is often seen with other ODS codes, particularly if moisture is involved.
• B1761 — Another ODS-related code mentioned in TSB 07-108-16R as potentially accompanying a primary ODS fault.
• B1795 — This code for an 'Occupant Classification ECU Malfunction' is also mentioned in TSB 07-108-16R. Some service documents suggest troubleshooting B1771 first if both are present.

Technical Service Bulletins (TSBs) & Recalls

• 07-108-16R: Provides a revised diagnostic procedure for OCS/ODS malfunctions (including B1771) to avoid unnecessary replacement of the seat cushion assembly.

Platform-Specific Known Issues

• Recall WUM-98: Affects 2015-2018 Foresters with heated seats. An electrical connection for the ODS may loosen, deactivating the passenger airbag. The fix is to inspect and, if necessary, replace the ODS sensor mat harness.
• TSB 07-108-16R: Subaru issued this bulletin to provide a better diagnostic procedure for ODS codes (B1650, B1771, etc.) to prevent unnecessary replacement of the expensive seat cushion assembly. It emphasizes checking for moisture and using the Subaru Select Monitor III for diagnosis.
• Liquid Damage Sensitivity: The ODS sensor mat is noted to be sensitive to liquid spills, which can cause it to malfunction and trigger various ODS-related codes. The TSB advises against using heat guns for drying.
• Recurring Issues: Some owners report the issue returning even after recall work has been performed, leading to disputes with dealerships over whether the new repair is covered.

Mechanic-Grade Diagnostic Values

• Resistance of passenger buckle switch circuit — expected: Below 1 Ω. Failure: Resistance above 1 Ω indicates an open or high resistance in the circuit.
• Resistance between ODS harness and chassis ground — expected: 1 MΩ or more. Failure: Resistance below 1 MΩ indicates a short to ground in the harness.
• Voltage at ODS harness connector — expected: 10 V or more. Failure: Voltage below 10 V indicates a power supply issue to the ODS system.

Scan Tool Commands That Help

• Subaru Select Monitor (SSM): Clear Memory — After a repair is completed, DTCs must be cleared from both the Occupant Detection System and the main Airbag System modules separately to extinguish the warning light.
• Subaru Select Monitor (SSM): Rezeroing / Zero Point Adjustment — This calibration is required after replacing the ODS control module or the seat cushion assembly. It sets the baseline for an empty seat. The procedure will fail if any ODS-related DTCs are active.

Wiring & Ground Locations

• Occupant Detection ECU — Under the front passenger seat.. This module is the central processing unit for the ODS system, including the buckle switch input. All circuit tests for B1771 originate or terminate at this module's connectors.
• Connectors AB59 and AB53 — Under the passenger's seat, part of the ODS sensor mat harness.. These are the primary connectors for the ODS harness that is the subject of recall WUM-98. A poor connection at these points is a primary cause of ODS faults, including B1771.
• Buckle Switch Connector (part of Front Seat Inner Belt Assembly RH) — Under the passenger seat, connected to the seat belt buckle assembly.. This is the direct connector for the component identified by code B1771. Testing at this connector isolates the buckle switch from the rest of the seat harness.

Real Owner Repair Stories

• Reddit user on r/SubaruForester (2016 Subaru Forester) — Intermittent airbag warning light. Passenger seatbelt light indicates an occupant when the seat is empty. Passenger airbag 'OFF' light illuminates with a passenger seated.
  ❌ Tried (didn't work) Having the ODS sensor and seat bottom replaced under recall in 2021. The dealer read codes but refused further diagnosis because the light wasn't on at that exact moment.
  ✅ What actually fixed it The issue was ongoing and not fully resolved, but the user found that temporarily fixing the problem involved pulling over and wiggling or unplugging/replugging the wiring harness under the passenger seat. This strongly indicates a recurring poor connection in the harness, even after recall service.
• YouTube channel 'Advancing DIY' (Subaru Forester (year not specified, but within the affected range)) — Airbag light and ODS system fault message appeared after the 3-year warranty expired.
  ❌ Tried (didn't work) The dealer diagnosed the fault and quoted $1468 to replace the entire seat cushion assembly. The owner's VIN was not on the recall list despite having a defective harness part number.
  ✅ What actually fixed it While investigating the harness label under the seat, the owner wiggled the wires, which caused the airbag light to turn off temporarily. This allowed the owner to pass a state inspection. The final resolution was unsatisfactory, with Subaru of America offering a partial 'Goodwill' credit for the expensive repair, but not covering the full cost because the VIN was not officially part of the recall. This highlights a known issue where vehicles outside the official recall VIN range can still have the same defective parts.

OEM Part Supersession History

• N/A (various ODS harnesses) → Updated ODS Sensor Mat Harness (as part of recall WUM-98) — The original harness terminals could lose contact pressure over time, leading to an unstable electrical connection.

Model Year Variations Within This Range

• 2015-2018: These model years, specifically those with heated seats, were subject to recall WUM-98 for the ODS sensor mat harness. The 2014 model was not included in this specific recall, meaning that while a harness failure is still possible, it is not part of the known widespread defect addressed by the recall campaign.
