B1760 on 2014-2018 Subaru Forester: Occupant Sensor Mat Failure Causes & Fixes

What's Unique About the 2014-2018 Subaru FORESTER

The 2014-2018 (SJ generation) Forester is particularly known for failures of the ODS sensor mat. The problem became so common that Subaru of America issued Technical Service Bulletin (TSB) #17-19-24, acknowledging the issue and providing a specific harness kit as an alternative repair. This was done in part due to supply issues and long backorders for the complete seat cushion assembly, which was the original fix. Many owners have reported this failure occurring just outside the vehicle's warranty period, and even recurring after the official recall (WUM-98) repair was performed.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• SRS (Airbag) warning light illuminated on the dashboard.
• "PASS AIR BAG OFF" indicator is lit even when an adult is seated in the passenger seat.
🎬 Watch: Understanding how the Occupant Detection System fails
• Intermittent illumination of the SRS warning light, especially when a passenger is seated or shifts their weight.
• Seatbelt reminder may chime for the passenger seat even when it is empty.

Most Likely Causes

1. Faulty Occupant Detection Sensor (ODS) Mat 🔴 High Probability The sensor mat integrated into the seat cushion is a known, high-failure-rate component on this platform, as acknowledged by multiple Subaru TSBs and a recall. The internal circuitry of the capacitive mat can fail over time. Critically, many owners report that the replacement seat cushion assembly fails again, sometimes just after the 1-year parts warranty expires.
   How to confirm: A Subaru-compatible scan tool will show DTC B1760 🎬 See this DIY guide for testing the occupancy sensor as current in the ODS module. A technician will follow the diagnostic flowchart in TSB #17-19-24 or #07-108-16R. If the harness is confirmed good, the mat is the point of failure.
   Typical fix: Replacement of the ODS sensor mat, which requires replacing the entire passenger seat cushion assembly. This is often the necessary fix when the WUM-98 recall harness replacement does not resolve the code.
   Est. part cost: $650-$900 for the full cushion assembly; some owners have been quoted over $1,600 for the part and labor at a dealership.
2. Damaged ODS Harness or Connector 🟡 Medium Probability The wiring and connectors under the seat are subject to movement. A recall (WUM-98 / NHTSA 19V-701) was issued for 366,282 Foresters from 2015-2018 specifically because of decreasing contact pressure in the harness terminals, leading to an unstable connection.
   How to confirm: Visual inspection of the wiring and connectors under the passenger seat for damage. Checking if the vehicle's VIN is part of the WUM-98 recall is a primary step. Technicians follow a specific diagnostic tree to isolate the fault to the harness.
   Typical fix: If the fault is isolated to the harness, installing the WUM-98 Sensor Harness Kit (p/n 64084SG23A) is the specific fix recommended by Subaru's TSB #17-19-24 and the WUM-98 recall.
   Est. part cost: $25-$30
3. Moisture in the Seat Cushion ⚪ Low Probability Subaru notes in TSBs #07-108-16R and #07-134-18 that spilled liquids or high humidity can cause the ODS to set B1760. The capacitive sensor is sensitive to moisture. However, this is a common misdiagnosis, and many owners report dealers blaming water damage without proof, even when the owner denies any spills.
   How to confirm: Physically check the seat cushion for dampness. If wet, the cushion must be thoroughly dried naturally (no heat guns are allowed as they can damage the sensitive mat) before re-diagnosing.
   Typical fix: Thoroughly dry the seat cushion and clear the codes. If the code returns after drying, the sensor mat has likely failed internally.
   Est. part cost: $0

Diagnosis Steps

1. Scan the SRS and ODS control modules for diagnostic trouble codes using a Subaru-compatible scan tool.
2. Confirm if B1760 is present and current. Note if B1650 is also present in the Airbag module.
3. Check the vehicle's VIN against Subaru's database to see if it was included in the WUM-98 (NHTSA 19V-701) recall and if the service was performed.
4. Interview the driver about any potential liquid spills on the passenger seat, but be aware that internal failure is common without moisture.
5. Physically inspect the passenger seat cushion for any signs of moisture. If found, allow it to dry completely (air dry only) before proceeding.
6. Inspect the wiring and connectors under the passenger seat for any visible damage, corrosion, or loose connections, paying close attention to the yellow SRS plugs.
7. Follow the specific diagnostic procedure outlined in Subaru TSB #17-19-24, which details testing the ODS sensor and determining if the harness kit or the full cushion assembly is required.

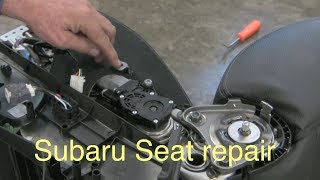

8. If the harness kit is installed and the code returns, 🎬 Watch: Troubleshooting defective ODS mats and harness parts the seat cushion assembly containing the sensor mat is faulty and requires replacement.
9. After repair, clear all codes from the SRS and ODS modules.
10. Perform the ODS System Reset/Recalibration procedure as specified in the service manual using a compatible scan tool.

Parts You'll Likely Need

• ODS Sensor Harness Kit (OEM #64084SG23A) — This is the specific repair kit for the WUM-98 recall and is recommended by TSB #17-19-24 to fix the B1760 code when the fault is in the harness connection.
  Trusted brands: Subaru (Genuine)
  OEM price range: $22-$30
  Aftermarket price range: N/A
• Front Passenger Seat Cushion Assembly (OEM #64139SG140VH) — This is the complete assembly that includes the integrated ODS sensor mat. It is required if the sensor mat itself has failed. This is often the case when the B1760 code appears after the WUM-98 harness recall has already been performed. The part number was cited in an owner complaint as the dealer-installed part and is known to be on backorder frequently.
  Trusted brands: Subaru (Genuine)
  OEM price range: $650-$900
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• B1650 — B1650 is a general 'Occupant Classification System Malfunction' code stored in the main Airbag control module. B1760 is the more specific code stored in the ODS module itself. Subaru TSBs often address these two codes together, as B1760 is a primary cause for B1650 being set.

Technical Service Bulletins (TSBs) & Recalls

• 17-19-24: Announces the diagnostic and repair procedure using the WUM-98 sensor harness kit (64084SG23A) in place of the cushion assembly for DTC B1760, specifically citing limited supply and downtime for the full assembly.
• 07-108-16R: Provides diagnostic tips for both B1760 and B1650, noting that moisture can be a cause but also providing a diagnostic flowchart to avoid unnecessary parts replacement.
• WUM-98R: Details the safety recall campaign (NHTSA 19V-701) for replacing the ODS sensor mat harness on affected vehicles due to decreased contact pressure in the terminals.
• 07-134-18: Provides a troubleshooting chart for DTC B1760 on other Subaru models (Impreza, Crosstrek, WRX), confirming the issue is not unique to the Forester and also mentions moisture as a potential trigger.

Platform-Specific Known Issues

• A high rate of ODS sensor mat failures prompted Subaru to issue TSB #17-19-24, creating a specific harness repair (WUM-98) to avoid replacing the entire seat cushion, which was often on backorder for months.
• NHTSA Recall 19V-701 (Subaru campaign WUM-98) was issued for 366,282 2015-2018 Foresters due to loosening terminals in the ODS harness, which could cause the passenger airbag to deactivate.
• Owners frequently report the issue appearing shortly after the 3-year warranty expires.
• A significant number of owners report that the B1760 code returns even after the WUM-98 recall service is completed, indicating the sensor mat itself has failed and requires a much more expensive repair.
• There are documented owner complaints of the replacement seat cushion assembly also failing, leading to a second or third repair for the same issue.

Mechanic-Grade Diagnostic Values

• Resistance between ODS harness test points and chassis ground — expected: 1 MΩ or more. Failure: Resistance less than 1 MΩ indicates a short in the harness.
• Resistance through the airbag rear harness test points — expected: Less than 10 Ω. Failure: Resistance of 10 Ω or more indicates high resistance or an open circuit in the harness.
• Ambient temperature for ODS calibration — expected: 0° to 40° C (32° to 104° F). Failure: The re-zeroing procedure will not be successful if the ambient temperature is outside this range.

Scan Tool Commands That Help

• Subaru Select Monitor (SSMIII): Rezeroing / Zero Point Adjustment — This procedure MUST be performed after replacing the ODS sensor, seat cushion, or disassembling the passenger seat for any reason. It calibrates the system to an empty seat baseline. The function is found under {Occupant Detection System} -> {Rezeroing} or {Zero Point Adjustment}.
• Subaru Select Monitor (SSMIII): Clear Memory — After a repair is completed, this function in the {Airbag System} menu is used to clear stored DTCs like B1760 and B1650. The light will not turn off until the codes are cleared.

Wiring & Ground Locations

• AB53, AB59 — Under the front passenger's seat.. These are the primary connectors for the ODS system located under the seat. Diagnostic procedures in TSBs require disconnecting these to test the harness and sensor mat independently.
• AB6, AB17, AB18 — At the main airbag control module.. These are the corresponding connectors at the airbag control module. TSB WUM-98R specifies using a test harness at these points to measure resistance through the body harness back to the seat.
• ODS Harness Label — On the ODS harness, under the passenger seat, near the center console side.. The WUM-98 recall procedure involves checking a supplier code (6578) and a date code on this label to determine if the original harness is the defective part that needs replacement.

Real Owner Repair Stories

• Reddit user on r/SubaruForester (2016 Subaru Forester) — Intermittent airbag light, passenger seatbelt light on when seat is empty.
  ❌ Tried (didn't work) Having the WUM-98 recall performed in 2021 (the issue returned)., Dealer reading codes but performing no physical diagnosis because the light was off during inspection., Dealer blaming water stains on the seat without proof of corrosion.
  ✅ What actually fixed it The user found that frequently jiggling or unplugging/replugging the wiring harness under the seat would temporarily extinguish the light, confirming a connection issue persisted even after the recall. The final fix required replacing the entire seat bottom cushion assembly for a second time at a cost of over $1200, as the sensor mat itself had failed.
• Reddit user on r/SubaruForester (2015-2018 Subaru Forester (details from multiple users)) — Airbag system error on dash, passenger airbag disabled with a passenger seated.
  ❌ Tried (didn't work) Having the WUM-98 recall (harness replacement) performed. The issue started a year or two after the recall service.
  ✅ What actually fixed it The dealer stated the recall was already done and the new problem was unrelated, quoting ~$2000 for a new seat base. The user found the TSB (MC-10173026-0001) which states that if the problem persists after the harness replacement, the next step is to replace the seat cushion under a specific recall coding. This indicates the mat failure is a known escalation path after the harness fix.

OEM Part Supersession History

• 64139SG140VH → 64139SG142VH — Part update or revision by the manufacturer.

Model Year Variations Within This Range

• 2015-2018 only: The primary safety recall for the ODS harness, WUM-98 (NHTSA 19V-701), only applies to Foresters with a production date starting from January 20, 2015. The 2014 model year is not included in this specific recall, though it is included in TSB #17-19-24 which addresses the B1760 code. This suggests a potential change in the harness part or supplier for the 2015 model year that introduced the specific failure mode addressed by the recall.
