B1443 on 2016-2017 Lexus RC 200T: Air Outlet Damper Circuit Fault Causes and Fixes

What's Unique About the 2016-2017 Lexus RC 200T

The 2016-2017 RC 200T is part of the Lexus RC platform (which includes the RC300, RC350, and RC F) that shares its basic architecture and many components with the Lexus IS and GS sedans of the same era. This generation of vehicles is known for widespread issues with HVAC servo motors. Lexus has acknowledged this by issuing Technical Service Bulletin (TSB) L-SB-0001-21 Rev, which covers a wide range of models including the RC 200T and specifically lists code B1443. The failure is so common that some owners on forums report multiple servos failing at once. The repair for the B1443 servo is particularly difficult because it is located on the driver's side and requires extensive disassembly of the dashboard 🎬 Watch: Full dashboard removal walkthrough for Lexus HVAC access to access.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airflow is stuck in one position (e.g., only blows from floor vents or defrost vents).
• Inability to switch airflow between face, floor, and defrost settings.
• Clicking, grinding, or buzzing noise from behind the dashboard when changing climate control modes or on startup.
• A 30-45 second delay after starting the car before the climate control panel becomes responsive.
• Little to no air comes out of some vents.
• Incorrect temperature or airflow from vents, though this is more common with other servo codes.

Most Likely Causes

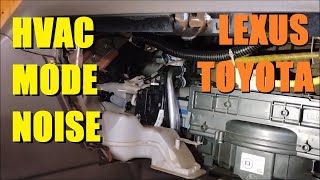

1. Failed Air Outlet Damper Servo Motor 🔴 High Probability This is a widely documented failure point for this generation of Lexus vehicles, as acknowledged by TSB L-SB-0001-21. The internal electric motor or potentiometer can fail 🎬 Watch: A look inside the servo motor and how it's repaired, preventing it from reporting its position to the A/C Amplifier.
   How to confirm: A professional scan tool (like Toyota's Techstream) can attempt to actuate the servo and read its position data. A lack of response or a fixed position value confirms the failure. A persistent clicking sound from the driver's side of the dash is also a strong indicator.
   Typical fix: Replace the Air Outlet Damper Servo Motor and the associated control lever if it is also damaged.
   Est. part cost: $100-$260
2. Jammed Damper Door or Broken Linkage 🟡 Medium Probability The TSB specifically calls out that a related lever may need to be replaced along with the servo, suggesting the linkage can also fail or cause the servo to fail. In some cases, improper cabin air filter replacement has been anecdotally linked to dislodging a damper arm, though this is more common for the recirculation servo.
   How to confirm: During the repair, after the servo motor is removed, the technician should manually move the damper door linkage to ensure it moves freely without binding.
   Typical fix: Free the obstruction or replace the broken plastic linkage lever. TSB L-SB-0001-21 identifies a specific lever (Part No. 87296-53010) that may be required for IS and RC models.
   Est. part cost: $15-$30
3. Wiring or Connector Fault ⚪ Low Probability
   How to confirm: Once the servo motor is accessed, the electrical connector and wiring harness should be visually inspected for damage, corrosion, or loose pins. A multimeter can be used to check for proper voltage and ground at the connector.
   Typical fix: Repair or replace the damaged section of the wiring harness or the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Faulty A/C Amplifier (HVAC Control Module): This is the computer that controls the entire HVAC system. It is unlikely to fail, but if the servo motor and wiring are confirmed to be good, the amplifier is the next suspect. Some owners have noted that a re-initialization or reprogramming by the dealer can sometimes resolve HVAC issues, though this is less common for a hard circuit code like B1443 and is often a temporary fix.

Diagnosis Steps

1. Verify the symptom: Manually try to switch the airflow between face, floor, and defrost. Note if the air direction changes at all and if there is a startup delay for the HVAC system.
2. Listen for noises: Cycle through the modes and listen carefully for any clicking, grinding, or buzzing sounds from deep within the dashboard, particularly on the driver's side.
3. Scan for codes: Use an OBD-II scanner capable of reading Body (B) codes to confirm B1443 is present. Note any other HVAC codes (B1441, B1442, B1446, etc.).
4. Use an advanced scan tool: A tool like Toyota's Techstream can perform an active test on the Air Outlet Damper Servo. Command it to move and watch the live data for 'A/O DAMP POS' (Air Outlet Damper Position). The value should change as you command different modes. If it's stuck or reads an abnormal value, the servo or its circuit is faulty.
5. Attempt Servo Re-initialization: Using Techstream, a servo motor initialization can be performed. Some owners report this temporarily resolves the issue, confirming a problem with the servo's positioning. If the problem returns, replacement is necessary.
6. Access the servo motor: This is the most difficult step. For the RC 200T, this requires significant dashboard disassembly to access the HVAC unit where the B1443 servo is located on the driver's side.
7. Inspect and test: Once accessed, visually inspect the servo, its connector, and wiring. Replace the servo motor and inspect the connecting lever for damage.

Parts You'll Likely Need

• Air Outlet Damper Servo Motor (OEM #87106-30540) — This is the electric motor that fails, causing code B1443. It is the most common component to be replaced for this issue. It is also called 'Damper Servo Sub-assy, Air Conditioner Radiator, No. 3'.
  Trusted brands: Lexus (OEM), Aisin
  OEM price range: $150-$260
  Aftermarket price range: $100-$180
• Heater Air Damper Control Lever (OEM #87296-53010) — This plastic lever connects the servo motor to the damper door. It can crack or break, and the official Lexus TSB recommends inspecting and potentially replacing it along with the servo motor for IS and RC models.
  Trusted brands: Lexus (OEM)
  OEM price range: $15-$30
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• B1441 — This code is for the Passenger Side Air Mix Damper. It's common to see multiple servo motor codes together as they are of the same age and design, and the TSB L-SB-0001-21 lists them as related failures.
• B1442 — This code is for the Air Inlet Damper (fresh vs. recirculation). Like B1441, it is another servo motor in the same system that is prone to failure.
• B1446 — This code is for the Driver Side Air Mix Damper. Seeing it with B1443 points to a more widespread failure of the HVAC servo motors.

Technical Service Bulletins (TSBs) & Recalls

• L-SB-0001-21 Rev (and the original L-SB-0001-21): Titled 'HVAC Servo Motor Malfunction', this bulletin confirms that B1443 is a known issue on 2016-2017 RC 200T models and provides the specific part numbers (87106-30540 for the servo, 87296-53010 for the lever) and repair procedures.

Platform-Specific Known Issues

• Lexus Technical Service Bulletin L-SB-0001-21 Rev directly addresses HVAC servo motor malfunctions, including B1443, for the 2016-2017 RC 200T. The procedure for replacing this specific servo (Air Outlet / No. 3) requires the removal of the entire A/C unit from the vehicle, making it one of the most labor-intensive servo replacements.
• A Customer Support Program (CSP ZLZ) existed for some related models for other issues like cracked dashboards, but any associated servo repairs under such programs are likely expired.

Mechanic-Grade Diagnostic Values

• Techstream Live Data - 'A/O DAMP POS' (Air Outlet Damper Position) — expected: Damper at 'FACE': -10.0%; Damper at 'FACE/FOOT': 12.0%; Damper at 'FOOT': 33.5%; Damper at 'FOOT/DEF': 69.0%.. Failure: A fixed value (e.g., 50.0%) can indicate an open circuit. A value that does not change when commanded indicates a fault.
• Techstream Live Data - Target vs. Actual Pulse — expected: The 'Actual Pulse' value should closely match the 'Target Pulse' value as modes are changed.. Failure: A discrepancy between the target and actual pulse values confirms the servo is not completing the commanded movement.
• Air Outlet Damper Position Sensor Resistance — expected: 3.6 to 6.7 kΩ. Failure: Resistance is outside the specified range.
• Servo Motor Bench Test — expected: Applying 12V to terminals 4 and 5 should cause the lever to move smoothly to one extreme ('FACE' or 'DEF'), and reversing polarity should move it to the other.. Failure: No movement, or jerky/grinding movement, indicates a failed motor.

Scan Tool Commands That Help

• Techstream: Body / Air Conditioner / Utility / Servomotor Initialization — This function forces the A/C amplifier to relearn the end points of all damper doors. It is required after replacing a servo or disconnecting the battery. It can also serve as a diagnostic step or temporary fix; if initialization temporarily resolves the B1443 code but the problem returns, it strongly suggests the servo motor is failing intermittently.
• Techstream: Body / Air Conditioner / Active Test — This allows a technician to command a specific servo motor (like the Air Outlet servo) to move to a desired position (e.g., 'FACE', 'FOOT'). If the servo does not respond during the active test while its live data values remain unchanged, it confirms a fault in the motor or its circuit, often saving diagnostic time by pinpointing the failure without immediate disassembly.

Wiring & Ground Locations

• A/C Amplifier Assembly — Located in the center of the dashboard, typically behind and below the radio/head unit area.. This is the control module that sends power and control signals to the B1443 servo motor. All wiring for the servo originates here, making its connector a key point for testing the circuit.
• Ground Points J1, J2 — J1 is located in the driver's side kick panel area. J2 is on the left side of the shift lever assembly.. These are primary ground points for the instrument panel wiring harness. A loose or corroded ground at these locations could cause a variety of difficult-to-diagnose electrical issues, including intermittent servo malfunctions.

Real Owner Repair Stories

• ClubLexus forum user (2015 Lexus GS 350 (similar platform)) — No air from the main dashboard vents after pressing the front defrost button; airflow was stuck on the defroster setting. Code B1443 was present.
  ❌ Tried (didn't work) Turning the A/C system on and off., Manually trying to select different vent modes on the control panel.
  ✅ What actually fixed it The owner disconnected the vehicle's battery for a period, which reset the HVAC control module. After reconnecting the battery, the vents operated normally. This is considered a temporary fix that points to a calibration loss or intermittent servo failure.
• ClubLexus forum user (Lexus GS (similar platform)) — Airflow direction control stopped working, code B1443 was read by a Carista scanner.
  ❌ Tried (didn't work) The issue was initially intermittent, sometimes correcting itself after a vehicle restart.
  ✅ What actually fixed it The dealer found stored fault codes for two servo motors and replaced both under warranty to provide a permanent fix. The repair order confirmed two 'servo sub-assemblies' were replaced.

OEM Part Supersession History

• 87106-30540 → N/A — This part number appears to be the current and correct OEM part for the specified vehicle and fault.
  Heads up: Part is also referred to as 'Damper Servo Sub-assy, Air Conditioner Radiator, No. 3' or 'SERVO SUB-ASSY, DAMPER, NO. 1' in some documents, but the part number 87106-30540 is consistent.
