OBD-II Code B1441: Passenger-Side Air Mix Damper Servo Failure

What Does B1441 Mean?

The code B1441 means your car's main computer detected a fault in the passenger-side air mix damper servo circuit. This small electric motor moves a blend door to mix hot and cold air. When it fails, the passenger-side temperature gets stuck on full hot or full cold, regardless of the climate control setting.

Technical definition: The official SAE/ISO definition for B1441 is "Air Mix Damper Control Servo Motor Circuit (Passenger Side)". The A/C amplifier (climate control computer) commands the servo motor to move but fails to detect the expected position sensor feedback within 30 seconds.

Can I Drive With B1441?

Yes. You can safely drive your car. This code only affects the passenger's climate control comfort and poses zero safety or mechanical risk to the vehicle's engine, transmission, or braking systems.

Common Causes

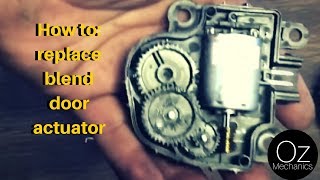

• Failed Passenger Air Mix Servo Motor (Very Common) — The small electric motor or internal position sensor inside the servo assembly wears out, preventing it from moving the blend door. This is a well-documented weak point on many Toyota and Lexus models.
• Mechanical Obstruction or Jammed Blend Door (Common) — Debris in the HVAC housing (like a collapsed cabin air filter or leaves) physically jams the blend door or its linkage. The motor binds and triggers a fault when it cannot overcome the obstruction.
• Improper Servo Motor Installation or Timing (Common) — During a DIY replacement, failing to correctly align ('time') the new servo motor's gear with the multiple blend door linkages causes the assembly to bind. This triggers the code immediately and damages the new motor.
• Software Calibration/Initialization Required (Less Common) — After replacing a servo motor or disconnecting the battery, the control module loses its memory of the motor's start and end points. Skipping the scan tool 'servo initialization' procedure guarantees a fault code.
• Damaged Wiring or Poor Connection (Less Common) — The wiring harness connecting the climate control module to the servo motor chafes or disconnects. A poor connection prevents proper communication and operation.
• Faulty Climate Control Module (A/C Amplifier) (Rare) — The climate control module fails and stops sending the correct voltage to the servo motor, or it loses the ability to read the position sensor's feedback.

Symptoms

• Incorrect temperature on the passenger side — Air from the passenger-side vents is stuck on full hot or full cold and ignores temperature adjustments. The driver's side continues to work perfectly.
• Clicking or ticking noise from the dashboard — A repetitive clicking, ticking, or grinding sound emits from behind the passenger dashboard as the broken servo motor continuously tries and fails to move the blend door.
• Center console area becomes unusually hot — If the passenger blend door fails in a position directing air through the heater core, the passenger side of the center console and transmission tunnel becomes noticeably hot to the touch.
• HVAC warning message — A dedicated climate control warning appears on the information display of some luxury vehicles. It rarely triggers the main Check Engine Light.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Passenger Air Mix Servo Motor — Parts: $65-$295, Labor: $350-$4500, ~2.5-12.0 hr book time (Professional)
• Perform HVAC System Initialization/Calibration — Parts: $0, Labor: $100-$200, ~0.5-1.0 hr book time (Beginner)
• Remove Obstruction from Blend Door — Parts: $0, Labor: $150-$500, ~1.5-4.0 hr book time (Intermediate)
• Repair Damaged Wiring or Connector — Parts: $5-$20, Labor: $100-$300, ~1.0-2.5 hr book time (Intermediate)
• Replace Climate Control Module (A/C Amplifier) — Parts: $300-$800, Labor: $150-$300, ~1.0-1.5 hr book time (Intermediate)

Used vs. New Parts: Buying Guide

When a used part is worth it: Buying a used Air Mix Servo is strongly discouraged. The part has a known high failure rate, making a used replacement highly likely to fail shortly after installation.

Donor-vehicle mileage cap: roughly under 20000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Source from the newest, lowest-mileage vehicle possible.
• Match the part number exactly.
• Avoid parts from regions with extreme temperature swings.

Decision logic:

• If The labor cost for replacement is high (requires dash removal). → Always buy a new OEM part. The risk of repeat labor costs far outweighs the savings on a used part.
• If The part is easily accessible (glove box removal only). → A new aftermarket part is a better compromise than a used OEM part.

Warranty tradeoff: Used parts carry a 30-day warranty covering the part only. New OEM parts carry a 1-year warranty. The real risk is paying the massive labor charge twice.

Worst-case if a used part fails: $400-$4500 if a used part fails, driven entirely by repeated labor charges.

What Happens If You Wait — Timeline

1. 0-1 month: Code B1441 sets. The passenger side temperature becomes inconsistent or gets stuck. The issue is often intermittent. (MPG impact: 0%% · Added cost: $0)
2. 1-3 months: Internal gears strip. A distinct clicking sound emits from the dashboard. Passenger temperature control is permanently lost. (MPG impact: 0%% · Added cost: $0)
3. 3-12 months: The motor constantly tries to move against stripped gears, creating a parasitic battery drain that kills the battery if parked for a week. (MPG impact: 0%% · Added cost: $150-$250)
4. 12+ months: The motor burns out completely and the clicking stops. No further damage occurs to the vehicle. (MPG impact: 0%% · Added cost: $0)

Cost of Not Fixing It

• Immediate: Loss of passenger-side temperature control. The air remains stuck on full hot or full cold. (Added cost: $0)
• 1-6 months: A constantly clicking servo motor creates a parasitic battery drain, potentially killing the battery if the vehicle sits for a week. (Added cost: $0 - $250)
• 6+ months: The motor eventually burns out completely, stopping the clicking noise. No further damage occurs to other vehicle systems. (Added cost: $0)

Diagnosis Steps

1. Verify the Symptom
   Turn on the A/C and heater. Adjust the passenger-side temperature from full cold to full hot. Confirm the air temperature from the passenger vents does not change.
   Tools: None (Beginner)
2. Listen for Servo Operation
   Place your ear near the lower passenger-side dashboard while changing temperature settings. A clicking sound confirms a broken motor with stripped gears. Complete silence points to a burned-out motor, wiring issue, or control module fault.
   Tools: None (Beginner)
3. Scan for Codes
   Use an OBD-II scanner capable of reading Body (B) codes to confirm B1441. Note related codes (like B1442, B1443, B1446) to determine if multiple servos failed simultaneously.
   Tools: OBD-II Scanner (with Body code capability) (Beginner)
4. Inspect the Cabin Air Filter
   Remove the cabin air filter behind the glove box. Look for severe clogs, collapsed filter media, or foreign debris jamming the HVAC linkages.
   Tools: None (Beginner)
5. [PRO TIP] Read Live Data with a Scan Tool
   Navigate to the A/C system's Data List on a bidirectional scanner. Monitor 'Air Mix Servo Targ Pulse(P)' and 'Air Mix Servo Actual Pulse(P)'. If the actual pulse stays stuck at 0 or 255 while the target pulse changes, the servo is dead.
   Tools: Advanced bidirectional scan tool (Advanced)
6. [PRO TIP] Perform Active Test
   Use the scanner's 'Active Test' to command the passenger air mix servo to MAX HOT and MAX COOL. If the servo clicks but doesn't move, the gears are stripped. If it makes no sound, the motor is burned out or lacks power.
   Tools: Advanced bidirectional scan tool (Advanced)
7. Access and Visually Inspect the Servo Motor
   Remove the glove box and lower dash panels to expose the servo motor. Check the electrical connector for a secure fit and inspect the wiring for chafing.
   Tools: Screwdrivers, socket set, trim removal tools (Intermediate)
8. Manually Test the Blend Door
   Remove the servo motor and move the blend door linkage by hand. It must move smoothly through its full range. If it binds, clear the mechanical obstruction inside the HVAC case before installing a new motor.
   Tools: None (Advanced)
9. [PRO TIP] Test Servo Position Sensor Resistance
   Disconnect the servo motor. Measure resistance between the position sensor pins (PT and GND) while manually moving the servo arm. Resistance must change smoothly (typically 0.8 to 6.7 kΩ). An open circuit (OL) confirms internal failure.
   Tools: Multimeter, Vehicle-specific wiring diagram (Advanced)
10. [PRO TIP] Directly Test the Servo Motor
    Apply 9V or 12V battery voltage directly to the motor power and ground pins (MCOOL and MHOT). Reversing polarity spins the motor in the opposite direction. No movement confirms a dead internal motor.
    Tools: 9V or 12V power source, Jumper wires (Advanced)

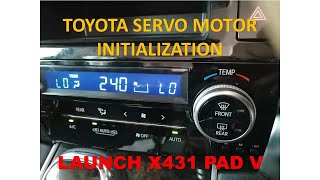

11. Perform Servo Initialization
    Run the HVAC servo motor initialization procedure using a bidirectional scan tool. This is a mandatory final step after replacement to teach the module the new motor's endpoints.
    Tools: Advanced bidirectional scan tool (Intermediate)

When This Code Triggers (Freeze-Frame Conditions)

• Fault Trigger: No Position Change (The A/C control module commanded the servo motor to move, but the position sensor feedback remained static for 30 seconds.)
• Ignition Status: ON (The code sets while the vehicle is running and the HVAC system is active.)
• Passenger Temperature Setting: Changing (The fault logs when the user adjusts the passenger temperature knob from one extreme to another.)

Related Codes

• B1446 — Identical code but for the driver's side air mix servo. These servos share the same design and frequently fail around the same time.
• B1443 — Indicates a fault in the Air Outlet Damper Servo, which controls airflow direction (defrost, dash, or floor). Often fails concurrently with B1441.
• B1442 — Points to a fault in the Air Inlet Damper Servo, controlling fresh vs. recirculated air.

Climate & Environmental Factors

• Extreme Cold: Cold temperatures stiffen the lubricant inside the servo motor, increasing internal friction and snapping brittle plastic gears.
• High Humidity: Condensation forms inside the actuator, causing corrosion on electrical contacts and internal position sensors.

How to Talk to a Mechanic About This Code

Say this: "I have a B1441 code and the passenger side AC is stuck. I'd like to schedule a diagnostic. Can you check if a scan tool servo re-initialization fixes it before quoting a full replacement? I also need to know the book labor time if the dashboard requires removal."

This signals you understand the common causes and prompts the shop to try the cheapest software fix first while being transparent about potentially massive labor costs.

Avoid saying:

• 'My AC is broken, can you fix it?'
• 'Just replace the broken part.'
• 'My check engine light is on.' (This is a Body code)

Questions to ask before authorizing the repair:

• Did you attempt a servo initialization, and did it change the symptom?
• Did you manually test the blend door to ensure it moves freely?
• Is the repair quote based on full dashboard removal? What is the book time for that labor?
• What is the warranty on the labor if the new part fails within a year?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only if your vehicle might be covered by a warranty or TSB. Otherwise, use an independent specialist.
  Best for: Vehicles potentially covered by a manufacturer 'Customer Support Program' (like Lexus TSB L-SB-0001-21)., Complex, dash-removal jobs on newer cars requiring factory training.
  Downsides: Highest labor rates, often double an independent shop., Unwilling to attempt shortcuts that experienced independent mechanics use to avoid dash removal. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most out-of-warranty vehicles. A brand specialist offers the best balance of expertise and value.
  Best for: Out-of-warranty vehicles where cost is a major factor., Shops specializing in your vehicle's brand (e.g., a Toyota/Lexus specialist).
  Downsides: Quality varies widely. Vet shops carefully for major dash-out jobs. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for the actual repair if it requires dashboard removal. Do not authorize them for a complex, high-labor job.
  Best for: Simple, routine maintenance.
  Downsides: Technician skill varies dramatically; a complex dash removal is high-risk., High pressure to upsell. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost for this non-essential comfort feature exceeds 25% of the car's private-party value, seriously consider not fixing it.

• Car worth $8000, fix is $3500: Walk away. The repair cost is nearly half the car's value for a non-essential feature. Live with the issue.
• Car worth $15000, fix is $750: Fix it. The repair cost is low relative to the car's value and improves comfort.
• Car worth $4000, fix is $2500: Walk away. The repair cost is over 60% of the vehicle's value. It is not economically viable.

What Scan Tool You Need for This Code

Minimum: A scanner that reads and clears Body (B) codes. A basic engine-only reader will not see code B1441.

A proper fix requires a 'servo initialization,' which demands a bidirectional scan tool. Basic readers cannot perform this mandatory step.

Budget: BlueDriver Pro (~$90) — Reads and clears enhanced Body (B) codes to confirm B1441 is present. It cannot perform the bidirectional initialization procedure.

Mid-range: Foxwell NT510 Elite / Autel AP200 (~$150) — Offers full system diagnostics and bidirectional capabilities for specific makes, allowing you to perform the mandatory HVAC servo initialization.

Professional: Autel MaxiCOM MK808S (~$450) — Provides full bidirectional control to run 'Active Tests' commanding the servo motor directly, and performs the final initialization procedure.

How to Clear the Code After You Fix It

1. Reconnect the battery.
2. Use a compatible OBD-II scan tool to clear the B-series trouble codes.
3. Perform the 'Servo Motor Initialization' procedure using the scan tool to teach the A/C module the new motor's endpoints.

Drive cycle (~5 minutes): Turn the vehicle on and operate the passenger temperature control from full hot to full cold several times to confirm the repair.

Readiness monitors affected: None

Watch out for:

• Forgetting to perform the servo initialization procedure after replacing the part, causing the code to return immediately.
• Using a basic code reader that cannot clear B-codes or perform initialization.
• Failing to confirm the blend door moves freely by hand before installing the new motor.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: This code does NOT cause a smog check failure. California tests focus on powertrain (P-prefix) codes.
• New York: This code does NOT cause an emissions inspection failure. B1441 is a body control code unrelated to emissions.
• Texas: This code does NOT cause an emissions test failure. The OBD test checks for powertrain codes that illuminate the Check Engine Light.

Most Commonly Affected Vehicles

• Lexus GS 350 / GS 200t (2013-2017) — Extremely common issue. TSB L-SB-0001-21 confirms this repair requires full dashboard and A/C unit removal, leading to quotes of $2,000-$4,500.
• Lexus IS 350 / IS 250 / IS 200t (2014-2018) — Known for premature HVAC servo failure (OEM part 87106-30550). Access is tight but sometimes possible without full dash removal.

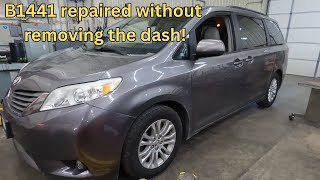

• Toyota Sienna (2011-2020) — The official repair procedure requires full dashboard removal (10+ hours of labor), leading to labor costs exceeding $3,000.
• Toyota RAV4 (2010-2020) — A known failure point across multiple generations, frequently causing the passenger side to blow cold air in winter.
• Lexus RC 350 / RC 200t / RC F (2015-2019) — Shares the faulty servo design with the IS and GS. Requires removing the entire A/C unit.
• Toyota Corolla (2014-2019) — A common cause for a 'no heat' complaint. Repair requires a scan tool to calibrate the new part.
• Lexus NX 300h / NX 200t (2015-2018) — Often appears alongside B1443. Access to the servo is difficult behind the glove box.
• Toyota Camry (2007-2017) — Causes one side of the dashboard to blow hot air while the other blows cold. Moderately difficult to access behind the glove box.
• Lexus RX 350 (2009-2015) — Access for repair is notoriously difficult, often requiring removal of major dashboard components.

Manufacturer-Specific Notes

• Toyota/Lexus: This code is exceptionally common. Lexus issued multiple Technical Service Bulletins (e.g., L-SB-0001-21) and Customer Support Programs for premature servo failure.
• General Motors (Chevrolet, GMC, Cadillac): CRITICAL: On GM vehicles, B1441 indicates a fault in the 'OFF/RUN/CRANK' ignition switch circuit. It causes a no-start condition and has absolutely nothing to do with the HVAC system.
• Ford/Mazda: On Ford/Mazda, B1441 refers to a 'Wiper Mode Select Switch Circuit Short To Ground', resulting in erratic windshield wipers.
• Mitsubishi: On Mitsubishi models, B1441 indicates 'Lost Communication with Gauge Control Module', causing a dead instrument cluster.

Real Owner Stories

2016 Lexus GS350 avoids a $3,000 repair bill

The passenger side blew warm air while the driver side was cold. A scan revealed code B1441. The dealer quoted over $3,000 for a dash-out servo replacement.

What they tried:

1. The owner used Toyota's Techstream software to run a 'Servo Initialization' procedure before authorizing any physical repairs.

Outcome: Re-initializing the servos restored full function for several months. While the motor is clearly weakening, the software reset delayed a massive repair bill.

Lesson: Always attempt a 'Servo Initialization' with a capable scan tool first. It costs nothing and confirms the diagnosis without turning a single screw.

2014 Toyota Corolla fixed by clearing debris

The car had no heat, and the passenger side temperature could not be controlled. Code B1441 was present.

What they tried:

1. A technician inspected the cabin air filter and found it severely clogged and blocked by a plastic glove.
2. The technician manually moved the blend door to confirm the heater core was hot and the door was capable of directing heat.

Outcome: The technician replaced the failed actuator and the dirty filter, then performed a scan tool calibration. Full heat was restored.

Lesson: A blocked cabin air filter restricts movement and causes a servo to bind. Verifying the blend door moves freely by hand is critical before replacing the motor.

How to Prevent This Code From Triggering

• Replace the cabin air filter regularly. (Every 15,000 miles) — Prevents debris from entering the HVAC case and physically jamming the blend doors, which burns out the servo motor.
• Cycle the temperature controls through their full range. (Monthly) — Exercises the servo motors and linkages, preventing internal lubricants from stiffening and plastic gears from seizing.
• Perform a scan tool 'servo initialization'. (Every 30,000 miles) — Cycles all motors through their full range, cleaning electrical contacts and redistributing grease to extend motor life.

Frequently Asked Questions

Can I fix B1441 myself?

It depends heavily on your vehicle. On a Toyota Camry, it is accessible after removing the glove box. On a Lexus GS or Toyota Sienna, it requires removing the entire dashboard, making it a professional-level job.

Why is the repair cost so high if the part is cheap?

The cost is almost entirely labor. While the servo motor is relatively inexpensive, it is often buried deep behind the dashboard. Mechanics need 8-12 hours to disassemble and reassemble the dash, leading to labor charges exceeding $2,000.

I replaced the servo, but the code came back. What went wrong?

You likely skipped the mandatory HVAC system 'initialization' procedure with a scan tool, which teaches the system the new part's limits. Alternatively, you installed the motor without correctly aligning the complex blend door levers, causing the system to bind.

Can a bad battery cause code B1441?

Yes, a low battery or disconnection causes the HVAC control module to lose its memory of the servo motor positions. Before replacing parts, perform a servo initialization procedure with a scan tool. You can also try disconnecting the battery for 30 minutes to force a system reset.

What is HVAC servo 'initialization' and is it necessary?

Initialization is a scan tool process that commands the HVAC control module to cycle all servo motors to their endpoints. This allows the module to learn the full range of motion for each door. It is absolutely required after replacing a servo or disconnecting the battery.

Will clearing the code fix the problem?

No. Clearing the code only removes the warning temporarily. As soon as you adjust the passenger temperature, the control module detects the non-responsive motor and triggers the code again.

Is it okay to just live with the problem?

Yes, it is completely safe to drive with this issue. It does not affect the engine, transmission, or safety systems. The only consequence is a lack of temperature control for the passenger.

My mechanic quoted me $4,000! Is that a rip-off?

Not necessarily. On many Lexus and Toyota models, the official repair procedure requires removing the entire dashboard. This labor-intensive job takes 10-12 hours, easily pushing the total bill into the thousands.

Key Takeaways

• Code B1441 indicates a failed passenger-side air mix servo motor, a repair that costs between $350 and $4,500 depending on whether your dashboard requires full removal.
• Listen for a repetitive clicking noise behind the glovebox; this sound confirms the internal plastic gears of the servo motor are stripped and require replacement.
• Never replace the servo motor without performing a scan tool initialization afterward, or the B1441 code will return immediately.
• Verify your vehicle's specific code definition before buying parts, as B1441 indicates a critical ignition switch failure on GM vehicles rather than an HVAC issue.
• Check your cabin air filter before assuming the motor is dead, as debris blocking the blend door causes the exact same B1441 code and costs $0 to fix.
