B1289 on 2007-2013 GMC Sierra 1500: Radio Display Blank or Flashing Causes and Fixes

What's Unique About the 2007-2013 Gmc SIERRA 1500

The GMT900 generation of trucks, which includes the 2007-2013 Sierra and its platform mates like the Silverado and Tahoe, is known for issues with its factory radio and navigation units. Unlike generic definitions for this code that may point to other systems, on this specific truck platform, B1289 is definitively linked to the infotainment display. Owners and GM's own TSBs confirm that the problem often stems from internal component failure (like cold solder joints) or specific wiring shorts, rather than simple external faults.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Radio or navigation display is completely blank
• Display flickers intermittently
• Display appears solid white or distorted
• Tapping on the dashboard or screen temporarily restores the display
• Radio may change channels or sources randomly
• Audio may continue to work even when the screen is blank
• No sound from speakers at all
• Rear DVD screen (if equipped) is inoperative
• Instrument Panel Cluster shows 'Audio Off' when trying to access radio functions

Most Likely Causes

1. Internal Radio/Display Failure (Cold Solder Joints) 🔴 High Probability Vibrations and thermal cycles cause the solder connections for the display connector on the internal circuit board to crack over time, a common failure mode for these units. GM may have used lower quality solder, exacerbating the issue.
   How to confirm: The radio unit must be removed and disassembled to visually inspect the circuit board. The fix involves re-flowing the solder on the affected pins. 🎬 See how to repair the internal circuit board solder joints. Tools required include a 7mm driver (for dash screws) 🎬 Watch this quick guide on how to remove the radio., 3mm driver (for radio case screws), soldering iron, electronic solder, flux, and preferably a desoldering wick.
   Typical fix: Repairing the solder joints or replacing the entire radio/navigation head unit. Mail-in repair services are also a popular option.
   Est. part cost: $0 (for solder repair) - $400 (for a used replacement head unit)
2. Shorted Remote Enable Signal Wire (Circuit 7066) 🔴 High Probability TSB PIT4474E specifically calls out this circuit as a cause. The wire sends a turn-on signal from the radio to the amplifier and rear DVD screen. If it shorts to ground, the radio's protection circuit will shut down the display.
   How to confirm: Inspect the wiring harness for damage. The TSB notes the most common area for a short is near the rear DVD display screen, under the headliner. A short first causes flashing, then a blank screen after 2 minutes.
   Typical fix: Locate the short in circuit 7066 (often a dark green wire), repair the damaged section, and re-route it to prevent future chafing.
   Est. part cost: $0 - $20
3. Loose HMI or Radio Connectors 🟡 Medium Probability Connectors can work themselves loose over time. The Human-Machine Interface (HMI) module is often located behind the glove box, and its main connector (frequently a blue one) can cause these symptoms if not fully seated.
   How to confirm: Access the HMI module behind the glove box or remove the dash trim to access the rear of the radio. Check that all electrical connectors are securely plugged in. Wiggling the connectors while the radio is on may reproduce the fault.
   Typical fix: Unplug and firmly reseat the electrical connectors to the HMI module and the radio unit.
   Est. part cost: $0
4. Software Glitch ⚪ Low Probability The control modules for the radio can sometimes enter a fault state that a simple reset can fix.
   How to confirm: Perform a 'hard reset' by disconnecting the negative battery terminal for 15-30 minutes. If the radio functions correctly afterward, the issue was likely a temporary glitch.
   Typical fix: Disconnect and reconnect the battery. If the problem persists, a dealer may need to perform a software update as suggested by TSB PIT4474E.
   Est. part cost: $0 - $200 (for a dealer software update)

Rare But Worth Checking

• Poor Body or BCM Ground: A corroded or loose main ground can cause bizarre electrical issues. TSB 18-NA-161 points to poor connections at the battery fuse block and specifically ground G218 (for the BCM) as a source for various electrical maladies, including blank displays.
• Shorted B+ Cable at Starter: TSB 18-NA-161 also notes that the main battery cable can short against the starter shield or terminal if mis-installed, leading to widespread voltage issues that can affect the radio and other modules.

Diagnosis Steps

1. Verify the symptom. Note if the display is blank or flickering, and if audio is still present.
2. Check the simple things first: ensure the dashboard brightness dimmer switch isn't turned all the way down.
3. With the key on, navigate to the audio screen in the Driver Information Center (DIC) on the instrument cluster. If it displays 'Audio Off' and you have no chimes, the radio module itself is the most likely culprit.
🎬 Watch this video to troubleshoot a blank screen and audio loss.
4. Perform a hard reset by disconnecting the negative battery terminal for at least 15 minutes to clear any module glitches.
5. If the vehicle has a rear entertainment system, inspect the wiring harness under the headliner near the DVD screen for any signs of chafing or damage, as this is a common short location noted in TSB PIT4474E.
6. Remove the glove box to access the HMI module. Locate the main connectors (one is often blue) and ensure they are fully seated.

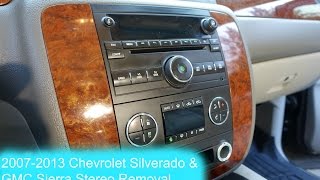

7. Remove the dash trim surrounding the radio to access the unit itself. Check the main connector at the back of the radio for a secure fit.
8. If the issue persists and you are comfortable with electronics repair, remove the radio unit. Disassemble it and inspect the circuit board for cracked solder joints where the display connects. Re-solder using flux and fresh electronic solder.
9. If none of the above steps resolve the issue, the radio head unit has likely failed. Options are to replace it with a new/used unit or send the original unit to a specialist repair service.

Parts You'll Likely Need

• Radio/Navigation Head Unit (OEM #20883056, 22776896, 25966512, 20883054 (for UUL Navigation Radios, check compatibility by VIN)) — This is the most common point of failure, usually due to internal electronic faults like bad solder joints that cause the B1289 code.
  Trusted brands: ACDelco (OEM)
  OEM price range: $500-$1200+ (New)
  Aftermarket price range: $150-$400 (Used/Remanufactured)
• Mail-in Repair Service — A cost-effective alternative to replacement. Specialists repair the common failure points (like solder joints) on your original unit, which avoids the need for dealer programming.
  Trusted brands: ISS Automotive, Auto Tech Rescue, Specmo
  Aftermarket price range: $200-$300

Related Codes That Often Appear With This One

• B1265 — This code is also related to a radio/navigation system fault and is mentioned in the same TSB (PIT4474E) as B1289.
• B1288 — Another radio/navigation system fault code, also cited alongside B1289 in TSB PIT4474E.

Technical Service Bulletins (TSBs) & Recalls

• PIT4474D: Navigation or Radio Display Blank Or Flashing DTC B1265 B1288 Or B1289.
• PIT4474E: Supersedes PIT4474D, updates model years and confirms the cause related to a shorted remote enable signal wire.
• 18-NA-161: Details various electrical issues, including blank displays, stemming from poor battery cable connections or grounds like G218.

Platform-Specific Known Issues

• GM issued Technical Service Bulletin #PIT4474E for this platform, which directly addresses a blank or flashing navigation/radio display accompanied by codes B1265, B1288, or B1289. It identifies a potential short to ground on the remote enable signal wire (Circuit 7066) as a primary cause, often near the rear DVD player.

Mechanic-Grade Diagnostic Values

• Video Display Brightness Control Signal (at rear video display connector) — expected: 100-300 Hz (Pulse Width Modulated signal). Failure: A reading outside this range indicates a short to voltage, short to ground, or an open/high resistance in the control circuit.
• Remote Enable Signal Voltage — expected: Approximately +12V when the radio is on.. Failure: 0V when the radio is on, or +12V when the radio is off (indicates a short or faulty radio module).
• Battery Voltage at Radio Module — expected: 9-16 Volts. Failure: Voltage outside this range can prevent the DTC from running or cause erratic operation.

Hidden / Shadow Codes Worth Checking

• B1289 01: Video Display Brightness Control Signal Short to Battery (see via A professional scan tool like GM's Tech2 or GDS2 can read these specific fault type sub-codes.)
• B1289 02: Video Display Brightness Control Signal Short to Ground (see via A professional scan tool like GM's Tech2 or GDS2 can read these specific fault type sub-codes.)
• B1289 04: Video Display Brightness Control Signal Open Circuit (see via A professional scan tool like GM's Tech2 or GDS2 can read these specific fault type sub-codes.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Module Diagnostics > Radio > Identification Information — To read ECU part numbers and software numbers to verify compatibility before replacing a radio unit.
• GDS2 (GM Global Diagnostic System 2): Module Diagnostics > Radio > Configure/Reset Functions — Used for programming a replacement radio module to the vehicle's specific VIN and options (like Bose audio or rear camera). This is often required to make a replacement unit fully functional.
• Techline Connect / SPS (Service Programming System): A11 Radio – USB Copy/USB File Transfer — To perform software updates on the radio module via a USB drive, which can resolve certain software-related anomalies. This must be done in a specific sequence before SPS programming to avoid damaging the radio.

Wiring & Ground Locations

• G218 — On the driver's side, behind the dash panel/A-pillar trim, near the speaker. It is a nut on a stud where multiple ground wires connect.. This is a major ground for the Body Control Module (BCM). TSB 18-NA-161 and PIT5405C identify a poor connection here (often due to sound-deadening material getting trapped under the terminal) as a cause for widespread electrical issues, including the radio/display going blank.
• Radio Connector X1 — The main 16-pin connector at the back of the radio head unit.. This connector carries power, ground, and data signals. Pin 1 (RD/WH) is battery positive, Pin 8 (BK) is ground, and Pin 13 (D-GN) is the Low Speed GMLAN data line. A poor connection on any of these can cause radio failure. The Remote Enable Signal is on Pin 6 (WH).
• Rear Video Display Connector (if equipped) — At the rear seat entertainment (RSE) video screen, typically in the headliner.. Pin 9 of this connector carries the Video Display Brightness Control signal that can trigger B1289 if faulted. TSB PIT4474E also points to this harness area as a common location for the Remote Enable Signal wire to chafe and short to ground.

OEM Part Supersession History

• 25966512 → 20883056 — Part update/revision.
  Heads up: These parts are generally interchangeable for the specified model years (typically 2010-2011) with the UUL navigation option.
• 20883056 → 22776896 — Part update/revision.
  Heads up: These parts are listed as interchangeable for 2010-2011 models with the UUL navigation option. However, any replacement radio, even with a correct part number, will likely require VIN programming by a dealer or with a tool like GDS2 to unlock it and enable all features for the specific vehicle.

Model Year Variations Within This Range

• 2007-2013: Two main dash styles exist: the 'Type A' (work truck trim) with vents beside the radio, and 'Type B' (higher trims) with vents above the radio. While the radio removal process differs slightly, the B1289 fault is common to both radio types used across these trims.
• 2007-2009 vs 2010-2013: Different radio part numbers were used for earlier years (e.g., 15882766 for 2007-2009 U3U navigation) versus later years (e.g., 20883056 for 2010-2011 UUL navigation). The units are not directly cross-compatible due to differences in data communication and features. Swapping between types is not recommended.
