OBD-II Code B1131: Wiper Motor Communication Failure

What Does B1131 Mean?

B1131 is a manufacturer-specific Body Diagnostic Trouble Code (DTC). On most Ford, Lincoln, and Mercury vehicles, it indicates the main body computer lost communication with the windshield wiper motor module. The vehicle's computer sends speed and intermittent wiping commands over a data network (LIN bus). When that signal drops, B1131 triggers. On other makes like Honda or Nissan, this code points to entirely different systems, such as power windows or airbags.

Technical definition: On Ford Motor Company vehicles, B1131:08 translates to 'Wiper Motor Module: Bus Signal / Message Failure'. The Steering Column Control Module (SCCM) detects a communication fault with the driver's side windshield wiper motor over the Local Interconnect Network (LIN). The SCCM receives the driver's request from the wiper switch and sends the command to the motor; a severed or corrupted communication line sets the code.

Can I Drive With B1131?

No — Do Not Drive. Driving with this code is unsafe and illegal in many jurisdictions. In rain or snow, your visibility drops to zero instantly, dramatically increasing crash risk. Repair this critical safety system immediately before driving in precipitation.

Common Causes

• Failed Windshield Wiper Motor (Very Common) — The electronic module built into the wiper motor assembly is the most frequent failure point. Internal corrosion from water intrusion or a burnt circuit board prevents it from receiving commands.
• Corroded Wiper Motor Connector (Common) — Water from leaking washer fluid lines or failed cowl seals pools in the electrical connector. This corrodes the pins, blocking the LIN bus signal. This is a heavily documented failure on Ford Transits and Focuses.
🎬 See how water intrusion ruins the Ford Transit wiper connector.
• Seized Wiper Linkage (Uncommon) — The mechanical linkage connecting the motor to the wiper arms seizes due to rust in the pivot points. This extreme mechanical strain overheats the wiper motor, causing electronic failure. This triggers recall 24S77 on 2015-2020 Ford F-150s.

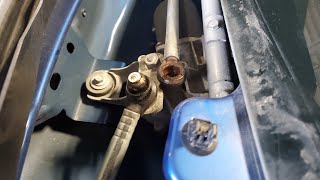

🎬 Watch: How to diagnose and rebuild a seized wiper linkage.
• Faulty Under-Hood Fuse Box (Uncommon) — A high-resistance fault inside the engine compartment fuse box prevents sufficient current from reaching the motor. Even with a good fuse, the voltage drop disables the motor and sets the code.
• Faulty Steering Column Control Module (SCCM) (Less Common) — The SCCM interprets wiper switch signals and commands the motor. An internal SCCM failure stops the LIN bus signal at the source.
• Blown Fuse or Faulty Relay (Less Common) — A blown fuse cuts main power to the wiper system. Always verify fuse integrity before replacing expensive modules.
• Improperly Installed Aftermarket Accessories (Rare) — Aftermarket accessories (like parking sensors) improperly wired into a shared LIN circuit—such as the rain sensor's power supply—disrupt the entire network, triggering B1131 and B10AD simultaneously.
• Incorrect Module Configuration (Rare) — If the wiper motor or SCCM was recently replaced, it requires software calibration. A 'Wiper Motor Module not configured' message (B1131:55) appears if this step is skipped.

Symptoms

• Wipers only work on high speed — High speed acts as a 'fail-safe' mode using a direct electrical circuit, bypassing the failed LIN communication module. Low, intermittent, and park functions fail.
• Wipers do not work at all — A complete electrical failure, blown fuse, or seized motor disables all wiper speeds, including the fail-safe circuit.
• Windshield washer function fails — The washer pump shares control logic with the wipers. A communication failure disables both systems simultaneously.
• Wipers move slowly or stop mid-sweep — High circuit resistance or a dying motor causes the wipers to struggle and stall on the glass.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replace Windshield Wiper Motor — Parts: $100-$250, Labor: $120-$200, ~1.5 hr book time (Intermediate)
• Clean or Replace Wiper Motor Connector Pigtail — Parts: $20-$90, Labor: $60-$120, ~1 hr book time (DIY)
• Replace Wiper Linkage/Transmission — Parts: $100-$250, Labor: $150-$250, ~2.2 hr book time (Intermediate)
• Replace Steering Column Control Module (SCCM) — Parts: $150-$400, Labor: $100-$200, ~1.8 hr book time (Professional)
• Replace Power Window Motor (Honda) — Parts: $80-$200, Labor: $120-$250, ~1.8 hr book time (Intermediate)
• Replace Blown Fuse — Parts: $1-$5, Labor: $0, ~0.1 hr book time (DIY)

Used vs. New Parts: Buying Guide

When a used part is worth it: Only on older vehicles where budget is the absolute priority, provided the donor part comes from a dry climate.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the donor vehicle is from a dry, southern climate to guarantee zero water intrusion history.
• Match the part number exactly; motors differ based on rain sensor integration.

Decision logic:

• If The failure is on a Ford Transit or Focus known for water intrusion → Buy a new OEM part. Used parts likely suffered the exact same environmental damage.
• If The cost of a new aftermarket motor is under $150 → Buy new. The lifetime warranty outweighs the $50 savings of a used part.

Warranty tradeoff: Used parts carry a 30-day parts-only warranty. New aftermarket parts offer 1-year to lifetime warranties.

Worst-case if a used part fails: $250 (Paying for a second part and repeating the labor when the used motor fails).

What Happens If You Wait — Timeline

1. Immediate: Wipers become inoperative or lock into high-speed fail-safe mode. Vehicle fails state safety inspections. (MPG impact: 0%% · Added cost: $150 (Traffic citation for defective equipment))
2. 1-3 months: If the linkage is seized, forcing the wipers to run overheats and destroys the wiper motor's internal circuitry. (MPG impact: 0%% · Added cost: $200 (Cost of a new motor added to the linkage repair))
3. During the next rainstorm: Complete loss of visibility results in a collision. This is the ultimate consequence of ignoring a critical safety system. (MPG impact: 0%% · Added cost: Cost of an at-fault accident and insurance premium hikes.)

Cost of Not Fixing It

• Immediate: Automatic failure of state safety inspections, resulting in an inability to legally register the vehicle. (Added cost: $50-$250 (Traffic citations for defective safety equipment))
• During next precipitation: Catastrophic loss of visibility in rain or snow, creating an extreme crash risk. (Added cost: Cost of an at-fault collision.)
• 1-3 months: If the root cause is a seized linkage, forcing the wipers to run will overheat and destroy the wiper motor. (Added cost: $150-$300 (Adding the cost of a new motor to the linkage repair))

Diagnosis Steps

1. Check the Fuses
   Inspect the fuses related to the windshield wipers, Body Control Module (BCM), and Steering Column Control Module (SCCM) in the under-hood fuse box. Replace any blown fuses.
   Tools: Fuse puller or needle-nose pliers (Beginner)
2. Inspect the Wiper Motor Connector
   Unplug the windshield wiper motor. Inspect the pins for green or white corrosion, moisture, or heat damage. This is the primary failure point on Ford Transits.
   Tools: Flashlight (Beginner)
3. Test the Wiper Motor (The 'Tap Test')
   Turn the wipers on. Lightly tap the body of the wiper motor with a wrench handle. If the motor briefly starts working, it has an internal mechanical or brush failure and requires replacement.
   Tools: Wrench or small hammer (Beginner)
4. Isolate the Motor from the Linkage
   If the motor hums but the wipers don't move, disconnect the linkage arm from the motor's output shaft. Turn the wipers on. If the motor shaft spins freely, the mechanical linkage is seized and must be replaced.
   Tools: Socket set, trim removal tools (Intermediate)
5. Test for Power and Ground at the Motor
   With the ignition on, use a multimeter to verify 12-volt power at the main power wire of the wiper motor connector. Verify continuity between the ground wire and a clean chassis ground. Both are required for operation.
   Tools: Multimeter (Intermediate)
6. Scan for Related Codes and Monitor Live Data
   Use an advanced OBD-II scanner to check the SCCM. Code B10AD (Rain Sensor) appearing with B1131 confirms a shared LIN bus wiring fault. Monitor wiper switch PIDs to verify the SCCM registers your switch inputs.
   Tools: Advanced OBD-II Scanner (Intermediate)
7. [PRO TIP] Perform a Voltage Drop Test
   Connect the positive multimeter lead to the battery positive and the negative lead to the motor's power pin (plugged in, wipers turned on). A reading above 0.5 volts confirms a high-resistance fault in the fuse box or wiring harness.
   Tools: Multimeter with back-probe pins (Advanced)
8. [PRO TIP] Check LIN Bus Signal Voltage
   Measure the DC voltage on the LIN wire at the motor connector with the key on. A healthy signal fluctuates rapidly. A steady 12V indicates a short to power; a steady 0V indicates a short to ground or open circuit.
   Tools: Multimeter, Oscilloscope (optional) (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Wiper Switch Status: On (Low, High, or Intermittent) (The code sets the exact millisecond the SCCM attempts to send a command to the wiper motor and receives no valid response.)
• LIN Bus Voltage: 0V or ~12V (Steady) (A healthy bus fluctuates rapidly. A steady 0V proves a short to ground or severed wire, while a steady 12V proves a short to power.)

Related Codes

• B10AD — Rain Sensor Failure. When B1131:08 and B10AD:08 appear together, it confirms a wiring fault on the shared LIN bus, not a failed motor.
• B1131:55 — Indicates 'Not Configured'. The wiper motor or SCCM was replaced but not programmed to the vehicle using a diagnostic scan tool.
• U0140 — Lost Communication With Body Control Module. If present with B1131, the fault is a main network failure or dead BCM, not an isolated wiper issue.
• B130F — Wiper Switch Circuit Short to Ground. Points directly to a failed multifunction switch on the steering column rather than the motor.

Climate & Environmental Factors

• Clogged Cowl Drains: Leaves and debris clog the drains below the windshield. Rainwater backs up and submerges the wiper motor and connector, causing immediate electrical shorts and corrosion.
• Road Salt and Freezing Temperatures: Salt spray penetrates the wiper linkage pivot points, causing them to rust and seize. The frozen linkage forces the wiper motor to draw excessive current, burning out its internal circuit board.

How to Talk to a Mechanic About This Code

Say this: "I have a B1131 code on my Ford, and the wipers only work on high speed. Please inspect the wiper motor connector for corrosion and test for power, ground, and LIN bus signal at the motor before recommending any parts."

Directs the technician to perform logical diagnostic steps rather than immediately replacing the $300 SCCM or multifunction switch.

Avoid saying:

• My wipers are broken, can you fix them?
• Just replace the wiper motor.

Questions to ask before authorizing the repair:

• Did you find corrosion in the connector? Can we splice a pigtail instead of replacing the harness?
• What was the result of the voltage drop test on the power wire?
• Does the quoted replacement part require programming, and is that included in the labor?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended only if the issue requires module programming or is covered by an active recall.
  Best for: Vehicles under warranty., Complex cases requiring SCCM programming., Vehicles covered by recalls 22S71, 24S77, or 24S51.
  Downsides: Highest labor rates., Tendency to replace entire assemblies rather than splicing connectors. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for most B1131 situations. Competent independent shops handle this common Ford failure daily.
  Best for: Out-of-warranty vehicles., Diagnosing common failures like motor burnout or connector corrosion.
  Downsides: May lack the proprietary software to program a new SCCM. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for initial diagnosis. Use only if you have already diagnosed the problem and simply need a motor bolted in.
  Best for: Simple parts replacement like a fuse.
  Downsides: Technicians often lack in-depth electrical diagnostic skills for LIN bus issues., Will likely fire the parts cannon instead of performing a voltage drop test. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 40% of the car's current private-party value, consider selling the car as-is.

• Car worth $5000, fix is $2200: Walk away. The repair cost approaches half the car's value.
• Car worth $15000, fix is $400: Fix it. The repair cost is a small fraction of the value and restores a critical safety function.

What Scan Tool You Need for This Code

Minimum: A scanner capable of reading manufacturer-specific Body Control Module (BCM) and Steering Column Control Module (SCCM) codes.

A basic $20 code reader only checks powertrain (engine) codes. It will report 'No Codes Found' while your wipers remain broken.

Budget: FORScan Lite with OBDLink EX adapter (~$60) — Reads and clears Ford-specific body codes. Views live data PIDs to confirm if the SCCM recognizes wiper switch commands.

Mid-range: Launch X431 Elite for Ford (~$160) — Provides bi-directional control to command the wiper motor on/off directly from the tool, instantly separating a motor failure from a switch failure.

Professional: Autel MaxiCOM MK808S (~$450) — Offers full OE-level diagnostics, bi-directional control, and the ability to perform the 'Wiper Motor Module Initialization' programming step.

Rent vs buy: Auto parts stores do not rent scanners that read body codes. Buying a budget tool like FORScan is mandatory for DIY diagnosis of B1131.

How to Clear the Code After You Fix It

1. Ensure all connectors are securely fastened and the battery is reconnected.
2. Use an OBD-II scan tool to access the Body Control Module (BCM) or SCCM and select 'Clear DTCs'.
3. Cycle the ignition off, then back to the Run position.
4. Operate the windshield wipers through all speeds and test the washer function to verify the repair.

Drive cycle (~5 minutes): A driving cycle is not required. Testing the full functionality of the wiper system while parked is sufficient for the module to verify the repair.

Readiness monitors affected: None

Watch out for:

• Disconnecting the battery will not clear this hard code from the module's non-volatile memory; a scan tool is required.
• Forgetting to perform the 'Wiper Motor Module Initialization' procedure after installing a new motor triggers a B1131:55 code.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• New York: NYS requires an annual safety inspection. Non-functional wipers result in an automatic failure.
• Texas: Vehicles fail the mandatory state safety inspection if wipers are not in good working condition.
• California: Inoperative wipers will cause a failure during required brake/lamp inspections for salvaged vehicles.

Most Commonly Affected Vehicles

• Ford F-150 (2011-2022) — 2021-2022 models are under recall 22S71 for wiper motor failure. 2015-2020 models suffer from wiper linkage corrosion (Recall 24S77).
• Ford Transit (2015-2019) — Notorious for water intrusion into the driver's side wiper motor connector, causing severe pin corrosion and triggering B1131.
• Ford Bronco Sport / Maverick (2023-2024) — Included in Ford recall 24S51 for windshield wiper motors failing due to water intrusion.
• Ford Focus (2012-2018) — Subject to recall 12S29 for a missing seal plug on the passenger side wiper motor connector, allowing water intrusion.
• Honda Odyssey / Accord / CR-V (2008-2017) — On Hondas, B1131 indicates a 'Front Passenger's Power Window Motor B-phase Pulse Malfunction', completely unrelated to wipers.
• Nissan Pathfinder / Micra (2009-2019) — B1131 indicates a short in the 'Front RH side air bag module', a critical safety system fault.

Manufacturer-Specific Notes

• Ford/Lincoln/Mercury: B1131 almost exclusively refers to a windshield wiper motor communication failure. Ford has issued at least four major recalls (22S71, 24S77, 24S51, 12S29) related to this exact system.
• Honda: B1131 indicates a fault in the front passenger's power window motor circuit. It has zero connection to the windshield wipers.
• Nissan: B1131 points to a short in the Right-hand Side Impact Airbag Module or a 4WD Mode Select failure, depending on the specific model.

Real Owner Stories

2018 Ford F-150: Misdiagnosis wastes money

Wipers only worked on high speed. Scan revealed code B1131:08.

What they tried:

1. Replaced the multifunction wiper switch ($80) - no change.
2. Replaced the SCCM with a used part ($150) - no change.
3. Finally tested the motor directly.

Outcome: The owner replaced the windshield wiper motor, instantly resolving the problem.

Lesson: Do not fire the parts cannon. The motor's internal electronics are the most common failure point. Test power and ground at the motor before replacing upstream switches.

2015 Ford Transit: The classic corroded connector

Wipers and washer fluid pump died simultaneously.

What they tried:

1. Checked fuses, all intact.
2. Inspected the multiplug on the driver's side wiper motor.
3. Found the connector packed with green corrosion and standing water.

Outcome: Spliced in a new $40 connector pigtail and applied dielectric grease. Full function restored.

Lesson: On a Ford Transit, visually inspect the driver's side wiper motor connector before doing anything else. It is the definitive weak point.

2016 Ford Mustang: Aftermarket accessory takes down the network

Front parking sensors and windshield wipers failed on the same day.

What they tried:

1. Scanned vehicle, found B1131:08 (Wiper Motor) and B10AD:08 (Rain Sensor).
2. Traced wiring and found aftermarket parking sensors tapped into the rain sensor's power fuse.

Outcome: The faulty aftermarket sensor shorted the shared LIN bus. Removing the accessory restored the wipers.

Lesson: If multiple components on the same data bus fail simultaneously, suspect a wiring short. Always check aftermarket electronics first.

How to Prevent This Code From Triggering

• Clean cowl drains biannually. (Twice a year (Spring and Fall)) — Prevents rainwater from pooling in the cowl and submerging the wiper motor, which is the #1 cause of B1131 corrosion failures.
• Apply dielectric grease to the wiper motor connector. (Anytime the connector is disconnected.) — Seals out moisture and prevents the green/white pin corrosion that blocks the LIN bus communication signal.
• Lubricate wiper linkage pivot points. (Every 2 years in snow-belt regions.) — Prevents the pivot points from seizing due to road salt, eliminating the mechanical strain that burns out wiper motors.

Frequently Asked Questions

What does the ':08' at the end of the code mean?

The ':08' is a failure type byte indicating a 'Bus Signal/Message Failure'. It confirms the control module cannot communicate with the wiper motor over the data network.

Why do my wipers only work on the highest speed setting?

High speed is a fail-safe mode wired on a separate, direct electrical circuit. Low, intermittent, and park functions rely on the failed LIN bus communication signal.

Why did my wipers stop working right after a windshield replacement?

Glass technicians often forget to reconnect the rain sensor. Because the rain sensor and wiper motor share the same communication line on many vehicles, leaving it unplugged triggers code B1131.

My mechanic replaced the wiper motor, but the code is still there. What now?

The fault lies in the wiring path or the control module. You must perform a voltage drop test to check for high resistance in the fuse box, or verify the new motor was properly programmed (B1131:55).

Can I just replace the corroded connector instead of the whole wiring harness?

Yes. Aftermarket connector 'pigtails' allow you to cut off the corroded plug and splice in a new one. This saves hundreds of dollars in parts and labor compared to replacing the main harness.

Key Takeaways

• On Ford vehicles, code B1131 almost exclusively indicates a windshield wiper motor communication failure, while on Hondas (2008-2017), it points to a front passenger power window fault.
• If your Ford's wipers only function on the high-speed setting, the LIN bus communication line has failed, triggering the system's hardwired fail-safe mode.
• Before buying a $200 replacement motor, inspect the driver's side wiper motor connector for green or white water corrosion, which is the root cause in over 50% of Ford Transit cases.
• A voltage drop test reading greater than 0.5 volts on the motor's power wire confirms a high-resistance fault in the fuse box or wiring harness, meaning a new motor will not fix the problem.
