OBD-II Code B1045: Climate Control, Audio Circuit, or SRS Airbag Fault

What Does B1045 Mean?

B1045 is a manufacturer-specific body trouble code with three distinct and common meanings. For many Chrysler, Dodge, Jeep, and Mitsubishi vehicles, it indicates the car's computer has detected a problem with a blend door actuator, a small motor controlling air temperature or direction in the HVAC system. For General Motors and some Ford, Hyundai, and Kia vehicles, this code points to an electrical fault, such as an open or short, in the rear left speaker circuit. For many Nissan vehicles, this code indicates a severe internal fault within the Supplemental Restraint System (SRS) airbag control module, which is a significant safety concern requiring immediate attention.

Technical definition: The official Society of Automotive Engineers (SAE) definition for B1045 varies significantly by manufacturer. For Chrysler/Dodge/Jeep, it is 'Panel Mode Door 1 Travel Range Too Large', indicating the climate control actuator's pulse count has exceeded the expected range. For General Motors, it is 'Audio Output 3 (Left Rear) Circuit', indicating an electrical fault like an open or short. Suffixes like B1045-02 (short to ground) or B1045-04 (circuit open) provide more detail. For Nissan, it is 'DIAGNOSIS SENSOR UNIT', pointing to a fatal internal error or stored crash data within the SRS (airbag) control module itself.

Can I Drive With B1045?

Yes, But With Caution. For HVAC or audio faults, driving is safe, though comfort features will be compromised. However, on Nissan vehicles, this code signifies a CRITICAL fault in the airbag system. The airbags will NOT deploy in an accident, drastically increasing the risk of serious injury or death. Do not drive a Nissan with this code until it has been professionally inspected and repaired.

Common Causes

• Internal SRS Module Failure (Nissan) (Very Common For Nissan) — On Nissan vehicles, this code means the SRS module failed its internal self-test or locked crash data. This requires a specialist reset or module replacement.

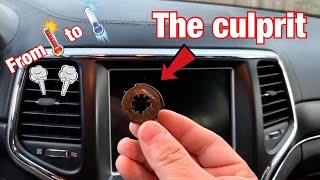

• Failed Blend Door Actuator (Very Common) — The small electric motor or plastic gears inside the actuator break from age and constant use. This is the most frequent cause for HVAC-related B1045 codes.
• Failed Speaker or Speaker Circuit (Common) — For GM audio faults, the voice coil in the rear left speaker shorts or opens. This is a highly documented failure on these vehicles.
🎬 Watch this guide on troubleshooting GM speaker and circuit issues.
• Damaged Wiring or Loose Connectors (Common) — Wires leading to the actuator or speaker pinch, fray, or corrode, causing a short or open circuit. Door jambs are notorious for broken speaker wires.
• Damaged or Obstructed Blend Door (Common) — The plastic door that the actuator moves warps, breaks, or jams from debris inside the HVAC housing. The actuator tries to move the door but fails, triggering the fault.
• Loss of Calibration / Software Glitch (Less Common) — After a battery replacement or voltage drop, the HVAC module forgets the proper open and closed positions for the blend doors. A module software update or recalibration is required.
• Failed HVAC Control Module or Radio/Amplifier (Less Common) — The computer module controlling the actuator or audio system fails internally. Suspect this only after verifying the actuator, door, and wiring.

Symptoms

• Airbag warning light is on — On affected Nissan models, the primary and most serious symptom is an illuminated SRS/airbag warning light on the instrument cluster, indicating a critical safety system failure.
• Temperature stuck on hot or cold — You cannot adjust the air temperature; it blows only hot or only cold regardless of the setting.
• Clicking or tapping noise from the dashboard — A repetitive clicking sound is heard from behind the dash as the broken actuator continuously tries to move the blend door.
• No sound from the rear left speaker — If the code is for an audio fault, the speaker on the rear left side of the car will not produce any sound.
• Air blows from the wrong vents — The system cannot direct air to the correct location (e.g., it blows from the defrost vents when you select the floor vents).
• Inconsistent or erratic HVAC operation — The temperature or airflow changes randomly or fails to respond to commands intermittently, suggesting a failing control module or wiring issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Reset or Replace SRS Airbag Module (Nissan) — Parts: $50-$800, Labor: $100-$300, ~1.0-2.0 hr book time (Professional)
• Replace Blend Door Actuator — Parts: $30-$100, Labor: $400-$900, ~4.5-7.0 hr book time (Intermediate)
• Replace Rear Left Speaker — Parts: $30-$100, Labor: $80-$150, ~0.8-1.2 hr book time (Beginner)
• Repair Damaged Wiring or Connector — Parts: $10-$50, Labor: $100-$300, ~1.0-2.5 hr book time (Intermediate)
• Repair or Replace HVAC Housing/Door — Parts: $100-$400, Labor: $800-$1500, ~8.0-12.0 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Used parts are a viable option for speakers if tested. For blend door actuators, new is strongly recommended due to high labor costs for replacement. For SRS modules, a reset service on your original module is preferred over buying a used one, which is often VIN-locked or contains crash data.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• For speakers, verify impedance (ohms) matches the factory unit to avoid audio issues.
• For SRS modules, never buy a used one from a vehicle that was in an accident. Ensure the part number is an exact match.
• For blend door actuators, avoid used parts entirely. The labor to replace it is too high to risk using a part with an unknown lifespan.

Decision logic:

• If The part is a blend door actuator in a difficult-to-access location → buy a new OEM or high-quality aftermarket part. The risk of repeat labor cost outweighs the part savings.
• If The part is an SRS module with crash data (Nissan B1045) → use a mail-in reset service for your original module. It is cheaper than a new module and safer than a used one.
• If The part is a rear speaker (GM B1045) → a tested, used OEM speaker is a good budget option. Aftermarket speakers require wiring adapters.

Warranty tradeoff: Used parts typically have a 30-90 day warranty. Aftermarket new parts often have a 1-year to lifetime warranty. A mail-in SRS module reset service usually comes with a lifetime guarantee on the service.

Worst-case if a used part fails: $500-$900 if a used blend door actuator fails, requiring a repeat of the dashboard removal labor.

What Happens If You Wait — Timeline

1. 0-1 month: Code is set. Occasional clicking from the dash as the actuator's broken gear tries to engage. Temperature control becomes intermittent or slightly off. (MPG impact: 0%% · Added cost: $0)
2. 1-3 months: Clicking becomes constant whenever the ignition is on. Temperature is now stuck on full hot or full cold. The constant clicking is a significant annoyance. (MPG impact: 0%% · Added cost: $0-$200 (If the actuator continues to run after the car is off, it drains the battery))
3. 3+ months: The actuator motor burns out from constant attempts to move, stopping the clicking. Small plastic gear teeth from the failed actuator fall into the HVAC housing, potentially jamming other blend doors or falling into the blower motor, causing a much more expensive repair. (MPG impact: 0%% · Added cost: $200-$700 (If blower motor or another part of the HVAC case is damaged))
4. Immediate: Code is set. There is no sound from the rear left speaker. The fault (open or short) is permanent. (MPG impact: 0%% · Added cost: $0)
5. Ongoing: The condition does not degrade further. The speaker simply does not work. In rare cases, a shorted speaker stresses the amplifier circuit in the radio over a very long time, but modern head units have protection circuitry to prevent this. (MPG impact: 0%% · Added cost: $0)
6. Immediate: Code B1045 is set, and the airbag warning light is illuminated. The entire Supplemental Restraint System (SRS) is disabled as a fail-safe measure. (MPG impact: 0%% · Added cost: Immeasurable (Risk of serious injury or death in an accident where airbags would have deployed))
7. Ongoing: The critical safety failure persists. The system does not degrade; it is already in a complete failure state. The vehicle will not pass a safety inspection in many states. The only progression is the continued risk to occupants with every trip. (MPG impact: 0%% · Added cost: Immeasurable (Risk continues))

Cost of Not Fixing It

• Immediate: For Nissan SRS faults, the airbag system is disabled and will NOT deploy in an accident. This represents a critical and immediate safety risk. (Added cost: Immeasurable (risk of serious injury or death))
• 0-6 months: For HVAC faults, a continuously clicking actuator drains the battery if it continues to run after the car is off. Primarily a comfort and annoyance issue. (Added cost: $0 - $200 (for a new battery if drained completely))
• 6+ months: For audio faults, there is no risk of further damage or cost; the only consequence is the permanent loss of sound from that speaker. For HVAC faults, a broken piece from the actuator or door falls into the blower motor, causing more significant damage. (Added cost: $0 (Audio) or $200-$500 (if blower motor is damaged))

Diagnosis Steps

1. Confirm the Symptom and Vehicle System
   First, identify which system is affected. Is the airbag light on (common in Nissans)? Is there no sound from the rear left speaker (common in GMs)? Or is the climate control malfunctioning with clicking noises (common in Chrysler/Dodge/Jeep)? Confirming the specific symptom is the most critical first step.
   Tools: None (Beginner)
2. Scan for All Codes with a Capable Scanner
   Use an OBD-II scanner that reads Body (B), Chassis (C), and Network (U) codes to confirm B1045 is present. Look for other related codes and suffixes (e.g., B1045-04 for 'open circuit') as they provide crucial diagnostic clues.
   Tools: OBD-II Scanner (with Body/SRS capability) (Beginner)
3. Attempt HVAC Recalibration (HVAC Faults)
   For climate control issues, a recalibration fixes the problem, especially after a battery change. Disconnect the battery for 30 minutes, use a specific button combination on the climate controls, or command a recalibration with a professional scan tool.
   Tools: Professional Scan Tool (recommended) (Intermediate)
4. Test the Actuator or Speaker
   For HVAC issues, remove the actuator but leave it plugged in. Change temperature settings and watch if it tries to rotate. If it clicks, jumps, or doesn't move, the actuator has failed. For audio issues, test the speaker with a multimeter (checking for 2-8 ohms resistance) or connect a known good speaker to the wiring.
   Tools: Basic hand tools, Digital Multimeter (Intermediate)
5. Inspect Wiring and Connectors
   Visually inspect the wiring harness and connector for the affected component (blend door actuator, rear left speaker, or SRS module). Look for any signs of damage, corrosion, or looseness. For speaker issues, pay close attention to the wiring in the flexible boot between the door and the car's body.
   Tools: Flashlight, Trim removal tools (Intermediate)
6. Pro Tip: Test GM Audio Circuit Voltage (Audio Faults)
   For GM audio faults, disconnect the rear left speaker. Turn the radio on to a moderate volume. Using a digital multimeter, test for DC voltage between each of the two speaker wires and a known good ground. You should see a DC bias voltage of approximately 5.0-7.5V. Then, switch the multimeter to AC voltage. You should see a fluctuating AC voltage that changes with the music. If DC voltage is missing or incorrect, or there is no AC signal, the fault is in the wiring or the radio/amplifier, not the speaker.
   Tools: Digital Multimeter, Trim removal tools (Professional)
7. Advanced: Test Speaker Resistance (Audio Faults)
   With the ignition OFF and the speaker disconnected, use a multimeter set to Ohms (Ω) to measure the resistance across the speaker's two terminals. A good speaker typically measures between 2 and 8 ohms. A reading of infinite resistance (OL) indicates an open circuit (broken voice coil), while a reading near zero ohms indicates a short circuit. In either case, the speaker has failed and must be replaced.
   Tools: Digital Multimeter (Advanced)
8. Pro Tip: Monitor Live Actuator Data (HVAC Faults)
   For Chrysler/Dodge/Jeep HVAC faults, use a scan tool to view live data for the 'Panel Mode Door 1' position. As you command changes, watch the feedback value. If the value doesn't change, or if it jumps erratically, it confirms a problem with the actuator's internal position sensor or wiring. If the value changes smoothly but the code still sets, it points towards a mechanical binding of the door itself.
   Tools: Professional Scan Tool with Live Data (Professional)
9. Check the Blend Door Manually
   After removing the actuator, try to move the blend door linkage by hand. It should move smoothly through its range of motion. If it feels stuck, jammed, or broken, the problem is inside the HVAC case, which is a much more involved repair.
   Tools: None (after actuator is removed) (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• System Self-Test: Key-On, Engine-Off (KOEO) (For Nissan SRS faults, the code is set immediately upon vehicle power-up when the SRS module performs its initial self-diagnostic check.)
• HVAC Command Change: Any change to temperature or mode (For Chrysler/Dodge/Jeep HVAC faults, the code is set when the user adjusts a climate control setting, and the module's commanded actuator movement does not match the feedback pulse count.)
• Radio/Audio System Status: Radio ON (For GM audio faults, the code is set when the radio is powered on and the head unit or amplifier performs a circuit integrity test on the speaker outputs and detects an open or short.)
• Ignition Status: RUN (The fault is continuously monitored whenever the ignition is on and the respective module (SRS, HVAC, or Radio) is powered and active.)

Related Codes

• B1025, B1035, B1055 — On GM vehicles, these are the codes for the other audio output circuits (B1025: Left Front, B1035: Right Front, B1055: Right Rear). The diagnostic process is identical for each. If multiple codes appear together, it strongly suggests a failure of the radio or amplifier rather than individual speaker circuits.
• B-codes with circuit suffixes (e.g., B1045-02, B1045-04) — Suffixes like '-02' (Short to Ground) or '-04' (Circuit Open) provide specific electrical details. They confirm the problem is in the wiring or a component's electrical properties, helping to differentiate between an electrical fault (e.g., shorted speaker wire) and a mechanical one (e.g., jammed blend door).
• U-codes (e.g., U0140, U0164) — Communication codes indicate a module is not communicating with the vehicle's network. If a U-code for the HVAC Module, BCM, or Radio appears with B1045, the U-code is the primary fault. You cannot trust the B1045 code until communication is restored, as it is a symptom of the module being offline. Diagnose the U-code first.
• B1049 / B1054 (Nissan) — On Nissan vehicles, these codes for 'Driver Airbag Module Open' often appear alongside B1045. This combination strongly points to a fault in the steering column, most commonly a broken clock spring (spiral cable) that connects the steering wheel controls and airbag to the rest of the car.

Climate & Environmental Factors

• Extreme Temperature Cycles: For HVAC faults, repeated cycling between hot and cold makes the plastic gears inside blend door actuators brittle, leading to premature failure. This issue is more prevalent in climates with very hot summers and cold winters.
• High Humidity / Water Ingress: For audio faults, moisture inside the car door causes corrosion on speaker terminals and wiring. This is exacerbated in humid climates or if door drain holes are clogged. Coastal areas with salt air accelerate this process significantly.

How to Talk to a Mechanic About This Code

Say this: "{'nissan_srs': "I have a B1045 code and an airbag light on my Nissan. I understand this points to the internal 'Diagnosis Sensor Unit'. I need a diagnostic to confirm if the module has failed or just needs a reset.", 'chrysler_hvac': "I have a B1045 code on my Chrysler/Dodge/Jeep, and I hear a clicking in the dash. I suspect a failed blend door actuator. I'd like a diagnosis to confirm which actuator has failed and a quote for replacement.", 'gm_audio': "I'm getting a B1045 code on my GM vehicle, and the rear-left speaker is out. I need a diagnosis to determine if the fault is the speaker itself, the wiring in the door jamb, or the radio."}"

This language signals to the shop that you are informed about the specific nature of the B1045 code for your vehicle. It focuses the technician's diagnostic time, reducing your cost and preventing them from suggesting unrelated or unnecessary repairs.

Avoid saying:

• 'My airbag light is on.' (Too vague, invites expensive exploratory diagnosis)
• 'My heat is broken.' (Could be anything from a fuse to a heater core)
• 'Just fix whatever is wrong with it.' (Gives the shop a blank check to replace parts)

Questions to ask before authorizing the repair:

• For Nissan SRS: Have you confirmed the module is the issue? Is a reset possible, or does it require a full replacement? If replacing, is the new module programmed to my car's VIN?
• For Chrysler HVAC: Did you visually confirm the blend door itself moves freely? This confirms the actuator is the sole point of failure. What is the warranty on the new actuator and the labor?
• For GM Audio: Did you test for both DC bias voltage and an AC signal at the speaker connector? This rules out a simple wiring break before I pay for a new radio or speaker.

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended for Nissan SRS issues due to safety and programming needs. A pricey but safe option for complex HVAC work.
  Best for: Nissan SRS faults, especially if the vehicle is under any potential warranty or service campaign., Complex HVAC repairs on newer vehicles that require full dashboard removal and OEM-specific procedures.
  Downsides: Highest labor rates, often 1.5-2x more than independent shops., Defaults to expensive module replacement over a more affordable reset. (Typical cost: +50% vs. baseline)
• Independent Shop: Best overall fit for GM audio and Chrysler HVAC faults. A good independent shop diagnoses and repairs these common issues cost-effectively.
  Best for: GM audio faults (speaker/wiring diagnosis)., Chrysler/Dodge/Jeep blend door actuator replacements., Out-of-warranty vehicles where cost is a primary concern.
  Downsides: Quality varies; ensure the shop has a scanner capable of reading Body ('B') and SRS codes., Lacks the latest software for module programming on very new vehicles. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosing any B1045 code. Only suitable for a simple part swap (like a speaker) that you have already confirmed is the problem.
  Best for: Simple, pre-diagnosed speaker replacement for GM audio fault.
  Downsides: Technicians lack experience with Body/SRS codes and complex diagnostics., High pressure to upsell unnecessary services like fluid flushes., Unlikely to perform dashboard removal or SRS module work. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the car's private-party value (e.g., from Kelley Blue Book), you should seriously consider selling the car as-is or trading it in.

• Car worth $4000, fix is $1500: Fix it. The cost is ~38% of the vehicle's value, which is below the threshold.
• Car worth $3000, fix is $1800: Walk away. The repair cost is 60% of the car's value. This is a bad investment, especially on an older vehicle.
• Car worth $15000, fix is $1200: Fix it. The cost is low relative to the car's value. For a Nissan SRS fault, this repair is critical for safety.

What Scan Tool You Need for This Code

Minimum: A scanner that reads and clears Body (B) codes, specifically for the SRS/Airbag and HVAC modules. A basic engine code reader will NOT see this code.

A standard $20 scanner from a parts store typically only reads Powertrain ('P') codes related to the check engine light. B1045 is a Body ('B') code stored in a separate computer module (SRS, BCM, or HVAC). Without a capable scanner, you won't even know the code is there.

Professional: Autel MaxiCOM MK808S / MK900BT or Launch X431 series (~$450-800) — Provides full, OE-level bidirectional controls, live data graphing, and special functions. This level of tool is required for programming a new SRS module to the vehicle's VIN after a replacement, a step that is mandatory for Nissan repairs.

How to Clear the Code After You Fix It

1. For HVAC/Audio faults, use a standard OBD-II scan tool to clear Body (B) codes after the repair is complete.
2. For Nissan SRS faults, the code cannot be cleared with a standard scanner. The module must be sent to a specialist for a reset or be replaced and programmed by a dealer.
3. Disconnecting the battery for 30 minutes clears HVAC codes but is not a guaranteed fix and requires a recalibration procedure afterward.

Drive cycle (~5 minutes): A traditional drive cycle is not required for B-codes. The code will either be cleared and stay off if the repair was successful, or it will return immediately upon the next system self-test (e.g., turning the key on for SRS, turning the radio on for audio, or adjusting the climate controls for HVAC).

Readiness monitors affected: None

Watch out for:

• Attempting to clear a Nissan SRS code with a standard scanner fails; the fault is stored in non-volatile memory.
• Clearing the code without fixing the underlying mechanical or electrical problem results in the code returning instantly.
• Disconnecting the battery to clear an HVAC code causes the module to lose its calibration, requiring a specific recalibration procedure with a scan tool or button combination.

Will This Fail Emissions / State Inspection?

No — by itself this code doesn't fail OBD inspection (but it can keep readiness monitors from setting, which causes a separate fail).

• California: An airbag light will NOT fail the emissions (smog) check. However, it is noted on a separate vehicle safety inspection.
• New York: An illuminated airbag light is noted as an advisory during the safety inspection but is NOT a cause for failure.
• Texas: An illuminated airbag light is NOT a cause for failure in the Texas state safety inspection. The only light that causes a failure is the Check Engine Light.

Most Commonly Affected Vehicles

• Chrysler / Dodge / Jeep Ram 1500/2500, Grand Cherokee, 300, Durango (2005-2015) — Commonly logs B1045 for 'Panel Mode Door 1 Travel Range Too Large' due to actuator failure. On 2005 Grand Cherokees, check for TSBs related to HVAC control logic before replacing parts. For 2015 models, a PCM software flash (TSB 18-055-16) addressed various DTCs and is relevant if other codes are present.
• Chevrolet / GMC Silverado, Sierra, Tahoe, Suburban (2003-2014) — On these GM trucks and SUVs, B1045 almost always points to an 'Audio Output 3 (Left Rear) Circuit' fault. The cause is typically a failed speaker, damaged wiring in the door jamb, or a faulty radio/amplifier.
• Nissan Rogue, Titan, Murano, Qashqai, Sentra, Altima (2006-2020) — On these models, B1045 is a critical code for the SRS (Airbag) system, defined as 'DIAGNOSIS SENSOR UNIT'. It indicates an internal module fault, often after an accident or voltage fluctuation. It requires a professional reset or replacement of the module. This is often seen with other SRS codes like B00A0-00.
• Ford Explorer, F-150 (2004-2014) — Ford models are prone to blend door actuator failures. On the Explorer, some actuators are notoriously difficult to access, leading to high labor costs. The code also relates to the audio DSP module on some models.
• Mitsubishi L200, Outlander, Pajero (2007-2016) — These models define the code as 'Motor drive system for the air mixing damper' and have known issues with the actuator motor or its internal potentiometer failing. Diagnosis involves checking motor and potentiometer circuits per the service manual.
• Hyundai / Kia Various (2005-2016) — While not as common as on other brands, when B1045 appears on Hyundai or Kia vehicles, it typically follows the generic definition of an 'Audio Output 3 (Left Rear) Circuit' fault, similar to GM vehicles.
• Mazda Various (2007-2024) — On many Mazda vehicles, B1045 is also associated with the 'Left Rear Audio Output Circuit', often with suffixes like B1045:01 (short to battery) or B1045:04 (open circuit). The diagnostic approach is similar to the GM fault.

Manufacturer-Specific Notes

• General Motors (Chevrolet, GMC, Cadillac): For GM, B1045 is almost exclusively an audio system code for the 'Left Rear Audio Output 3 Circuit'. The problem is usually a bad speaker, damaged wiring in the door jamb, or a faulty radio. The official diagnostic procedure involves checking the DC bias voltage (5.0V-7.5V) and AC signal on the speaker circuit. No widespread recalls are active for this specific issue.
• Chrysler, Dodge, Jeep, Ram: These brands use a very specific definition: 'Panel Mode Door 1 Travel Range Too Large'. The control module counts the electrical pulses as the actuator moves the door. If the pulse count exceeds the expected range, it assumes the door or linkage is broken, setting the code. The official repair procedure often begins with a forced recalibration via a scan tool.
• Nissan: This is the most critical variation. B1045 on a Nissan indicates an internal fault in the SRS Airbag Control Module ('Diagnosis Sensor Unit'). It means the module failed a self-test or stored crash data. It is a major safety issue, as airbags are disabled. No TSB is issued for the code itself, as the service action is to reset or replace the module.
• Mitsubishi: The definition is 'Motor drive system for the air mixing damper', which points directly to a failure in the actuator motor or its associated potentiometer, which reports the position. The factory service manual provides a step-by-step electrical test for the motor and wiring harness.

Real Owner Stories

2013 Dodge Grand Caravan ~110K miles - HVAC Fault

Owner heard a constant, loud clicking noise from the passenger side dashboard. The air was stuck blowing cold, and changing the temperature dial did nothing.

What they tried:

1. Initially ignored the issue, but the clicking became too annoying.
2. Searched online forums and identified the sound as a classic blend door actuator failure.
3. Attempted a battery-disconnect reset procedure, but the clicking returned immediately.

Outcome: The owner located the failed actuator behind the glove box. By purchasing a Dorman 604-029 actuator for ~$40 and following a YouTube tutorial, they were able to replace the part themselves in under an hour with basic hand tools. The new actuator resolved the clicking and restored full temperature control.

Lesson: For Chrysler/Dodge vehicles, a clicking dash is almost certainly a blend door actuator. Before assuming a complex repair, check if the specific actuator is one of the easily accessible ones behind the glove box, which makes it a simple and cheap DIY fix.

2016 Nissan Rogue at 75K miles - SRS Fault

The airbag warning light came on and stayed on. A scan with a basic OBD-II tool showed no codes. The owner had not been in any accident.

What they tried:

1. Took the vehicle to an auto parts store for a free scan, which also failed to read SRS codes.
2. Visited an independent mechanic who used a professional scanner and pulled code B1045 - 'Diagnosis Sensor Unit'.
3. The mechanic quoted over $1,200 to replace the SRS module with a new one from the dealer.

Outcome: Feeling the quote was too high, the owner researched B1045 for Nissans and discovered mail-in reset services. They removed the SRS module themselves (disconnecting the battery first), mailed it to a service like Safety Restore for ~$60, and received it back in under a week. After reinstalling the original, reset module, the airbag light went off and stayed off.

Lesson: On a Nissan, B1045 almost never means you need a brand new SRS module unless it is physically damaged (e.g., water). A professional reset of your original module is dramatically cheaper ($60 vs $1200+), faster than waiting for a dealer part, and avoids VIN programming issues.

2008 GMC Sierra 1500 ~150K miles - Audio Fault

The owner noticed the rear left speaker was not producing any sound. Fading the audio balance all the way to the rear left confirmed it was completely dead. A scan with a capable tool revealed code B1045.

What they tried:

1. Assumed the speaker was blown and bought a new aftermarket speaker.
2. After installing the new speaker, there was still no sound.
3. Misdiagnosing the problem, they then suspected the radio head unit was bad and began looking for expensive replacements.

Outcome: Before buying a new radio, a friend with a multimeter helped diagnose. They found the wiring in the flexible rubber boot between the driver's side rear door and the truck body had broken from years of opening and closing. The wire was broken inside the insulation and not visibly obvious. They spliced the broken wire using a butt connector and heat shrink. The original speaker (which was never broken) began working immediately.

Lesson: Don't assume a silent speaker is a 'blown' speaker. For GM audio codes like B1045, the most common failure points are the speaker itself OR the wiring in the door jamb. Always test the wiring with a multimeter for continuity and voltage before spending money on parts.

How to Prevent This Code From Triggering

• Cycle HVAC controls regularly (Weekly) — For HVAC faults, regularly moving the temperature from full hot to full cold and changing vent modes keeps the blend door actuators moving, preventing the internal gears and linkages from seizing up due to inactivity.
• Replace the cabin air filter (Every 12,000-15,000 miles or annually) — A clogged cabin air filter restricts airflow, forcing the HVAC system to work harder. This strains the blower motor and allows debris to enter the HVAC housing, where it jams blend doors.
• Protect door speaker connections (During any speaker installation or door panel service) — For audio faults, moisture in doors corrodes speaker terminals. Apply dielectric grease to connectors and consider installing foam baffles or a plastic 'umbrella' over the speaker magnet to deflect water drips from the window channel.
• Use a battery tender during storage or long periods of inactivity (Whenever the vehicle is parked for more than 2-3 weeks) — Sudden voltage drops or a dead battery causes electronic modules, particularly HVAC and SRS controllers, to lose calibration data or store spurious fault codes. A tender keeps voltage stable, preventing these glitches.
• Operate climate controls gently (Daily habit) — Avoid rapidly spinning temperature or mode dials. While the controls are electronic, gentle operation reduces unnecessary, rapid cycling of the blend door actuators, potentially extending the life of their plastic gears.

Frequently Asked Questions

I have a Nissan and got code B1045, but my heat and radio work fine. What's wrong?

On your Nissan, B1045 indicates a critical fault within the SRS (Airbag) control module, not the climate or audio systems. Your airbag warning light will illuminate, and the airbag system is completely disabled. This safety-critical fault requires immediate professional diagnosis or a specialized module reset.

I replaced the blend door actuator, but the clicking came back. What did I do wrong?

First, the underlying problem might be a broken or jammed blend door inside the HVAC housing, which is a much larger repair. Second, inexpensive aftermarket actuators often fail within months of installation. Always check the door's movement manually before installing a new, high-quality OEM actuator.

Can I just ignore code B1045?

If it is an HVAC or audio fault, you can ignore it if you tolerate compromised climate control or a dead rear speaker. However, if it is an airbag code on a Nissan, you absolutely must not ignore it. Your vehicle's primary safety system is disabled and will not function in a crash.

Why is the repair cost for a blend door actuator so high?

The actuator itself is usually inexpensive ($30-$100), but its location is often buried deep inside the dashboard. On many vehicles, the entire dash must be removed to access it. This requires many hours of professional labor, leading to bills exceeding $500.

Can I replace a blend door actuator myself?

It depends entirely on the actuator's location. If the actuator is accessible by simply removing the glove box, a DIYer can replace it with basic tools in under an hour. Search for your specific make and model online to determine the actuator's location before attempting the repair.

Will resetting the code fix the problem?

No, clearing the code will not fix the underlying mechanical or electrical fault. The code returns as soon as the system runs its self-test again, usually right after you start the car. For a Nissan SRS fault, a simple scanner reset will not work at all; it requires a specialized service.

My battery died and now I have this code. Are they related?

Yes, a dead battery causes the HVAC module to lose its calibration settings for the blend doors. Try a forced recalibration procedure using a scan tool or specific climate control button combination first. For Nissan SRS faults, low voltage events sometimes trigger stored faults, but they usually indicate a real issue requiring a module reset.

What is the difference between B1045 and P1045?

The first letter dictates the system. 'B' codes refer to the Body Control Module (BCM) and related systems like HVAC, audio, and airbags. 'P' codes, like P1045, refer to the Powertrain (engine and transmission) and represent completely different faults.

Key Takeaways

• Code B1045 has three distinct manufacturer meanings: a critical SRS airbag failure on Nissans, a broken HVAC blend door on Chrysler/Dodge/Jeep, or a dead rear-left speaker on GM vehicles.
• Never ignore B1045 on a Nissan vehicle, as it indicates a fatal internal SRS module error that completely disables the airbags until professionally reset for $50-$100 or replaced.
• For Chrysler, Dodge, and Jeep vehicles, B1045 means a failed blend door actuator, a repair where a $40 part often requires $500 to $900 in labor due to dashboard removal.
• Before replacing parts for a GM audio B1045 code, test the rear-left speaker connector for a 5.0V-7.5V DC bias voltage to rule out a broken wire in the door jamb.
