B0074 on 2009-2012 Buick Enclave: Passenger Airbag Sensor Fault Causes and Fixes

What's Unique About the 2009-2012 Buick ENCLAVE

The first-generation Buick Enclave and its GM Lambda platform siblings are particularly sensitive to objects placed on the passenger seat. GM issued a specific Technical Service Bulletin (TSB #08-09-41-007I) for these vehicles, noting that electronic devices like laptops, cell phones, or even large liquid containers can interfere with the PPS's capacitance sensor, triggering a B0074 0F code and causing the seatbelt chime to activate. This is a distinct characteristic owners should be aware of before assuming a component has failed. The electronic device does not necessarily need to be turned on to cause this condition.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• "Service Airbag" message on the driver information center (DIC)

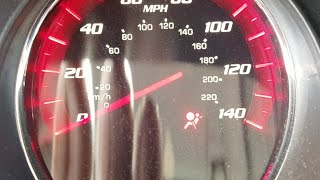

• Airbag warning light illuminated on the instrument panel
• Passenger airbag status indicator shows "OFF" even with an adult in the seat
• Intermittent seat belt reminder chime when the passenger seat is empty but has objects on it

Most Likely Causes

1. Faulty Passenger Presence System (PPS) Sensor Mat 🔴 High Probability The sensor mat is a flexible printed circuit embedded in the seat foam. A common failure, documented in TSBs for similar GM vehicles, is a sharp crease developing in the sensor's tail where it passes through the seat cushion. This crease can be caused during the seat's factory assembly. Over time, with passenger ingress/egress and knee-loading, the flexing at this crease causes an open or high-resistance fault in the printed circuit.
   How to confirm: Using a GM-compatible scan tool, check for B0074 0D (high resistance) or B0074 0E (low resistance). The definitive test involves removing the seat cushion and physically inspecting the sensor mat and its wiring tail for sharp creases, pinching, or other damage.
   Typical fix: Replace the passenger presence sensor mat. This part is integrated with the lower seat cushion foam, requiring the entire cushion to be replaced. The seat must be removed and its upholstery taken off to perform the replacement. 🎬 Watch: Step-by-step guide to replacing the passenger presence sensor. An alternative is to install an aftermarket emulator module which bypasses the sensor.
   Est. part cost: $800-$1200 for an OEM seat cushion with integrated sensor.
2. Electronic Devices or Conductive Objects on Passenger Seat 🟡 Medium Probability As detailed in TSB #08-09-41-007I, the PPS in these vehicles uses a capacitance-based sensor that is sensitive to interference. Laptops, cell phones, audio cables, and even diagnostic scan tools resting on the seat can trigger an erratic reading (B0074 0F). The device does not need to be powered on to cause the interference.
   How to confirm: Remove all objects from the front passenger seat. Clear the DTCs using a scan tool. If the code does not return after several ignition cycles, the object was the cause.
   Typical fix: No parts replacement is needed. Advise the vehicle owner to avoid placing such objects on the passenger seat.
   Est. part cost: $0
3. Damaged Wiring or Loose Connectors ⚪ Low Probability Wiring under the seat is susceptible to damage from items stored under it or from repeated seat movement. GM also issued TSB #08-09-41-002E for this platform, which points to intermittent airbag faults caused by loose, missing, or damaged Connector Position Assurance (CPA) retainers on various SIR system connectors.
   How to confirm: Visually inspect the wiring harnesses and connectors under the passenger seat for any signs of pinching, chafing, or corrosion. Specifically check that the yellow CPA clips on the airbag connectors are secure and fully seated. A user on a Camaro forum reported that moving the seat back and forth eventually severed the harness wires, which was the true cause of the fault after a sensor had already been replaced.
   Typical fix: Repair the damaged section of the harness or replace the faulty connector and ensure the CPA retainer is properly installed. The passenger seat wiring harness is available as a separate part (e.g., PN 20914952 for a 2010 model).
   Est. part cost: $10-$50 for connector pigtails.

Rare But Worth Checking

• Wet Seat Cushion: TSB #08-09-41-007I specifically notes that if a B0074 0F code is present and the seat is wet, the bulletin's advice about electronic devices does not apply, and the standard diagnostic procedure for a wet seat should be followed. Moisture can cause erratic readings from the capacitance sensor and may require 24-48 hours of drying time with the trim removed.
• Faulty Passenger Presence System (PPS) Module: While possible, the control module is less likely to fail than the sensor mat itself. The module should only be suspected after the sensor mat and wiring have been thoroughly tested and ruled out.
• Aftermarket Seat Covers or Upholstery: Because the system is capacitance-based, unapproved seat covers or different upholstery materials can change the electrical characteristics of the seat and interfere with the sensor's readings, potentially triggering a fault.

Diagnosis Steps

1. Read the specific DTCs from both the SDM and PPS modules using a professional-grade scan tool. Note the symptom byte 🎬 See how to diagnose airbag communication issues with a scan tool. (e.g., 0D, 0E, 0F).
2. Remove ALL items from the front passenger seat, including electronic devices, bags, and liquids.
3. Clear the DTCs and perform several ignition cycles. If the code does not return, the issue was interference.
4. If the code returns, perform a thorough visual inspection of all wiring and connectors under the passenger seat. Check for chafing and ensure connectors, especially those with yellow CPA clips, are fully seated.
5. If the code is B0074 0F, check the seat cushion for any dampness or evidence of liquid spills. If wet, allow it to dry completely.
6. If the code is B0074 0D or 0E, the PPS sensor mat is the primary suspect due to a likely internal break. Follow the service manual procedure for testing the sensor.
7. If the sensor mat is confirmed to be faulty, it must be replaced. This typically involves removing the seat and its upholstery.
8. After replacement, the Passenger Presence System must be re-initialized and calibrated using a scan tool to ensure proper operation.

Parts You'll Likely Need

• Airbag Front Passenger Presence Module (Seat Cushion Pad) (OEM #25954278 (replaces 15952128)) — This is the most common failure point. The sensor mat is integrated into the foam seat cushion and is not typically sold separately for this model year.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $815-$1265
  Aftermarket price range: $N/A
• Passenger Presence System Emulator / Bypass Module (OEM #N/A) — A low-cost alternative to replacing the entire seat cushion. This module plugs into the vehicle's harness and simulates an occupied seat, ensuring the passenger airbag is always enabled. This is a popular DIY fix but has safety implications. The passenger seatbelt must remain buckled to prevent the warning chime.
  Trusted brands: Airbag360
  OEM price range: $N/A
  Aftermarket price range: $80-$120

Related Codes That Often Appear With This One

• B0081 — B0081 is a general code for a Passenger Presence System fault detected by the main SDM. B0074 is the more specific code set within the PPS module itself. They often appear together, with B0081 indicating the SDM has received a fault message from the PPS module.

Technical Service Bulletins (TSBs) & Recalls

• 08-09-41-007I: Information on Passenger Presence System (PPS) setting DTC B0074 0F when electronic devices or conductive objects are placed on the front passenger seat.
• 16-NA-145: (For other GM models, but relevant) Details how B0074 0D/0E is caused by a sharp crease in the sensor tail from being pinched during seat assembly, leading to an open circuit.
• 08-09-41-002E: Details intermittent airbag faults on this platform caused by poor connections, specifically involving the Connector Position Assurance (CPA) retainers.

Platform-Specific Known Issues

• TSB #08-09-41-007I was issued by GM specifically addressing how electronic devices or other conductive objects placed on the front passenger seat can cause a B0074 0F code and activate the seatbelt chime.
• A common, documented failure mode for B0074 0D/0E is the physical creasing and eventual breaking of the sensor mat's printed circuit tail, which can get pinched during the seat's factory assembly.

Mechanic-Grade Diagnostic Values

• PPS Sensor Signal Circuit Voltage — expected: 0.05 V - 4.5 V. Failure: Voltage is less than 0.05V or greater than 4.5V for 500 milliseconds.
• PPS Sensor 5-Volt Reference Circuit Voltage — expected: 4.5 V - 9.1 V. Failure: Voltage is less than 4.5V or greater than 9.1V for 500 milliseconds.
• PPS Sensor Low Reference Circuit Amperage — expected: < 25 mA. Failure: Amperage is 25mA or greater for 500 milliseconds.

Hidden / Shadow Codes Worth Checking

• B0074 00: Passenger Presence Sensor Circuit Malfunction / Disconnection from sensor mat. (see via GM Tech2 / GDS2 or equivalent professional scan tool.)
• B0074 04: Passenger Occupant Classification Sensor Open Circuit. (see via GM Tech2 / GDS2 or equivalent professional scan tool.)
• B0074 07: Passenger Occupant Classification Circuit Voltage Above Threshold. (see via GM Tech2 / GDS2 or equivalent professional scan tool.)

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Passenger Presence System Re-zero / Learn — This procedure is mandatory after replacing the PPS sensor mat/cushion or removing the seat trim. It calibrates the empty seat baseline. Failure to perform this step will cause the system to malfunction and may set other DTCs.
• GM Tech 2 / GDS2: Clear SIR and PPS DTCs — All SIR (airbag) and PPS fault codes must be cleared *before* attempting the Re-zero procedure. The presence of any current or history codes will cause the re-zeroing to fail.

Wiring & Ground Locations

• Body Control Module (BCM) — Under the driver's side of the dashboard, to the left of the steering column.. The BCM is a central hub for many body-related electrical systems and communicates with the Sensing and Diagnostic Module (SDM). While not a primary cause, a fault in the BCM or its wiring can sometimes manifest as SRS codes.
• Passenger Seat Wiring Harness Connector — Underneath the front passenger seat.. This is the main connection point for the PPS sensor mat and module. It is a frequent point of failure due to chafing from seat movement, corrosion from moisture, or items stored under the seat damaging the wires.
• Instrument Panel Fuse Block — Under the instrument panel on the passenger side of the vehicle.. The fuse labeled 'AIRBAG' in this block provides power to the SRS system. While a blown fuse is an unlikely cause for this specific code (it would likely cause more general communication codes), it's a fundamental check for any SRS issue.

Real Owner Repair Stories

• Camaro5 Forums user (Chevrolet Camaro (related GM platform)) — Service Air Bag light on.
  ❌ Tried (didn't work) Replacing the passenger presence sensor ($900+ dealer quote, self-replaced for less).
  ✅ What actually fixed it The wiring harness under the passenger seat had been crimped and eventually severed by the seat being moved forward and back over several months. The user discovered this after the code returned three months after replacing the sensor. The actual fix was repairing the damaged wires in the harness.

OEM Part Supersession History

• 15952128 → 25954278 — Standard part revision/update. The new part is the currently specified replacement.
