B0042 on 2007-2011 GMC Yukon Denali XL: Airbag Light Causes and Fixes

What's Unique About the 2007-2011 Gmc YUKON DENALI XL

For this generation of GMC trucks and SUVs (GMT900 platform), intermittent airbag lights are a well-documented issue. General Motors released a Technical Service Bulletin (TSB #08-09-41-002H) that directly points to faulty Connector Position Assurance (CPA) retainers on various airbag system connectors as a primary cause for a family of codes, including B0042. The TSB specifically calls for inspection of connectors at the base of the steering column and under the front seats. This means the problem is often a simple, inexpensive plastic part rather than a major component failure, making a thorough connector inspection the most critical first step.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light is illuminated on the instrument cluster.
• "Service Airbag" message may appear on the Driver Information Center (DIC).

Most Likely Causes

1. Loose, Damaged, or Missing Connector Position Assurance (CPA) Retainer 🔴 High Probability As documented in TSB #08-09-41-002H, the small plastic CPA clips (often green) on the yellow airbag connectors can become brittle, break, or work themselves loose over time, causing a poor connection and triggering a low resistance fault.
   How to confirm: After safely disabling the SRS system, inspect the yellow airbag connectors, particularly under the driver's seat (connector C305) and at the base of the steering column. Check if the small CPA clip is present, fully seated, and not damaged.
   Typical fix: Replace the faulty CPA retainer to secure the connector. GM part number 88988974 is a common replacement retainer.
   Est. part cost: $5-$25
2. Damaged Wiring or Connector Under Driver's Seat 🟡 Medium Probability The wiring harness under the driver's seat is highly susceptible to damage from seat movement (sliding forward and back) or from items stored or kicked under the seat. This can cause wires to chafe, stretch, or break over time, leading to a short circuit.
   How to confirm: Visually inspect the wiring harness (often leading to a large yellow connector, sometimes identified as C305) under the driver's seat for any signs of pinching, chafing, or broken wires. A classic symptom is the airbag light turning on or off when the seat is moved. Wiggling the harness while monitoring the code status with a scan tool can also help confirm an intermittent connection.
   Typical fix: Repair the damaged section of wire by soldering and heat-shrinking. If the damage is at the connector, replace the connector pigtail. ACDelco offers replacement pigtails like PT2795 for under-seat components.
   Est. part cost: $15-$50

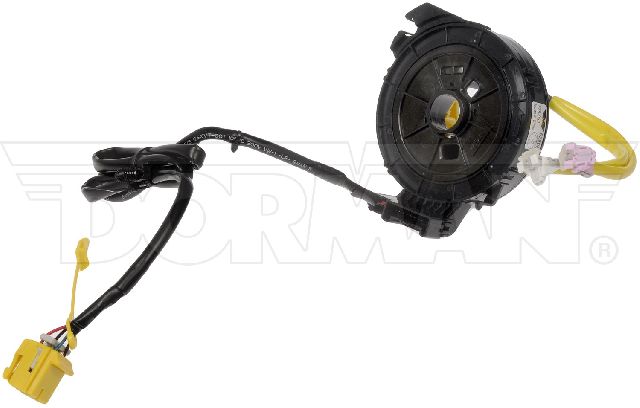

3. Faulty Clock Spring (Steering Wheel Coil) ⚪ Low Probability The clock spring is a rotational electrical connector in the steering column that allows the steering wheel airbag to stay connected while the wheel turns. It is a wear item that can fail over time, causing an internal short circuit (low resistance).
   How to confirm: Diagnosis requires a specialized scan tool (like a GM Tech2) to read the resistance values from the SDM. A technician may use special jumpers to bypass the clock spring and see if the fault clears, isolating the problem to the clock spring itself. Turning the steering wheel while monitoring resistance can also show fluctuations indicating a bad clock spring.
   Typical fix: Replace the clock spring assembly in the steering column. This requires removal of the steering wheel. 🎬 Watch: Step-by-step guide to safely removing the driver's airbag.
   Est. part cost: $60-$150

Rare But Worth Checking

• Faulty Driver's Airbag Module: While possible, the airbag module itself is rarely the cause of a resistance code. This should only be considered after all wiring and connectors have been thoroughly tested and ruled out.
• Faulty Sensing and Diagnostic Module (SDM): Failure of the main airbag computer is very rare. The SDM should be the last component to be suspected and requires professional diagnosis to confirm.

Diagnosis Steps

1. SAFETY FIRST: Disconnect the negative battery terminal and wait at least 15-30 minutes for the system's backup power to discharge before working on any airbag components. Never use a standard multimeter to probe airbag circuits, as it can supply enough current to trigger a deployment.
2. Scan for Codes: Use an OBD-II scanner capable of reading SRS/airbag codes (like a GM Tech 2) to confirm B0042 is the active code and to view live data and any symptom bytes.
3. Inspect Under-Seat Wiring: This is a top priority on this platform. Carefully examine the wiring harness that runs under the driver's seat for any signs of chafing, pinching, or breaks caused by seat movement. Pay close attention to the large yellow connector (C305).
4. Inspect Connectors per TSB: Visually inspect other accessible yellow airbag connectors, starting at the base of the steering column as per TSB #08-09-41-002H. Look for loose connections, damaged connector housings, and broken or missing CPA retainers.
5. Isolate the Fault: If connectors and wiring appear intact, a professional technician will use a scan tool to monitor resistance values while testing specific parts of the circuit. They may use special tools (like terminal test kits) to isolate the fault between the SDM, the clock spring, and the airbag module itself.
6. Repair and Clear: Once the faulty component is identified and repaired/replaced, reconnect the battery and use the scan tool to clear the B0042 code. Cycle the ignition to confirm the airbag light stays off.

Parts You'll Likely Need

• Connector Position Assurance (CPA) Retainer (OEM #88988974) — This small plastic clip is the most common failure point, as identified in GM TSB #08-09-41-002H. It ensures the electrical connector for an airbag component remains secure.
  Trusted brands: ACDelco (GM Genuine)
  OEM price range: $5-$15
  Aftermarket price range: $5-$10
• Airbag Connector Pigtail (Under Seat) (OEM #PT2795) — If the connector housing itself is damaged or wires are broken at the connector under the driver's seat, replacing the pigtail is the standard repair.
  Trusted brands: ACDelco, Dorman
  OEM price range: $30-$50
  Aftermarket price range: $20-$40
• Clock Spring / Steering Wheel Coil (OEM #84631284 (supersedes 84296526)) — As a moving part, the clock spring can wear out, causing an internal short that triggers B0042. It's the next most likely part to fail after wiring issues are ruled out. The original part number 84296526 has been replaced by 84631284.
  Trusted brands: ACDelco, Standard Motor Products, Dorman
  OEM price range: $90-$120
  Aftermarket price range: $60-$90

Related Codes That Often Appear With This One

• B0044 — B0044 indicates 'Driver Frontal Deployment Loop Open'. Both B0042 (Resistance Low) and B0044 can be caused by the same faulty connectors or clock spring, with the specific code depending on whether the fault manifests as a short or an open circuit at any given moment.
🎬 See how to diagnose these related airbag resistance codes.
• B0022 — B0022 is for 'Driver Frontal Deployment Loop Stage 1 Resistance Low'. Since both the Stage 1 and Stage 2 circuits pass through the same connectors and clock spring, a single faulty component can trigger codes for both loops simultaneously.

Technical Service Bulletins (TSBs) & Recalls

• 08-09-41-002H: Addresses intermittent airbag light illumination with various DTCs including B0042, and recommends inspecting and replacing the Connector Position Assurance (CPA) retainer on SIR connectors, particularly at the steering column and under seats.

Platform-Specific Known Issues

• A widespread issue documented in TSB #08-09-41-002H points to intermittent airbag lights caused by a loose, missing, or damaged Connector Position Assurance (CPA) retainer on an airbag system connector. This should be the first item inspected.
• The wiring harness under the driver's seat is a known weak point. Owners on forums frequently report that moving the seat triggers the 'Service Airbag' light, which points directly to a chafed or broken wire in that harness.

Mechanic-Grade Diagnostic Values

• Driver Frontal Deployment Loop Stage 2 Resistance — expected: 1.3 - 4.8 Ohms. Failure: Less than 1.3 Ohms for 500ms sets code B0042. Greater than 4.8 Ohms may set a B0044 (open circuit) code.
• Sensing and Diagnostic Module (SDM) Ground Circuit Resistance — expected: Less than 0.1 Ohms. Failure: A value higher than 0.1 Ω indicates a poor ground connection at a location like G103, which can cause various intermittent SRS faults.
• Deployment Loop High Control Circuit Voltage — expected: Greater than 2.4 Volts. Failure: A voltage reading less than 2.4 volts can trigger a fault, indicating a short to ground.

Hidden / Shadow Codes Worth Checking

• B0042 0E: Indicates 'Resistance Below Threshold,' specifically confirming the low resistance/shorted circuit condition that sets the primary B0042 code. (see via A professional GM-compatible scan tool like a Tech2 or GDS2 is required to view symptom bytes.)
• B0042 0D: Indicates 'Resistance Above Threshold.' While B0044 is the primary code for an open circuit, an intermittent fault could cause this sub-code to be logged alongside or instead of B0042. (see via A professional GM-compatible scan tool like a Tech2 or GDS2.)
• B0042 02: Another symptom byte indicating 'Resistance Low,' directly pointing to a short circuit or faulty component. (see via A professional GM-compatible scan tool like a Tech2 or GDS2.)

Scan Tool Commands That Help

• GM Tech2 / GDS2: SIR Data Display: Deployment Loop Resistance — This is critical for diagnosing intermittent faults. A technician can monitor the live resistance value of the driver's airbag loop while turning the steering wheel (to test the clock spring) or wiggling connectors under the seat to see if the value fluctuates or goes out of spec.
• GM Tech2 / GDS2: Clear DTCs in SIR Module — After the physical repair is complete, the B0042 code is a 'hard code' and must be cleared from the SIR (airbag) module with a capable scan tool. The airbag light will not turn off on its own.

Wiring & Ground Locations

• SDM (Sensing and Diagnostic Module) — Bolted to the floor, either under the center console (approx. 2007-2009 models) or under the driver's seat (approx. 2010-2014 models).. This is the airbag computer that sets code B0042. Knowing its location is essential for advanced diagnostics, checking its connections, and verifying its ground (G103).
• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This is a primary ground point for the Sensing and Diagnostic Module (SDM). A poor connection here can cause low voltage, erratic behavior, and intermittent SRS codes.
• G301 / G302 — Body grounds located under the front seats on the floor pan. G301 is typically under the driver's side of the passenger seat, and G302 is under the passenger side.. While not directly in the deployment loop, poor grounds for seat-related components can cause electrical noise and issues. Verifying these grounds are clean and tight is good practice when working under the seat.
• C305 — The large, multi-pin yellow connector under the driver's seat that connects the body harness to the seat harness.. This is a primary chafe and stress point. The driver's airbag deployment loop circuits pass through this connector, and damage from seat movement is a very common cause of B0042.

Real Owner Repair Stories

• TahoeYukonForum.com user 'CL2011' (2011 Tahoe LT) — The 'Service Airbag' light would come on when moving the driver's seat back and turn off when moving it forward. Eventually, the light stayed on permanently.
  ❌ Tried (didn't work) Initial attempts to just wiggle the connector from the front or back of the seat were difficult due to tight space.
  ✅ What actually fixed it The problem was identified as damaged wiring in the harness under the driver's seat, a common issue caused by the seat moving back and forth over time. The fix requires accessing and repairing the broken or chafed wire(s) in that harness.
• YouTube video by 'MN-DNR' (2007-2014 GMC Yukon/Chevy Tahoe) — 'Service Airbag' message and illuminated airbag light on the dash.
  ❌ Tried (didn't work) A previous solder repair had failed over time.
  ✅ What actually fixed it A wire for the seat position sensor, located in the harness under the driver's seat, had broken clean off its connector. The final fix was to replace the connector pigtail and securely connect it to the harness.

Model Year Variations Within This Range

• 2007-2014: The location of the Sensing and Diagnostic Module (SDM) varies. On approximate 2007-2009 models, it is more commonly found under the center console. On approximate 2010-2014 models, it is more commonly located under the driver's seat, bolted to the floor pan.
