B0022 on 2007-2013 Chevrolet Avalanche: Airbag Light Causes and Fixes

What's Unique About the 2007-2013 Chevrolet AVALANCHE

The 2007-2013 Avalanche, part of the GMT900 platform shared with the Silverado, Tahoe, and Suburban, is known for airbag light issues stemming from connector problems. General Motors released a broad Technical Service Bulletin (TSB #08-09-41-002H) that specifically includes the 2007-2013 Avalanche 🎬 Watch: How to fix airbag code B0022 on GM vehicles and lists B0022 as a code often caused by a faulty Connector Position Assurance (CPA) retainer. This makes a simple, inexpensive connector inspection a more critical first step than on other vehicles where the code might more directly imply a failed component. The TSB covers an extremely wide range of GM vehicles from this era, indicating a systemic parts issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light is continuously illuminated on the instrument cluster.
• "Service Air Bag" message may appear on the Driver Information Center (DIC).

Most Likely Causes

1. Loose, Damaged, or Missing Connector Position Assurance (CPA) Retainer 🔴 High Probability This is a well-documented issue across many GM platforms of this era, as detailed in TSB #08-09-41-002H. The small plastic CPA clips (often orange or yellow) on the yellow airbag connectors can become brittle and break or fail to seat properly, causing a poor connection that leads to a high resistance or open circuit fault.

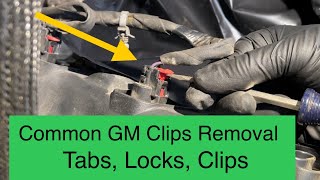

   How to confirm: Visually inspect the yellow airbag connectors, particularly under the front seats and at the base of the B-pillar. Check if the small plastic locking clip (the CPA) 🎬 See this guide on removing common GM plastic clips and tabs is fully seated, cracked, or missing. A scan tool showing high or open resistance on the passenger pretensioner loop strongly points to this cause.
   Typical fix: Replace the broken CPA retainer (GM P/N 88988974). The TSB procedure involves disconnecting the connector (after disabling the SIR), inspecting terminals, applying dielectric grease, reconnecting, and installing the new CPA. If the connector itself is damaged, a new airbag connector pigtail (e.g., ACDelco PT1204) may need to be spliced in.
   Est. part cost: $5-$15 for a CPA retainer, $25-$60 for a connector pigtail.
2. Damaged Wiring or Poor Terminal Tension 🟡 Medium Probability Wiring under the front seats can be disturbed by items stored there, by the movement of power seats, or by passengers' feet. This can lead to chafed insulation or pulled wires. The terminals inside the connector can also lose tension over time, causing an intermittent connection.
   How to confirm: After disabling the SIR system, disconnect the relevant connector and inspect the female terminals for being spread open or pushed out. Inspect the wiring harness for any signs of physical damage, pinching, or previous improper repairs. A technician would use special tools to test circuit integrity without deploying the airbag.
   Typical fix: Repair the damaged wiring section using approved methods (solder and heat shrink are generally accepted for SRS wiring). If terminals are loose, replacing the connector pigtail is the recommended repair. If the fault is in the steering column, the clock spring assembly is typically replaced.
   Est. part cost: $30-$250, depending on whether a pigtail or a clock spring is needed.
3. Faulty Passenger Seat Belt Pretensioner ⚪ Low Probability The pretensioner contains a small pyrotechnic charge and an internal resistor. This assembly can fail internally over time, altering the circuit's resistance and triggering a fault code. This is a non-serviceable, single-use component.
   How to confirm: This is typically diagnosed by a professional after ruling out all connection and wiring issues. A special diagnostic resistor (load tool) is substituted for the pretensioner; if the code disappears and can be cleared, the pretensioner itself is confirmed to be faulty.
   Typical fix: Replace the entire seat belt retractor/pretensioner assembly. 🎬 Watch: Step-by-step seat belt pretensioner replacement walkthrough This component is not serviceable and contains hazardous materials, often requiring special shipping.
   Est. part cost: $200-$400

Rare But Worth Checking

• Faulty Airbag Module (Driver's Side): While possible, this is less common than wiring or connector issues. It should only be considered after all other possibilities have been exhausted through proper diagnostics.
• Faulty Sensing and Diagnostic Module (SDM): Failure of the main airbag computer is rare but can cause this and other SRS codes. This is a last-resort diagnosis and often requires vehicle-specific programming upon replacement.

Diagnosis Steps

1. SAFETY FIRST: Disable the Supplemental Inflatable Restraint (SIR) system. Disconnect the negative battery terminal and wait at least one hour for the system capacitors to fully discharge. Failure to do so can result in accidental airbag deployment and serious injury.
2. Scan for Codes: Use a professional-grade scan tool capable of reading SRS codes and their specific sub-types (e.g., B0022:04 Open Circuit, B0022:0D High Resistance). Note the exact code and its definition.
3. Inspect Connectors: Based on the specific circuit identified (most likely passenger seat belt pretensioner), locate the corresponding yellow airbag connector. Common locations are under the passenger seat and at the base of the B-pillar.
4. Check CPA Retainer: Carefully inspect the Connector Position Assurance (CPA) clip on the connector. Confirm it is present, not broken, and fully seated. A loose or broken CPA is the most likely culprit per TSB 08-09-41-002H.
5. Inspect Terminals: If the CPA is intact, disconnect the connector (with the system disabled) and inspect the metal terminals for corrosion, damage, or being spread apart or pushed out of the connector body.
6. Professional Circuit Testing: If visual inspection reveals no issues, a technician will use a special SIR load tool (a specific resistor) to substitute components and isolate the fault without risking deployment. Never use a standard multimeter to test resistance on an airbag circuit, as it can induce enough current to deploy the airbag.
7. Component Replacement: Based on the test results, replace the faulty component. This could be the CPA clip (P/N 88988974), a connector pigtail (P/N PT1204), the clock spring, or the entire seat belt pretensioner assembly.
8. Clear Codes and Verify: After the repair, reconnect the battery, clear the SRS codes with the scan tool, and cycle the ignition to confirm the airbag light stays off.

Parts You'll Likely Need

• Connector Position Assurance (CPA) Retainer (OEM #88988974) — This small orange plastic clip is the most common failure point identified in GM TSB #08-09-41-002H, causing a loose connection that triggers code B0022. It is often sold in packs of two.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $5-$15
  Aftermarket price range: $5-$10
• Seat Belt Retractor Pretensioner (OEM #19256126 (Example, varies by color/VIN)) — If the code specifically points to the passenger seat belt pretensioner circuit and connector issues are ruled out, the pretensioner assembly itself may have an internal fault. Part numbers are specific to interior color (e.g., Ebony) and must be verified by VIN.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $250-$400
  Aftermarket price range: $150-$250
• Airbag Clock Spring — If the fault is isolated to the driver's steering wheel airbag circuit (less common for B0022 on this platform, but possible), the clock spring is a likely cause due to the constant rotation it endures.
• ?
  Trusted brands: ACDelco, Dorman
  OEM price range: $150-$250
  Aftermarket price range: $50-$150
• Airbag Connector Pigtail (OEM #PT1204 (ACDelco)) — If the main yellow connector body or its terminals are damaged, a replacement pigtail must be spliced in.

Related Codes That Often Appear With This One

• B0012, B0013, B0015, B0016, B0019, B0020, B0023, B0026, B0033, B0040, B0042, B0044 — These are all airbag circuit fault codes covered by the same TSB (#08-09-41-002H) that points to faulty CPA retainers as a common cause across the GM lineup.

Technical Service Bulletins (TSBs) & Recalls

• 08-09-41-002H: 'Diagnostic Information for Supplemental Inflatable Restraint (SIR) System, Intermittent AIR BAG Indicator/Lamp Illuminated with DTC(s) B0012, B0013, B0015, B0016, B0019, B0020, B0022, B0023, B0026, B0033, B0040, B0042 or B0044 Set (Inspect and Replace Connector Position Assurance (CPA) Retainer)'

Platform-Specific Known Issues

• The GMT900 platform, which includes the 2007-2013 Avalanche, is explicitly mentioned in TSB #08-09-41-002H for intermittent airbag lights caused by faulty CPA retainers on SIR system connectors.
• Owner forums for the Avalanche and its platform mates (Silverado, Tahoe, Suburban) are filled with accounts of fixing B0022 and related codes by addressing the connectors under the front seats. A common story involves finding a broken orange CPA clip or a connector that has simply worked its way loose.

Mechanic-Grade Diagnostic Values

• Passenger Seat Belt Pretensioner Deployment Loop Resistance — expected: 1.1 - 3.9 ohms. Failure: A reading less than 1.1 ohms (sets B0022:0E) or greater than 3.9 ohms (sets B0022:0D) for more than 120 milliseconds will trigger the code. A perfectly healthy pretensioner often reads between 2.2 and 2.7 ohms.
• Sensing and Diagnostic Module (SDM) Operating Voltage — expected: 9 - 16 volts. Failure: Voltage outside this range can cause the SDM to set unpredictable codes or fail to run self-diagnostics properly.

Hidden / Shadow Codes Worth Checking

• B0022 01: Passenger Pretensioner Deployment Loop Short to Battery. (see via Requires a professional scan tool like a GM Tech 2 or GDS2 that can read SRS module symptom codes.)
• B0022 02: Passenger Pretensioner Deployment Loop Short to Ground. (see via Requires a professional scan tool like a GM Tech 2 or GDS2 that can read SRS module symptom codes.)
• B0022 04: Passenger Pretensioner Deployment Loop Open Circuit. This is a very common variant and strongly points to a disconnected connector or broken wire. (see via Requires a professional scan tool like a GM Tech 2 or GDS2 that can read SRS module symptom codes.)
• B0022 0D: Passenger Pretensioner Deployment Loop Resistance Above Threshold (>3.9 ohms). This is the most common variant, often caused by a poor connection, corroded terminals, or a failing CPA clip. (see via Requires a professional scan tool like a GM Tech 2 or GDS2 that can read SRS module symptom codes.)
• B0022 0E: Passenger Pretensioner Deployment Loop Resistance Below Threshold (<1.1 ohms). This often indicates an internal short in the pretensioner wiring or the component itself. (see via Requires a professional scan tool like a GM Tech 2 or GDS2 that can read SRS module symptom codes.)

Scan Tool Commands That Help

• GM Tech 2 / GDS2: SIR Live Data > Deployment Loop Resistance — This function allows a technician to view the live resistance value (in ohms) that the SDM is reading from the passenger pretensioner circuit. Wiggling wires or connectors while watching this data can instantly identify the location of an intermittent open or high-resistance fault.
• GM Tech 2 / GDS2: SIR Diagnostic Test > Substitute Load Tool — After ruling out wiring, a technician connects a special diagnostic resistor (e.g., J-38715-A) in place of the seat belt pretensioner. If the fault code changes from 'current' to 'history' and can be cleared, it definitively proves the pretensioner itself is faulty and needs replacement.

Wiring & Ground Locations

• Passenger Pretensioner Connector — A yellow connector located at the base of the passenger-side B-pillar, where the seat belt retractor is mounted. Access requires removing the lower B-pillar trim panel.. This is the primary connector for the component identified in code B0022. It is the most common location for the fault to occur due to a loose connection or failed CPA clip.
• Underseat Connector — A large yellow connector under the front passenger seat. This is an inline connector for the harness that runs from the main body to the seat components.. This connector is a frequent source of problems. Items stored under the seat, or movement of the seat itself, can cause this connector to become loose, damaged, or disconnected, creating an open or high-resistance fault.
• Shorting Bar — Internal to the female side of airbag system connectors, including the pretensioner connector.. When the connector is unplugged, this metal bar automatically shorts the terminals together. This is a safety feature to prevent accidental deployment from static electricity during service. A technician must be aware of this, as testing a disconnected plug with a multimeter will show a short circuit, which is normal and does not indicate a fault.
• G300 / G301 — G300 is located on the floor near the B-pillar behind the driver's seat. G301 is in the corresponding location behind the passenger seat.. These are major floor pan grounds for various body and seat-related modules. While not directly in the pretensioner circuit, a poor connection at these points can cause unpredictable electrical issues in the cabin, potentially affecting the SDM or related sensors.

Real Owner Repair Stories

• YouTube channel 'El Garage De Leonardo' (Chevrolet Spark GT (demonstrating a common GM SRS issue)) — Airbag light was on with code B0022-0D (Resistance Above Threshold).
  ❌ Tried (didn't work) The vehicle had a previous, improper repair where the pretensioner was cut off and a resistor was wired in its place. This resistor's connection had failed.
  ✅ What actually fixed it The technician identified the failed solder joint on the bypass resistor. To demonstrate the circuit's requirement, he temporarily soldered a 2.3 ohm resistor onto the circuit wires, which satisfied the SDM's resistance check and allowed the code to be cleared, confirming the rest of the wiring was intact.

OEM Part Supersession History

• N/A → 88988974 — This is the standard service part number for the orange CPA retainer referenced in TSB #08-09-41-002H.
