B0020 on 2007-2014 GMC Yukon: Airbag Light Causes and Fixes

What's Unique About the 2007-2014 Gmc YUKON

The GMT900 platform, which includes the 2007-2014 Yukon, is well-documented by GM to have issues with Supplemental Inflatable Restraint (SIR) system connectors. Multiple Technical Service Bulletins (TSBs) point directly to problems like improperly seated connectors, faulty Connector Position Assurance (CPA) retainers, and even fretting corrosion on terminals causing intermittent high resistance and triggering codes like B0020. This makes wiring and connector inspection the absolute first step, well before suspecting a failed airbag module. The connectors are typically yellow and located behind the glove compartment 🎬 See how to access and repair these common Yukon connectors. and under the passenger seat.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Airbag warning light illuminated on the instrument cluster.

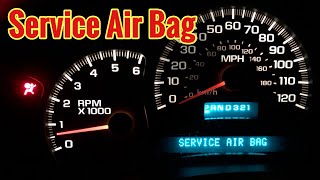

• "Service Air Bag" message on the Driver Information Center (DIC).

Most Likely Causes

1. Poor Connection at Airbag Harness Connectors 🔴 High Probability GM has issued multiple TSBs (e.g., #13364A, #08-09-41-002H) for this platform regarding improperly engaged electrical connectors and faulty Connector Position Assurance (CPA) retainers in the airbag system. Connectors under the passenger seat or behind the glove box are common culprits. Fretting corrosion on the connector terminals is also a known issue.
   How to confirm: After disconnecting the battery, visually inspect all yellow airbag connectors for the passenger-side circuit. The main connector to check is often located behind the glove box. Ensure they are fully seated and that the CPA retainers (small, often blue or yellow, plastic clips) are secure. A "push/push" test on the connector can confirm it's seated.
   Typical fix: Reseat the loose connector. If the CPA retainer is broken, it must be replaced. In cases of terminal corrosion, the connector pigtail may need to be replaced. Some owners apply dielectric grease to the connector pins before reconnecting to prevent future moisture issues.
   Est. part cost: $5-$50
2. Interference from Aftermarket 12V Accessories 🟡 Medium Probability TSB PIT5564A specifically calls out that aftermarket USB chargers or other devices plugged into the 12-volt power outlets can create electrical interference, causing the SDM to see fluctuating resistance in the airbag loops and set codes like B0020.
   How to confirm: Unplug all aftermarket devices from the 12V power outlets. Clear the SRS codes with a capable scan tool and see if the code returns. You can also monitor the deployment loop resistance with a scan tool while plugging and unplugging the device to see the fluctuation.
   Typical fix: Discontinue use of the specific charger or device that is causing the interference.
   Est. part cost: $0
3. Faulty Passenger Airbag Module ⚪ Low Probability
   How to confirm: If all wiring and connectors are confirmed to be in perfect condition, the fault may be internal to the airbag module itself. This requires testing the circuit with specialized tools to isolate the fault to the module. TSB #13364A notes that some 2014 models had improperly engaged connectors from the factory that could prevent the airbag from functioning.
   Typical fix: Replace the passenger-side instrument panel airbag module. This must be followed by clearing codes with a scan tool.
   Est. part cost: $400-$800
4. Faulty Sensing and Diagnostic Module (SDM) ⚪ Low Probability
   How to confirm: This is a last resort. If the airbag module and all wiring have been tested and are known to be good, the SDM is the only remaining component. Diagnosing a faulty SDM typically requires a high-end scan tool and ruling out all other possibilities.
   Typical fix: Replace and reprogram the Sensing and Diagnostic Module. The SDM is located under the center console in many of these vehicles.
   Est. part cost: $200-$500

Rare But Worth Checking

• Fretting Corrosion on Connector X211:

Diagnosis Steps

1. SAFETY FIRST: Disconnect the negative battery terminal and wait at least 15 minutes for the system's backup power to discharge before working on any airbag components. Some sources recommend waiting up to an hour to be safe.
2. Read the specific SRS codes with a scan tool capable of accessing the airbag module.
3. Unplug any aftermarket chargers or devices from all 12V power outlets in the vehicle.
4. Access the connectors behind the glove compartment. This may require opening the glove box and pressing a tab to allow it to drop down fully.
5. Inspect the yellow airbag harness connectors under the passenger seat and behind the glove compartment near the airbag module. Check for looseness, damage, or corrosion.
6. Carefully disconnect and reconnect the primary connectors, ensuring they click into place and the Connector Position Assurance (CPA) clips are secure.
7. If connectors appear fine, clear the codes with the scan tool and cycle the ignition to see if the code returns immediately.
8. If the code persists, the circuit must be tested for high resistance. WARNING: Never use a standard multimeter to test resistance on an airbag circuit. It can deploy the airbag. This step should be performed by a professional with a dedicated SRS testing tool.
9. If wiring is confirmed to be good, the fault is likely the passenger airbag module itself.
10. If a new airbag module does not solve the issue, the Sensing and Diagnostic Module (SDM) may be at fault.

Parts You'll Likely Need

• Connector Position Assurance (CPA) Retainer (OEM #88988974) — TSB #08-09-41-002H identifies these small plastic clips as a common cause of intermittent connections in the airbag system. They can become brittle and break, allowing the main connector to loosen. This part is often orange.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $5-$15
  Aftermarket price range: $2-$10
• Passenger Instrument Panel Airbag Module (OEM #22744319) — If wiring and connections are confirmed to be good, the internal resistance of the airbag inflator itself may be out of specification, requiring replacement of the entire module.
  Trusted brands: ACDelco, GM Genuine
  OEM price range: $600-$800
  Aftermarket price range: $400-$600
• Airbag Connector Pigtail (OEM #PT1798) — If the connector itself or the terminals are damaged or corroded, a replacement pigtail will be needed to splice into the harness. This is more common when fretting corrosion is the cause.
  Trusted brands: ACDelco, Dorman
  OEM price range: $40-$65
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• B0019 — B0019 relates to the Stage 1 deployment loop for the same passenger airbag. If there is a connector issue affecting the entire component, it's common to see faults for both deployment stages.
• B0012, B0013, B0015, B0016, etc. — Many TSBs group B0020 with a wide range of other airbag circuit codes, as they can all be caused by the same underlying issues like faulty CPA retainers or electrical interference.

Technical Service Bulletins (TSBs) & Recalls

• 13364A: Notes B0020 can be caused by an electrical connector not being properly engaged on 2014 models.
• 08-09-41-002H: Points to faulty Connector Position Assurance (CPA) retainers as a cause for B0020 and other SIR codes across many GM vehicles.
• G-178170: Repeats the information from 13364A about improperly engaged connectors.
• PIT5564A: Warns that aftermarket USB chargers can cause electrical interference, leading to code B0020.
• PI0117A: Though for a different GM model (HHR), it details a similar issue of fretting corrosion on a key harness connector (X211) causing B0020, a relevant diagnostic path.

Platform-Specific Known Issues

• TSB #13364A and #G-178170 specifically state that on some 2014 models, the B0020 code can be set because an electrical connector was not properly engaged from the factory, preventing the passenger airbag from functioning as designed.

Mechanic-Grade Diagnostic Values

• Passenger Airbag Deployment Loop Resistance — expected: 1.7 - 4.2 ohms. Failure: A reading greater than 3.9 ohms for 120 milliseconds will set a DTC B0020 0D. A reading less than 1.1 ohms for 120 milliseconds will set a DTC B0020 0E.
• Circuit Test with Load Tool J 38715-A — expected: Scan tool Deployment Loop Resistance parameter should be less than 2 ohms.. Failure: If the resistance is greater than 2 ohms, it indicates an open or high resistance in the control circuits.

Hidden / Shadow Codes Worth Checking

• B0020 01: Passenger Frontal Deployment Loop Stage 2 Short to Battery (see via A GM-specific scan tool like a Tech2 or GDS2 is required to view these symptom bytes.)
• B0020 02: Passenger Frontal Deployment Loop Stage 2 Short to Ground (see via A GM-specific scan tool like a Tech2 or GDS2 is required to view these symptom bytes.)
• B0020 04: Passenger Frontal Deployment Loop Stage 2 Open Circuit (see via A GM-specific scan tool like a Tech2 or GDS2 is required to view these symptom bytes.)
• B0020 0D: Passenger Frontal Deployment Loop Stage 2 Resistance Above Threshold (see via A GM-specific scan tool like a Tech2 or GDS2 is required to view these symptom bytes.)
• B0020 0E: Passenger Frontal Deployment Loop Stage 2 Resistance Below Threshold (see via A GM-specific scan tool like a Tech2 or GDS2 is required to view these symptom bytes.)

Scan Tool Commands That Help

• GDS2 / Tech2: Setup SDM Part Number in BCM / Configure New Module — This function is required after replacing the Sensing and Diagnostic Module (SDM) or Body Control Module (BCM). It synchronizes the new module with the vehicle's existing systems. Failure to perform this step will result in a persistent airbag light and a B1001 code.
• GDS2 / Tech2: Data Display / Deployment Loop Resistance — Used to monitor the live resistance value of the airbag deployment loops. This is critical for diagnosing intermittent faults by wiggling harnesses and connectors while observing the data for spikes or dropouts.

Wiring & Ground Locations

• SDM (Sensing and Diagnostic Module) — Under the center console or under the driver/passenger seat, depending on the specific model configuration.. The SDM is the control unit for the entire airbag system. It reads the resistance from all deployment loops, including the one that triggers B0020.
• G304 — Inside the vehicle, under the right front seat, on the floor panel.. This is a primary interior ground point. A poor connection at this ground could potentially affect the SDM or other related modules, causing erratic behavior, although it's not a direct cause of a specific loop resistance code.
• Passenger Instrument Panel Airbag Connector — Behind the glove compartment, connected directly to the passenger airbag module. It is a yellow connector.. This is the primary connector for the component identified in the fault code. It is a frequent source of high resistance due to being improperly seated or having terminal issues. TSB #13364A specifically calls this out.
• Fuses 40 & 45 — In the underhood fuse block on the driver's side of the engine compartment.. These fuses supply power to the airbag system. While a blown fuse would likely cause a different code related to module power, it's a fundamental check for any SRS system issue.

Real Owner Repair Stories

• YouTube video on a 2012 Chevy Cruze (2012 Chevrolet Cruze (related GM platform)) — Airbag light on, code B0020 stored.
  ✅ What actually fixed it The connector for the passenger knee airbag, located behind the passenger side kick panel, had come slightly loose. The fix was to firmly push the connector back in until it clicked and locked into place. The light went off and stayed off immediately upon the next ignition cycle.

Model Year Variations Within This Range

• 2014: TSB #13364A specifically targets 2014 models for a potential factory defect where the passenger side front airbag's electrical connector was not properly engaged, directly causing code B0020.
