B0020 on 2007-2014 Chevrolet Silverado 1500: Airbag Light Causes and Fixes

What's Unique About the 2007-2014 Chevrolet SILVERADO 1500

The GMT900 platform (which includes the 2007-2013 Silverado and its 2014 'HD' counterpart) is well-known for issues with the connectors used in the Supplemental Inflatable Restraint (SIR) system. GM has issued multiple Technical Service Bulletins (TSBs) that point directly to loose connectors and faulty Connector Position Assurance (CPA) retainers as the root cause for a range of airbag codes, including B0020. This makes a simple connector check the most critical first step, often preventing the unnecessary and expensive replacement of the airbag module itself. This issue is common across platform mates like the GMC Sierra, Chevrolet Tahoe/Suburban, and Cadillac Escalade.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers two generations: the GMT900 (2007-2013) and the first year of the K2XX (2014). The TSBs and common connector issues are primarily associated with the GMT900 platform. The 2014 K2XX models also had a specific service update (GM #13364A) related to the passenger airbag module connector not being properly engaged from the factory, which could also trigger this code.

Symptoms You May Notice

• Airbag warning light is constantly illuminated on the instrument cluster.
• "Service Air Bag" message may appear on the Driver Information Center (DIC).

Most Likely Causes

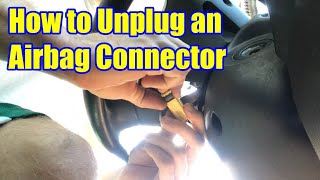

1. Loose or Improperly Seated Passenger Airbag Connector 🔴 High Probability This is a widely documented issue on the GMT900 platform. Connectors can work themselves loose over time or may not have been fully seated during manufacturing or prior repairs. Forum users on sites like TahoeYukonForum frequently report that simply unplugging and securely reconnecting the yellow connectors resolves the code. 🎬 Watch: This video shows how to fix the common connector issue.
   How to confirm: After safely disabling the SRS system, access the yellow connector for the passenger airbag (typically behind the glove box, attached to the airbag module). Visually inspect if it is fully seated and locked. Any looseness is a direct indicator.
   Typical fix: Disconnect the connector, inspect pins for damage or corrosion, clean with electrical contact cleaner, and firmly reconnect, ensuring it clicks into place. Applying a small amount of dielectric grease (specifically Nyogel 760G is recommended by GM for terminal fretting) can help prevent future issues.
   Est. part cost: $0-$15
2. Damaged or Missing Connector Position Assurance (CPA) Retainer 🟡 Medium Probability GM Technical Service Bulletin #08-09-41-002H specifically identifies a faulty CPA retainer as a common cause for intermittent SIR codes, including B0020. This small plastic lock (often blue, green, or orange) can become brittle and break, preventing the main connector from staying secure.
   How to confirm: Inspect the CPA lock on the passenger airbag connector. It is a different color from the yellow connector body. Check if it is broken, missing, or unlocked. It should click firmly into place.
   Typical fix: Replace the CPA retainer. This is a small, inexpensive part. A known part number for many GM applications is 88988974, sometimes referred to as an 'F Retainer'.
   Est. part cost: $5-$20
3. Damaged Wiring or Terminals ⚪ Low Probability Wiring under the dash can be damaged during the installation of aftermarket electronics or other repairs. The terminals inside the connector can also suffer from fretting corrosion (micro-vibrations causing oxidation), leading to high resistance. A YouTube repair on a 2008 truck showed that a previously disturbed harness was the root cause.
   How to confirm: Visually inspect the wiring harness leading to the passenger airbag for any signs of cuts, chafing, or pinching. Check the connector terminals for corrosion (green residue) or being spread apart (poor terminal tension).
   Typical fix: Repair the damaged section of wire using approved SIR/SRS wiring repair methods (do not use standard butt connectors). If terminals are damaged, a new connector pigtail (like Dorman #645-622) or terminal repair using the J-38125 kit may be required.
   Est. part cost: $15-$50

Rare But Worth Checking

• Faulty Sensing and Diagnostic Module (SDM): The SDM is the airbag computer. On 2007-2009 models, particularly in salt-belt states, moisture could get under the carpet and corrode the SDM, which is located under the driver's seat beneath the acoustical padding, causing various airbag faults. This is an expensive last resort after all wiring and connectors have been confirmed to be good.
• Faulty Passenger Airbag Module: The internal circuitry of the airbag inflator itself can fail. This is uncommon but was the subject of a service update (TSB #13364A) for some 2014 models where the official fix was to replace the entire module. This should only be considered after all external wiring and connections are verified to be perfect.
• Aftermarket 12V Accessories: A lesser-known but documented cause in GM bulletin PIT5564A is electrical interference from aftermarket USB chargers plugged into the 12V power outlets. This can cause various intermittent SIR codes, including B0020. Before starting repairs, unplug all accessories and clear the codes to see if the issue resolves.

Diagnosis Steps

1. SAFETY FIRST: Disconnect the negative battery terminal and wait at least 15-30 minutes for the airbag system's backup power to discharge completely before touching any components.
2. Scan the Sensing and Diagnostic Module (SDM) with a high-quality scanner capable of reading GM-specific body codes. Confirm B0020 is present and note any symptom bytes (e.g., '0D' for Resistance Above Threshold or '04' for Open Circuit).
3. Unplug any aftermarket accessories from 12V power outlets to rule out electrical interference.
4. Remove the glove box and any lower dash trim panels to gain access to the passenger airbag module. This usually involves removing several screws and clips.
5. Locate the main yellow electrical connector going to the airbag module. Visually inspect it. Is it fully plugged in? Is the plastic CPA lock (often blue) broken or disengaged?
6. If it appears loose or looks okay, disconnect the connector. Inspect the male and female pins for any signs of corrosion, moisture, or damage. Ensure no pins are bent or pushed back.
7. If the connector and pins look good, clean them with electrical contact cleaner, allow to dry, and apply a small amount of dielectric grease (Nyogel 760G recommended) before firmly reconnecting. Ensure you hear and feel it 'click' into place, then secure the CPA lock.
8. Reconnect the battery and turn the ignition on. Clear the trouble codes with the scan tool.
9. If the code immediately returns, the problem may be in the wiring harness or the airbag module itself, requiring more advanced diagnostics like resistance checks with a multimeter, which should be performed by a professional following service manual procedures.

Parts You'll Likely Need

• Airbag Connector Position Assurance (CPA) Retainer (OEM #88988974) — This small plastic lock is identified in TSB #08-09-41-002H as a common failure point that prevents the main connector from staying secure, directly causing the high resistance that triggers code B0020. It is sometimes sold in packs of two.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $3-$15
  Aftermarket price range: $3-$10
• Passenger Dash Airbag Module — This is only needed if the wiring and connectors are confirmed to be good, and the module itself is diagnosed as faulty. This is a rare but possible cause, and was the subject of a recall (Service Update #13364A) for some 2014 models where replacement was the specified repair.
  Trusted brands: GM Genuine Parts

Related Codes That Often Appear With This One

• B0019 — B0019 is for the 'Passenger Frontal Deployment Loop Stage 1'. Since both Stage 1 and Stage 2 (B0020) use the same physical connector, a loose connector will often cause both codes to appear together. A YouTube repair video on a 2008 Silverado showed both B0019-4 and B0020-4 being resolved by fixing a single loose harness connector.

Technical Service Bulletins (TSBs) & Recalls

• 08-09-41-002H: Intermittent AIR BAG Indicator/Lamp Illuminated with DTC(s) B0012, B0013, B0015, B0016, B0019, B0020, B0022, B0023, B0026, B0033, B0040, B0042 or B0044 Set (Inspect and Replace Connector Position Assurance (CPA) Retainer)

Platform-Specific Known Issues

• TSB #08-09-41-002H: This bulletin directly addresses intermittent airbag lights with a host of codes, including B0020. It instructs technicians to inspect and replace the Connector Position Assurance (CPA) retainer on the SIR system connectors across a huge range of 2005-2014 GM vehicles.
• Customer Satisfaction Program #09184B: For 2007-2009 models in salt-belt states, this program addressed corrosion of the SDM (airbag computer) under the driver's seat due to water intrusion from snow/salt-saturated carpets, which could cause various airbag system malfunctions.
• Service Update #13364A: Specifically for some 2014 models, this bulletin notes that DTC B0020 could be set due to an improperly engaged electrical connector on the passenger airbag from the factory. The prescribed fix was to replace the entire passenger airbag module.
• TSB #PIT5564A: Notes that intermittent SIR lights and various codes, including B0020, can be caused by electrical noise from aftermarket USB chargers plugged into the vehicle's 12V power outlets.

Mechanic-Grade Diagnostic Values

• Passenger Airbag Deployment Loop Resistance — expected: 1.1 - 3.9 ohms. Failure: A reading greater than 4.2 ohms for 2 seconds will set DTC B0020 0D. A reading less than 1.4 ohms will set B0020 0E.

Hidden / Shadow Codes Worth Checking

• B0020 0D: Passenger Instrument Panel Air Bag Deployment Loop Stage 2 High Resistance. This is the most common symptom byte and confirms the issue is high resistance (a bad connection) rather than a broken wire. (see via GM-specific scan tool (like a Tech 2 or GDS2) or a high-end aftermarket scanner with manufacturer-specific software.)
• B0020 04: Passenger Instrument Panel Air Bag Deployment Loop Stage 2 Open. This indicates a complete break in the circuit, such as a fully disconnected connector or a severed wire. (see via GM-specific scan tool (like a Tech 2 or GDS2) or a high-end aftermarket scanner with manufacturer-specific software.)
• B0020 0E: Passenger Instrument Panel Air Bag Deployment Loop Stage 2 Low Resistance. This indicates the circuit resistance is below the specified threshold, which could be caused by a short between the high and low circuits. (see via GM-specific scan tool (like a Tech 2 or GDS2) or a high-end aftermarket scanner with manufacturer-specific software.)

Wiring & Ground Locations

• X235 — The main electrical connector at the passenger instrument panel (I/P) airbag module, located behind the glove box.. This is the primary connector for the passenger airbag deployment loops. A loose connection, damaged terminals, or a failed CPA retainer at this specific connector is the most frequent cause of code B0020.
• SDM Connector — Under the driver's seat or center console, beneath the carpet and acoustical padding.. This is the main connector for the Sensing and Diagnostic Module (airbag computer). While less common, a poor connection here can cause various SIR codes. The connector contains shorting bars that engage when disconnected to prevent accidental deployment.
• G304 — On the floor, under the right front seat.. This is a primary ground point for components in the right side of the cabin. A corroded or loose ground here could potentially affect the SIR system, although it's not a primary suspect for an isolated B0020 code.
• Engine-to-Chassis Ground Strap — Typically runs from the rear of the cylinder head on the driver's side to the firewall/chassis.. A poor main ground connection can cause widespread, erratic electrical issues across the vehicle, including phantom module faults. While it wouldn't directly cause only a B0020 code, ensuring this ground is clean and tight is a fundamental step in diagnosing any electrical problem on these trucks.

Real Owner Repair Stories

• SilveradoSierra.com forum user (2007-2013 Silverado/Sierra (GMT900)) — Airbag light on with code B0020.
  ❌ Tried (didn't work) Clearing the code without checking connections.
  ✅ What actually fixed it The user disconnected the battery, accessed the yellow connector behind the glove box, unplugged it, cleaned the contacts, and reconnected it securely, ensuring the CPA lock clicked into place. The code was then cleared and did not return.
