B0013 on 2006-2013 Chevrolet Impala: Airbag Light Causes and Fixes

What's Unique About the 2006-2013 Chevrolet IMPALA

The ninth-generation Impala, along with dozens of other GM vehicles from this era, is particularly susceptible to connection issues at the airbag modules. GM released a specific Technical Service Bulletin (TSB #08-09-41-002H) that directly addresses code B0013. The problem is often not the expensive airbag or clock spring, but a simple and cheap plastic Connector Position Assurance (CPA) retainer that becomes brittle and fails. This CPA is critical because it isolates the internal shorting-bars within the connector, allowing the deployment circuit to function correctly. When it breaks, a poor connection results, triggering the fault code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Illuminated AIR BAG warning light on the instrument panel.
• "Service Air Bag" message on the Driver Information Center (DIC).

Most Likely Causes

1. Broken or Missing Connector Position Assurance (CPA) Retainer 🔴 High Probability This is a well-documented issue covered by GM TSB #08-09-41-002H. The small plastic retainers on the yellow airbag wiring connectors become brittle over time and can break, causing a loose connection.
   How to confirm: Visually inspect the yellow connectors on the back of the driver's airbag module. The small plastic CPA clip (often black, white, or blue) will be visibly broken, cracked, or missing. A video guide shows this exact inspection process. 🎬 Watch: How to inspect and fix airbag codes B0012 and B0013.
   Typical fix: Replace the CPA retainer clip. The GM part number for a package of these clips is 19300633. Aftermarket solutions like Dorman HELP! 926-100 are also available.
   Est. part cost: $5-$20
2. Chafed Wiring in Steering Wheel 🟡 Medium Probability The wiring harness for the airbag can rub against a sharp metal edge on the internal horn plate, wearing through the insulation and causing a short circuit. This is a known issue discussed by owners on forums.
   How to confirm: After removing the airbag module, inspect the yellow wiring harness for any signs of chafing, exposed copper wire, or abrasion where it passes near the metal horn plate. One owner on impalaforums.com noted, '...the wires that go to the airbag were rubbing on the metal part of the horn mechanism... wrapped the wires with electrical tape and put a piece of heater hose over them.'
   Typical fix: Repair the damaged wire and insulate it with anti-abrasion tape or loom. Some mechanics add a piece of adhesive-backed felt or flocking material to the sharp edge to prevent recurrence. If the damage is severe, the clock spring/wiring assembly may need to be replacement.
   Est. part cost: $1-$10 for tape, or $40-$100 for a new clock spring.
3. Faulty Clock Spring (Spiral Cable) ⚪ Low Probability The clock spring contains coiled wires that allow the steering wheel to turn while maintaining electrical contact. Constant rotation can eventually cause these wires to break, creating an open circuit.
   How to confirm: After ruling out the CPA clip and chafed wires, test the clock spring circuits for continuity using a multimeter. This should only be done with the battery and airbag disconnected.
   Typical fix: Replace the clock spring assembly. A common aftermarket part is the Dorman 525-026.
   Est. part cost: $40-$179

Rare But Worth Checking

• Internal Fault in Airbag Module: While less common than wiring issues, the inflator module itself can fail internally, causing its resistance to go out of specification. This is usually diagnosed after all wiring and connection issues have been ruled out.
• Faulty Sensing and Diagnostic Module (SDM): This is the least likely cause. The main airbag computer can fail, but it is rare. All other potential causes, especially wiring and connectors, should be exhaustively checked before condemning the SDM.
• Poor Terminal Tension at Connector: A separate GM bulletin (PI1474) for other models notes that DTC B0012/B0013 can be caused by poor terminal tension in the steering wheel airbag coil connector. This involves the metal pins inside the plastic connector not making a tight connection, which can be tested with special tools (J-35616-65B). If found, the connector pigtail itself may need replacement.

Diagnosis Steps

1. SAFETY FIRST: Disconnect the negative battery terminal and wait at least 15-30 minutes for the system's backup power to discharge before working on any airbag components.

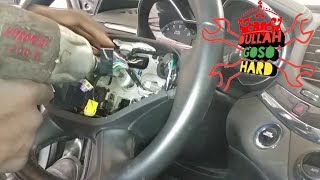

2. Remove the driver's airbag module from the steering wheel. This typically involves inserting a tool like a small screwdriver 🎬 See this walkthrough for removing the airbag and clock spring. through access holes on the side or back of the wheel to release spring clips.
3. Carefully disconnect the yellow airbag connectors. Inspect the small plastic Connector Position Assurance (CPA) retainers. If a retainer is broken, cracked, or missing, this is the most likely cause.
4. If the CPA clips are intact, inspect the entire length of the yellow wiring harness for any signs of chafing, pinching, or exposed wires, paying close attention to where it passes near the metal horn plate.
5. If no visible damage is found, the next step is to test the continuity of the clock spring circuits. This requires a multimeter and knowledge of the correct pinouts, and should only be done with the airbag fully disconnected.
6. If all wiring and connectors are confirmed to be good, the fault may lie within the airbag module itself or, rarely, the SDM.
7. After any repair, reconnect the battery and use an SRS-capable scan tool to clear the B0013 code. The light will not go off by itself, and a standard OBD-II reader cannot clear SRS codes.
🎬 Check out this quick guide to finding your airbag fuses.

Parts You'll Likely Need

• Connector Position Assurance (CPA) Retainer (OEM #19300633) — This is the most common failure point for this code on this vehicle, as documented in GM TSB #08-09-41-002H. The original plastic becomes brittle and breaks.
  Trusted brands: ACDelco, Dorman (HELP! 926-100)
  OEM price range: $10-$20
  Aftermarket price range: $5-$15
• Clock Spring (SIR Coil) — This part is replaced if wiring inside the coiled assembly is found to be broken (open circuit) or if it's damaged by chafing.
  Trusted brands: ACDelco, Standard Motor Products (CSP349), Dorman (525-026)
  OEM price range: $80-$150
  Aftermarket price range: $40-$179

Related Codes That Often Appear With This One

• B0012 — B0012 is the code for the 'Stage 1' driver's airbag deployment loop. Since the Stage 1 and Stage 2 loops share the same wiring harness and connectors, a fault like a loose connector, broken CPA, or damaged clock spring can often trigger both codes simultaneously.

Technical Service Bulletins (TSBs) & Recalls

• 08-09-41-002H: Intermittent AIR BAG Indicator/Lamp Illuminated with DTC(s) B0012, B0013... Set (Inspect and Replace Connector Position Assurance (CPA) Retainer)
• PI1474: Air Bag Indicator Illuminated with DTC B0012 or B0013 (Inspect for poor terminal tension)

Platform-Specific Known Issues

• A known issue, documented in TSB #08-09-41-002H, involves intermittent airbag lights caused by faulty CPA retainers on various airbag system connectors, including the one for the driver's airbag.
• A secondary known issue involves the airbag wiring harness chafing against the metal horn plate inside the steering wheel, causing a short or open circuit.

Mechanic-Grade Diagnostic Values

• Driver Steering Wheel Air Bag Stage 2 Deployment Loop Resistance — expected: 2.1–4.0 Ω. Failure: A reading greater than 4.4 Ω (sets B0013 0D) or less than 1.7 Ω (sets B0013 0E) for 2 seconds.
• Continuity test of wiring between SDM and airbag module — expected: Less than 1.0 Ω. Failure: Resistance higher than 1.0 Ω indicates an open or high resistance in the circuit.

Hidden / Shadow Codes Worth Checking

• B0013 01: Driver Steering Wheel Air Bag Stage 2 Deployment Loop Short to Voltage. (see via Requires a professional scan tool like a GM Tech2 or GDS2 that can read SRS system symptom codes.)
• B0013 02: Driver Steering Wheel Air Bag Stage 2 Deployment Loop Short to Ground. (see via Requires a professional scan tool like a GM Tech2 or GDS2 that can read SRS system symptom codes.)
• B0013 04: Driver Steering Wheel Air Bag Stage 2 Deployment Loop Open. (see via Requires a professional scan tool like a GM Tech2 or GDS2 that can read SRS system symptom codes.)
• B0013 0D: Driver Steering Wheel Air Bag Stage 2 Deployment Loop Resistance Above Threshold (> 4.4 Ω). (see via Requires a professional scan tool like a GM Tech2 or GDS2 that can read SRS system symptom codes.)
• B0013 0E: Driver Steering Wheel Air Bag Stage 2 Deployment Loop Resistance Below Threshold (< 1.7 Ω). (see via Requires a professional scan tool like a GM Tech2 or GDS2 that can read SRS system symptom codes.)

Scan Tool Commands That Help

• GM Tech2 / GDS2: SIR Data Display > Deployment Loop Resistance — Use this to monitor the live resistance of the driver's airbag Stage 2 loop while turning the steering wheel from lock to lock. Spikes or dropouts in the reading (which should stay between 2.1-4.0 Ω) indicate an intermittent open or short, likely in the clock spring or its connecting wires.

Wiring & Ground Locations

• Sensing and Diagnostic Module (SDM) — Located under the passenger seat, beneath the carpet. The seat may need to be unbolted and tilted back to access the carpet and the module underneath.. This is the main computer for the airbag system. All airbag circuit wiring, including the driver's airbag loop, terminates here. The main connector to the SDM is a critical inspection point.
• Steering Wheel Air Bag Coil Connector (X3) — This is the connector on the clock spring that the driver's airbag module plugs into.. GM TSB PI1474 specifically calls out the potential for poor terminal tension in this connector as a cause for B0013, even if the CPA clip is intact.

Real Owner Repair Stories

• impalaforums.com user 'kizzle' (2008 Impala SS) — Airbag light on, code B0013.
  ❌ Tried (didn't work) Initial diagnosis pointed towards common causes.
  ✅ What actually fixed it The user discovered that the wires for the airbag were rubbing on the metal part of the horn mechanism inside the steering wheel. The fix was to wrap the chafed wires with electrical tape and add a piece of heater hose over them for extra protection. This resolved the code.
