2016-2025 Audi & VW Soundaktor Guide: Fixing Rattles from the Fake Engine Noise Generator (A4, Q7, Arteon & More)
That buzzing or rattling from your dashboard may not be a loose trim piece; this guide explains how to diagnose, replace, or disable the engine sound generator, also known as the Soundaktor.
- This part is NOT a microphone; it's a 'Soundaktor' that creates artificial engine sounds inside the cabin.
- The most common failure is an annoying rattle or buzz from the dashboard that is louder in 'Sport' mode and often worse in cold weather.
- You can easily diagnose the issue by setting the 'Engine Sound' to 'Comfort' in the MMI; if the noise stops, the Soundaktor is the cause.
- Many owners choose to disable the unit by unplugging it, pulling the fuse, or coding it to 0% volume instead of replacing it. This has no negative effects on the vehicle.
Symptoms of a Failing Soundaktor
Failure of the Soundaktor is not critical to the vehicle's operation, but it can be extremely annoying. The most common symptoms are noise-related.
1. Rattling or Buzzing from the Dashboard/Firewall
This is the most common complaint. A failing or loose Soundaktor will create a distinct rattling, buzzing, or kazoo-like noise that seems to come from the base of the windshield. This noise is directly correlated with engine RPM, typically occurring in a specific range (e.g., 3000-3500 RPM), and is often much worse in cold weather. The noise will also be more pronounced in 'Sport' or 'Dynamic' driving modes, where the actuator is most active.
2. Noise Changes with Drive Mode
The sound is often much louder or only present when the vehicle's Drive Select is in "Dynamic" or "Sport" mode, as this is when the Soundaktor is programmed to be most active. Switching to "Comfort" mode may reduce or eliminate the noise, which is a key diagnostic step.
3. No Artificial Engine Sound
The unit can also fail completely, resulting in a noticeable lack of enhanced engine sound in modes where it should be present. The cabin will sound much quieter, especially during acceleration in Sport mode. This can also be caused by a blown fuse or disconnected wiring.
Diagnosing the Issue
Confirming the Soundaktor is the source of the noise is straightforward. If you hear a suspicious rattle from the dash that matches the symptoms above, perform this simple test:
- Go into your vehicle's MMI (Multi Media Interface) and access the "Drive Select" menu.
- Choose the "Individual" setting.
- In the Individual settings, find the parameter for "Engine Sound" and set it to "Comfort" or "Auto."
- Drive the vehicle and see if the noise has disappeared. If the rattle is gone, you have confirmed the Soundaktor is the culprit.

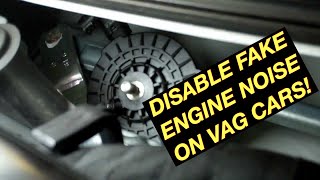

Pro Tip: Many owners find the Soundaktor's noise artificial and choose to disable it permanently. This can be done easily with a diagnostic tool like OBDeleven or VCDS by setting the actuator's volume to zero in the 'A9' control module. 🎬 Watch: How to disable the Soundaktor using OBDeleven This is a completely reversible and safe modification that many prefer over replacing a faulty unit.
Buying a Used Soundaktor
Because a Soundaktor is a simple electronic device with no complex moving parts, a used OEM unit is an excellent value. Aftermarket options are generally not available for this specific component.
- Verify Compatibility: Before purchasing, ensure your vehicle was equipped with a Soundaktor from the factory. It is an optional feature. Check your vehicle's original equipment list or look for the "Engine Sound" setting in your MMI.
- Physical Inspection: When buying a used unit, inspect the plastic housing for cracks or damage. Check that the electrical connector pins are clean, straight, and free of corrosion.
- Part Numbers: Match the part number on your original unit to the used replacement. While several part numbers may be interchangeable, an exact match is the safest bet. Common part numbers include 3QF907601, 4H0907601A, 4H0907601D, and 4H0907601E.
- Why Used OEM?: A used original equipment part ensures perfect fitment, correct electrical connections, and the intended sound profile programmed by the manufacturer. It's a reliable and cost-effective way to fix a rattling unit if you wish to keep the feature active.
Known Issues, TSBs, and Recalls
There are no specific recalls or widespread Technical Service Bulletins (TSBs) for Soundaktor failure. However, the rattling issue is a widely discussed topic in owner forums for the Audi A4, A5, Q5, Q7, Q8, A6, A7, A8, and VW Arteon. Some owners have reported successful warranty replacement for rattling units when the vehicle was new. In some instances, the rattle may not be the actuator itself but another component vibrating against it, so proper mounting and seating during installation are critical.
Important: This part is an engine sound generator (Soundaktor), NOT a hands-free microphone for your phone. Please verify your vehicle has this option before purchasing, as it will only fit cars originally equipped with this feature.
Cost of Replacement
The cost to replace a Soundaktor can vary depending on whether you do it yourself or use a repair shop. The part itself is relatively inexpensive, but labor can be significant due to its location.
| Item | Estimated Cost |
|---|---|
| New OEM Soundaktor | $250 - $400 |
| New Aftermarket Soundaktor | Not Generally Available |
| Used OEM Soundaktor | $25 - $75 |
| Shop Labor | $100 - $180 |
Replacement Overview
The Soundaktor is typically located in the engine bay, centered at the base of the windshield under the plastic cowl cover. Replacement requires removing the wiper arms and the entire plastic cowl assembly to gain access, which is why the labor can take up to an hour despite the part itself being held in by simple clips or bolts.

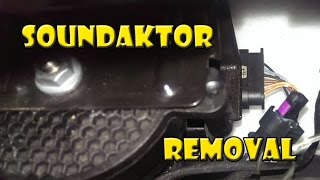

🎬 Watch: Step-by-step Soundaktor removal and before/after sound clipsFrequently Asked Questions (FAQ)
Is the Soundaktor the same as the hands-free microphone?
No. This is a common point of confusion. The Soundaktor creates artificial engine sounds inside the cabin. The hands-free microphone for phone calls and voice commands is a separate part, usually located in the overhead console inside the car.
Do I have to replace a broken Soundaktor?
No. A broken or rattling Soundaktor poses no safety risk and does not affect the vehicle's performance or reliability. It is purely an aesthetic and acoustic component. If it fails, the only consequence is an annoying noise or a quieter cabin.
Can I just unplug it to stop the rattling?
Yes, you can simply unplug the unit to disable it. 🎬 See how to unplug the Soundaktor for free This is a common solution for many owners who do not like the feature or the rattling noise. Alternatively, you can pull the correct fuse or use a diagnostic tool like OBDeleven to set its volume to 0%, which are often preferred methods. This will not cause any warning lights on most models.
Will a faulty Soundaktor cause a Check Engine Light?
It is highly unlikely. A failing Soundaktor typically only results in noise issues. A complete electrical failure of the unit might store a specific fault code in the A9 "Structure Borne Sound" control module, but it will not trigger the main Check Engine Light on your dashboard.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3QF907601 4H0907601A 4H0907601D 4H0907601E
The Soundaktor is a transducer that generates structure-borne sound waves, using the vehicle's firewall and windshield as a membrane to radiate sound into the cabin. Its intensity is controlled by the vehicle's Drive Select system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
