2011-2013 BMW X5 Roof Wiring Harness: Water Leaks, Electrical Gremlins, and Replacement Guide
This guide explains how clogged sunroof drains lead to roof wiring harness failure in the 2011-2013 BMW X5, causing a host of electrical problems.
- The number one cause of roof wiring harness failure in the 2011-2013 X5 is water damage from clogged panoramic sunroof drains.
- Compatibility is critical when buying a used harness; the OEM part number must be an exact match to your original due to vehicle options.
- Replacement is a major job requiring complete headliner removal, making it a 5/5 difficulty and expensive in labor costs.
- Preventative maintenance is the best defense: clean your sunroof drains annually to prevent water from overflowing into the headliner.
Symptoms of a Failing Roof Wiring Harness
Failures in the E70 X5's roof wiring harness are almost always caused by water damage. The panoramic sunroof is equipped with four drain tubes, one at each corner, designed to channel rainwater away. Over time, these drains can clog with debris, causing water to back up and overflow from the sunroof cassette directly onto the headliner and the wiring harness within it. This moisture leads to corrosion and short circuits, causing a variety of confusing electrical symptoms.
- Malfunctioning Interior Lights: Map lights, dome lights, or vanity lights may flicker, stay on constantly, or not turn on at all. This can lead to a parasitic battery drain if the lights remain illuminated after the car is off.
- Sunroof and Sunshade Inoperability: The sunroof may stop responding to switch inputs, or may open and close erratically. The power sunshade may also become non-functional.
- 'Emergency Call System Malfunction' Warning: Water damage can disrupt communication with the SOS button and related telematics modules, triggering a persistent warning on the iDrive screen. 🎬 See how to fix the Emergency Call System Malfunction
- Multiple, Unrelated Warning Lights: As corroded wires short circuit the vehicle's K-CAN bus (a data communication network), it can cause widespread communication faults between modules. This can trigger a cascade of seemingly random warnings for systems like ABS, tire pressure monitoring, and electronic damping control.
- Wet Headliner or A-Pillars: The most direct physical evidence is a damp or stained headliner, especially near the front A-pillars or the overhead console area. You may also find water in the front footwells as it runs down the inside of the pillars.
Known Issues, TSBs, and Recalls
The Panoramic Sunroof Drain Clog Epidemic
The primary known issue for the 2011-2013 X5 is not the harness itself, but the sunroof drainage system that destroys it. Clogged drains are the root cause of the vast majority of these electrical failures. BMW has issued service bulletins for older models, like SIB 54 12 08, which details how trapped or twisted drain tubes can cause the sunroof cassette to overflow during heavy rain, leading to water ingress around the FZD and A-pillars. While this specific TSB is for a slightly older model, the principle and design are nearly identical for the 2011-2013 X5. The fix involves accessing and clearing the drains, and in some cases, trimming the drain tube ends to prevent future blockage.
Pro Tip: You can prevent this failure by regularly cleaning your sunroof drains. Open the sunroof and carefully pour a small amount of water into the drain channels at the front corners. The water should exit promptly behind the front wheels. If it drains slowly or backs up, the drains are clogged and need to be cleared with a flexible tool like a nylon trimmer line. 🎬 Watch: How to clear clogged BMW sunroof drains Avoid using compressed air, which can disconnect the hoses internally.
Recalls
As of mid-2024, there are no specific NHTSA recalls for the roof wiring harness on the 2011-2013 BMW X5. Most recalls for this vehicle pertain to other issues like idler pulley bolts or unrelated electrical components.
Buying a Used Roof Wiring Harness: A Buyer's Guide
Due to the high cost of a new OEM harness, a used part is a practical choice, but careful inspection is mandatory to avoid buying someone else's water-damaged problem.
Verifying Compatibility: The Most Critical Step
Warning: You MUST match the part number from your original harness. The part number 6971919 is a known OEM number, but BMW used many different harnesses depending on the vehicle's specific options. A harness for a car with a panoramic roof and rear entertainment is vastly different from one for a base model with a standard sunroof.
Before purchasing, physically inspect your old harness for its part number tag. Do not rely on a seller's generic description. The only way to guarantee compatibility is to match the number exactly.
Physical Inspection Checklist
- Check for Corrosion: This is the biggest red flag. Meticulously inspect every single connector pin for any signs of green or white crusty residue. Even a small amount of corrosion indicates moisture exposure.
- Feel for Stiffness or Damage: Gently bend the harness in a few places. Wires that have been soaked and then dried can become brittle. The outer sheathing should be flexible and free of cuts, abrasions, or signs of chafing.
- Inspect All Connectors: Ensure no plastic connectors are cracked, broken, or missing their locking tabs. A single damaged connector can make the entire harness useless.
- Ask About the Donor Vehicle: Ask the seller if they can confirm the donor vehicle did not have water damage or a leaking sunroof. Reputable recyclers will often note this in the vehicle's history.
Replacement Overview
Difficulty and Labor Costs

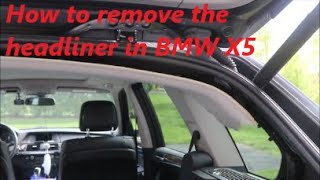

Replacing the roof wiring harness is a complex and time-consuming job. It requires the complete removal of the vehicle's headliner, which involves detaching the A, B, and C-pillar trims, 🎬 Watch: BMW X5 headliner removal walkthrough sun visors, grab handles, and the overhead console. This is not a simple plug-and-play repair.
- Difficulty Rating: 5 out of 5 (Professional level)
- Estimated Time: 4-6 hours
- DIY Feasible: Not recommended for beginners. Requires extensive interior trim work.
The majority of the cost is labor. Expect to pay a repair shop for several hours of work to drop the headliner, swap the harness, and reinstall everything without damage.
Cost Comparison
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $400 - $600+ | Price varies significantly based on vehicle options. Must be ordered from a dealer. |
| New Aftermarket | Not Available | The complexity and variations make this part unsuitable for aftermarket production. |
| Used OEM | $75 - $250 | The most cost-effective option, but requires careful inspection for water damage. |
| Shop Labor | $500 - $900 | Based on 4-6 hours of labor at typical shop rates for headliner removal and installation. |
Frequently Asked Questions (FAQ)
Can I just repair my old wiring harness instead of replacing it?
While it's sometimes possible to repair a single broken wire, it is not recommended for a harness with water damage. Corrosion can wick up inside the wire insulation, causing hidden damage that is impossible to see. Repairs are often temporary and will likely lead to more frustrating electrical problems down the road. Replacement is the only reliable solution.
My X5 has a solid roof (no sunroof). Does this guide apply to me?
While the primary cause of failure (leaking sunroof drains) won't affect your vehicle, the harness itself can still fail from other causes like chafing or rodent damage. More importantly, you will need a completely different harness specific to a 'slicktop' model. The part numbers and connectors will not be the same as a vehicle with any type of sunroof.
What is the FZD / Overhead Console and is it included with the harness?
The FZD (from the German 'Funktionszentrum Dach', meaning Roof Function Center) is the electronic module that contains the light switches, sunroof button, and other controls. It is a separate part that the roof wiring harness plugs *into*. It is not included with the harness and must be purchased separately if it is also faulty.
After replacing the harness, how do I prevent this from happening again?
Prevention is key. The single most important maintenance task is to clean your panoramic sunroof drains at least once a year, or more if you park under trees. Use a flexible nylon line to clear any debris from the four drain tubes to ensure water can flow freely away from the headliner and your new harness.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6971919
Varies significantly based on vehicle options such as standard sunroof, panoramic sunroof, and rear entertainment system.
