2011-2016 Kia Optima Smart Key Guide: Solving FCC ID and Programming Confusion
This guide clarifies the critical differences in smart keys used from 2011-2016, explaining the two incompatible systems and mandatory programming requirements.
- There are two incompatible key systems: 2011-2013 models require FCC ID SY5HMFNA04, while 2014-2015 models require SY5XMFNA433.
- Professional programming by a Kia dealer or an automotive locksmith is mandatory; there is no DIY method.
- The most common cause of failure is a dead CR2032 battery; always try replacing this first.
- The emergency key blade is a separate part that must be purchased and cut to match your vehicle's door lock.
The Most Important Check: Two Incompatible Key Systems
The single most critical thing to understand when replacing a key for a 2011-2016 Kia Optima is that two different, incompatible smart key systems were used during this period. Buying the wrong one will result in a key that cannot be programmed to your vehicle, even if it looks identical.
Warning: Before purchasing a key, you MUST check the FCC ID printed on the back of your original remote. This is the only way to guarantee compatibility.
| Vehicle Model Years | Required FCC ID | Common OEM Part Numbers | Frequency |
|---|---|---|---|
| 2011, 2012, 2013 | SY5HMFNA04 | 95440-2T100 | 315 MHz |
| 2014, 2015 | SY5XMFNA433 | 95440-2T500, 95440-4U000 | 433 MHz |
Note: While the generation is often referred to as 2011-2016, the 2016 model year marked the beginning of the next-generation Optima (chassis code JF), which uses different keys entirely. This guide focuses on the TF generation, primarily model years 2011-2015.
Symptoms of a Failing Keyless Entry Transmitter
Key fob problems can range from a minor annoyance to leaving you stranded. Here are the most common symptoms:
- "Key Not Detected" Message: The most frequent complaint. You get in the car, press the start button, and the dashboard displays a "Key Not Detected" error.
- Intermittent or Unresponsive Starting: The car may only start after multiple presses of the ignition button, or it may randomly fail to start at all.
- Doors Won't Lock/Unlock Remotely: The buttons on the fob fail to operate the door locks, trunk release, or panic alarm, even at close range.
- Reduced Range: You have to be much closer to the vehicle than before for the remote functions to work.

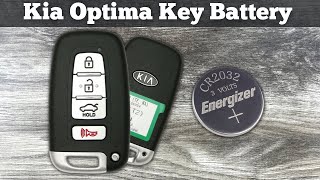

Pro Tip: Before assuming the key is bad, replace the CR2032 battery inside it. This is the most common cause of failure and a very inexpensive fix. If a new battery 🎬 Watch: How to replace your key fob battery doesn't solve the problem, then you can investigate further.
Diagnosis and Troubleshooting
If a new battery doesn't fix the issue, the problem could be the key itself or the vehicle's receiver. A common scenario is that the remote functions (lock/unlock) work, but the car won't start. This points to a problem with the transponder chip inside the key or its pairing with the car's immobilizer, not just the battery.
In some cases, a key can lose its programming after a battery change, although this is less common. Unfortunately, if the key has failed electronically or lost its pairing, troubleshooting options are limited without professional tools.
Programming: A Job for Professionals
This is the number one question for buyers of any electronic module, and the answer is clear:
You cannot program this smart key yourself.
There is no DIY or "onboard" programming procedure for the 2011-2016 Kia Optima. The key must be electronically paired to the vehicle's immobilizer system using specialized diagnostic equipment that connects to the car's OBD-II port.
🎬 Watch: How a locksmith programs a proximity keyWho Can Program the Key?
- Kia Dealerships: They can always program a new key, but they are typically the most expensive option and may refuse to program a key that wasn't purchased from them.
- Automotive Locksmiths: Most professional auto locksmiths have the necessary equipment (like Autel or Smart Pro devices) to program Kia smart keys. This is often a much more affordable and convenient option.
Buying a Used Keyless Entry Transmitter
Purchasing a used OEM smart key is an excellent way to save significant money, but you must be careful to get the right part.
- VERIFY THE FCC ID: This is not optional. A used key with the wrong FCC ID is a useless piece of plastic. Match the FCC ID from your old key to the one you are buying.
- Ensure It's Unlocked: Some used keys may still be locked to the previous vehicle's VIN. While many locksmiths can "unlock" or re-virginize a used key, it's best to buy one that is guaranteed to be in a programmable state.
- Physical Inspection: Check for cracks in the casing or excessive wear on the buttons. While cosmetic, severe wear could indicate a hard life and potential internal damage.
- Emergency Key Blade: A used fob will not come with the correct emergency key for your car. You will need to purchase a new, uncut key blade and have it cut by a locksmith to match your vehicle's locks.
Known Issues, Recalls, and TSBs
While there are no specific NHTSA recalls for the keyless entry transmitter itself, the 2011-2016 Optima has been subject to several important safety recalls. Notably, recall 23V-652 involves a fire risk from the Hydraulic Electronic Control Unit (HECU), which can short circuit. This is unrelated to the key fob but is a critical safety issue for owners. Other recalls have addressed engine failures and trunk latch issues. Always check your vehicle's VIN on the NHTSA website for open recalls.
Cost of Replacement
Prices can vary dramatically depending on where you source the part and who performs the programming.
| Item | Estimated Cost |
|---|---|
| New OEM Key (from Dealer) | $200 - $400+ (part only) |
| New Aftermarket Key | $40 - $125 (part only) |
| Used OEM Key | $30 - $75 (part only) |
| Programming Labor (Locksmith) | $50 - $150 |
| Programming Labor (Dealer) | $150 - $250+ |
| Total Dealer Replacement | $400 - $1000+ |
| Total Locksmith Replacement (Used OEM) | $80 - $225 |
Frequently Asked Questions (FAQ)
What happens if my key fob battery dies? Can I still start the car?
Yes. For 2011-2013 models, there is a dedicated slot inside the glove box. Insert the 🎬 See how to find the glove box key slot entire key fob into this slot, and you should be able to start the car by pressing the ignition button. For 2014-2015 models, you typically need to use the top of the key fob itself to physically press the start/stop button. This uses a short-range antenna to read the chip even with a dead battery. The emergency metal key inside the fob can be used to manually unlock the driver's door.
Can I just buy a cheap key online and have it programmed?
You can, but it's risky. The main danger is buying a key with the wrong FCC ID (SY5HMFNA04 for 2011-13, SY5XMFNA433 for 2014-15). Even if it looks identical, it will not program. Stick to reputable sellers who guarantee the FCC ID and that the key is unlocked and ready for programming.
The dealer says they won't program a key I bring them. What now?
This is a common policy at many dealerships. Your best option is to call local automotive locksmiths. They are almost always willing to program a key you provide, and their labor rates are typically much lower than the dealer's.
Why do my remote buttons work but the car says 'Key Not Detected'?
The key fob has two main functions: the remote buttons (which use battery power) and the transponder chip for the immobilizer (which is read by the car). If the remote buttons work, the battery is likely fine. The 'Key Not Detected' message means the car is not sensing the immobilizer chip. This could be due to a failed transponder in the key, a problem with the car's receiver, or a lost programming link.
Helpful Videos
Technical Specifications
OEM Part Numbers: 95440-2T100 95440-2T500 95440-4U000
FCC ID: SY5HMFNA04 (2011-2013) or SY5XMFNA433 (2014-2015). Battery Type: CR2032. Buttons: 4 (Lock, Unlock, Trunk, Panic).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
