2017-2026 Tesla Model 3 & Y Interior Mirror: Dimming Problems, Looseness, and Replacement

Symptoms of a Failing Interior Rear View Mirror

Failures of the auto-dimming mirror in a Tesla Model 3 or Model Y can range from minor annoyances to significant visibility issues. Here are the most common symptoms owners experience.

1. Auto-Dimming Malfunctions

The most frequent problem is a failure of the auto-dimming feature. This can manifest in several ways:

• Stuck in Dark Mode: The mirror may remain permanently dark, even during the daytime. This makes it difficult to see traffic behind you clearly.
• Fails to Dim: The mirror may not dim at all at night, allowing headlight glare to blind the driver. This can be caused by dirty or failed light sensors.
• Intermittent Dimming: The mirror might dim and brighten erratically, which can be distracting. This could point to a loose electrical connection or a failing internal circuit.

2. Mirror is Loose, Vibrating, or Has Fallen Off

Some owners report that the mirror becomes excessively loose and vibrates while driving, or in some cases, completely detaches from its ball-and-socket joint. This is typically caused by a failure of the small metal retaining ring that holds the mirror socket onto the ball stud. In other cases, the entire mirror and camera assembly bracket can become loose from the windshield mount, causing the mirror and the Autopilot camera view to shake.

3. Fluid Leakage or Bubbles in Glass

While less common in newer vehicles, older auto-dimming mirror technology was known for the electrochromic gel leaking. This fluid is toxic and can permanently damage interior plastics and upholstery. If you see a bubble, a distorted area, or any sign of fluid inside the glass, the mirror has failed and should be replaced immediately to prevent a potential leak.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Recall for Rearview Camera Display (Not the Mirror)

There is a common point of confusion regarding a Tesla recall. NHTSA recall 25V-002 (Tesla recall number SB-25-00-001) affects many 2023-2025 Model Y and 2024-2025 Model 3 vehicles. This recall is for an issue where the rearview camera image on the main center touchscreen can fail to display when the car is in reverse due to a computer circuit board short. This does NOT affect the physical interior rear view mirror itself, but rather the backup camera system. The fix is a free over-the-air (OTA) software update and, if necessary, a replacement of the car's computer.

No specific recalls or TSBs were found for failures of the interior rear view mirror itself.

Replacement Guide

Replacing the interior rear view mirror is a straightforward task that most DIYers can complete in under 15 minutes. The procedure varies slightly depending on whether your vehicle has the older AP3 (Autopilot 3) or newer AP4 hardware.

1. Remove the Camera Cover: The large plastic housing behind the mirror must be removed. It is held on by clips and can be carefully pried off.
2. Disconnect Electrical Connector: Unplug the single electrical harness connected to the mirror.
3. Remove the Mirror:
   • For AP3 vehicles (typically pre-2024): These mirrors are often secured with a Torx T20 bolt. Remove the bolt and slide the mirror off its mount.

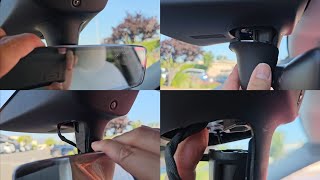

   🎬 See this walkthrough for removing a loose or wobbly mirror.
   • For AP4 vehicles (typically 2024+): Grip the mirror stalk firmly and turn it counter-clockwise about a quarter turn to release it from the windshield mount.
4. Installation: Installation is the reverse of removal. Attach the new mirror by either tightening the T20 bolt (to 2.5 Nm or 1.8 lb-ft) or by turning the stalk clockwise until it locks. Reconnect the electrical plug and snap the plastic cover back into place.
5. Camera Calibration (If Needed): After replacement, it's a good idea to run the Camera Calibration process from the vehicle's service menu on the touchscreen to ensure the Autopilot cameras, which are in the same housing, are properly aligned.

Buying a Used Interior Rear View Mirror

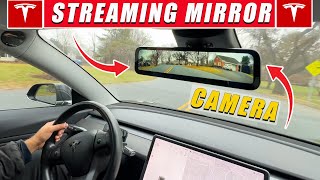

Given the high cost of a new OEM mirror, a used part is an excellent value. These mirrors are generally reliable, and a used OEM part is often superior to a cheap aftermarket alternative. 🎬 Check out this streaming camera mirror upgrade for better visibility. Here’s what to look for:

• Inspect the Ball Joint: The most important check is the ball-and-socket joint. Hold the mirror body and try to move it on the stalk. It should be firm and hold its position. If it's loose or floppy, the retaining clip has failed and you'll have the same vibration or looseness problem.
• Check the Glass: Look for any signs of discoloration, bubbles, or what looks like a liquid separation inside the glass. This indicates the auto-dimming fluid is failing, and the mirror should be rejected. Also check for deep scratches that could impede vision.
• Verify the Connector: Ensure the electrical connector and any pins are straight and undamaged.
• Part Number Compatibility: Several part numbers are used for the Model 3 and Model Y, but they are generally interchangeable for the specified model years (excluding the 2024+ 'Highland' Model 3). Common part numbers include 1119904-00-C, 1494441-00-B, 1494441-00-J, and 1783799-00-A. As long as the mirror is from a 2017-2023 Model 3 or a 2020-2026 Model Y, it should fit and function correctly.

Cost Comparison

Prices for replacing the interior rear view mirror can vary significantly.

Frequently Asked Questions (FAQ)
