2016-2025 Audi A4, A5, Q5 & More Overhead Console: Solving SOS Malfunctions and Flickering Lights

Symptoms of a Failing Overhead Console

Problems with the overhead console can range from minor annoyances to critical safety system warnings. Because several different components are integrated into this single unit, a failure can manifest in multiple ways.

1. 'SOS Malfunction' Warning on Dash

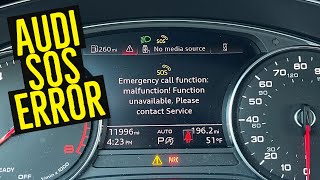

The most common and concerning symptom is a persistent “Emergency call function: malfunction!” warning on the instrument cluster, often accompanied by a red or unlit LED next to the SOS button. This indicates a fault in the e-call system, which automatically contacts emergency services after a crash. The primary cause is the failure of a small, non-rechargeable backup battery located inside the telematics control unit (module J949). This battery has a typical lifespan of 3-5 years, and when it dies, it triggers the malfunction warning. While the car is still drivable, this is a critical safety failure as the automatic emergency call feature will not work.

2. Dome Lights Turn On Randomly or Flicker

Many owners report that the touch-activated dome or map lights will turn on by themselves and cannot be turned off. This issue sometimes occurs after rainfall or in damp weather, suggesting a possible short circuit or moisture intrusion affecting the touch-sensitive controls. In other cases, the lights may flicker or become completely unresponsive. Often, the only permanent solution is to replace the entire overhead console assembly.

3. Sunroof Switch is Unresponsive

The switch that controls the panoramic sunroof may stop working entirely, preventing the roof from opening, closing, or tilting. This is often due to the internal plastic mechanism of the switch itself breaking from use over time. While the motor is fine, the broken switch makes it impossible to operate the roof.

4. Buzzing or Rattling from the Headliner

A persistent buzzing or rattling sound from the area around the overhead console can be a sign of a loose internal component. Forum users have traced this noise to the interior motion detector module (part number 5Q0951177), which can vibrate against the main console housing. Securing this small module with adhesive pads during reinstallation can resolve the noise.

5. HomeLink Buttons Don't Work

If the HomeLink garage door opener buttons stop working, the issue could be the buttons in the console. However, it's important to note that for many of these Audi models (including the A4, A5, and Q5), the actual HomeLink transmitter is a separate module located behind the front bumper cover. The buttons in the console just send a signal to the transmitter. Therefore, a non-functional HomeLink system may require replacement of the bumper-mounted module, not the overhead console.

Buying a Used Interior Light Console

A used OEM overhead console is a cost-effective solution, but careful inspection is key to avoiding a bad part.

1. Match the Part Number Exactly: There are many variations of this console based on the vehicle's options. Part numbers like 8W0947135 are for the A4/A5 family, while 80A947135 are for the Q5/SQ5. You must match the full part number, including any suffix letters, from your original unit to the replacement. The part number is printed on a sticker on top of the housing.
2. Verify Features: Visually confirm that the used unit has the same buttons and features as yours. Check for a sunroof switch (and that it's for the correct type of roof), an SOS button, and the correct color (black, grey, beige) to match your headliner.
3. Inspect for Damage: Check that all plastic mounting tabs and, most importantly, the metal spring clips are intact and not bent. These are easily damaged during removal from the donor vehicle.
4. Test the Buttons: Physically press all the buttons. They should have a solid, tactile click. Spongy or sticky buttons are a red flag for internal damage or liquid spills.
5. The SOS Battery Caveat: Be aware that the primary cause of the 'SOS Malfunction' is a battery with a 3-5 year lifespan. A used console from a vehicle of similar age may have a battery that is also near the end of its life. While it may solve the problem temporarily, the issue could return. Given the high cost of a new unit from the dealer (often over $1,500), a used part is still a logical choice for many owners.

Replacement Overview

Replacing the overhead console is a manageable DIY task for those comfortable with interior trim work. The difficulty is rated 2 out of 5.

Tools Needed:

• Plastic trim removal tools
• Torx T25 driver (for Q5/SQ5 models only)

General Steps:

1. For Q5/SQ5: Open the sunglasses holder and remove the single T25 Torx screw located inside.
🎬 Watch: Audi Q5 overhead console removal walkthrough
2. For All Models: Using a plastic trim tool, carefully pry down on the edges of the console. It is held in by several strong metal spring clips. You will need to apply significant and steady force, which can feel uncomfortable, but the console will eventually pop down. Work your way around the console to release all clips.
3. Once the console is hanging, disconnect the one or two electrical connectors on the back.
4. Installation is the reverse of removal. Connect the wiring, align the console, and press up firmly until all the clips snap securely into place.
