2010-2020 Aston Martin Rapide Rear HVAC Control (AD43-7440-BC): Diagnosis and Replacement
This guide clarifies that part AD43-7440-BC is the rear climate control module, not a simple interior light, and covers its common failures, diagnosis, and replacement.
- Part number AD43-7440-BC is the rear HVAC control module, NOT a simple interior light, despite how it is sometimes labeled.
- Failure is isolated to the module itself (blank screen, dead buttons); widespread electrical issues point to the battery or BCM.
- A used OEM module is a fraction of the cost of a new one, offering significant savings.
- Replacement is a straightforward DIY task but requires care and plastic trim tools to avoid damaging the expensive center console trim.
Part Identification: Is AD43-7440-BC an Interior Light?
A common point of confusion is the classification of part number AD43-7440-BC. While some used parts databases may label it generically as an "Interior Light" or "Interior Lighting," this is misleading. This part is actually the Rear HVAC (Heating, Ventilation, and Air Conditioning) Control Module for the 2010-2020 Aston Martin Rapide. It is specifically the version for vehicles without the optional Rear Seat Entertainment (RSE) system. Before purchasing, it is critical to understand you are buying the rear climate control panel, not a dome light, map light, or puddle light.
Symptoms of a Failing Rear HVAC Module
Failure of this module is typically isolated to the rear climate functions. If you are experiencing widespread electrical problems like flickering lights throughout the cabin, random warning messages, or battery drain, the issue is more likely a weak battery or a failing Central Electronic Module (CEM), also known as the Body Control Module (BCM). Symptoms specific to a faulty AD43-7440-BC module include:
- Unresponsive Buttons: The buttons for temperature, fan speed, or mode selection do not respond when pressed.
- Blank LCD Screen: The digital display that shows temperature and fan settings is dark or does not turn on.
- No Control of Rear Climate: You are unable to adjust the air conditioning or heat for the rear passenger area using this panel.
- Failed Backlighting: The illumination behind the buttons or screen is out, making it difficult to see at night.
Pro Tip: Before assuming the module is bad, check the fuse for the rear climate system. Electrical issues on the Rapide can sometimes be resolved by simply pulling and reinstalling the relevant fuse, which resets the component. Consult your owner's manual for the correct fuse location.
Buying a Used Rear HVAC Module
Given the high cost of a new OEM unit, a used module is an excellent value. However, careful inspection is key to getting a good part.
- Verify the Part Number: Double-check that the part is labeled AD43-7440-BC. A similar part number, AD43-7440-AC, also exists and may have different functionality.
- Inspect the LCD Screen: Look closely at the screen for any signs of delamination, deep scratches, or cracks. Ask the seller for a photo of the unit powered on if possible, though this is often not feasible.
- Check the Buttons: Ensure all buttons are physically present and have a solid, tactile click. They should not be loose, sticky, or broken.
- Examine the Housing and Connector: Look for cracks or broken mounting tabs on the plastic housing. Inspect the electrical connector pins to ensure they are straight and free of any green or white corrosion.
Known Issues, TSBs, and Recalls
Searches of the NHTSA database and technical service bulletins did not reveal any specific recalls or common issues directly related to the rear HVAC module (AD43-7440-BC) or general interior lighting for the 2010-2020 Aston Martin Rapide. Most recalls for this vehicle concern powertrain, door locks, or accelerator pedals. Any electrical issues are more often linked to the main battery, grounding points, or the Body Control Module.
Replacement Overview
Replacing the rear HVAC module is a feasible DIY project for those comfortable with interior trim removal. The primary risk is scratching or cracking the expensive console trim.
- Disconnect the Battery: As a precaution before working on any electronic component, disconnect the vehicle's battery.

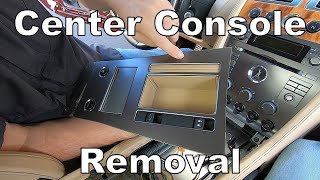

- Remove Surrounding Trim: Using a set of plastic trim removal tools, carefully pry away the trim panel surrounding the HVAC module in the rear center console. 🎬 See this guide on removing the Rapide center console armrest These pieces are typically held in by clips. Work slowly and gently to avoid damage.
- Unscrew the Module: Once the trim is removed, you should see the screws securing the module to the console structure. Remove these screws.
- Disconnect the Electrical Connector: Gently pull the module out and locate the electrical connector on the back. Depress the release tab and pull the connector straight out.
- Install the New Module: Installation is the reverse of removal. Connect the new module, screw it into place, re-install the trim, and reconnect the battery.
Warning: The interior components of an Aston Martin are made with high-quality but delicate materials. Using metal tools like a screwdriver to pry panels will almost certainly cause damage. Always use plastic pry tools.
Cost Comparison
The cost difference between a new and used module is significant, making a recycled OEM part a very attractive option.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $1,100 - $1,200 |
| New Aftermarket | Not Available |
| Used OEM | $75 - $150 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions (FAQ)
Is any programming required after replacing this module?
There is no evidence to suggest that the rear HVAC module requires dealer programming. It appears to be a plug-and-play component. This is unlike the main Body Control Module (BCM), which absolutely requires programming or cloning to function.
My interior lights are flickering. Is this part the cause?
It is highly unlikely. A single faulty rear HVAC module would not cause other cabin lights to flicker. Widespread, intermittent electrical issues are a classic symptom of a failing battery, a bad ground connection, or a problem with the Body Control Module (BCM/CEM). You should have your vehicle's battery and charging system tested before replacing any components.
🎬 Watch: How to replace a dead battery on a RapideHow do I replace the bulbs in the other interior lights, like the map lights?
For the small, circular pod lights used for maps and general illumination, owners report that the entire light assembly can be carefully pried out of the headliner using a trim tool. This provides access to the bulb holder. However, some owners have had difficulty with the holder falling into the headliner void, so proceed with caution. Many owners upgrade the standard bulbs to brighter, more efficient LEDs.
Can I add Rear Seat Entertainment (RSE) by swapping this panel?
No, adding the factory RSE system is not a simple panel swap. It would require the correct display screens, a different control module, extensive wiring, and likely vehicle programming. This module (AD43-7440-BC) is specifically for cars that were not equipped with RSE from the factory.
Helpful Videos
Technical Specifications
OEM Part Numbers: AD43-7440-BC
Rear HVAC Control Module with LCD Display, for vehicles without Rear Seat Entertainment (RSE).
