2016-2019 Cadillac CT6 3.0L Twin-Turbo Intercooler: Failure, Leaks, and Replacement

Symptoms of a Failing Right (Passenger Side) Intercooler

A failing intercooler on the Cadillac CT6 3.0L engine can present a range of symptoms, from subtle performance loss to a check engine light. Because these are water-to-air units, symptoms can be caused by an air leak (boost leak) or a coolant leak.

• Loss of Power: The car may feel sluggish, especially during acceleration or when under load. This is the most common symptom, caused by the engine receiving hotter, less dense air or incorrect boost pressure.
• Hissing or Whistling Noises: A distinct hissing sound from the engine bay during acceleration often indicates a crack in the intercooler's plastic housing or a bad seal, allowing pressurized air to escape.
• Check Engine Light: A significant boost leak or a faulty sensor within the intercooler assembly can trigger the check engine light. Common related trouble codes include P0299 (Turbo/Supercharger Underboost) 🎬 Watch: Troubleshooting the P0299 code before replacing parts, P0111 (Intake Air Temperature Sensor 1 Circuit Range/Performance), and P0096 (Intake Air Temperature Sensor 2 Circuit Range/Performance). A faulty sensor may give impossible readings, like -40°F, causing poor running conditions.
• Reduced Fuel Economy: The engine's computer will try to compensate for the hot air or incorrect pressure by adjusting the fuel mixture, often leading to increased fuel consumption.
• Visible Coolant Leaks: Since these are water-cooled units, a crack can cause an external coolant leak. You might notice the scent of coolant or see puddles under the vehicle.
• Rough Idle or Misfires: In severe cases, a coolant leak from the intercooler can go internal, allowing coolant to enter the engine's combustion chamber. This can lead to a rough idle, misfires, and potentially white smoke from the exhaust.

Known Issues for the 2016-2019 Cadillac CT6 3.0L Intercooler System

While the intercoolers themselves are not subject to any recalls, the complexity of the water-to-air system presents some unique challenges.

Air in the Intercooler Cooling Circuit

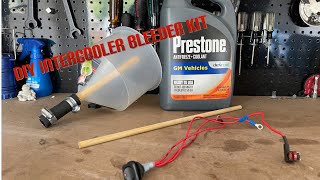

The intercooler system has its own coolant loop, separate from the main engine radiator. If air gets trapped in this system, it can prevent the coolant from circulating properly. This leads to very high Intake Air Temperatures (logged as IAT2 by scanning tools) and a significant loss of power, a condition often called heat soak. The system must be properly bled using a specific procedure anytime it is opened for service. A video from Tapout Tuning demonstrates a method for bleeding the similar system on an ATS-V, which also applies to the CT6 3.0TT. 🎬 See this walkthrough for filling and bleeding the system Symptoms of air in the system are most noticeable during repeated acceleration, where performance degrades rapidly.

Related Cooling System Faults

Some owners have reported issues where a failing main engine thermostat or temperature sensor can cause the vehicle to enter a fail-safe mode. Symptoms include the radiator fans running constantly (even after the engine is off) and the air conditioning compressor being disabled. While not a direct intercooler failure, it highlights the sensitivity of the CT6's interconnected thermal management systems.

Buying a Used 2016-2019 CT6 Intercooler: What to Check

A used OEM intercooler can be a cost-effective solution, but careful inspection is critical before buying.

1. Verify the Part Number: Ensure you are buying the correct part for the passenger side. Look for OEM part numbers 12673394 or its predecessor, 12652025.
2. Inspect the Plastic Housing: The top and end tanks of the intercooler are plastic. Carefully check all surfaces, especially around the seams and mounting points, for hairline cracks or any signs of previous repairs (like epoxy or glue).
3. Check the Coolant Ports: Inspect the inlet and outlet coolant hose connections. They should be clean and free of corrosion or physical damage. Cracks here will cause a coolant leak.
4. Look Inside the Air Passages: A light film of oil inside the intercooler is normal for any turbocharged engine. However, pooled or excessive oil can be a red flag, potentially indicating excessive blow-by or failing turbocharger oil seals on the donor vehicle.
5. Examine the Aluminum Core: Look for bent or damaged cooling fins. While a few bent fins are cosmetic, large areas of damage can restrict airflow and reduce the cooler's efficiency. Ensure there are no punctures.
6. Check All Sensors and Connections: Make sure any integrated sensors and their electrical connectors are intact and not damaged.

Replacement Overview & Difficulty

Replacing the passenger side intercooler on the CT6 3.0L is an involved process due to its location on top of the engine.

The entire central intercooler assembly must be removed to access the individual left and right coolers and the spark plugs underneath. 🎬 Watch: Step-by-step guide to removing the intercooler assembly The process involves:

• Removing the engine cover.
• Disconnecting various electrical connectors and air valves.
• Removing the side air inlet pipes that connect to the throttle bodies.
• Unbolting the main intercooler assembly from the engine (four bolts on top, four in the back).
• Lifting the assembly off the engine.
• Disconnecting coolant lines.
• Separating the right-side cooler from the main assembly.

Because the fuel and cooling systems are opened, this job requires care and precision. The intercooler cooling system must be drained and refilled, followed by a thorough bleeding procedure to remove all air. Due to the complexity, the installation difficulty is rated high.

Cost of Replacement: New vs. Used

Prices can vary based on supplier and location. The following are estimates to help understand the potential cost savings of a used part.
