2003-2007 Hummer H2 Passenger Airbag: SRS Light Causes and Replacement Facts

Symptoms of a Faulty Instrument Panel Airbag

The most common and immediate sign of a problem with the passenger airbag or any part of the SRS system is an illuminated airbag warning light on your instrument cluster. This light may look like an icon of a person with an airbag or simply the letters 'SRS'.

• Persistent SRS/Airbag Warning Light: When this light stays on, it means the SRS control module has detected a fault and has disabled the entire airbag system as a safety precaution. This means NO airbags will deploy in a crash, including the driver's, until the fault is fixed and the system is reset.
• Diagnostic Trouble Codes (DTCs): A professional scan tool capable of reading SRS codes can pinpoint the problem. Common codes related to the passenger side on an H2 include faults with the passenger airbag circuit itself, the Passenger Presence System (PPS), or front impact sensors.
• Visible Damage: Any cracks, tears, or deformation of the airbag cover on the dashboard indicate the unit may be compromised and requires immediate inspection by a professional.

Known Issues & Common Causes for the SRS Light in a Hummer H2

While the airbag module itself can fail, the SRS light in a 2003-2007 Hummer H2 is often triggered by related components. No recalls have been issued by the NHTSA specifically for the passenger airbag on these vehicles. However, owners and technicians report several common issues:

Water Intrusion & SRS Module Corrosion

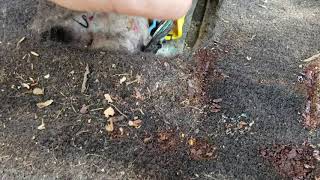

The Hummer H2 is known for potential water leaks from roof clearance lights, body seams, or the windshield. This water can travel down and soak the carpet, eventually reaching the main SRS Airbag Control Module, which is often located under one of the front seats. 🎬 Watch how water intrusion damages the H2 airbag module Corrosion on the module or its connectors is a very common cause of SRS faults or a 'no communication' error when trying to scan for codes. If you have an SRS light, checking for dampness under the seats and inspecting the module for corrosion is a primary diagnostic step.

Passenger Presence System (PPS) Fault

A technical document notes that the wiring harness for the Passenger Presence System (PPS) sensor, located under the front passenger seat, can become pinched or shorted between the seat frame and its riser. This can trigger the airbag light and a specific trouble code, often B0092. The PPS system is what tells the SRS module whether a passenger is present and of sufficient weight to safely enable the airbag.

Faulty Front Impact Sensors

The H2 has impact sensors located at the front of the vehicle. These sensors can fail due to corrosion, physical damage, or age. A faulty passenger-side front impact sensor can trigger the SRS light and a code such as B0103. These sensors are often located behind the front grille or on the radiator support.

Buying a Used 2003-2007 Hummer H2 Passenger Airbag

Since new OEM airbags for an older vehicle like the H2 may be discontinued or prohibitively expensive, a high-quality, non-deployed used OEM airbag is often the best solution. Aftermarket instrument panel airbags are generally not manufactured or recommended. Here’s what to look for when buying used:

• Verify Part Number: Ensure the part is OEM number 25785822, which may also replace the older number 15065296.
• Inspect for Deployment: This is the most critical check. The airbag cover must be perfectly intact, with no stress marks, discoloration, or signs of being pushed out from behind. A deployed airbag cannot be reused.
• Check the Donor Vehicle's History: Ask the seller for the Vehicle Identification Number (VIN) of the car it came from. Run a vehicle history report to ensure it was not in a major collision and, most importantly, was not a flood vehicle. Water damage can compromise the inflator charge and render the airbag useless.
• Examine the Electrical Connector: The yellow SRS connector and its wiring pigtail should be clean, dry, and free of any corrosion or bent pins. Do not buy an airbag with a damaged connector.
• Check Mounting Points: All plastic and metal mounting tabs on the airbag housing must be present and unbroken to ensure it can be securely fastened inside the dashboard.

Replacement Overview and System Reset

A professional technician will follow a strict procedure to ensure safety and proper function.

1. Disable the System: The first step is always to disconnect the vehicle's negative battery terminal and wait at least 10-15 minutes. This allows the backup power capacitors within the SRS module to fully discharge, preventing accidental deployment.
2. Access the Airbag: This typically involves removing the glove box and surrounding dashboard trim panels to reach the airbag module's mounting bolts.
3. Install the Replacement: The new or used unit is carefully bolted into place, and the yellow electrical connector is securely attached. The locking clip on the connector must be properly engaged.
4. Reset the SRS Module: After installation, the SRS light will remain on. A professional-grade scan tool is required to connect to the SRS control module, clear the stored fault codes, and verify the system recognizes the new component. If the old airbag was deployed in a crash, the SRS control module itself must be replaced or sent to a specialist for a hard reset, 🎬 See this guide on Hummer H2 airbag module replacement as it will have stored non-erasable crash data.

Cost to Replace a Hummer H2 Passenger Airbag

Prices can vary based on your location and the specific issue diagnosed. The primary cost driver is whether only the airbag needs replacement or if other components like the SRS module are also faulty.
