2012-2019 VW Passat Instrument Cluster: A Guide to MFD, Immobilizers, and Replacement

Symptoms of a Failing Instrument Cluster

A faulty instrument cluster in a VW Passat can cause a range of confusing and concerning issues. Because it's a central electronic module, its failure can mimic other problems. Here are the most common signs that your cluster may be failing:

• Erratic or Dead Gauges: The speedometer, tachometer, fuel gauge, or temperature gauge may give incorrect readings, get stuck, or stop working entirely.
• Flickering or Dim Display: The backlight for the gauges or the central Multi-Function Display (MFD) may flicker, dim, or go out completely.
• Pixelated or Blank MFD: The central digital screen may show dead pixels, jumbled text, or go completely blank.
• Warning Light Issues: Multiple warning lights (like ABS, Airbag, or Check Engine) may illuminate for no reason, or fail to light up during the initial self-test. Sometimes, this can be caused by a faulty CAN gateway module, but the cluster is a frequent cause.
• Intermittent Power Failure: The entire cluster may randomly shut off and turn back on while driving.
• Immobilizer Warning: A "SAFE" message may appear on the display, or a key warning light may flash, indicating the car cannot recognize the key. This can prevent the engine from starting.
• Loss of Warning Chimes: The audible alerts for headlights being left on, an open door, or low fuel may stop working. This is often due to a failed internal speaker on the cluster's circuit board.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there have been no major recalls specifically for widespread instrument cluster failure on the 2012-2019 Passat, there are related service actions and common problems discussed by owners.

• No Widespread Failure Recall: Searches of the National Highway Traffic Safety Administration (NHTSA) database do not show a recall for instrument cluster failure for this Passat generation.
• Related Recalls: Some recalls touch on the cluster's function. For example, recall 90W7 was issued for some 2019 models because an incorrect software coding could prevent the audible warning for a key left in the ignition, increasing theft risk. The fix was to recode the instrument cluster.
• Technical Service Bulletins (TSBs): Volkswagen has issued TSBs related to the cluster, often for software updates or diagnosing communication issues. TSB TT 90 11 01 addresses a situation where the cluster can get stuck in "Production Mode," and TSB TT 91 18 13 provides instructions for addressing "Component Protection" messages.
• Internal Speaker Failure: A very common complaint is the failure of the small speaker on the cluster's circuit board, leading to a loss of all warning sounds.

Programming, Immobilizer, and Mileage: The Critical Details

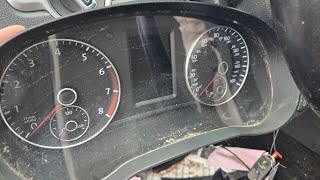

Replacing the instrument cluster in a 2012-2019 Passat is not a simple plug-and-play job. The cluster is a security component, and several electronic systems must be synchronized for the vehicle to operate.

Immobilizer and Component Protection

This generation of Passat uses an advanced immobilizer system. The instrument cluster, Engine Control Module (ECM), and keys are all electronically "married" to each other. When you install a used instrument cluster, it will have the security data from its donor vehicle. This mismatch will trigger the immobilizer, and the car will not start. A "SAFE" message will often appear on the display. 🎬 See how to fix the SAFE error and sync the immobilizer The process to make the new cluster work with your car is called adaptation. This requires special diagnostic tools, like Volkswagen's ODIS software, and online access to VW servers (GEKO) to synchronize the components. This procedure removes the old security data and programs the replacement cluster to match your vehicle's keys and ECM.

Mileage Correction

The vehicle's mileage is stored within the instrument cluster itself. When you install a used cluster, it will display the mileage from the donor car, not your vehicle's actual mileage. Legally and for proper service records, the correct mileage from your original cluster must be transferred to the replacement. This is a specialized service that requires advanced tools and expertise. Some repair shops offer to clone the data from your old cluster to the replacement, which is the ideal solution as it transfers the immobilizer data and mileage at the same time.

Buying a Used Instrument Cluster for Your 2012-2019 Passat

Purchasing a used OEM cluster can save you hundreds of dollars compared to a new one, but careful selection is key to avoiding compatibility headaches.

1. Match the Part Number EXACTLY: This is the most important step. Volkswagen used many different clusters with subtle variations. The part number is printed on a sticker on the cluster's housing. Your replacement MUST have the same part number as your original.
2. Gasoline vs. Diesel: Clusters are specific to engine type. A gasoline cluster has a different tachometer redline and warning light configuration than a diesel one. This guide and the listed part numbers are for gasoline models only.
3. MPH vs. KPH: Ensure you are buying a US-market (MPH) cluster, not a Canadian or European (KPH) version.
4. Multifunction Display (MFD): This is a major point of variation. Some Passat models came with a basic red-lit display, while others had the more advanced high-resolution white-lit Multifunction Display (MFD) between the gauges (VW option code 9Q5). A cluster designed for a car with the MFD will not work in a car without it, and vice-versa. Verify which type your car has before ordering.
5. Inspect the Condition: Check photos carefully for deep scratches on the plastic lens, cracks in the housing, or broken mounting tabs. If possible, ask the seller to confirm there is no visible pixel damage on the MFD screen.
6. Factor in Programming Costs: Remember that the purchase price of the used cluster is not the final cost. You must budget for professional programming and mileage correction, which can cost several hundred dollars.

Replacement Cost Comparison

The cost to replace a Passat instrument cluster varies significantly based on the path you choose. Programming is an additional cost that must be factored in for all replacement options.
