1994 Oldsmobile Cutlass Instrument Cluster: Gauge Failures & Compatibility Guide
Your definitive guide to diagnosing common issues like erratic gauges and dead displays, and ensuring you buy the correct replacement cluster for your 3.1L V6.
- Compatibility is critical: The cluster must be from a 1994 Cutlass with a 3.1L V6 engine, confirmed by the 8th VIN digit 'M' and part number 16166503.
- This part is plug-and-play; no dealer programming is required for installation.
- A used cluster will display the mileage from the donor car, not your vehicle's original mileage.
- The most common failure is intermittent power loss caused by bad solder joints on the internal circuit board.
Key Compatibility Checks for 1994 Cutlass Clusters
Before purchasing a replacement instrument cluster, it's critical to verify it is compatible with your specific vehicle. The 1994 Oldsmobile Cutlass used different clusters depending on the engine.
Warning: This instrument cluster is only for models equipped with the 3.1L V6 engine. You can verify this by checking the 8th digit of your Vehicle Identification Number (VIN). If the 8th digit is 'M', your car has the 3.1L V6 and this cluster should be compatible. Also, confirm the OEM part number 16166503 is printed on a sticker on your original cluster's housing.
Common Failure Symptoms
Failures in these instrument clusters are common and usually present in a few distinct ways. These issues are often caused by internal electronic component failure rather than external problems.
1. Intermittent or Completely Dead Cluster

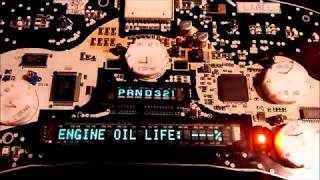

The most frequent complaint is a cluster that works intermittently or not at all. You might notice the gauges and lights work fine one moment and are completely dead the next. This is often triggered by changes in temperature or by driving over bumps. This erratic behavior is typically caused by cracked solder joints on the main circuit board 🎬 Watch: How to repair a GM cluster with no power, which disrupt the flow of power. In some cases, a poor ground connection behind the dashboard can also cause intermittent power loss.
2. Erratic or Sticking Gauges
Individual gauges, like the speedometer, tachometer, or fuel gauge, may behave erratically. They might jump around, provide incorrect readings, or get stuck in one position. A speedometer that doesn't work can also be caused by a faulty Vehicle Speed Sensor (VSS), but if multiple gauges are acting up, the cluster itself is the likely culprit.
3. Dim or Burnt-Out Illumination
The backlighting for the gauges can become dim or fail completely, making the cluster impossible to read at night. This is almost always due to burnt-out incandescent bulbs. These bulbs and their twist-lock sockets can be replaced individually without replacing the entire cluster.
Buying a Used 1994 Oldsmobile Cutlass Instrument Cluster
Since new OEM clusters are no longer manufactured, a quality used OEM unit is the best option. Here’s what to look for.
- Verify Compatibility: Double-check that the donor vehicle was a 1994 Cutlass with a 3.1L V6 engine (VIN 'M'). The surest way to guarantee a match is to find a used cluster with the part number 16166503 on it.
- Mileage Disclaimer: The vehicle's mileage is stored directly in the instrument cluster itself. When you install a used cluster, it will display the mileage from the donor car, not your car's original mileage. This is not something that can be easily changed. Be aware that you may be legally required to complete an odometer disclosure statement when you sell the vehicle.
- Physical Inspection: Check the clear plastic lens for deep scratches, fogging, or cracks. Inspect the rear housing and electrical connector for any signs of damage, and ensure all mounting tabs are intact.
- Why Used OEM is Best: A used Original Equipment Manufacturer (OEM) cluster is designed by GM for a perfect fit and function. Aftermarket options are scarce and may have quality issues, while remanufactured units can be expensive. A tested, used OEM part offers the best balance of reliability and value.
Programming and Installation
Pro Tip: This instrument cluster is plug-and-play. No programming or dealer visit is required for it to function.
Installation is straightforward for a DIY mechanic with basic tools. The cluster is not linked to the vehicle's anti-theft system, so swapping it will not prevent the car from starting. The general process involves removing the dashboard trim panels surrounding the cluster, unscrewing the cluster itself, disconnecting the electrical harness from the back, and then installing the new one in reverse order.
Cost of Replacement
The cost can vary significantly depending on the type of part you choose.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $N/A (Discontinued) |
| Remanufactured | $250 - $450 |
| Used OEM | $50 - $150 |
| Shop Labor | $100 - $200 |
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
There are no specific recalls or TSBs from the National Highway Traffic Safety Administration (NHTSA) that directly address widespread failure of the instrument cluster itself for the 1994 Oldsmobile Cutlass. However, a recall (93V162000) was issued for the cruise control cable on some 1994 models with the 3.1L engine, which could cause a loss of accelerator control. While unrelated to the cluster's electronics, it is a relevant safety notice for this specific vehicle configuration.
Frequently Asked Questions (FAQ)
Will my car's mileage be correct after I install a used cluster?
No. The mileage is stored inside the instrument cluster. The used cluster you install will show the mileage from the vehicle it came from. This cannot be easily changed, and you should be prepared to disclose the mileage discrepancy if you sell the vehicle.
Does the 1994 Cutlass instrument cluster need to be programmed?
No. This is a simple plug-and-play part. As long as you have the correct cluster for your engine, it will function immediately after being connected without any special programming.
Why do my gauges work sometimes and not others?
Intermittent operation is the classic sign of failing internal electronics, specifically cracked solder joints on the circuit board. Temperature changes and vehicle vibrations can cause these cracked joints to make and break contact, causing the cluster to power on and off randomly.
Can I just replace the light bulbs in my cluster?
Yes. If your only problem is dim or dead backlighting, you can simply replace the individual bulbs. This is much cheaper than replacing the entire unit. The bulbs are typically a standard type like 194, and they twist into the back of the circuit board.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16166503 XFK
Designed for 1994 Oldsmobile Cutlass models with 3.1L V6 Engine (VIN M). Features analog gauges for speedometer, tachometer, fuel, and temperature.
