2025-2026 Kia K4 Instrument Cluster: A Guide to Screens, Trims, and Programming
This guide covers the crucial differences between the K4's digital displays and explains the necessary programming for a successful replacement.
- Compatibility is trim-specific: The 12.3-inch digital cluster is only for EX, GT-Line, and GT-Line Turbo trims; it will not work in an LX or LXS.
- Programming is mandatory: A replacement cluster is not plug-and-play. It must be programmed to the vehicle's VIN and configuration by a Kia dealer or a specialized technician.
- A recall exists for screen failure: A software-related recall (NHTSA 26V046) can cause the screen to go blank. Ensure this software update has been performed.
- A used cluster will show the donor car's mileage until it is professionally reprogrammed to match your vehicle's actual mileage.
Variant Differences: The Most Critical Factor
The 2025-2026 Kia K4 uses two distinctly different instrument clusters depending on the trim level. This is the most important factor when sourcing a replacement part. Failure to match the cluster to the vehicle's original specification will result in incompatibility.

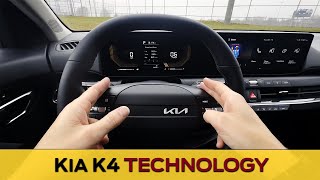

- LX and LXS Trims: These base models are equipped with a smaller 4-inch or 4.2-inch LCD multi-information display situated between physical, segmented gauges. 🎬 See a demonstration of the 4.2-inch cluster and steering wheel

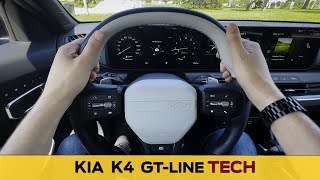

- EX, GT-Line, and GT-Line Turbo Trims: These higher-level trims feature the full 12.3-inch digital instrument cluster. This is a completely digital screen that offers various customizable layouts and themes. 🎬 Watch: How to customize the 12.3-inch digital cluster layouts
Warning: The 12.3-inch digital cluster is NOT a direct plug-and-play upgrade for a vehicle originally equipped with the smaller 4-inch display. The vehicle's wiring and software are different. You must replace the cluster with the same type that was originally installed in the vehicle.
Known Issues, Recalls, and TSBs
As the Kia K4 is a new model, long-term data on common failures is not yet available. However, early recalls and service actions have been issued that are relevant to the instrument cluster and its related systems.
- NHTSA Recall 26V046: Kia issued a recall for certain 2025 K4 models due to a software error that can cause the instrument panel display to fail. A blank display will not show critical information like the speedometer or warning lights, increasing the risk of a crash. The remedy is a software update performed by a dealer or through an over-the-air (OTA) update.
- NHTSA Recall 25V548: While not directly related to the cluster, this recall for improperly tightened connecting rod bolts in the engine can cause a loss of drive power, which would trigger multiple warnings on the instrument display.
- Service Action SA606: A small number of early production K4s were subject to a service action for contaminated windshield washer fluid. A related "Critical Issue" warning for low washer fluid has been noted by some owners to appear on the Kia Connect app, which can be alarming but is not a direct failure of the cluster itself.
Symptoms of a Failing Instrument Cluster
A failing instrument cluster can manifest in several ways, ranging from minor annoyances to critical safety issues.
- Blank or Flickering Screen: The entire display may go dark intermittently or permanently. This is a critical failure as it prevents you from seeing your speed, fuel level, and warning lights.
- Dead Pixels or Lines on the Display: Portions of the digital screen may become unreadable due to failed pixels.
- Incorrect Gauge Readings: The speedometer, tachometer, fuel gauge, or temperature gauge may provide inaccurate or erratic information.
- Warning Lights Always On or Not Working: Multiple warning lights may illuminate for no reason, or critical lights like the check engine or airbag light may fail to turn on during the initial self-test.
- Loss of Communication (OBD-II Codes): A common sign of an internal electronic failure is a loss of communication with other vehicle modules. This will often store a U-series diagnostic trouble code, such as U0155 (Lost Communication with Instrument Panel Control Module), in other modules. 🎬 Watch: How to diagnose and fix a U0155 code
- Vehicle Won't Start: In some modern vehicles, the instrument cluster is linked to the immobilizer system. A complete failure can sometimes result in a no-start condition.
Programming and Installation Requirements
Warning: A replacement instrument cluster, whether new or used, MUST be programmed to the vehicle. This is not a plug-and-play part.
Modern Kia instrument clusters are tied to the vehicle's Vehicle Identification Number (VIN) and other electronic modules. After physical installation, a dealer or a qualified independent shop with the appropriate Kia Diagnostic System (KDS) tool must perform several procedures:
- Variant Coding: The cluster must be coded to match the specific features and configuration of the vehicle (e.g., engine type, trim level, safety features).
- Mileage Setting: The vehicle's true mileage must be programmed into the replacement cluster. This can typically only be done once on a new or reset cluster. A used cluster will display the mileage of the donor vehicle until it is reprogrammed.
- Immobilizer/Key Sync: The cluster may need to be synchronized with the vehicle's anti-theft and key systems.
While some third-party services offer mail-in programming or cloning of your original cluster's data to a replacement unit, the most reliable method for the new K4 is a visit to a Kia dealership.
Buying a Used Instrument Cluster
Purchasing a used OEM instrument cluster can offer significant savings over a new part. However, it's crucial to buy wisely to ensure compatibility and functionality.
- Verify the Part Number: Match the OEM part number from your original cluster exactly. Known part numbers for the 12.3-inch display include 94003-GG000 and 940M3-GG000. Part number 940C3-GG000 also appears in catalogs for the K4.
- Confirm the Trim Level: Ensure the donor vehicle was an EX, GT-Line, or GT-Line Turbo. Do not purchase a cluster from an LX or LXS.
- Inspect the Screen: Carefully examine photos for any scratches, delamination, or signs of dead pixels on the LCD screen.
- Check for Damage: Look for any cracks in the housing or broken mounting tabs that could indicate it was removed from a vehicle in a severe collision.
- Factor in Programming Costs: Remember that the purchase price is not the final cost. You must account for the labor and programming fees from a dealership or qualified technician.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $800 - $3,100 |
| Used OEM | $250 - $600 |
| New Aftermarket | Not Yet Available |
| Shop Labor & Programming | $150 - $300 |
Frequently Asked Questions
Can I upgrade my K4 LX or LXS to the 12.3-inch digital cluster?
No, this is not a simple swap. The underlying wiring harnesses and vehicle software are different between the models with the base screen and those with the full digital display. Attempting this conversion would be complex and costly.
Will my car's mileage transfer to the used cluster automatically?
No. A used instrument cluster will display the mileage from the vehicle it was removed from. The correct mileage from your vehicle must be professionally programmed into the replacement cluster. This is a legal requirement in many areas to prevent odometer fraud.
Will my car start after I install a replacement cluster?
It might, but it will not function correctly. Warning lights will likely be on, and features will be disabled. Because the cluster is part of the vehicle's integrated network and anti-theft system, it must be electronically paired to the car by a dealer or qualified technician to restore full functionality.
Can an independent mechanic program a new Kia cluster?
Some advanced independent shops may have the necessary equipment, like an authorized Kia Diagnostic System (KDS), but it is not common. It is safest to assume that a trip to a Kia dealership will be required for programming a brand new module like the one in the 2025-2026 K4.
Helpful Videos
Technical Specifications
OEM Part Numbers: 94003-GG000 940C3-GG000 940m3-gg000 940M3GG000
12.3-inch full digital LCD display for EX, GT-Line, and GT-Line Turbo trims.
