Jeep Wrangler Instrument Cluster Guide (2010-2021): Failures, Recalls, and Replacement Tips

Understanding Instrument Cluster Issues in the 2010-2021 Jeep Wrangler

The instrument cluster, or gauge cluster, in the Jeep Wrangler is a common source of problems, ranging from annoying flickers to complete failure. This guide covers the two distinct generations in this period: the 2010-2018 Wrangler JK and the 2018-2021 Wrangler JL. The clusters for these generations are entirely different and not interchangeable.

Symptoms of a Failing Wrangler Instrument Cluster

A bad instrument cluster can manifest in several ways. Early diagnosis can prevent safety issues, as a failing cluster can leave you without a speedometer or critical warning lights.

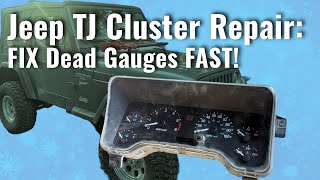

• Erratic or Dead Gauges: The speedometer, tachometer, fuel, or temperature gauges may get stuck, read incorrectly, or stop working completely.
• Complete or Intermittent Power Loss: The entire cluster may go dark and then randomly power back on. This is a well-documented issue, especially in JL models.
• Flickering Lights and Gauges: The backlight may flicker, or all the gauges and warning lights may flash erratically. This is sometimes described as the cluster "going crazy." In many cases, this can be caused by a poor battery connection or a failing battery, so those should be checked first.
🎬 Watch: How to diagnose flickering gauges caused by battery issues.
• Warning Lights On for No Reason: Multiple warning lights (Check Engine, ABS, Airbag) may illuminate due to communication failures within the cluster itself.
• "NO BUS" Error Message: The odometer may display a "NO BUS" message, indicating a loss of communication with the vehicle's computer network. This can sometimes be caused by a faulty cluster, radio, or the main fuse box (TIPM).
🎬 See how to troubleshoot the 'NO BUS' error and communication loss.
• A/C System Not Working (JK Models): In some 2007-2018 JK Wranglers, the instrument cluster controls the voltage signal to the A/C evaporator temperature sensor. A fault in the cluster can prevent the A/C compressor from turning on.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Recall for 2018-2024 Wrangler JL/Gladiator Instrument Cluster Failure

Buying a Used 2010-2021 Wrangler Instrument Cluster

Buying a used instrument cluster can save you a significant amount of money, but it's filled with potential pitfalls. Getting the wrong one can be a costly mistake. This is the most important section to read before you buy.

1. Generation is Everything: JK vs. JL

First, you must identify your Wrangler's generation. The parts are not cross-compatible.

• JK Generation: Model years 2010-2018.
• JL Generation: Model years 2018-2021 (and newer).

The year 2018 was an overlap year, so if you have a 2018, you must confirm if it's a JK or the newer JL body style.

2. Match Features Exactly

Wrangler clusters have many variations. A used cluster must match the original features of your vehicle. The initial warnings provided are critical here:

• Speedometer Rating: Many Wranglers came with a 100 MPH speedometer. Ensure the replacement matches your original.
• Electronic Vehicle Information Center (EVIC): Some clusters have a small digital screen for information like compass, temperature, and trip data, while base models do not. You must match a cluster with EVIC to a vehicle that originally had it, and vice-versa.
• Transmission Type: Clusters are often specific to automatic or manual transmissions.
• Trim Details: For certain years, even cosmetic details like chrome trim rings can indicate a different cluster version intended for specific trim levels (e.g., Sahara, Rubicon).

3. The Mileage and Programming Problem

This is the biggest challenge when swapping a Wrangler instrument cluster.

• Mileage is Stored in the Cluster: When you install a used cluster, it will display the mileage from the donor vehicle, not your vehicle's actual mileage.
• Programming is Required: A replacement cluster must be programmed to the vehicle. This process, often called a VIN relearn, ensures the cluster can communicate with the other electronic modules in your Jeep. Without this step, you may have persistent warning lights or non-functional features.

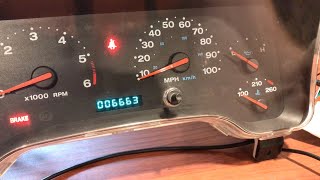

• Mileage Correction: Changing the mileage on the replacement cluster to match your vehicle's true mileage is a separate, specialized service. It is illegal to misrepresent a vehicle's mileage. There are mail-in services that can perform this correction legally, provided you have documentation.

Programming, Mileage, and VIN Matching

You cannot simply swap a Wrangler cluster and expect it to work perfectly. The vehicle's mileage is stored in both the Powertrain Control Module (PCM) and the instrument cluster. A mismatch will cause issues and can result in a "True Mileage Unknown" (TMU) brand on your vehicle's title, significantly reducing its value.

• Who can program it? A Jeep dealership is the most common place to have a new or used cluster programmed to the vehicle.
• Can an independent shop do it? Some independent shops with advanced diagnostic tools may be able to perform the programming.
• Can I do it myself? For advanced DIY users, tools like AlfaOBD may offer some capability to configure a replacement cluster, but mileage correction is more complex and often requires specialized hardware. It is generally not a simple plug-and-play process for the average DIY mechanic.

Cost Comparison

Prices can vary significantly based on generation, features, and condition.

Frequently Asked Questions (FAQ)
