Jeep Grand Cherokee Instrument Cluster Guide (2011-2020): Failures, Recalls, and Critical Programming Info

Key Distinctions: 2011-2013 vs. 2014-2020 Clusters

The 2011-2020 (WK2) Grand Cherokee generation features two distinct instrument cluster designs. Compatibility is strictly limited within these groups, and the parts are not interchangeable.

• 2011-2013 Models: These feature a more traditional design with two large analog gauges (speedometer and tachometer) flanking a smaller central digital information screen.

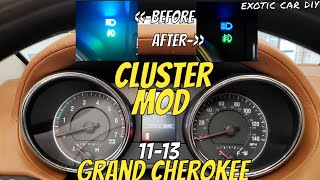

🎬 Watch: How to remove and modify the 2011-13 cluster.
• 2014-2020 Models: Following the 2014 model year refresh, the Grand Cherokee received an updated cluster with a large, 7-inch configurable digital display screen that acts as the speedometer, flanked by analog fuel and temperature gauges. This more advanced cluster offers significantly more customization and display options.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

The instrument cluster, particularly in early-refresh models, has been the subject of recalls and owner complaints.

NHTSA Recall 13V483000 (Chrysler Campaign N58)

This is the most significant issue affecting the cluster. It applies to approximately 91,559 Jeep Grand Cherokees from the 2014 model year. The recall was issued to address a combination of issues, including a loose alternator ground wire and software problems in the ABS and instrument cluster modules. Symptoms included:

• Random illumination of multiple warning lights.
• Complete loss of instrument cluster backlighting or total blackout.
• Loss of Anti-lock Brake System (ABS) and Electronic Stability Control (ESC) functionality.

The fix required dealers to tighten the alternator ground wire and perform a software update on both the ABS module and the instrument cluster. While the recall addressed the immediate issue, it highlights the cluster's sensitivity to electrical system stability.

TSB 23-036-19: Delaminating Leather Dash Cover

For 2011-2014 models equipped with a leather-wrapped dashboard, a common problem is the leather separating and bubbling up from the underlying structure, especially around the defroster vents. While this is not an electronic failure of the cluster itself, it is a well-known issue with the dashboard assembly that houses the cluster. Jeep issued a warranty extension for this repair, which involves replacing the upper instrument panel cover.

Symptoms of a Failing Instrument Cluster

A failing instrument cluster can manifest in several ways, ranging from a minor annoyance to a critical safety issue.

• Intermittent or Complete Blackout: The entire cluster may shut off while driving or fail to turn on. This can sometimes be linked to the issues described in the 2014 model year recall.
• Erratic or Inaccurate Gauges: The speedometer, tachometer, fuel, or temperature gauges may give false readings, get stuck, or fluctuate wildly.
• Warning Light Malfunctions: Multiple warning lights may appear for no reason, or critical lights like the "Check Engine" or airbag indicators may not illuminate when they should.
• Flickering or Dim Display: The backlighting or the central digital screen may flicker, appear dim, or have dead pixels.
• Associated OBD-II Codes: A complete failure will often prevent the cluster from communicating with other modules. This will cause other modules, like the ECU or BCM, to store a U0155 - Lost Communication With Instrument Panel Cluster (IPC) Control Module code.

Programming, VIN, and Mileage: The Critical Step

The instrument cluster is a secure module on the vehicle's Controller Area Network (CAN bus). To function correctly, it must be electronically introduced to the vehicle.

• Proxy Alignment: All replacement clusters require a "Proxy Alignment" or "Proxi Configuration." This procedure uses a diagnostic scan tool to sync the new cluster with the vehicle's other modules, primarily the Body Control Module (BCM). Failure to perform this step will result in a flashing odometer and potential loss of functionality.
🎬 Watch: How to fix a flashing mileage odometer display.
• VIN Matching: The cluster must be programmed with the vehicle's Vehicle Identification Number (VIN). A mismatch can cause communication errors and anti-theft issues.
• Mileage Correction: The vehicle's true mileage is stored securely in the BCM, not just the cluster. During a proper Proxy Alignment, the correct mileage from the BCM is automatically written to the new (or used) instrument cluster. Therefore, the mileage shown on a used cluster before installation is irrelevant.

Who Can Program the Cluster?

• Jeep Dealerships: Dealers have the official wiTECH scan tool and are fully equipped to perform the replacement and programming.
• Independent Repair Shops: Many independent shops that specialize in Chrysler/Jeep vehicles have professional-grade scan tools capable of performing a Proxy Alignment.
• Advanced DIY / Locksmiths: Tools like AlfaOBD, combined with the correct OBD interface, can give users dealer-level access to perform a Proxy Alignment and other configuration tasks. Some advanced automotive locksmiths may also have this capability.

Buying a Used Instrument Cluster

Purchasing a used OEM cluster is a cost-effective way to replace a failed unit, but you must be careful to ensure compatibility.

1. Match the Year Range: The most important step is to buy a cluster from the correct year group: 2011-2013 or 2014-2020.
2. Match the Part Number: The surest way to guarantee compatibility is to match the OEM part number found on the sticker on your original cluster. The provided list of part numbers is a starting point, but always verify with your specific vehicle.
3. Match Engine & Trim (Especially for 2014+): Some clusters are specific to certain engines (V6, V8, SRT) or trim levels (Laredo, Limited, Overland, Summit). For example, SRT models have a 200 MPH speedometer and unique graphics. Ensure the replacement cluster matches your vehicle's original configuration.
4. Ignore the Mileage: As stated, the mileage on the used cluster is irrelevant. It will be updated to your vehicle's correct mileage during programming.
5. Physical Inspection: Check for any physical damage, deep scratches on the lens, or broken mounting tabs.
6. Budget for Programming: Remember to factor in the cost of programming when buying a used cluster. It will not work correctly by simply plugging it in.
