2002-2010 Honda Odyssey Instrument Cluster: Solving Dim Displays & Replacement Guide

Understanding the 2002-2010 Honda Odyssey Instrument Cluster

When looking for a replacement instrument cluster for a Honda Odyssey, it's critical to know that the 2002-2010 model range covers two distinct generations that are not interchangeable. Understanding which generation you have is the first step to finding the correct part.

• Second Generation (2002-2004): These clusters are known for issues with individual bulb burnouts, leading to dark spots on the dash. They are generally simpler than the later generation's clusters.
• Third Generation (2005-2010): These clusters are more complex electronic modules. They are known to cause a variety of seemingly unrelated electronic issues when they fail, such as problems with power doors, turn signals, and washer fluid, in addition to gauge and display problems.

Known Issues & Common Failures

Dim or Failing Backlighting

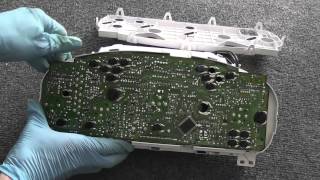

The most common complaint for both generations is the failure of the instrument panel's lighting. In the 2002-2004 models, this is typically due to individual incandescent bulbs burning out. This can result in dark spots behind the speedometer, tachometer, or gear indicator (like the 'D' light). For the 2005-2010 models, the issue can be more complex, sometimes related to the cluster's internal circuitry rather than just bulbs.

Erratic Gauge Behavior or Complete Failure

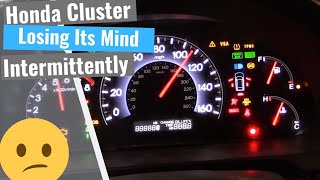

In 2005-2010 models, a failing instrument cluster can cause widespread and confusing symptoms. Because the cluster acts as a control module, its failure can lead to issues with turn signals, power sliding doors, and other accessories. The entire cluster may also intermittently reset, with all needles dropping to zero and then sweeping back up while driving. 🎬 Watch: See what a failing cluster looks like while driving. This is often a sign of an internal circuit board problem within the cluster itself.

No Recalls, But Technical Service Bulletins (TSBs) Exist

While there are no specific recalls for the instrument cluster itself, Honda has issued numerous TSBs for these Odyssey generations for other issues. One notable TSB for 2002-2006 models relates to a class-action lawsuit about odometers overstating mileage, for which a warranty extension was offered. For the 2005-2010 models, a major recall concerned the fuel pump, not the instrument cluster. Always check for any open recalls or TSBs related to your specific vehicle's VIN.

Buying a Used Instrument Cluster

Purchasing a used OEM instrument cluster is a cost-effective way to solve your dashboard issues, but careful selection is required to ensure compatibility and proper function.

1. Verify the Generation: The most critical step. A cluster from a 2002-2004 model will not work in a 2005-2010 model, and vice-versa. They have different shapes, connectors, and electronic systems.
2. Match Trim Level (EX/EX-L vs. LX/Touring): As noted in the initial data, clusters are often specific to trim levels. The EX and EX-L trims had different features than the base LX or top-tier Touring models. You must match the part number or source a cluster from a vehicle with the exact same trim level to ensure all features work correctly.
3. Mileage and Immobilizer Programming: This is the biggest challenge. The vehicle's mileage is stored directly in the instrument cluster's memory chip. When you install a used cluster, your dashboard will display the mileage from the donor vehicle, not your own. Furthermore, for 2005-2010 models, the cluster is linked to the vehicle's immobilizer system. Swapping the cluster may prevent the vehicle from starting until it is reprogrammed by a dealer or a specialized locksmith with Honda-specific tools (like the Honda HDS).
4. Physical Inspection: When you receive the used cluster, inspect the clear plastic lens for deep scratches or hazing. Check that all mounting tabs are intact and not cracked. Look at the rear connectors for any signs of corrosion or bent pins.

Cost of Replacement

The cost can vary significantly based on the solution you choose. Here is an estimated breakdown:
