2006-2015 Honda Civic Instrument Cluster: Solving Display Failures & Programming

Generational Differences: 2006-2011 vs. 2012-2015

Understanding the instrument cluster for the 2006-2015 Honda Civic requires knowing which generation you're working with, as the designs and common issues are distinct.

2006-2011 (8th Generation): The Two-Tier Dash

The 8th generation Civic is known for its futuristic two-tier dashboard. This design physically separates the cluster into two main parts:

• Upper Display: A digital module that houses the speedometer, fuel gauge, and engine temperature gauge.
• Lower Cluster: A more traditional-looking assembly with an analog tachometer, odometer display, and various warning lights.

When ordering a replacement, it is crucial to identify which piece has failed. A common failure point is the upper speedometer display, which can go dim, flicker, or fail completely. 🎬 Watch: Troubleshooting a dim or blacked-out upper speedometer display. This is often due to internal component failure, such as cracked solder joints from repeated heating and cooling cycles.

2012-2015 (9th Generation): The Integrated i-MID

The 9th generation Civic moved to a more conventional, single-piece instrument cluster. It features a large analog tachometer flanking a digital speedometer and the Intelligent Multi-Information Display (i-MID). The i-MID is a color screen that displays audio information, fuel economy data, and other vehicle settings. Common issues with this generation often relate to the i-MID screen itself, which can go blank, freeze, or fail to power on.

Symptoms of a Failing Instrument Cluster

A failing instrument cluster can present a variety of symptoms. Before assuming the cluster is bad, it's wise to check simple solutions first, like fuses. A loose or corroded ground wire can also cause intermittent power loss to the entire cluster.

• Dim, Flickering, or Dead Displays: This is the most common symptom, especially for the upper speedometer display on 2006-2011 models. It can also affect the i-MID screen on 2012-2015 models.
• Inaccurate or Erratic Gauges: The fuel gauge may show an inverted reading, or the speedometer and tachometer may provide incorrect information.
• Warning Lights Stay On or Don't Turn On: An internal fault can cause warning lights (like ABS or brake lights) to illuminate for no reason or fail to light up during the initial self-test.
• Intermittent Power Failure: The entire cluster may shut off and turn back on randomly while driving.
• Blank Odometer or Trip Computer Data: On 9th gen models, a blown fuse can cause the odometer and fuel range display to disappear while the rest of the cluster works.

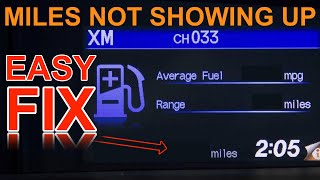

🎬 Watch: How to restore a missing odometer and fuel range display.

Known Issues, TSBs, and Recalls

While there are no widespread recalls specifically for instrument cluster failure on these Civics, Honda has issued Technical Service Bulletins (TSBs) for related issues. For example, TSB A19-035 for some 2019 models (outside this range) addresses a software issue that could cause a fuel gauge error code (P0461). Honda has also investigated complaints of blank or inoperative meter displays on later model Civics. The most significant recalls for this generation relate to the Takata airbag inflators, which is a separate issue from the instrument cluster itself.

Programming, Mileage, and Immobilizer Considerations

This is the most critical aspect of replacing a Honda Civic instrument cluster.

The vehicle's mileage is stored directly in the instrument cluster's memory chip (EEPROM), not the main engine computer (ECU). When you install a used instrument cluster, it will display the mileage from the donor vehicle, not your vehicle's true mileage.

• Programming is Required: To correct the mileage, the replacement cluster must be programmed. This is not a DIY-friendly process for most people, as it requires specialized equipment.
• Who Can Program It? While a Honda dealership can perform this service using the Honda Diagnostic System (HDS), numerous independent mail-in services can also correct the mileage. These services typically require you to send your original and replacement clusters to them.
• Immobilizer Link: The instrument cluster is not directly linked to the immobilizer system. Swapping the cluster will not prevent the car from starting. The immobilizer keys are programmed to the ECU.

Buying a Used Honda Civic Instrument Cluster

Buying a used OEM cluster is often the most cost-effective solution, as new units can be expensive and repair services require downtime. Here's what to look for:

• Verify the Part Number: This is the most important step. Find the part number on your original cluster and match it exactly. Part numbers vary based on trim (DX, LX, EX), transmission, and body style. A mismatched part number will likely not function correctly.
• Distinguish Upper vs. Lower (2006-2011): If you have an 8th gen Civic, be absolutely sure which part has failed. Don't buy a lower tachometer cluster if your upper speedometer is the problem.
• Inspect the Lens and Connectors: Check for deep scratches or cracks on the clear plastic lens. Ensure all rear electrical connector pins are straight and free of corrosion.
• Plan for Programming: Factor in the cost and time for a mileage correction service. You will need to send the used cluster out for programming before or after installation to ensure your car's mileage is displayed correctly.
• Why Used OEM is Better: Used OEM clusters are built to Honda's original standards. While repair services are a good option for a faulty upper display, a complete used unit can be a faster swap if you have multiple issues or a failed lower cluster.

Instrument Cluster Replacement Cost

Prices can vary based on the specific part number and vehicle generation. The costs below are estimates.
