2009-2018 Ford Focus Instrument Cluster: A Guide to Failures, Swaps, and Programming

Understanding the Ford Focus Instrument Cluster: Two Generations, Two Designs

The 2009-2018 Ford Focus spans two distinct vehicle generations, and their instrument clusters are not interchangeable. It is crucial to identify your vehicle's generation before sourcing a replacement part.

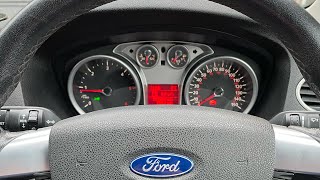

2009–2011 Ford Focus (Second Generation, Mk2.5)

The cluster in these models is a more traditional design. While still electronic, its integration into the vehicle's anti-theft system is less complex than in later models. Failures are often related to internal component issues, such as cracked solder joints on the main connector 🎬 Watch: How to repair cracked solder joints on Mk2 clusters, which can lead to intermittent power loss or erratic behavior. Tapping on the dashboard and having the cluster temporarily work again is a common sign of this issue.

2012–2018 Ford Focus (Third Generation, Mk3)

The Mk3 Focus features a more advanced instrument cluster that is deeply integrated into the vehicle's electronics. It serves as a primary communication gateway and is a critical component of the PATS immobilizer system. This means a replacement cluster, new or used, must be programmed to the vehicle for the engine to start. Common failures in this generation include blank or distorted center LCD screens and complete power loss, which can sometimes be traced to a simple fuse.

Common Symptoms of a Failing Instrument Cluster

A failing instrument cluster can cause a wide range of confusing symptoms, from simple display issues to preventing the car from starting. These problems often start intermittently and become more frequent over time.

• Intermittent or Complete Non-Start: Especially on 2012+ models, if the cluster cannot communicate with the ECU, the PATS immobilizer will remain active, and the engine will not crank or start. A flashing red immobilizer light is a key indicator.
• Gauges Drop to Zero: All needles for the speedometer, tachometer, fuel, and temperature may suddenly fall to their resting position while driving, often accompanied by all warning lights turning on simultaneously.
• Blank or Corrupted LCD Screen: The central information display may go completely blank, show random lines, or become distorted and unreadable.
• Warning Lights On: The cluster may randomly illuminate various warning lights like the check engine, ABS, or airbag light, even when there are no actual faults in those systems.
• "Engine Malfunction" or Similar Messages: The information display may show error messages due to communication loss.
• Odometer Displays Dashes: Instead of mileage, the odometer may show a series of dashes (-------).

Associated OBD-II Trouble Codes

A scan tool may retrieve several U-series (communication) codes when the instrument cluster is failing. The most common code is U0155 (Lost Communication with Instrument Panel Control Module). Other related codes include:

• U1900: CAN Communication Bus Fault
• P1260: Theft Detected Vehicle Immobilized
• U0140: Lost Communication With Body Control Module
• U2510: CAN Invalid Data for Vehicle Security

Known Issues, TSBs, and Recalls

While no major safety recalls have been issued specifically for widespread instrument cluster failure on the Focus, Ford did release a Technical Service Bulletin (TSB) for the 2012-2013 models.

TSB 13-6-27: Inoperative Instrument Panel Cluster at Start-Up

This TSB addresses an issue on 2012-2013 Focus models (built on or before Feb 6, 2013) where the instrument cluster may be completely blank at startup. The service procedure involves temporarily removing fuse F69 from the Body Control Module to restore operation, followed by reprogramming the cluster with updated software to permanently fix the glitch. If your cluster is blank, checking this fuse is a simple first step.

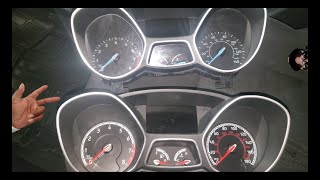

Buying a Used Ford Focus Instrument Cluster

Purchasing a used instrument cluster can be a cost-effective solution, but careful attention to detail is required to ensure compatibility and proper function.

1. Match the Part Number and Generation

First and foremost, ensure the replacement cluster is from the same generation as your vehicle (2009-2011 vs. 2012-2018). They are physically and electronically different. Within each generation, you must match the OEM part number. The part number is printed on a sticker on the cluster's housing. It is essential to match this number or verify it against a known compatible part number range provided in the initial data.

2. Verify Features and Display Type

Ford Focus models came with different trim levels, which meant different cluster features. Some had a basic digital display, while higher trims had a larger, more detailed LCD screen. Ensure the used cluster you are buying matches the features of your original, including MPH vs. KPH display and compatibility with your engine type (gasoline vs. diesel, non-turbo vs. ST/RS).

3. Plan for Programming (Especially 2012-2018)

This is the most critical step.

• For 2009-2011 models: While the car may start, programming is still recommended to ensure all functions work correctly and the mileage is accurate.
• For 2012-2018 models: Programming is mandatory. The vehicle will not start without it. The new cluster must be programmed to the vehicle's ECU to sync the immobilizer (PATS) data. This typically requires a trip to a Ford dealership or a well-equipped independent shop with the proper diagnostic tools like the Ford IDS. Advanced DIYers with tools like FORScan and an extended license may be able to perform some programming functions, but this carries risk and is not recommended for beginners.
🎬 Watch: Advanced tutorial on FORScan instrument cluster programming

4. Understand the Mileage Issue

A used instrument cluster will display the mileage of the vehicle it was removed from, not your vehicle's actual mileage. The vehicle's true mileage is stored in other modules as well, but the cluster is what you see. Correcting the mileage on the replacement cluster is a specialized service and may have legal regulations. It is often easier to have your original cluster repaired to avoid this issue.

5. Physical Inspection

When the part arrives, inspect it carefully. Check for deep scratches on the plastic lens, broken mounting tabs, and any signs of water damage or corrosion on the rear circuit board and connectors.

Cost of Replacement (2009-2018 Ford Focus)

Prices can vary significantly based on the source of the part and the labor required.
