Ford Escape Instrument Cluster Guide (2013-2022): Blank Screens, Recalls, and Programming Secrets

Understanding Your Ford Escape Instrument Cluster: 2013-2022

The instrument cluster, or speedometer, in the 2013-2022 Ford Escape is more than just a display; it's a critical computer module. A failing cluster can leave you without essential information like your speed, and a replacement isn't a simple swap. This guide is divided into the two distinct generations of the Escape within this period, as their clusters, common problems, and replacement procedures are very different.

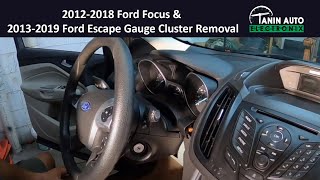

Third Generation: 2013-2019 Ford Escape

The third-generation Escape features an analog-style cluster with a central digital display, known as the message center. Failures in these clusters are common and well-documented.

Known Issues, Recalls, and TSBs (2013-2019)

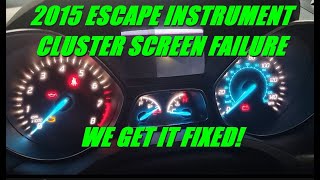

• Common Failure: Blank Information Display: The most frequent problem is the central LCD message center screen going blank, flickering, or working intermittently. This can prevent you from seeing your odometer, trip computer, and other important vehicle messages. This is typically caused by failing components on the cluster's internal circuit board.
• Recall 15C03 (NHTSA ID 15V340000): Ford issued a recall for some 2014-2015 Escape models manufactured between May 19, 2014, and February 6, 2015. A software issue could cause the entire instrument cluster to be inoperative (blank screen, no warnings). The fix was a software update performed by a dealer.
• TSB 13-11-18: This Technical Service Bulletin addresses intermittent blanking of the information display on some 2014 models, also resolved by reprogramming the cluster with updated software.

Symptoms of a Failing 2013-2019 Cluster

• The central message center display is blank, pixelated, or flickers.
• Gauges (speedometer, tachometer, fuel) give incorrect readings, stick, or stop working entirely.
• Backlighting for the gauges or screen fails.
• Multiple random warning lights illuminate for no reason.
• The vehicle occasionally won't start, accompanied by a flashing theft light (indicating a PATS anti-theft system issue).
• You may see communication-related Diagnostic Trouble Codes (DTCs), such as U0155 (Lost Communication With Instrument Panel Cluster Control Module).

Fourth Generation: 2020-2022 Ford Escape

The fourth-generation Escape introduced a redesigned interior with more advanced, often fully digital, instrument clusters. These come in several varieties, including a base model, a mid-level 8-inch digital screen, and a high-end 12.3-inch fully digital display. 🎬 See how to program a digital cluster swap using FORScan. Problems with these clusters are typically more severe, involving total blackouts.

Known Issues, Recalls, and TSBs (2020-2022)

• Recall 23C25 (NHTSA ID 23V506000): Affects certain 2023 models (but relevant to the 2020-2022 technology). The digital instrument cluster can fail to illuminate due to improperly soldered joints on the circuit board. This prevents the driver from seeing speed, warnings, or fuel level. The fix is a complete cluster replacement by a dealer.
• Recall 25C02: Affects some 2025 models but highlights a potential manufacturing defect where uncovered components can short-circuit, causing a blank screen. The remedy is also a full replacement.
• TSB SSM 49762: On some 2020 models, the cluster may spontaneously switch its display units from MPH to km/h without driver input.

Symptoms of a Failing 2020-2022 Cluster

• The entire digital screen is completely black and will not light up.
• The display flickers, freezes, or shows distorted graphics.
• Incorrect information is displayed (e.g., navigation arrows pointing the wrong way on a roundabout, as noted in TSB SSM 52298 for 2023 models).
• Warning messages like "Pre-collision Assist Not Available" appear due to communication issues.

Programming, Immobilizer, and Mileage Correction (All Years)

This is the most critical part of replacing a Ford Escape instrument cluster. Failure to follow these steps will result in a vehicle that will not start.

Why is Programming Required?

1. Immobilizer (PATS): The cluster stores your vehicle's key information as part of the Passive Anti-Theft System (PATS). A replacement cluster will not recognize your keys, and the PATS system will prevent the engine from starting as a theft deterrent.
2. Vehicle Configuration: The cluster must be programmed with your vehicle's "As-Built" data. This file tells the cluster about your vehicle's specific options, like engine type, transmission, All-Wheel Drive, trim level features, and more. Without this, gauges and features will not work correctly.
3. Odometer (Mileage): The vehicle's mileage is stored directly in the instrument cluster. A used cluster will display the mileage from the donor vehicle. It is a legal requirement in most places to have the mileage corrected to reflect your vehicle's true mileage.

Who Can Program a Replacement Cluster?

• Ford Dealership: The most reliable, though often most expensive, option. They have the correct tools (IDS) and access to all necessary software.
• Qualified Independent Shop: Many independent shops that specialize in automotive electronics or specific brands have the tools and subscriptions needed to program Ford modules.
• DIY with FORScan: Advanced DIY mechanics can use a laptop, a compatible OBD adapter, and software called FORScan. This requires saving the 'as-built' data from your original cluster *before* removing it, then writing it to the replacement. You must also perform a 'Parameter Reset' to sync the security modules. This is a complex procedure not recommended for beginners.

Buying a Used Instrument Cluster

Purchasing a used cluster can save a significant amount of money, but it comes with risks and extra steps. Here's what you need to know:

• Repair Your Original First: For 2013-2019 models with a blank screen, the easiest and safest option is often to send your original cluster to a repair service. They fix the internal components without changing the programming. This means when you get it back, it's plug-and-play with no extra programming needed.
• Match the Part Number EXACTLY: There are dozens of part numbers based on production date, features (with or without message center), and market. The part number on the replacement cluster MUST match your original. The provided OEM part numbers are a starting point, but always verify the number on your specific part.
• Verify Production Dates: For 2013-2014 models, there are specific production date cutoffs that affect compatibility. For example, some parts only fit vehicles made before Dec 2, 2012. Check your vehicle's production date on the driver's door jamb sticker.
• Check the Mileage: When buying used, try to find a cluster with mileage equal to or *less than* your vehicle's actual mileage. Programming tools like FORScan can typically only adjust mileage upwards. If you buy a cluster with higher mileage, you will need a specialized electronics repair shop to lower it, which adds cost.
• Physical Inspection: Check the clear plastic lens for deep scratches or hazing. Inspect the rear casing and connectors for any signs of water damage or corrosion. Ensure all mounting tabs are intact.

Cost Comparison for Instrument Cluster Replacement
