Ford Escape Instrument Cluster Guide (2009-2018): Blank Screens, Programming, and Replacement

Key Differences: 2nd Gen (2009-2012) vs. 3rd Gen (2013-2018)

The 2009-2018 Ford Escape spans two completely different vehicle generations. The instrument clusters are not interchangeable between them. It is crucial to identify your vehicle's generation before searching for a replacement part.

• 2009-2012 (2nd Generation): These clusters have a more traditional, analog design. They feature round physical gauges and a small, central digital display for the odometer and trip information. Some models may have a slightly larger monochrome display for a basic message center. The overall shape is more squared-off to fit the dashboard design of this era.
• 2013-2018 (3rd Generation): These clusters feature a more modern design with two large analog gauges flanking a central digital screen. Base models have a small monochrome screen, while higher trims feature a larger, full-color LCD "productivity screen" that displays trip computers, settings, and other detailed information.

Common Failure Symptoms

A failing instrument cluster can present a wide range of symptoms, from minor annoyances to issues that prevent the vehicle from starting.

• Blank or Flickering Screens: The most common issue, especially on 2013-2018 models, is the central LCD screen going blank, either intermittently or permanently. This can prevent you from seeing your odometer, trip information, or other vital data.
• Intermittent Power Loss: The entire cluster may lose power and then suddenly come back on. This is a common problem in the 2009-2012 models and is often caused by bad solder joints on the main connector.
🎬 Watch: How to fix power loss from bad solder joints.
• Inaccurate or Dead Gauges: The speedometer, tachometer, fuel, or temperature gauges may stick, provide incorrect readings, or stop working altogether. A fuel gauge that is stuck may trigger a P0463 trouble code.
• Warning Lights On Randomly: A failing cluster can lose communication with other modules in the vehicle, causing various warning lights (ABS, airbag, check engine) to illuminate randomly.
• Vehicle Will Not Start: For both generations, the instrument cluster is part of Ford's Passive Anti-Theft System (PATS). If the cluster fails completely, it cannot communicate with the key and the engine computer, and the vehicle will not start.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

2013-2018 Ford Escape (Third Generation)

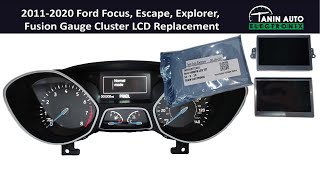

• Blank Productivity Screen: The most widely reported problem for this generation is the central information screen going blank. This is often due to internal component failure on the cluster's circuit board. 🎬 See this walkthrough for replacing a failed LCD screen. Several companies offer repair services for this specific issue by replacing the faulty components with upgraded ones.

2009-2012 Ford Escape (Second Generation)

• CAN Circuit Failure: A common failure on these models is a loss of communication on the CAN bus circuit within the cluster itself. This leads to sudden gauge failure and random warning lights, even though the digital odometer display might still work. This is often caused by cracked solder joints on the circuit board, which can be repaired.

Programming and Calibration: What You MUST Know

You cannot simply swap a used instrument cluster into a 2009-2018 Ford Escape and expect it to work correctly. Programming is required.

• Immobilizer (PATS): The instrument cluster stores the vehicle's Passive Anti-Theft System (PATS) key information. When you install a different cluster, it will not recognize your keys, and the engine will not start. This is a theft-deterrent feature.
• Parameter Reset: To make a replacement cluster work, a "Parameter Reset" must be performed using a diagnostic tool. This syncs the security information between the new cluster, the engine control module (PCM), and your keys.
• Two Keys Required: To perform the PATS relearn process after a parameter reset, you MUST have at least two original, working keys. If you only have one key, you will not be able to complete the programming, and the car will remain immobilized.
• Mileage Correction: The vehicle's mileage is stored in the instrument cluster. Federal law requires that the mileage on a replacement odometer be corrected to reflect the vehicle's true mileage. When installing a used cluster, it must be reprogrammed to your car's actual mileage. Advanced DIY tools like FORScan can typically only increase mileage, not decrease it. If you purchase a used cluster with higher mileage than your vehicle, it may need to be sent to a specialist service to be reset before installation.
• Configuration Data: The cluster must also be programmed with the vehicle's "as-built" data. This tells the cluster about the vehicle's specific options, such as engine size, transmission type, all-wheel drive, and whether it has a message center. Without correct configuration, gauges may read incorrectly, and features may not work.

Who Can Program the Cluster?

• Ford Dealership: The dealer has the factory tools (IDS) to perform all necessary programming, including the parameter reset and mileage correction. This is the most reliable, though often most expensive, option.
• Qualified Independent Shop: Many independent auto repair shops with advanced diagnostic tools and subscriptions to Ford's software can program a replacement cluster.
• Advanced DIY (FORScan): It is possible for experienced DIY mechanics to program a cluster using software called FORScan and a compatible OBD-II adapter. This involves saving the 'as-built' data from the original cluster (if possible), writing it to the new one, and performing the parameter reset. This is a complex procedure not recommended for beginners.
🎬 Watch: A guide to programming your cluster using FORScan.

A Buyer's Guide to Used 2009-2018 Escape Instrument Clusters

Buying a used OEM cluster can save a significant amount of money, but it's essential to get the right part to avoid compatibility headaches.

1. Confirm Generation and Features: First, be absolutely sure if you have a 2nd Gen (2009-2012) or 3rd Gen (2013-2018) Escape. Then, determine if your original cluster has the basic display or the upgraded message center/productivity screen. A replacement must match this feature.
2. Match Part Numbers Carefully: The best way to ensure compatibility is to match the OEM part number. The number is printed on a sticker on the cluster's housing. The initial data provided lists many valid numbers, such as 9L8Z-10849-A for a 2009 model without a message center.
3. Heed Production Date Breaks: For 2013-2014 models, be aware of the mid-year production changes. The initial buyer warnings indicate a split for 2013 models on December 2, 2012, and for 2014 models on March 3, 2014. Verify your vehicle's production date (found on the driver's door jamb sticker) and purchase a cluster from the correct date range.
4. Physical Inspection: When inspecting a used cluster, look for any signs of physical damage, deep scratches on the lens, or broken mounting tabs. Check the electrical connector for any bent or corroded pins.
5. Ignore the Mileage: The mileage shown on the used cluster is irrelevant, as it will be reprogrammed to match your vehicle's true mileage during installation. It is often better to buy a cluster with lower mileage than your car, as programming tools can easily increase the value but often cannot decrease it.

Cost of Replacement

The cost to replace a Ford Escape instrument cluster can vary widely based on the part source and labor.
