Corvette C7 & C8 Instrument Cluster Guide: Programming, Compatibility, and Common Failures (2014-2024)

Critical Distinction: C7 vs. C8 Generations

The instrument clusters for the 2014-2019 C7 and 2020-2024 C8 Corvette are entirely different parts and are not interchangeable. They use different hardware, connectors, and software. This guide is broken down by generation, as the common problems and compatibility details are unique to each.

C7 Corvette Instrument Cluster (2014-2019)

Symptoms of Failure

• Black Spots on LCD Screen: The most common hardware failure is the appearance of a perfectly round black spot or "hole" on the central LCD screen. This spot can grow over time and indicates a physical defect in the display panel itself, requiring cluster replacement.
🎬 Watch: How to repair bad pixels on a C7 cluster
• Intermittent Blackouts: The entire cluster, and sometimes the infotainment screen, may suddenly go black while driving. It might return to normal on its own after a few seconds or may require a system "reboot" by turning the car off, pulling the related fuses (50 and 51 in the rear block), or disconnecting the battery for a few minutes. If this happens frequently, it can indicate a failing cluster.
• General Malfunctions: Like any cluster, it can suffer from inaccurate gauge readings, flickering backlights, or total power failure.

Compatibility and Part Variations

Finding the right used C7 cluster is complex. You must match the part number and verify the donor vehicle's options.

• Trim Level: Clusters are different for Stingray, Grand Sport, and Z06/ZR1 models. Z06 and ZR1 clusters have a higher redline on the tachometer and unique performance displays.
• Head-Up Display (HUD): Vehicles equipped with HUD may require a different cluster than those without.
• Model Years (2014-2015 vs. 2016-2019): Early C7 models (2014-2015) have different infotainment hardware and software. Upgrading an early C7 with a cluster from a later model (e.g., to get the 2019 track display) requires a corresponding infotainment system upgrade to ensure all features and steering wheel controls work correctly.
• Export Models (U19): Clusters with GM option code U19 are designed for export markets and display speed and distance in Kilometers Per Hour (KPH) as the primary unit. These are not compatible with standard US-market vehicles.

C8 Corvette Instrument Cluster (2020-2024)

Symptoms of Failure

Failures on the fully digital C8 cluster are almost always software-related rather than hardware failures.

• Blank Screen on Startup: The most widely reported issue is the instrument cluster being completely black upon starting the car. The main infotainment screen may work, and on vehicles with HUD, the HUD may still display speed.
• Temporary Glitches: Sometimes the screen may freeze, or display distorted or overlapping text, such as a "vehicle raising" message being stuck on the screen.

Compatibility and Part Variations

C8 clusters are highly integrated with the vehicle's specific configuration.

• Drive Modes: The cluster's graphics change dramatically between Tour, Sport, and Track modes. A cluster from a base model may lack the specific graphics and performance data for a Z06.
• Export Models (U19): As with the C7, clusters with the U19 option code are for KPH markets and are not for US vehicles.

Buying a Used Corvette Instrument Cluster

A used OEM cluster can be a cost-effective solution, but careful purchasing is essential.

1. Verify Compatibility Above All: Before purchasing, match the part number exactly. More importantly, get the VIN of the donor car to confirm its year, trim level (Stingray, Z06, etc.), and options (HUD, KPH/MPH). An incorrect cluster may not program to your car or may have missing features.
2. Inspect the Screen: For C7 clusters, meticulously inspect the LCD for any signs of black spots, delamination, or dead pixels. For both generations, check the clear plastic lens for deep scratches or cracks and ensure all connector ports on the back are free of damage.
3. Understand Mileage: A used cluster will display the mileage of the vehicle it came from, not your car's actual mileage. This is not a defect. The correct mileage will be restored only after professional programming.
4. Factor in Programming Costs: A used cluster is unusable until it is programmed. Include the cost of programming (typically 1-2 hours of shop labor) in your total budget.

Programming and Installation Requirements

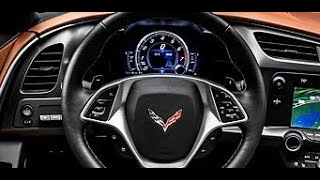

The physical installation is straightforward for a DIY mechanic, involving the removal of dash trim panels and a few screws. 🎬 See this walkthrough on removing the C7 speedometer cluster However, the software side is complex.

• Who can program it? A Chevrolet dealership is the most common option. Many independent repair shops that specialize in GM vehicles and subscribe to GM's Service Programming System (SPS) can also perform the programming. This is not a task for a basic code scanner.
🎬 Watch: A guide to getting started with GM SPS2 programming
• VIN and Mileage Sync: The programming process writes your car's VIN to the new cluster and configures it for your vehicle's specific options. It also involves setting the correct mileage, which must be documented properly.

Cost of Replacement

Recalls and Technical Service Bulletins (TSBs)

• NHTSA Recall 14V299 (GM #14219): Affects some 2014 Corvettes. An internal short in the Sensing and Diagnostic Module (SDM) could prevent airbags from deploying. This causes a persistent "SERVICE AIR BAG" message on the instrument cluster, but the fault is with the SDM, not the cluster itself.
• GM TSB PIC6464: For 2019 Corvettes, this bulletin assists technicians in diagnosing issues with the variable red line feature on the tachometer display.
