1995-1996 Buick Century Instrument Cluster: Fixing Dim Displays and Mileage Issues

Symptoms of a Failing Instrument Cluster

When the instrument cluster in a 1995-1996 Buick Century begins to fail, it typically presents one of two common problems. Recognizing these symptoms can help you determine if the cluster itself is the issue, or if another part is to blame.

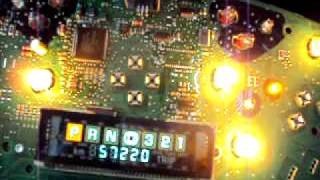

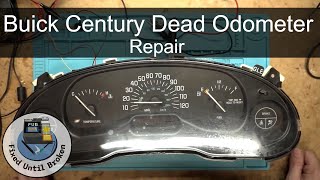

1. Dim or Completely Blank Odometer and PRNDL Display

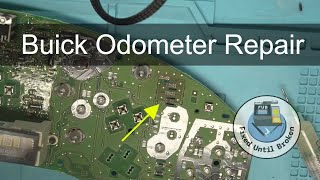

This is the most common failure for this specific instrument cluster. You may notice that the digital display showing your mileage and gear selection is flickering, extremely dim, or has gone completely dark. Often, the gauges (speedometer, fuel, etc.) will continue to work normally. This issue is almost always caused by failing solder joints on four small resistors on the cluster's internal circuit board. Over time and many heat cycles, these connections crack, interrupting power to the digital display.

2. Inaccurate or Dead Speedometer

If your speedometer is bouncing erratically, reading incorrectly, or not moving at all, the problem may not be the cluster itself. The most common cause for these symptoms is a failing Vehicle Speed Sensor (VSS), which is located on the transmission. A faulty VSS can also cause erratic shifting in the automatic transmission. In some cases, a dead speedometer can be accompanied by a Check Engine Light with code P0502, which points directly to a VSS circuit issue. 🎬 See: Example of a failing speedometer in action While less common, internal faults within the instrument cluster can also cause the speedometer to fail.

Known Issues, TSBs, and Recalls

As of this writing, there are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the instrument cluster on the 1995-1996 Buick Century. The most prevalent problem—the dim odometer display due to failed resistors—is a well-known issue within the repair community but was never subject to a recall.

Buying a Used 1995-1996 Century Instrument Cluster

Since new OEM clusters are discontinued, a used or remanufactured unit is your only option. Buying a used OEM cluster can be a cost-effective solution, but careful verification is essential to avoid wasting time and money.

Key Compatibility Checks:

• Transmission Type: This cluster is only for models equipped with the 4-speed automatic transmission (4T60-E). Ensure the donor vehicle matches.
• Broadcast Code: Check the sticker on the back of the cluster for a three-letter code. The most common code is 'AHS'. Matching this code ensures the cluster is calibrated correctly for your vehicle's original options. While other codes may exist, 'AHS' is the one to look for.

Physical Inspection:

• Clear Lens: Inspect the clear plastic front cover for deep scratches, hazing, or cracks. Minor scuffs can be polished, but heavy damage cannot.
• Mounting Tabs: Check all four mounting tabs to ensure they are intact and not cracked. Broken tabs will result in a loose, vibrating cluster.
• Connector Port: Look at the single electrical connector port on the back. Ensure it is free of corrosion or bent pins.
• Mileage: The mileage on the used cluster will almost certainly be different from yours. Be prepared to address this (see programming section below). Do not trust a seller's claim that the mileage will magically adapt to your car; it will not.

The #1 Question: Programming, Mileage, and Anti-Theft

This is the most critical area of confusion for buyers. Here are the facts for this specific part:

• Mileage is Stored in the Cluster: The vehicle's total mileage is stored on a small chip inside the instrument cluster itself, not in the car's main computer. When you swap the cluster, the mileage displayed will be that of the donor car, not your car's original mileage.
• Programming is Required to Correct Mileage: To display your car's true mileage on a replacement cluster, you must have it professionally programmed. This is not something a dealer can typically do for a vehicle this old. It requires a specialist service that can either physically transfer the original memory chip to the replacement cluster or use special tools to edit the data on the replacement. Many services offer this via mail-in.
• No Anti-Theft Link: The instrument cluster on a 1995-1996 Buick Century is not tied to the vehicle's anti-theft or immobilizer system. Swapping the cluster will NOT prevent the car from starting. The car will run and drive perfectly fine, even with the cluster completely removed.

Cost Comparison

Prices can vary by location and supplier, but this gives a general idea of the costs involved.

Frequently Asked Questions (FAQ)
