2003-2008 Jaguar S-Type HVAC Control: Why It Fails and How to Fix It

Symptoms of a Failing HVAC Control Module

When the HVAC control module in a 2003-2008 Jaguar S-Type begins to fail, it can cause a range of frustrating issues. Understanding these symptoms is the first step in diagnosing the problem correctly.

1. A/C Blows Hot Air

The most widely reported symptom is the system blowing hot or warm air, even when the temperature is set to 'LO'. This can happen on the driver's side, passenger's side, or both. This issue is often directly linked to a failure of the Dual Climate Control Valve (DCCV). A faulty DCCV can short circuit and draw excessive electrical current, which in turn damages the internal circuits of the HVAC control module because the module lacks over-current protection. This damage prevents the module from sending the correct signal to close the DCCV, allowing hot coolant to constantly flow into the heater core.

2. Complete Failure or Unresponsive Controls

In some cases, the entire unit may appear dead, with a blank screen and no response from any buttons. The display might go blank intermittently while driving, though the controls may still function without any visual feedback. This points to an internal electronic failure within the module itself.

3. Inability to Control Temperature or Fan Speed

You might find that you can't adjust the temperature—it's either full hot or full cold with no in-between. Similarly, you may lose the ability to control the fan speed. These issues indicate that the module is no longer correctly processing user inputs or sending the right commands to the system's actuators.

4. Air Blows from Incorrect Vents

If you set the air to blow at your feet but it comes out of the defrost vents, it could be a sign that the control module is failing to command the blend door actuators correctly. You might also hear gurgling or creaking noises from the dash after shutting the car off as the actuators struggle to find their rest position.

Known Issues and Diagnosis

The single most important thing to understand about the S-Type's climate system is the relationship between the HVAC control module and the Dual Climate Control Valve (DCCV). A failing DCCV is the primary cause of control module failure.

The DCCV Connection

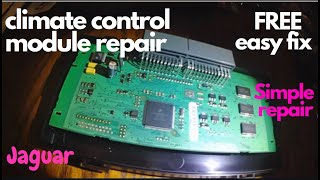

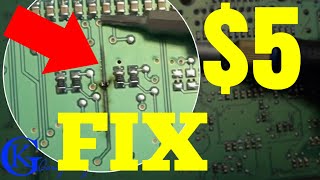

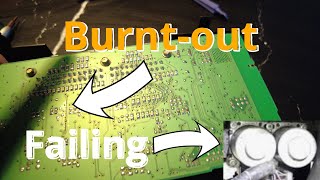

The DCCV uses two solenoids to control hot coolant flow to the left and right sides of the heater core. These solenoids are spring-loaded to the open position (maximum heat). To get cold air, the HVAC module sends a 12-volt signal to energize the solenoids and close the valves. Over time, the DCCV can corrode internally, causing the solenoids to short circuit and draw far more current than the control module is designed to handle. This overload burns out the traces on the module's circuit board, permanently damaging it.

How to Diagnose the Problem

1. Check for Heat in Hoses: With the engine warm and A/C set to 'LO', carefully feel the three hoses connected to the DCCV at the front of the engine bay. If the two smaller hoses going toward the firewall are hot, it means hot coolant is getting past the valve when it should be closed.
2. Test the DCCV Electrically: Disconnect the electrical connector from the DCCV. The valves are spring-loaded open, so with the connector unplugged, the system should default to full heat. If you still have no heat, the valve may be stuck closed.
3. Check for Signal from the Module: With the A/C on 'LO', use a multimeter to check the DCCV's wiring harness connector. The center pin should have 12V power. The two outer pins are grounds controlled by the HVAC module. They should show a good connection to ground when cooling is commanded. If the signals are correct but the temperature is wrong, the DCCV is bad. If the signals are missing or incorrect, the control module is likely faulty.

Buying a Used HVAC Control

Purchasing a used OEM HVAC control can be a cost-effective solution, but careful verification is essential to avoid problems.

1. Verify Compatibility Before You Buy

This is the most critical step. The control unit for the 2003-2008 S-Type is specific to the vehicle's options. The correct unit for this guide is for models that have heated seats but do NOT have the optional navigation system or a heated windshield. The easiest way to verify is by looking at the button layout. Compare the button configuration of the potential replacement with your original unit to ensure an exact match. Part numbers can also be used for verification.

2. Inspect the Unit Thoroughly

When inspecting a used unit, check for the following:

• Button and Screen Condition: Look for excessive wear on the buttons. Check the LCD screen for dead pixels, fading, or any signs of delamination.
• Connectors: Inspect the electrical connector ports on the back for any bent or corroded pins.
• Ask About the Donor Vehicle: Inquire about the history of the car it came from. Avoid units from vehicles with flood or fire damage.

3. The Golden Rule: Replace the DCCV

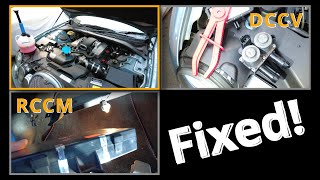

Even if you are only replacing the control module, it is absolutely essential to install a brand new Dual Climate Control Valve (DCCV) at the same time. The used module you are buying may have been perfectly fine when removed, but installing it in a car with a faulty DCCV will destroy it. Do not skip this step.

4. Used OEM vs. New Aftermarket

For this specific part, a good, verified used OEM unit is often a better choice than a new aftermarket one. The fit, finish, and button feel of the original Jaguar part are typically superior. Since the root cause of failure is external (the DCCV), a used module from a vehicle with a healthy DCCV is likely to have a long service life once paired with a new DCCV in your car.

Cost Comparison

Replacement Overview 🎬 Watch: 2004 S-Type climate control module replacement walkthrough

Replacing the HVAC control unit is a relatively straightforward job that a DIY mechanic can typically accomplish in about an hour.

• Difficulty: 2 out of 5
• Estimated Time: 1 - 1.5 hours
• Tools Needed: Torx bits, 8mm socket, trim removal tools.

The basic process involves carefully removing the center console trim around the shifter and radio, unscrewing the four bolts holding the radio and climate control assembly, disconnecting the electrical plugs from the back of the module, and swapping the unit out. There are numerous video guides available online that show this process in detail.
