2019-2023 Ford Ranger HVAC: Control Faults, Blend Door Failures, and Diagnosis

Symptoms of a Failing HVAC System

Diagnosing an HVAC issue in a 2019-2023 Ford Ranger requires paying attention to specific symptoms, as different parts cause different problems. The issue may not be the control unit on your dash, but another component in the system.

1. Clicking or Snapping Noise From Dash, Then No Temperature Control

This is the most significant known issue for 2019-2020 Rangers. You may hear a clicking or snapping sound from behind the dashboard when you try to adjust the temperature. Shortly after, the system gets stuck blowing only hot or only cold air, and turning the temperature knob does nothing. This is almost always caused by a failed blend door actuator or a problem within the air distribution housing itself. Ford has issued Technical Service Bulletins (TSBs) for this specific problem.

2. Fan Only Works on High Speed (or Not at All)

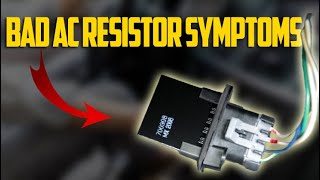

If your blower fan only works on the highest setting, or if some speeds don't work, the problem is typically a failed blower motor resistor, not the control module. The resistor is what controls the fan's speed at lower settings. When it burns out, power can only get to the fan on the 'high' setting, which bypasses the resistor entirely. 🎬 Watch: How to test and replace a bad blower motor resistor If the fan doesn't work on any speed, the issue could be the resistor, the blower motor itself, or a fuse.

3. No Air Coming From Vents

If you can hear the fan running but no air is coming out of the vents, the problem is likely a mode door actuator. This component directs airflow to the correct vents (dash, floor, or defrost). If it fails, the air can get trapped inside the HVAC housing. If you don't hear the fan at all, the problem is more likely the blower motor, resistor, or the control unit itself.

4. Control Knobs or Buttons Are Unresponsive

If the lights on the control unit work but turning the knobs or pressing the buttons does nothing, the control unit itself has likely failed internally. This can include issues like the fan speed not changing, the temperature staying constant, or being unable to switch between A/C and heat.

Known Issues, TSBs, and Recalls

TSB for Blend Door Failure (SSM 51313)

For 2019-2020 Ford Rangers built on or before July 30, 2020, Ford released Technical Service Bulletin SSM 51313 (and earlier versions like 49264 and 50629). This addresses a condition where the temperature cannot be adjusted, often preceded by a clicking noise from the dash. The cause is a failure within the blend door mechanism inside the main HVAC air distribution housing. The official repair is extremely labor-intensive, requiring the removal of the entire instrument panel to replace the housing assembly. Associated diagnostic trouble codes (DTCs) are often B1081 and B1082.

Recall for HVAC Blower Motor Fire Risk (19S34 & 20S12)

Ford issued a safety recall for some 2019 Ranger models because the HVAC blower motor (the fan itself) could short circuit, creating a risk of overheating, smoke, or fire. This was Ford recall 19S34 (NHTSA 19V-726). A second recall, 20S12, was later issued because some of the replacement blower motors used in the first recall were also found to be defective. This recall does not apply to the dashboard control unit, but it is a critical safety issue for the overall HVAC system.

Buying a Used HVAC Control: What to Look For

Purchasing a used OEM HVAC control is a great way to save money, but careful verification is essential to avoid getting the wrong part.

1. Match the Part Number Exactly

This is the most important step. Ford used several different control units depending on the truck's trim level and options. The part number is printed on a sticker on the back or side of the unit. The specific part covered in this guide is the manual control for trucks WITHOUT a heated rear window and WITHOUT voice recognition (SYNC Lite). Known part numbers for this configuration include:

• KB3T-19980-UB3JA6
• KB3T-19980-UC3JA6
• KB3T-19980-UD3JA6
• KB3Z-19980-UA (superseded by UB)
• KB3Z-19980-UB (current replacement)

Do not purchase a part from a Lariat or other high-trim model with automatic or dual-zone climate control, as it will not work in a truck equipped with manual controls.

2. Physical Inspection Checklist

• Buttons and Knobs: Make sure all knobs turn smoothly and that all buttons press and return without sticking. Check for excessive wear on the button graphics.
• Connectors: Inspect the electrical connectors on the back of the unit. Ensure the plastic is not cracked and that no pins are bent, broken, or corroded.
• Mounting Tabs: Check that all plastic mounting tabs are intact and free of cracks. Broken tabs will result in a loose, poorly fitting control unit.

Cost Comparison (2019-2023 Ford Ranger)

Replacement Guide

HVAC Control Module Replacement

• Difficulty: 1 out of 5 (Very Easy)
• Estimated Time: 0.5 Hours
• DIY Feasible: Yes

Replacing the dashboard control unit is a simple task. The process generally involves carefully prying off the surrounding radio and dash trim panels, unscrewing the few bolts that hold the control unit in place, disconnecting the electrical connectors from the back, and then installing the new unit in reverse order. No special tools are required beyond basic trim removal tools and a screwdriver/socket set.

Blend Door / HVAC Housing Replacement (TSB SSM 51313)

• Difficulty: 5 out of 5 (Very Difficult)
• Estimated Time: 8-10 Hours
• DIY Feasible: Not Recommended for Beginners

Programming and Calibration

For a direct swap of a used manual control unit with the exact same part number, programming is typically not required. However, if you install a unit with a different part number or from a truck with different features, it may not function correctly without being programmed to your vehicle's configuration. This can sometimes be done by a DIYer using software like FORScan with an appropriate OBD-II adapter, but it requires technical knowledge. A Ford dealership can also perform this programming.
